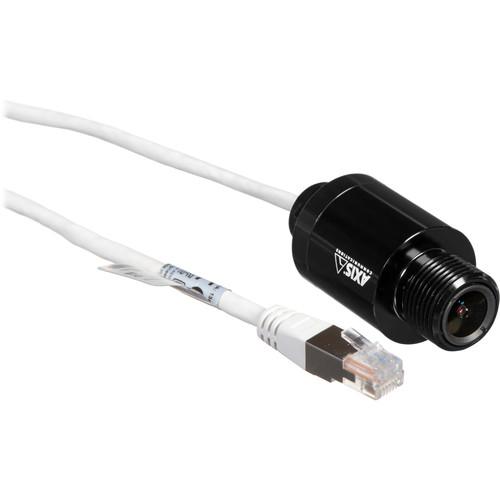

User Manual for Axis Communications F Series 2.1MP Outdoor Sensor Unit with 10' Cable Click to enlarge the picture
Contents of the user manual for the Axis Communications F Series 2.1MP Outdoor
- Product category: Wired IP Cameras Axis Communications
- Brand: Axis Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Axis Communications Wired IP Cameras
|
User manual for the Axis Communications F Series 2.1MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Axis Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Axis Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Axis Communications product will considerably shorten its lifespan!
|
Product description Discreetly capture full HD video with the F Series 2.1MP Outdoor Sensor Unit from AXIS Communications. This camera consists of a sensor unit with a 10' cable attached, and it is designed to be connected to the company's F41 or F44 main units for a full IP system. Equipped with a 2.8" progressive-scan color CMOS sensor, the camera captures video in 1920 x 1080 resolution at a minimum illumination of 0.3 lux. Furthermore, forensic capture wide dynamic range enables you to capture detailed images in ambient lighting for use in a wide range of environments. This compact sensor unit is designed so that the lens component can be flush-mounted to a wall or ceiling, incorporated into a light bar, mounted on top of an emergency vehicle, or installed into a tight space. With an IP66 weatherproof rating, this device is designed to operate in harsh environments and withstand dust, rain, snow, vibrations, shocks, and impacts. Additionally, the package includes an AXIS F8201 Vari-angle Mounting Bracket for easy setup and installation. -
- Full HD 1080p video resolution
- Designed for use with the AXIS F41 and AXIS F44
- Built-in Wide Dynamic Range helps capture clears images of objects surrounded by a strong backlight
- Suitable for discreet and mobile surveillance applications
In the Box Axis Communications F Series 2.1MP Outdoor Sensor Unit with 10' Cable F8201 Vari-Angle Mounting Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Axis Communications F Series 2.1MP Outdoor Sensor Unit with 10' Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxis Communications 0675-001 Specs | | | Image Sensor | 1/2.8" (effective) progressive-scan RGB CMOS | | Lens | 2.8mm fixed iris @ f/2.0 | | Field of View | Horizontal: 113°
Vertical: 62° | | Minimum Illumination | Color: 0.3 lux | | Shutter Speed | HDTV (1080p @ 25/30/50/60 fps): 1/143,000 to 2 seconds
WUXGA (1920 x 1200 @ 25/30 fps): 1/143,000 to 2 seconds | | Resolution | Maximum: 1920 x 1200/1080 | | Wide Dynamic Range | WDR-Forensic Capture with 1080p @ 25/30 fps (50/60 Hz) | | | | Casing | IP66- and IP67-rated, aluminum | | Operating Conditions | Temperature: -22 to 131 °F / -30 to 55 °C
Humidity: 10 to 100% RH (condensing) | | Storage Conditions | -40 to 149°F / -40 to 65°C | | Approvals | ECE R10 rev.04 (E approval), EN 50121-4, IEC/EN/UL 60950-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-30, IEC 60068-2-78, IEC 60529 IP4X, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, EN 50581, EN 50155 (vibration, shock, bump), IEC 60068-2-60, IEC 60529 IP66, IEC 60721-3-5 5M3 (vibration, shock), IEC/EN/UL 60950-22, NEMA 250 Type 4X | | Cable Length | 10' / 3 m | | Dimensions (Ø x H) | 1.2 x 2.4" / 3.0 x 6.2 cm | | Weight | 3.2 oz / 116.0 g with cable | | | | Package Weight | 0.535 lb | | Box Dimensions (LxWxH) | 7.05 x 6.55 x 1.75" |
