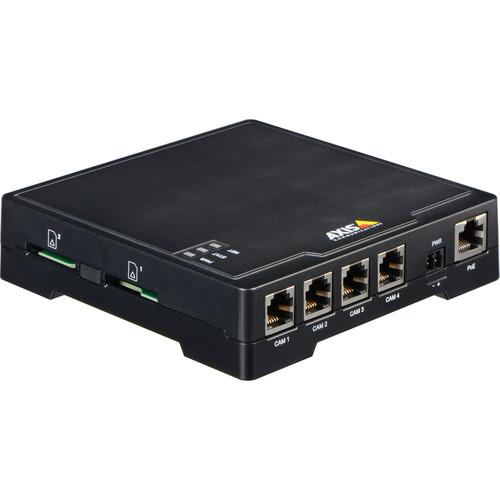

User Manual for Axis Communications F34 Main Unit Click to enlarge the picture
Contents of the user manual for the Axis Communications F34 Main Unit
- Product category: Interface Modules Axis Communications
- Brand: Axis Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Axis Communications Interface Modules
|
User manual for the Axis Communications F34 Main Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Axis Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Axis Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Axis Communications product will considerably shorten its lifespan!
|
Product description Stream four video feeds through a single ethernet port using the Axis Communications F34 Main Unit. Compatible with the F1005-E, F1015, F1025, and F1035-E Axis F Series sensor units, the F34 Main Unit can create a discreet solution for the surveillance of up to four closely placed sensor units.
Capturing video in up to 1080p, the F34 supports quad view streaming, allowing you to monitor all four sensors at once. Multiple imaging technologies provide enhanced image quality and clarity in all lighting conditions, especially in low light or with extremes of bright and dark in the same shot. Using H.264 and MJPEG compression, the unit offers an efficient video compression, without skyrocketing bandwidth or storage needs.
Multiple user-configured events trigger a variety of alarms to maximize security. A terminal block for external devices such as PIRs, door/window contacts, sirens, and relays provides for additional layers of coverage, and allows the F34 to be integrated into alarm/fire panels to expand their capabilities and provide central station monitoring. When connected to the Internet, files can be saved to a remote NAS or monitoring computer. If not connected to a network, files can be saved to an on-board SD card, with cards up to 64GB supported. - Axis F Series Sensor Unit Compatibility
- The Axis F44 main unit is compatible with the following Axis F Series sensor units with cable lengths available in 10' or 39'. The 4-channel unit allows you to mix and match up to four of the F series sensors listed below for a wide variety of surveillance applications.
AXIS F1005-E: for indoor and outdoor use; IP66 dust and water-resistant; 1080p video resolution, 113° wide-angle view, fixed 2.8mm lens
AXIS F1015: for indoor use; 3 to 6mm varifocal lens, 53 to 108° views, 1080p video resolution
AXIS F1025: for indoor use; 3.7mm fixed pinhole lens, 1080p video resolution, 92° wide-angle view
AXIS F1035-E: for indoor or outdoor use; IP66 dust and water-resistant, 1080p video resolution, 1.3 mm, f/2.8 fisheye lens, ultra-wide 194° field of view In the Box Axis Communications F34 Main Unit Rubber Feet Mounting Bracket User License for Windows Decoder AVHS Authentication Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Axis Communications F34 Main Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxis Communications 0778-001 Specs | Number of Channels | 4 | | Resolution | 1080p / HDTV 720p, quad view
1920 x 1080 to 160 x 90
1280 x 720 to 160 x 90 | | Frame Rate | H.264 / MJPEG:
In 1080p, 12.5/15 fps (50/60 Hz)
In 720p, 25/30 fps (50/60 Hz) | | Compression | H.264 (MPEG4 Part 10/AVC), Baseline, Main and High Profiles, MJPEG | | Video Streaming | Quad view, max. 1080p resolution; 25/30 fps (50/60 Hz) with 720p capture mode; 12.5/15 fps (50/60 Hz) with 1080p capture mode | | | | Security | Password protection, IP address filtering, HTTPSc encryption, IEEE 802.1Xc network access control, digest authentication, user access log, centralized certificate management | | Supported Protocols | IPv4/v6, HTTP, HTTPSc, SSL/TLSc, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH | | | | Application Programming Interface | Open API for software integration, including VAPIX and Axis Camera Application Platform
AxisVideo Hosting System (AVHS) with One-Click Connection
ONVIF Profile S | | Analytics | Axis Camera Application Program
Video motion detection 3 | | Triggers & Events | Triggers: Analytics, Edge storage events
File Upload: FTP, HTTP, HTTPS, network share
Notification: E-mail, HTTP, HTTPS, TCP
Pre and post alarm video buffering
Send SNMP trap, WDR mode | | Data Streaming | Event data | | | | Memory | 1024 MB RAM, 256 MB Flash | | Memory Storage | 2 x SD / SDHC / SDXC slots
Each slot supports a microSD card up to 64 GB | | Connectors |
1 x RJ-12 (sensor units)
1 x 2-pin terminal block (8 to 28 VDC input) | | Network Connection | 1 x RJ-45 female 10 BASE-T/100 BASE-TX PoE | | Power | PoE IEEE 802.3af / 802.3at Type 1 Class 3
Max 12.27 W; 8 to 28 VDC, max 12.58 W | | Approvals | IEC/EN/UL 60950-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-78, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, EN 50581, IEC 60529 IP32 EN 55022 Class B, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24 | | Operating Temperature & Humidity | 32 to 104°F / 0 to 40°C, 10 to 85% RH non-condensing | | Storage Temperature | -40 to 149°F / -40 to 65°C | | Dimensions | 1.2 x 4.8 x 4.8" / 30.0 x 121.0 x 121.0 mm | | Weight | 0.5 lb / 238.0 g | | | | Package Weight | 0.735 lb | | Box Dimensions (LxWxH) | 7.1 x 6.5 x 1.7" |
