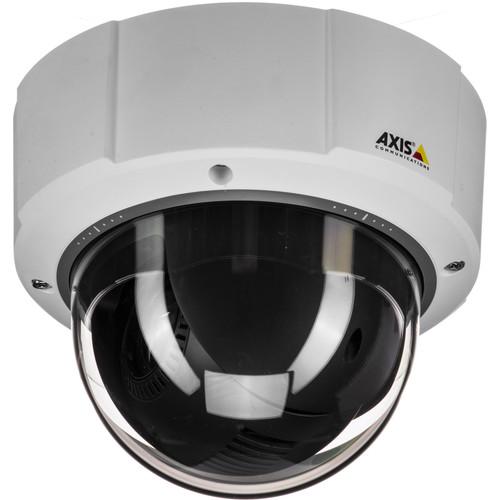

Product description Keep a watchful eye on your property with the M55 Series M5525-E 1080p Outdoor PTZ Network Dome Camera from Axis Communications. This camera has a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. The 4.7-47mm varifocal lens delivers a 61.8-6.7° horizontal field of view. PTZ functionality provides 360° continuous pan, 90° tilt, and 10x optical zoom. Integrated full duplex two-way audio enables communication between you and anyone in the area you're monitoring. An onboard microSD/SDHC/SDXC card slot is available for edge storage. microSD cards are available for purchase separately. Built-in PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. Axis Zipstream technology compresses video footage in H.264, reducing bandwidth usage and storage requirements. In addition, video can be streamed in multiple individual streams, and bandwidth and frame rates are controllable for further customization of your network. Once configured, your surveillance network is secured with a slew of sophisticated safety features, including password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access logging, and centralized certificate management. This device will send an email notification or store video recordings of an event to edge storage when it occurs. It is ONVIF-compliant for Profile S and G, making it compatible with a wide range of surveillance devices. The camera's enclosure is IP66-, NEMA 4X-, and IK09-rated for outdoor use and vandal resistance. - Automatically removable IR cut filter allows for day and night modes
- 10x optical zoom and 12x digital zoom for a 120x total zoom
- Full duplex two-way audio
- Image settings such as saturation, brightness, sharpness, forensic WDR, white balance, exposure mode, exposure zones, compression, text and image overlay, 20 individual 3D privacy masks, contrast, scene profiles, image freeze on PTZ, local contrast, max shutter, max gain, noise/motion priority, aperture lock, and 0, 180° exposure level rotation ensure you receive the best image quality possible
- Support for microSD card encryption, and recording to network-attached storage (NAS)
- IP66-, NEMA4X-, and IK09-rated enclosure that is suitable for outdoor use
In the Box Axis Communications M55 Series M5525-E 1080p Outdoor PTZ Network Dome Camera 3/4" Conduit Adapter Smoked Dome Adapter Bayonette Windows Decoder 1-User License Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Axis Communications M55 Series M5525-E 1080p Outdoor PTZ Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxis Communications M5525-E Specs | | | Image Sensor | 1/2.8" progressive scan CMOS | | Lens | 4.7-47mm, f/1.6-3.0
Horizontal Field of View: 61.8-6.7°
Vertical Field of View: 37.2-3.8°
Autofocus, auto-iris
| | Day and Night | Automatically removable IR cut filter | | Minimum Illumination | Color: 0.45 lux at 30 IRE f/1.6
B&W: 0.01 lux at 30 IRE f/1.6
Color: 0.55 lux at 50 IRE f/1.6
B&W: 0.01 lux at 50 IRE f/1.6
| | Shutter Time | 1/66,500 to 2 seconds | | Pan/Tilt/Zoom | Pan: 360° endless, 1.8-150°/s
Tilt: 90°,1.8-150°/s
10x optical zoom, 12x digital zoom, total 120x zoom
Nadir flip, 100 preset positions, limited guard tour, control queue, on-screen directional indicator
| | | | Compression | H.264 (MPEG-4 Part 10/AVC) - baseline, main and high profiles
MJPEG | | Resolution | 1920 x 1080 to 320 x 180 | | Frame Rate | Up to 25/30 fps with powerline frequency 60/50 Hz | | Streaming | Multiple, individually configurable streams in H.264 and MJPEG
Axis Zipstream technology in H.264
Controllable frame rate and bandwidth
VBR/MBR H.264
| | Image Settings | Saturation, brightness, sharpness, WDR - forensic capture, white balance, exposure mode, exposure zones, compression, text and image overlay, 20 individual 3D privacy masks, contrast, scene profiles, image freeze on PTZ, local contrast, max shutter, max gain, noise/motion priority, aperture lock, exposure level
Rotation: 0, 180°
| | | | Streaming | Two-way, full duplex | | Compression | AAC-LC 8/16/32 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz
Configurable bit rate
| | Input/Output | External microphone input or line input, line output | | | | Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log, centralized certificate management | | Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH | | | | Application Programming Interface | Open API for software integration, including VAPIX and AXIS Camera Application Platform
AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF Profiles S and G
| | Analytics | Included: AXIS Video Motion Detection, audio detection, Advanced Gatekeeper
Supported: AXIS Cross Line Detection, AXIS Guard Suite including AXIS Fence Guard, AXIS Motion Guard
Support for AXIS Camera Application Platform enabling installation of third-party applications | | Event Triggers | Analytics, edge storage events
Detectors: Day/Night mode, live stream accessed, audio detection
Hardware: Network, temperature
Input Signal: Digital input port, manual trigger, virtual inputs
PTZ: Error, moving, preset reached, ready
Storage: Disruption, recording
System: System ready
Time: Recurrence, use schedule
| | Event Actions | Record Video: SD card and network share
Upload of Images or Video Clips: FTP, SFTP, HTTP, HTTPS, network share, and email
Pre- and post-alarm video or image buffering for recording or upload
Notification: Email, HTTP, HTTPS, TCP, and SNMP trap
PTZ: PTZ preset, start/stop guard tour
Overlay text, play audio clip, external output activation, WDR mode
| | Data Streaming | Event data | | Built-In Installation Aids | Pixel counter | | | | Casing | IP66-, NEMA 4X-, and IK09-rated
Repaintable plastic casing, polycarbonate dome
| | Sustainability | PVC free | | Memory | 512 MB RAM, 256 MB flash | | Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
Typical 6.6 W, max 12.95 W
20-28 VDC, typical 6.3 W, max 13 W
(PoE midspan and power supply not included)
| | Connectors | RJ45 10Base-T/100Base-TX PoE
DC input terminal block
6-pin terminal block with push-in spring connection for four configurable inputs/outputs
Audio: Mic/line in, line out terminal block with push-in spring connection
| | Storage | Support for microSD/SDHC/SDXC card (not included)
Support for SD card encryption
Support for recording to network-attached storage (NAS) | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Relative Humidity | 15-100% (condensing) | | Storage Temperature | -40 to 149°F (-40 to 65°C) | | Approvals | EMC
EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35
Safety
IEC/EN/UL 62368-1, IEC/EN/UL 60950-22
Environment
IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60529 IP66, IEC/EN 62262 IK09
| | Video Management Software | AXIS Companion, AXIS Camera Station, video management software from Axis' Application Development Partners available | | Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese | | Dimensions (Diam. x H) | 6.5 x 5.2" (165 x 132 mm) | | Weight | 2.4 lb (1.1 kg)
Recessed Mount (Plenum Rated): 2.2 lb (1.0 kg)
| | | | Package Weight | 4.285 lb | | Box Dimensions (LxWxH) | 11.2 x 10.45 x 8.65" |
