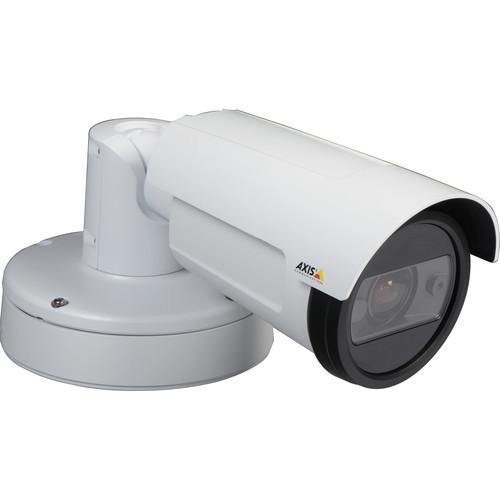

User Manual for Axis Communications P14 Series P1447-LE 5MP Outdoor Network Bullet Camera with Night Vision & 2.8-8.5mm Lens Click to enlarge the picture
Contents of the user manual for the Axis Communications P14 Series P1447-LE 5MP
- Product category: Wired IP Cameras Axis Communications
- Brand: Axis Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Axis Communications Wired IP Cameras
|
User manual for the Axis Communications P14 Series P1447-LE 5MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Axis Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Axis Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Axis Communications product will considerably shorten its lifespan!
|
Product description The P14 Series P1447-LE 5MP Outdoor Network Bullet Camera with Night Vision & 2.8-8.5mm Lens from Axis Communications has a 1/2.9" progressive scan CMOS sensor to capture 3072 x 1728 resolution video at up to 30 fps. IR LEDs provide up to 98' of night vision. The 2.8-8.5mm varifocal lens delivers a 104-36° horizontal field of view. Audio is possible thanks to a mic/line input. An onboard microSD/SDHC/SDXC card slot is available for local storage. microSD cards are available for purchase separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
Axis Zipstream technology compresses video footage in H.264, reducing bandwidth usage and storage requirements. In addition, video can be streamed in multiple individual streams, and bandwidth and frame rates are controllable for further customization of your network. Once configured, your surveillance network is secured with a host of safety features, including password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access logging, and centralized certificate management.
This camera is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP67-, NEMA 4X-, and IK10-rated enclosure that is suitable for use outdoors in areas at risk of vandalism. - Captures 5MP video at up to 30 fps
- Automatically removable IR cut filter for day and night functionality
- Axis Zipstream technology
- H.264 and MJPEG compression
- Image settings include saturation, contrast, brightness, sharpness, up to 120 db forensic WDR depending on scene, white balance, day/night threshold, exposure mode, exposure zones, compression, orientation: auto, 0, 90, 180, 270° including corridor format, mirroring of images, dynamic text and image overlay, and privacy masks
- Forensic WDR, Lightfinder technology, and OptimizedIR ensure that scenes are properly captured in challenging light conditions
- Multiple, individually configurable streams in H.264 and MJPEG formatting
- Motion detection included, with support for line crossing, perimeter defender, autotracking, and 3rd party applications for analytics
- Controllable frame rate and bandwidth (VBR/MBR H.264)
- 4-pin terminal block for alarm I/O
- Built-in installation aids include pixel counter, remote zoom, remote focus, and auto rotation
- Support for recording to NAS (network-attached storage)
- IP67-, NEMA 4X-, and IK10-rated enclosure that is suitable for use outdoors in areas at risk of vandalism
- Includes drill hole template, connector kit, mounting bracket, and weather shield
In the Box Axis Communications P14 Series P1447-LE 5MP Outdoor Network Bullet Camera with Night Vision & 2.8-8.5mm Lens Windows Decoder 1-User License Drill Hole Template Connector Kit Mounting Bracket Axis Weather Shield L Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Axis Communications P14 Series P1447-LE 5MP Outdoor Network Bullet Camera with Night Vision & 2.8-8.5mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxis Communications P1447-LE Specs | | | Sensor | 5 MP 1/2.9" CMOS | | Focal Length | 2.8 to 8.5mm | | Maximum Aperture | f/1.2 | | Zoom | Optical: 3x | | Lens Field of View | Horizontal: 104 to 36°
Vertical: 55 to 20° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.15 Lux
B&W: 0 Lux | | Shutter Speed | 1/62500 to 2 Seconds | | | | Streaming Resolution | 3072 x 1728 at 25/30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 8 Streams | | | | Streaming | Single | | Audio Formats | AAC, ADPCM, G.711, G.726, LPCM, Opus, PCM | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | | | Security | Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log | | Supported Protocols | ARP, Bonjour, CIFS/SMB, DHCP, DNS, DynDNS, FTP, HTTP, , ICMP, IGMP, IPv4/v6, LLDP, NTP, ONVIF Profile G, ONVIF Profile S, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SRTP, SSH, SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | Open API, VAPIX and AXIS Camera Application Platform, AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF Profile S and ONVIF Profile G | | Analytics | Included:
AXIS Video Motion Detection
Supported:
AXIS Digital Autotracking, AXIS Perimeter Defender, AXIS Cross Line Detection, support for third-party applications | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | Built-In Installation Aids | Pixel counter, remote zoom (3x optical), remote focus, auto rotation | | | | Memory | 1024 MB RAM / 512 MB Flash | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x 4-Pin Terminal Block | | IR Range | 98' / 29.87 m | | Video Management Software | AXIS Companion, AXIS Camera Station, video management software from Axis' Application Development Partners | | Supported Languages | English
French
German
Italian
Japanese
Korean
Portuguese
Russian
Simplified Chinese
Spanish
Traditional Chinese | | Internal Storage | None | | External Storage Options | NAS | | Power Source | PoE 802.3af (15 W), PoE 802.3at (30 W) | | Power Consumption | 6.7 W 6.7 W typical, 12.95 W max | | Material of Construction | Aluminum, Polymer | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Storage Temperature | -40 to 149°F / -40 to 65°C | | Operating Humidity | 10 to 100% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
