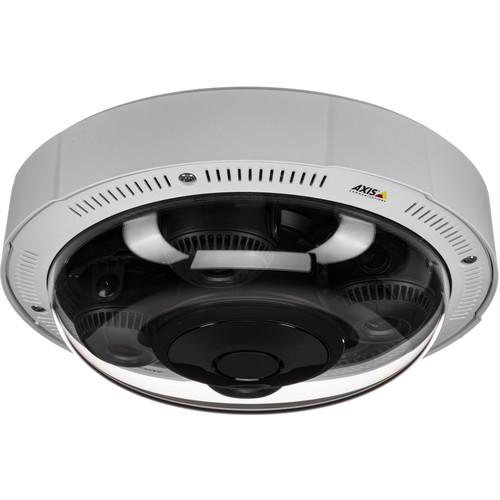

Axis Communications P3717-PLE 8MP Outdoor 4-Sensor

User Manual for Axis Communications P3717-PLE 8MP Outdoor 4-Sensor 360° Network Dome Camera with Night Vision

• Product category: Wired IP Cameras Axis Communications
• Brand: Axis Communications
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Axis Communications Wired IP Cameras

Product description

• 360° multidirectional 4-sensor camera

• One IP address for all channels

• Flexible positioning of four varifocal camera heads

• 360° IR illumination via four individually controllable IR LEDs

• Lightfinder technology for low-light visibility

• H.264 and MJPEG compression

• Axis Zipstream technology compresses video footage in H.264, reducing bandwidth usage and storage requirements

• Controllable frame rate and bandwidth (VBR/MBR H.264)

• 2x optical zoom

• Motorized zoom and focus

• Image settings include saturation, contrast, brightness, sharpness, forensic WDR, white balance, exposure control, exposure zone, fine tuning of behavior at low light, 0, 90, 180, and 270° rotation including corridor format, dynamic text and image overlay, polygon privacy mask, and compression

• Analytics include video motion detection and active tampering alarm, with support for perimeter defending, AXIS Guard Suite, and third-party applications

• Event triggers include detectors, hardware, input signal, storage, system, time, analytics, and edge storage events

• Built-in installation aids include pixel counter, focus assistant, remote focus, and remote zoom

• RJ45 connector

• PVC free

• Support for SD card encryption & recording to network-attached storage (NAS)

• 1/2" M20 conduit side entry

• 3/4" M25 conduit adapter (included)

• Integrated weathershield

Camera Adjustment Angles
• • Horizontal: ±90°
  • Vertical: 17-102°
  • Rotation: 5-95°
  • Twist: ±20°

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Axis Communications P3717-PLE Specs

Memory	1024 MB RAM / 512 MB Flash
Recording Media	microSD (Up to 512 GB)
Pan/Tilt	None
I/O Connections	1 x RJ45
IR Illuminators	4 x 850 nm
IR Range	49.2' / 15.00 m
Video Management Software	AXIS Companion AXIS Camera Station VMS from Axis' Application Development Partners
Supported Languages	English French German Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Traditional Chinese
Internal Storage	None
External Storage Options	NAS
Power Source	PoE 802.3at (30 W)
Power Consumption	8.6 W 11.1 W with IR
Material of Construction	Aluminum, Plastic, Polymer
Operating Temperature	-22 to 122°F / -30 to 50°C
Storage Temperature	-40 to 149°F / -40 to 65°C
Operating Humidity	10 to 100%
IP Rating	IP67
IK Rating	IK09
