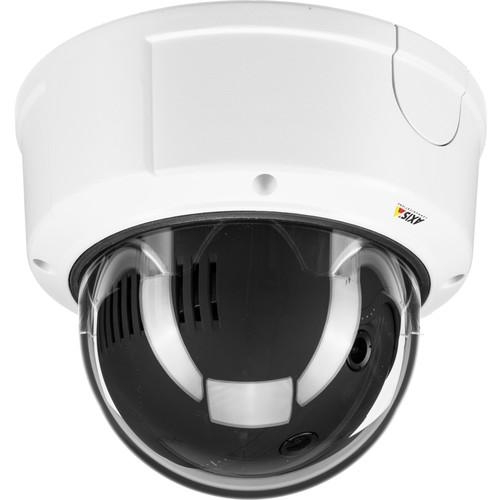

User Manual for Axis Communications P3807-PVE 8.3MP Outdoor 4-Sensor Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Axis Communications P3807-PVE 8.3MP Outdoor 4-Sensor
- Product category: Wired IP Cameras Axis Communications
- Brand: Axis Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Axis Communications Wired IP Cameras
|
User manual for the Axis Communications P3807-PVE 8.3MP Outdoor 4-Sensor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Axis Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Axis Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Axis Communications product will considerably shorten its lifespan!
|
Product description The P3807-PVE from Axis Communications is a multi-sensor camera that uses four 1/2.9" progressive scan RGB CMOS sensors to capture video at a total resolution of 4320 x 1920 at up to 30 fps. The camera is equipped with four 3.2mm fixed lenses that provide a seamlessly stitched 180° horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This multi-sensor camera is compliant with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP67-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. - Four sensors provide a 180° panoramic overview
- Automatically removable IR cut filter for day and night functionality
- Lightfinder technology for low-light visibility
- H.264 and MJPEG compression
- Axis Zipstream technology compresses video footage in H.264, reducing bandwidth usage and storage requirements
- Controllable frame rate and bandwidth (VBR/MBR H.264)
- Image settings include saturation, contrast, brightness, sharpness, up to 120 dB of forensic WDR depending on scene, white balance, day/night threshold, exposure mode, compression, dynamic text and image overlay, exposure control, noise reduction, fine tuning of behavior at low light, polygon privacy masks
- Analytics include video motion detection and active tampering alarm, with support for perimeter defending, motion guard, fence guard, loitering guard, and third-party applications
- Event triggers include analytics, edge storage events, and shock detection
- Built-in installation aids include pixel counter and leveling guide
- Support for SD card encryption & recording to network-attached storage (NAS)
- Weathershield and mounting bracket with junction box holes included
- 13.1 to 49.2' recommended mounting height
- Camera Adjustment Angles
-
- Horizontal: ±180°
- Vertical: 0, 35, 45, 55°
- Roll: ±10°
In the Box Axis Communications P3807-PVE 8.3MP Outdoor 4-Sensor Network Dome Camera Windows Decoder 1-User License Resistorx L-Key Weathershield Mounting Bracket Cable Gasket Axis U-Shape Conduit Adapter (30mm) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Axis Communications P3807-PVE 8.3MP Outdoor 4-Sensor Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxis Communications P3807-PVE Specs | | | Sensor | 4 x 2.075 MP 1/2.9" CMOS 8.3 MP in total | | Lens Mount | M12 | | Focal Length | 3.2mm | | Maximum Aperture | f/2 | | Lens Field of View | Horizontal: 180°
Vertical: 90° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.17 Lux
B&W: 0.05 Lux | | Shutter Speed | 1/33,500 to 1/10 Seconds | | Camera Angle Adjustment | Horizontal: -180 to 180°
Vertical: 0 to 55° | | | | Streaming Resolution | 4320 x 1920 at 30 fps Total resolution | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes | | | | Security | Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log | | Supported Protocols | ARP, Bonjour, CIFS/SMB, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SSH, SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | Open API for Software Integration, Including VAPIX and AXIS Camera Application Platform
AXIS Video Hosting System (AVHS) with One-Click Connection
ONVIF Profiles S and G | | Analytics | Included
AXIS Video Motion Detection
Active Tampering Alarm
Supported
AXIS Perimeter Defender
AXIS Motion Guard
AXIS Fence Guard
AXIS Loitering Guard
AXIS Camera Application Platform for Third-Party Applications | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | Built-In Installation Aids | Pixel Counter
Leveling Guide | | | | Memory | 1024 MB RAM / 512 MB Flash | | Recording Media | microSD (Up to 512 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | Video Management Software | AXIS Companion
AXIS Camera Station
VMS from Axis Application Development Partners | | Supported Languages | English
French
German
Italian
Japanese
Korean
Portuguese
Russian
Simplified Chinese
Spanish
Traditional Chinese | | Internal Storage | None | | External Storage Options | NAS | | Power Source | PoE 802.3af (15 W), PoE 802.3at (30 W) | | Power Consumption | 7 W | | Material of Construction | Aluminum, Polymer | | Operating Temperature | -22 to 122°F / -30 to 50°C | | Storage Temperature | -40 to 149°F / -40 to 65°C | | Operating Humidity | 10 to 100% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions | H: 6.5 x W: 7.8" / H: 166.0 x W: 198.0 mm Width with Weathershield: 8.1" / 206 mm | | Weight | 4.5 lb / 2 kg | | | | Package Weight | 6.86 lb | | Box Dimensions (LxWxH) | 11.9 x 10.6 x 10.5" |
