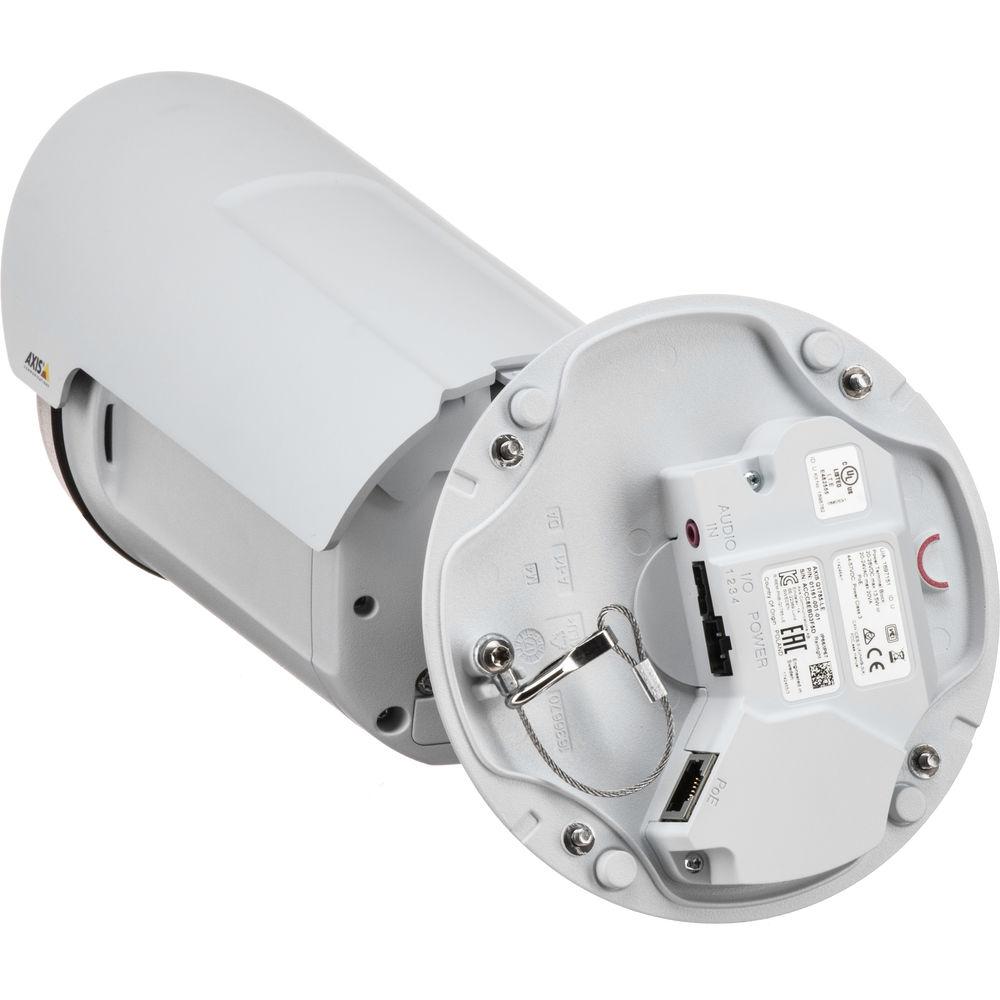

User Manual for Axis Communications Q17 Series Q1785-LE 2MP Outdoor Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Axis Communications Q17 Series Q1785-LE 2MP
- Product category: Wired IP Cameras Axis Communications
- Brand: Axis Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Axis Communications Wired IP Cameras
 |
User manual for the Axis Communications Q17 Series Q1785-LE 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Axis Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Axis Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Axis Communications product will considerably shorten its lifespan!
|

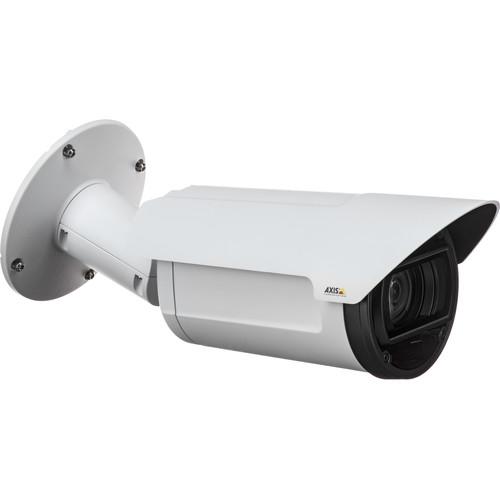

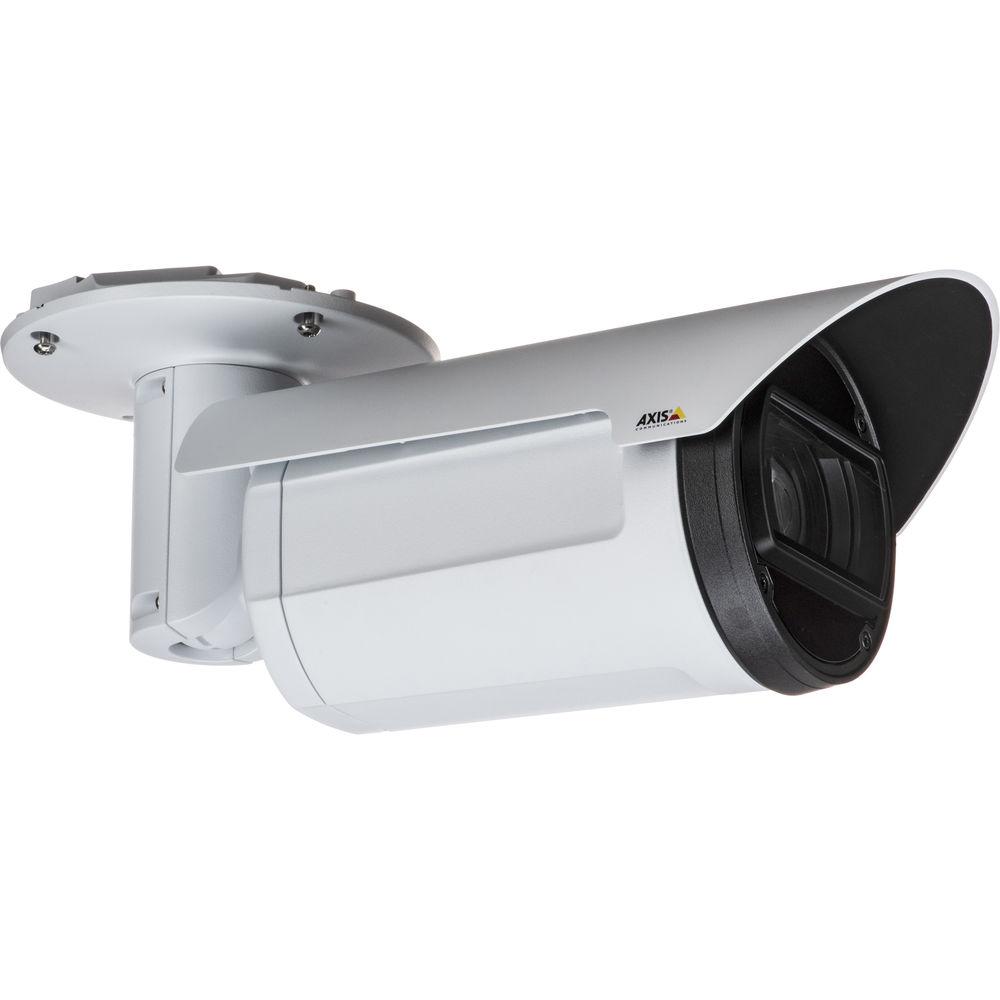

Product description The white Q17 Series Q1785-LE 2MP Outdoor Network Bullet Camera from Axis Communications uses a 1/2.8" progressive scan RGB CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. IR LEDs provide up to 262' of night vision. The camera's 4.3-137mm varifocal lens delivers a 60-2.3° horizontal field of view. Audio recording is available via a 3.5mm audio input. A built-in memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This bullet camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP67-, NEMA 4X-, and IK08-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. - Automatically removable IR cut filter for day and night functionality
- OptimizedIR and Lightfinder technology for low-light visibility
- Axis Zipstream technology compresses video footage in H.264, reducing bandwidth usage and storage requirements
- Multiple, individually configurable streams in H.264 and MJPEG
- Controllable frame rate and bandwidth (VBR/MBR H.264)
- Digital PTZ and preset positions
- Image settings include saturation, contrast, brightness, sharpness, up to 120 dB of forensic WDR depending on scene, defogging, white balance, day/night threshold, exposure mode, exposure zones, compression, mirroring of images, electronic image stabilization, barrel distortion correction, text and image overlay, dynamic text and image overlay, privacy masks, 0, 90, 180, and 270° rotation including corridor format, and forensic, vivid & traffic overview scene profiles
- Analytics include video motion detection, fence guard, loitering guard, motion guard, active tampering alarm, and gatekeeper, along with support for perimeter defending, line crossing detection, and third-party applications
- Brute force delay protection
- Built-in installation aids include remote zoom, pixel counter, leveling assistant, and autorotation
- Terminal block for two configurable supervised inputs/digital outputs
- Support for SD card encryption & recording to network-attached storage (NAS)
In the Box Axis Communications Q17 Series Q1785-LE 2MP Outdoor Network Bullet Camera with Night Vision Windows Decoder 1-User License Connector Kit Resistorx L-Key RJ45 Patch Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Axis Communications Q17 Series Q1785-LE 2MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxis Communications Q1785-LE Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 4.3 to 137mm | | Maximum Aperture | f/1.4 - f/4 | | Zoom | Optical: 32x | | Lens Field of View | Horizontal: 60 to 2.3°
Vertical: 39 to 1.3° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.16 Lux
B&W: 0 Lux | | Shutter Speed | 1/66,500 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes | | | | Streaming | Single | | Audio Formats | AAC, G.711, G.726, LPCM, Opus | | External Audio Input | 3.5 mm | | | | Security | Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log | | Supported Protocols | ARP, Bonjour, CIFS/SMB, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SRTP, SSH, SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | Open API for Software Integration, Including VAPIX & AXIS Camera Application Platform
AXIS Video Hosting System (AVHS) with One-Click Connection
ONVIF Profiles S & G | | Analytics | Included: AXIS Video Motion Detection, AXIS Fence Guard, AXIS Loitering Guard, AXIS Motion Guard, Active Tampering Alarm, Gatekeeper
Supported: AXIS Perimeter Defender, AXIS Cross Line Detection, AXIS Camera Application Platform for Third-Party Applications | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | Built-In Installation Aids | Remote Zoom, Pixel Counter, Leveling Assistant, Autorotation | | | | Memory | 1024 MB RAM / 512 MB Flash | | Recording Media | microSD (Up to 512 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power
1 x Uncrimped Ethernet Terminus
1 x 4-Pin Terminal Block | | IR Illuminators | 850 nm | | IR Range | 262.47' / 80 m | | Video Management Software | AXIS Companion
AXIS Camera Station
VMS from Axis' Application Development Partners | | Supported Languages | English
French
German
Italian
Japanese
Korean
Portuguese
Russian
Simplified Chinese
Spanish
Traditional Chinese | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC, DC, PoE 802.3af (15 W), PoE 802.3at (30 W) | | Power Consumption | 7.7 W | | Material of Construction | Aluminum | | Operating Temperature | -40 to 140°F / -40 to 60°C | | Storage Temperature | -40 to 149°F / -40 to 65°C | | Operating Humidity | 10 to 100% | | IP Rating | IP67 | | IK Rating | IK08 | | Dimensions |
