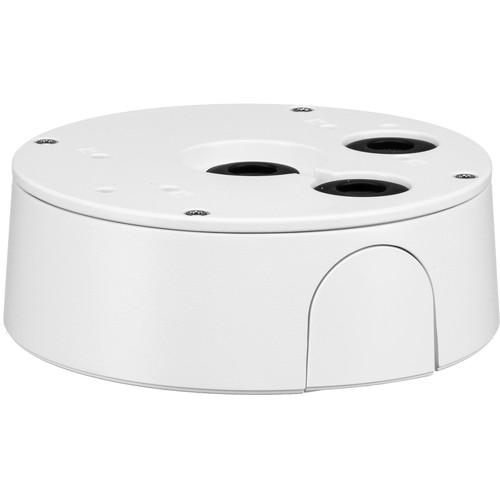

User Manual for Axis Communications T94S01P Conduit Back Box Click to enlarge the picture
Contents of the user manual for the Axis Communications T94S01P Conduit Back Box
- Product category: Mounting Hardware Axis Communications
- Brand: Axis Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Axis Communications Mounting Hardware
 |
User manual for the Axis Communications T94S01P Conduit Back Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Axis Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Axis Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Axis Communications product will considerably shorten its lifespan!
|
Product description The T94S01P Conduit Back Box from Axis Communications is designed to be mounted with a wide range of Axis network cameras. It offers a 3/4" M25 conduit interface from both the side and back. An IP67-rated compartment provides secure storage of connectivity devices in outdoor applications. In addition, the T94S01P enables both the network camera and connectivity device to be mounted at the same point without requiring an extra cabinet for installation. This back box is IK10-rated for vandal resistance. In the Box Axis Communications T94S01P Conduit Back Box 3 x Gasket C M20 Cable 3-5mm 4 x Stainless Steel Screws (TX20) and Washers Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Axis Communications T94S01P Conduit Back Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxis Communications T94S01P Specs | Compatibility | Axis P14 network camera series (requires T94F01M junction box / gang box plate)
Axis P32 network camera series
Axis P33 network camera series
Axis Q17 network camera series
Axis Q19 thermal network camera series
Axis Q35 network camera series
Axis Q36 network camera series | | Environment | Indoor/outdoor | | Mounting | Double gang box, single gang box, 4" / 10.2 cm octagon junction box, 4" / 10.2 cm square junction box | | Casing | Material:
Powder-coated aluminum casing, stainless steel screws (TX20)
Color: White NCS S 1002-B | | Cable Routing | Back: 3 cable holes
Sides: 3/4" / 1.9 cm conduit entrances
Underside: 4 x gaskets C M20 0.2-0.37" / 5-9.5 mm
Top Cover: 3 x gaskets C M20 0.2-0.37" / 5-9.5 mm | | Maximum Load | 5 lb / 2.3 kg | | Sustainability | PVC-free | | Approvals | Safety
IEC/EN/UL 62368-1, IEC/EN/UL 60950-22
Environment
IEC 60068-2-6, IEC 60068-2-27, IEC/EN 60529 IP66/IP67, NEMA 250 Type 4X
Impact
IEC/EN 62262 IK10+ | | Dimensions (Ø x H) | Ø6.18 x 2.1" / Ø157 x 53.5 mm | | Weight | 1.65 lb / 750 g | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 8.75 x 8.15 x 2.45" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
