User Manual for Axler 12" Dual Mega Ball Clamp Arm with 1 4"-20 and 3 8"-16 ARRI Accessory Mount Click to enlarge the picture
Contents of the user manual for the Axler 12" Dual Mega Ball Clamp
- Product category: Articulating Arms Axler
- Brand: Axler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Axler Articulating Arms
 |
User manual for the Axler 12" Dual Mega Ball Clamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Axler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Axler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Axler product will considerably shorten its lifespan!
|

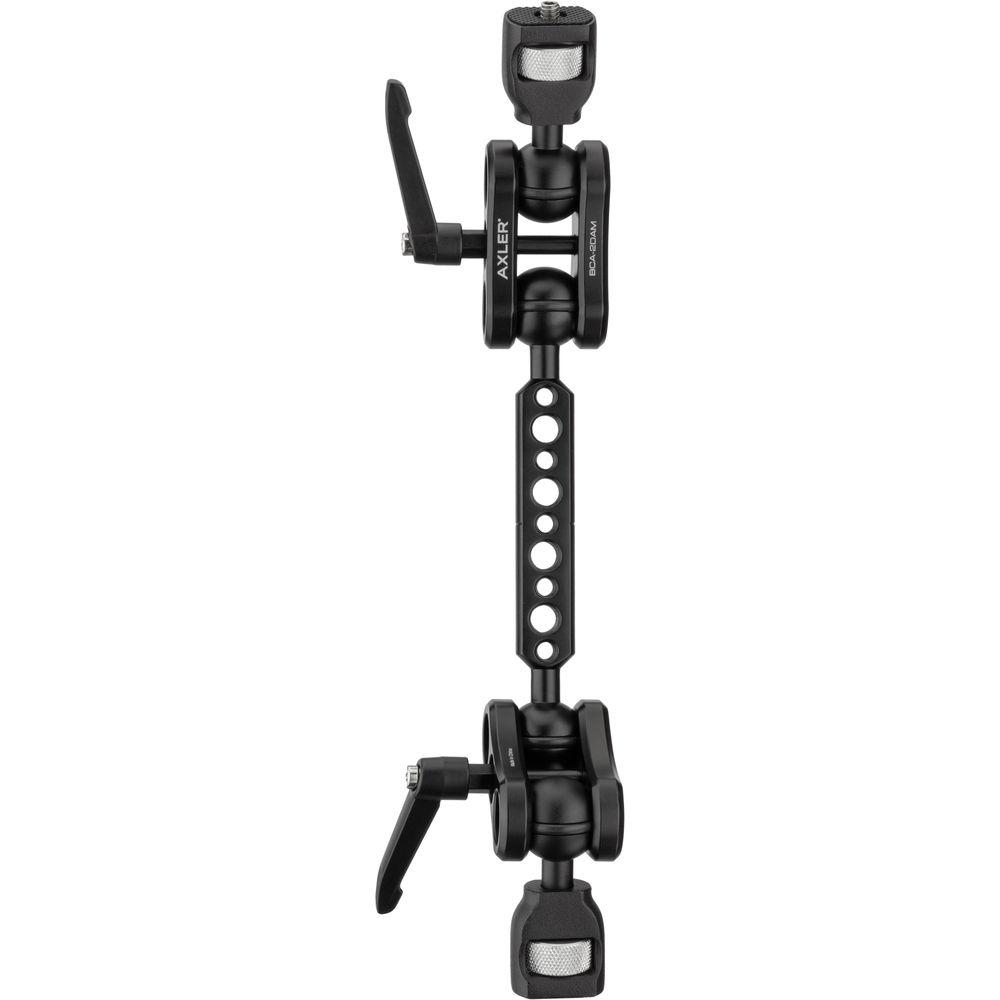

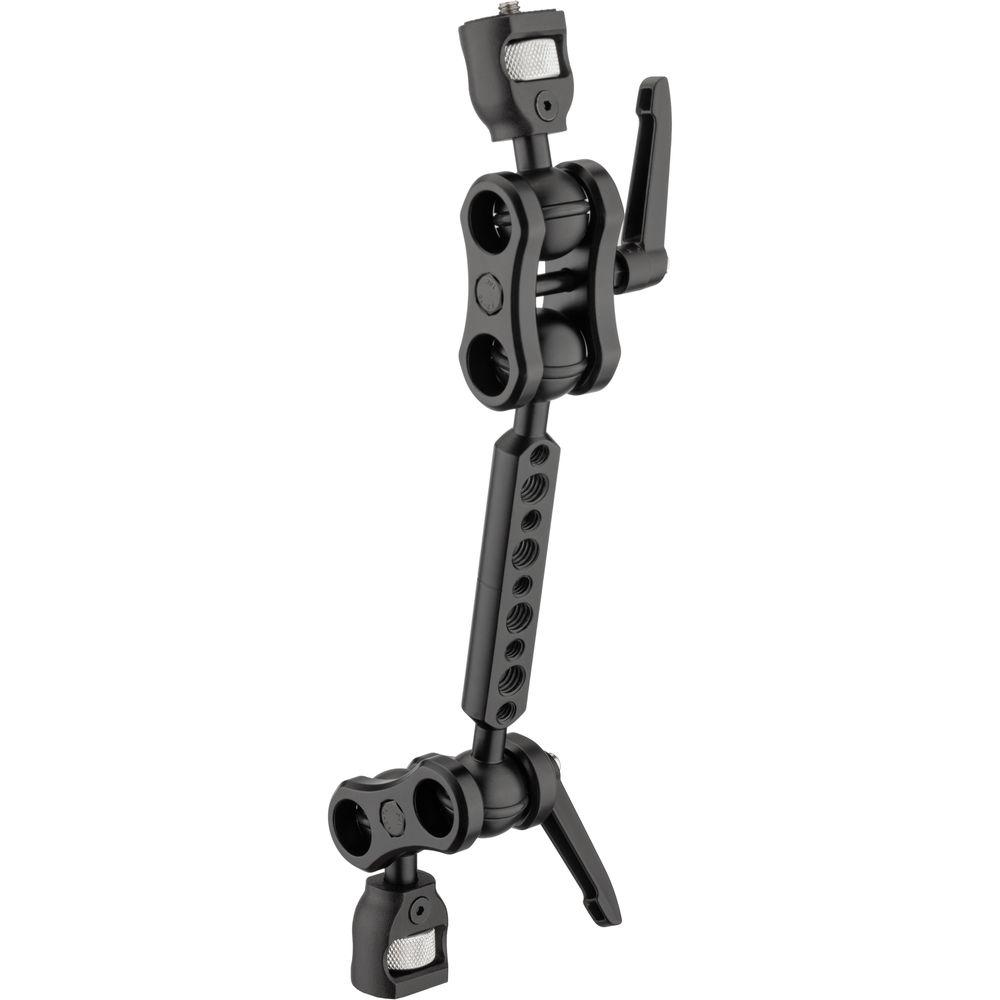

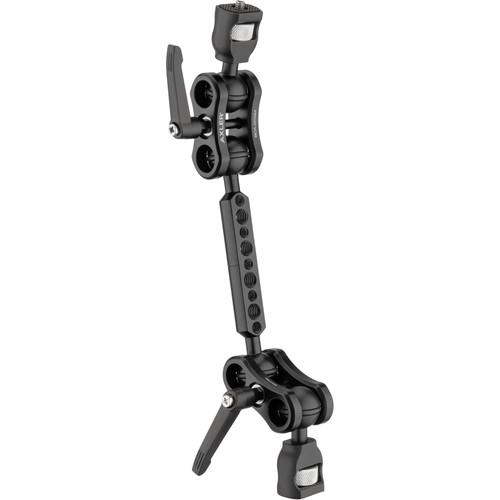

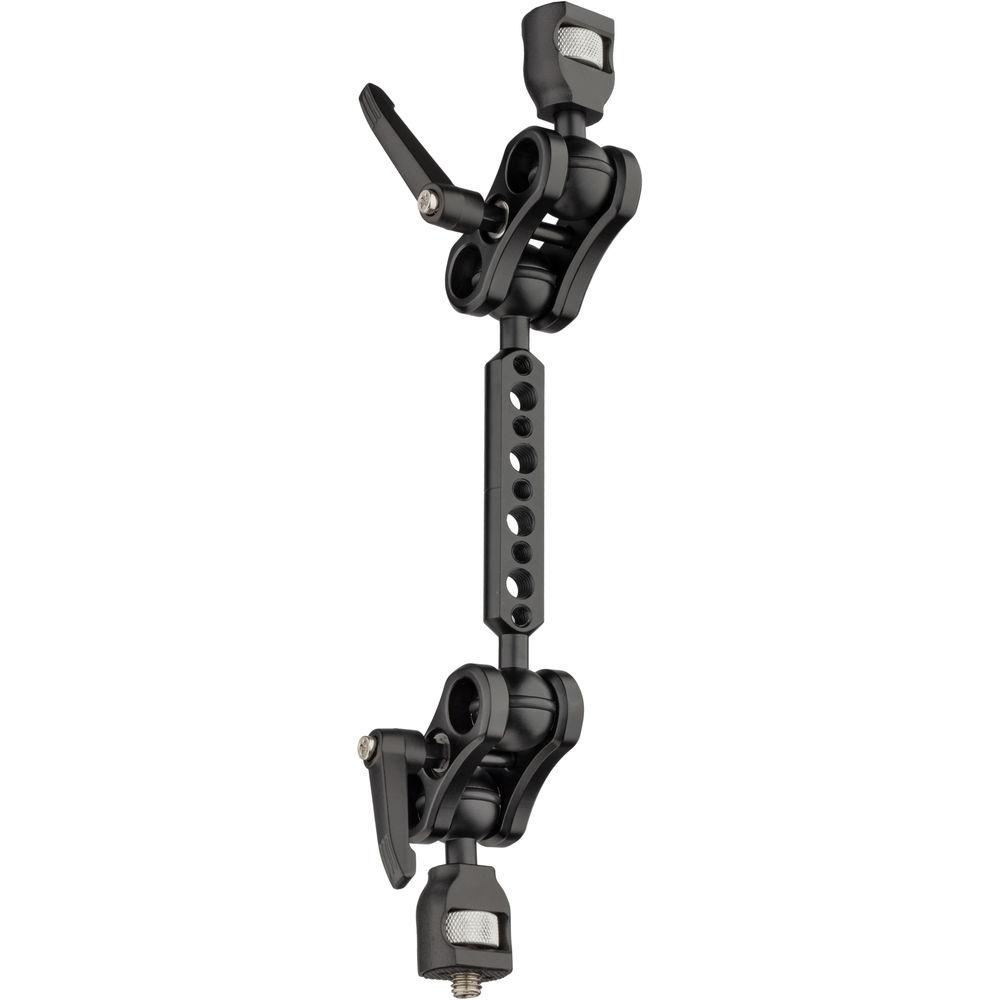

Product description The Axler 12" Dual Mega Ball Clamp Arm with 1/4"-20 and 3/8"-16 ARRI Accessory Mount features four articulating joints and two mounting ends—one with a 1/4"-20 threaded stud and the other with a 3/8"-16 threaded stud that converts to an ARRI accessory mount by mounting the included, removable anti-twist pins. A 5" extension with threaded accessory mounting holes expands the usefulness of this arm. The center spring-loaded locking lever on each clamp arm tightens or loosens that clamp. The threaded mounting ends feature a rubber-topped platform. A thumbwheel rotates the studs, enabling you to tighten or loosen accessories.

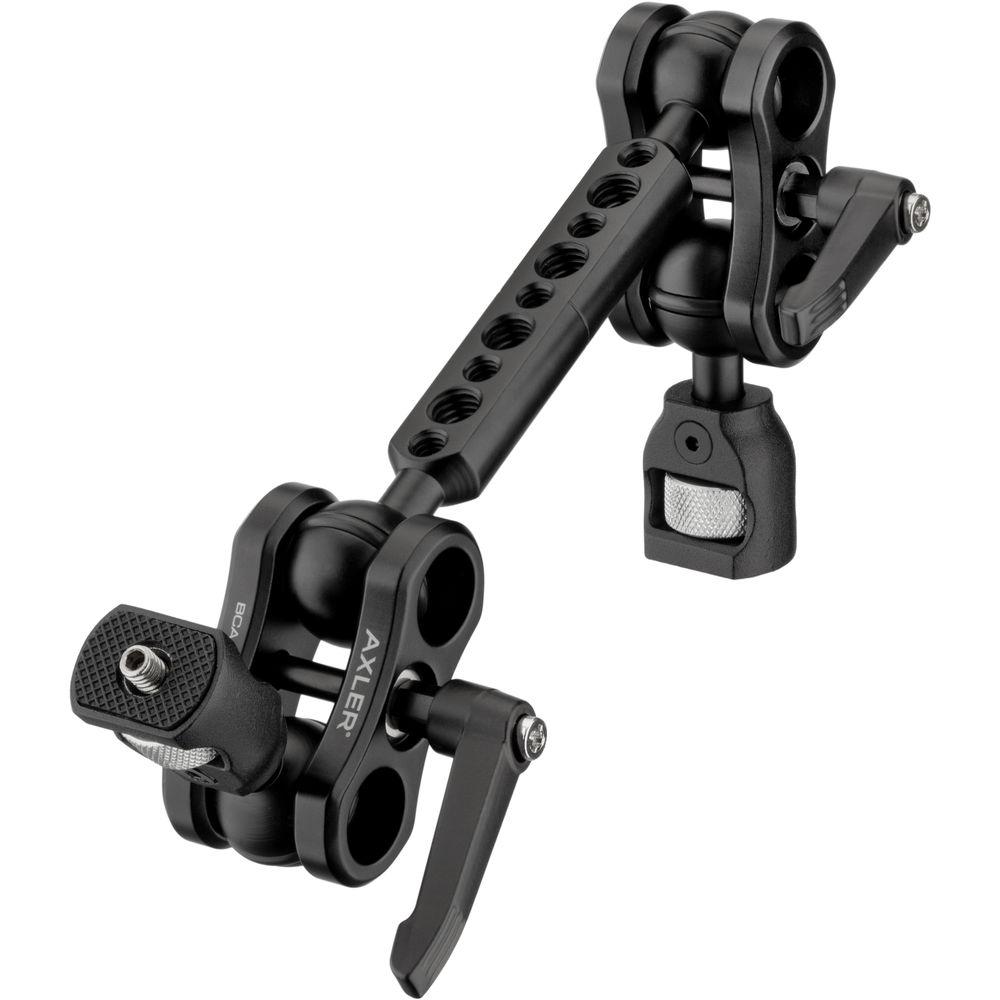

Made from anodized aluminum, the mounting ends feature a ball joint system with an O-ring integrated into the ball. This allows you to tighten the clamp on the ball joints and lock it in place without having to overtighten the clamp. The ends can swing through more than 180° of arc and can be locked and held in place by merely tightening the center lever. - This item is made by using two BCA-2 clamps and mounting a 5" extension bar (AS-5) between them. This creates a longer arm that also has four 1/4"-20 and four 3/8"-16 threaded mounting holes on the center bar for attaching accessories.
- Made from anodized aluminum, this clamp is flexible and lightweight.

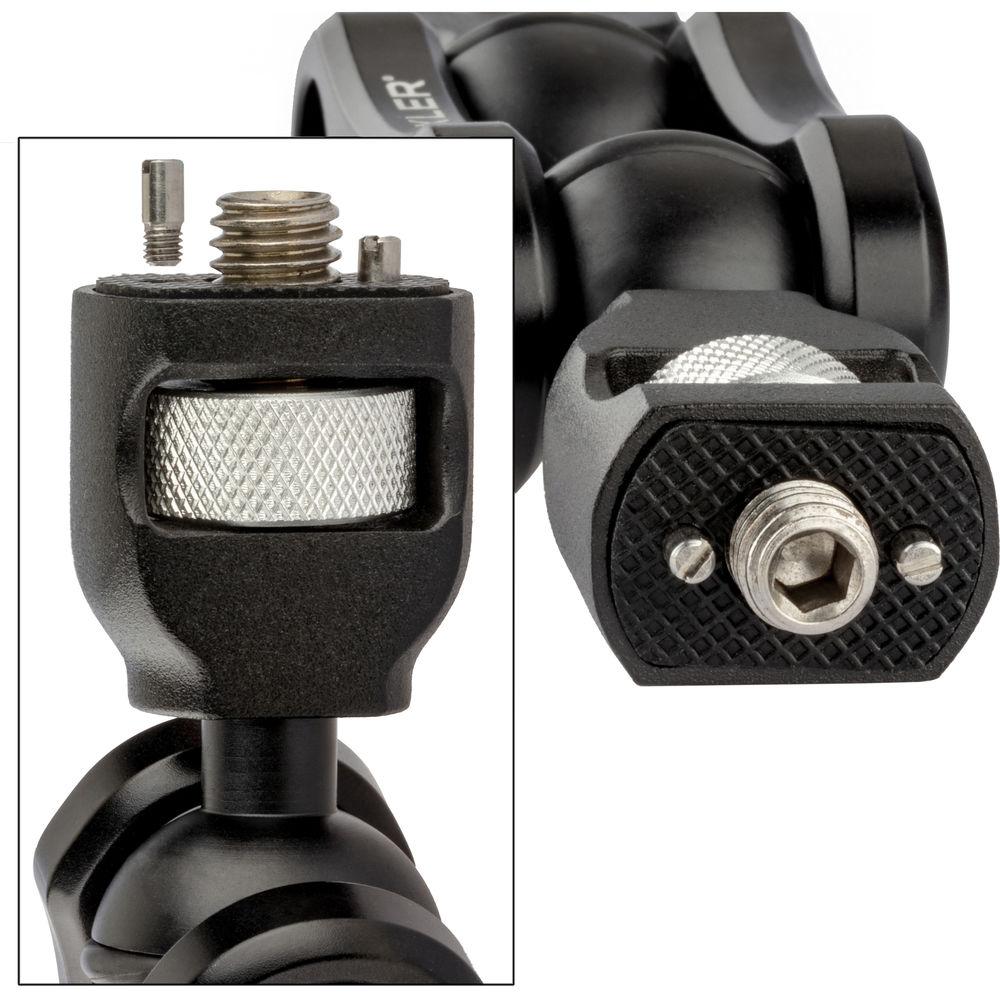

- The ball joint end with the 3/8"-16 threaded stud can be converted to be compatible with the ARRI accessory mount system by attaching the two included locating/anti-twist pins. These pins prevent your accessory from twisting while attached to the mount.
- The integrated O-ring on the ball ends provides friction to hold the clamp in place, while allowing the ends to move when the clamp is loosened.
- The O-rings also eliminate the need to overtighten the clamp, thus reducing stress on the clamp and extending its useful life.
UPC: 847628009387 In the Box Axler 12" Dual Mega Ball Clamp Arm with 1/4"-20 and 3/8"-16 ARRI Accessory Mount 2 x Anti-Twist Pin Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Axler 12" Dual Mega Ball Clamp Arm with 1 4"-20 and 3 8"-16 ARRI Accessory Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxler BCA-2DAM Specs | Top Mount | 1/4"-20 Screw | | Bottom Mount | 3/8"-16 Screw | | Points of Articulation | 4 | | Maximum Length | 12.59" / 31.98 cm | | Width | 2.55" / 6.48 cm | | Weight | 12.4 oz / 352 g | | | | Package Weight | 0.82 lb | | Box Dimensions (LxWxH) | 6.2 x 2.8 x 2.5" |
