User Manual for Axler 30" Lightweight Carbon Fiber Camera Slider Click to enlarge the picture
Contents of the user manual for the Axler 30" Lightweight Carbon Fiber Camera
- Product category: Camera Sliders Axler
- Brand: Axler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Axler Camera Sliders
 |
User manual for the Axler 30" Lightweight Carbon Fiber Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Axler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Axler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Axler product will considerably shorten its lifespan!
|

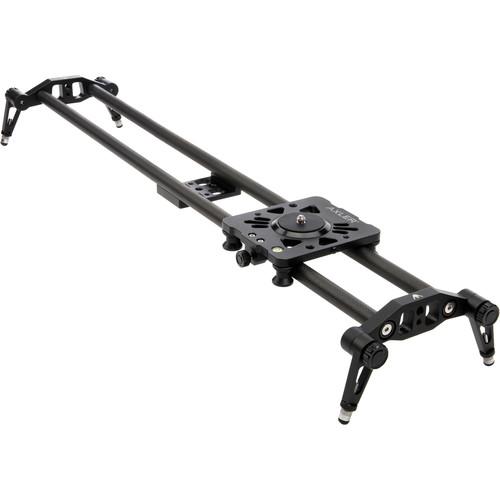

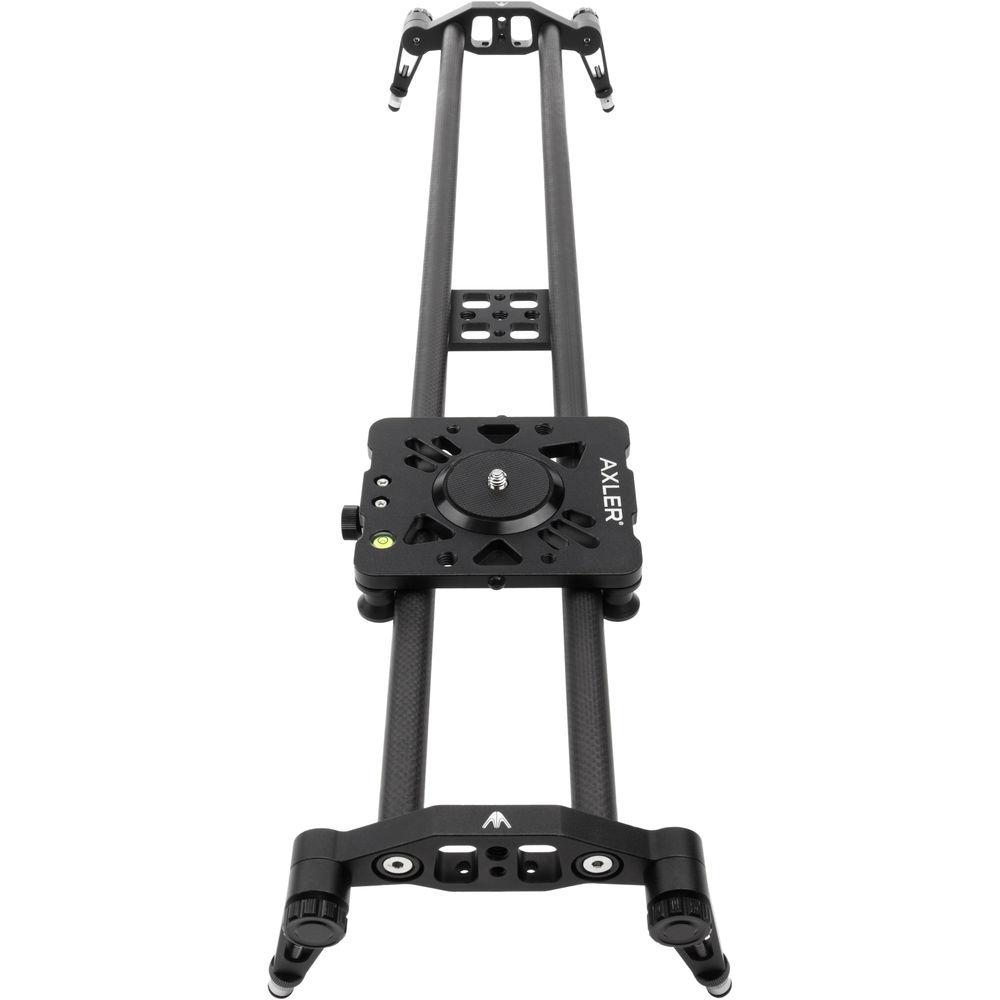

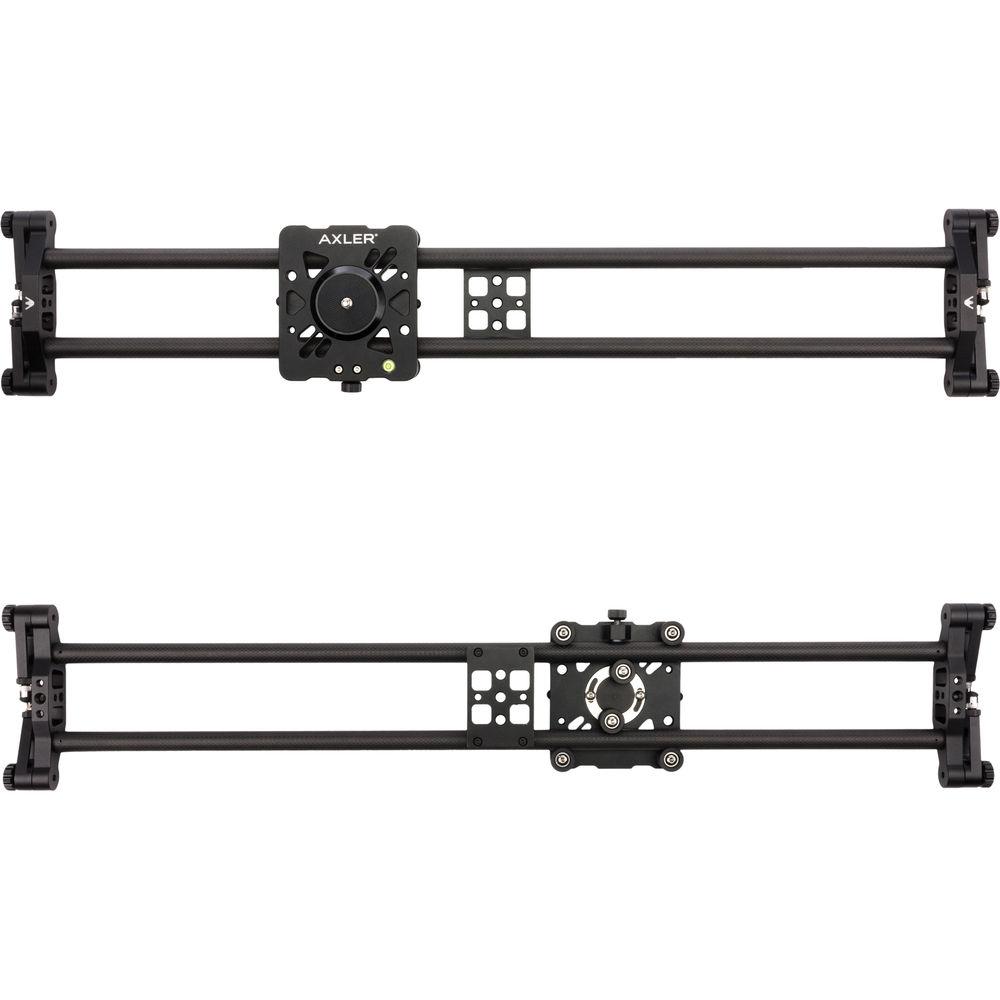

Product description This Axler 30" Lightweight Carbon Fiber Camera Slider is a lightweight easy-to-position slider, yet it can support loads up to 18 lb. The large carriage accommodates fluid heads and tripods of various sizes, and it glides smoothly along the 19mm rails. The carriage features four guide rollers that ride along the outside of the rails. Two additional rollers press against the inside of the rails and allow you to adjust the tension of the carriage.

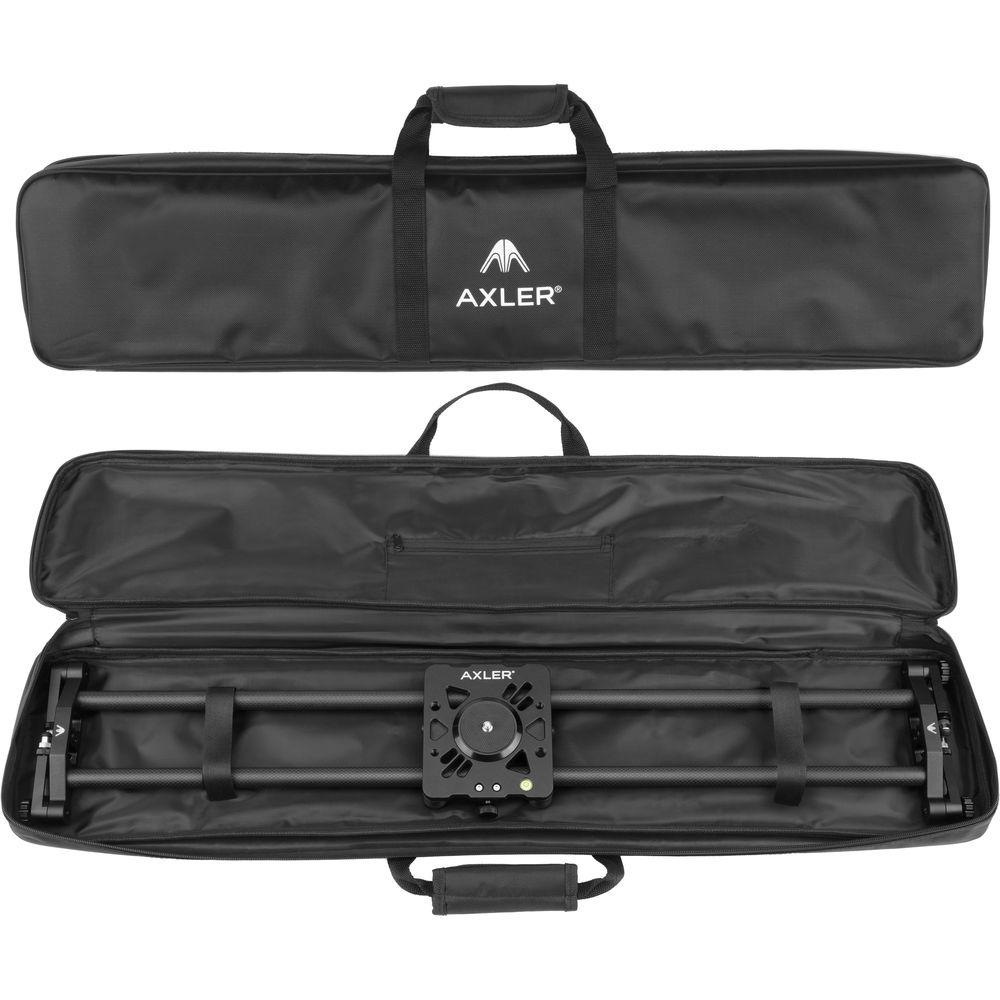

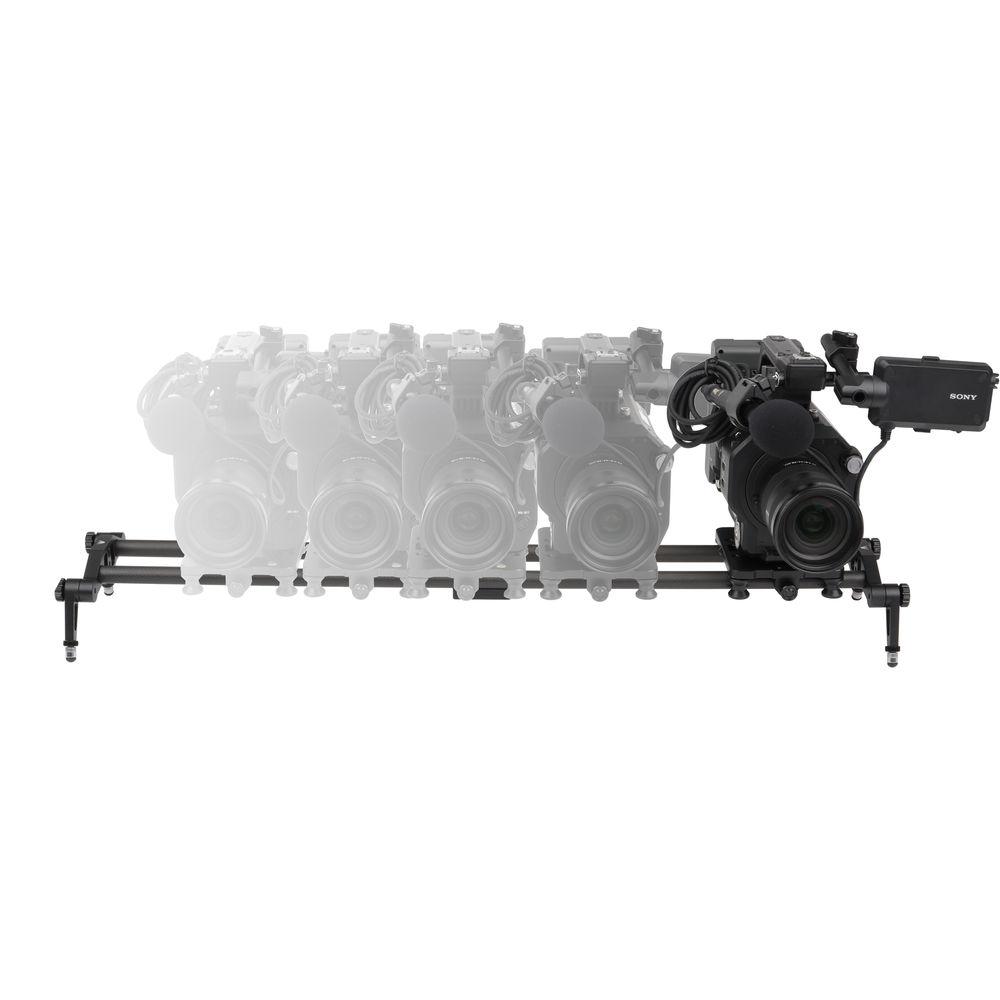

The carriage features a maximum camera travel distance of 26". In addition to a 3/8"-16 attachment screw, there are two sets each of 1/4"-20 and 3/8"-16 threads on the carriage that are useful for mounting optional accessories. At the ends of the slider are angle-adjustable legs with height-adjustable rubber feet for leveling on uneven terrain. an Allen key is included to adjust the carriage tension, and a padded carrying case is included to store and transport the slider. - Features
-
- Durable and lightweight construction
- 19mm carbon fiber rails
- 18 lb load capacity
- 26" max. camera travel
- Large camera carriage with a round grip surface of just under 2"
- Six precision-sealed bearings on aluminum rollers
- 1/4"-20 and 3/8"-16 accessory mounting threads on carriage
- The carriage incorporates a bubble level

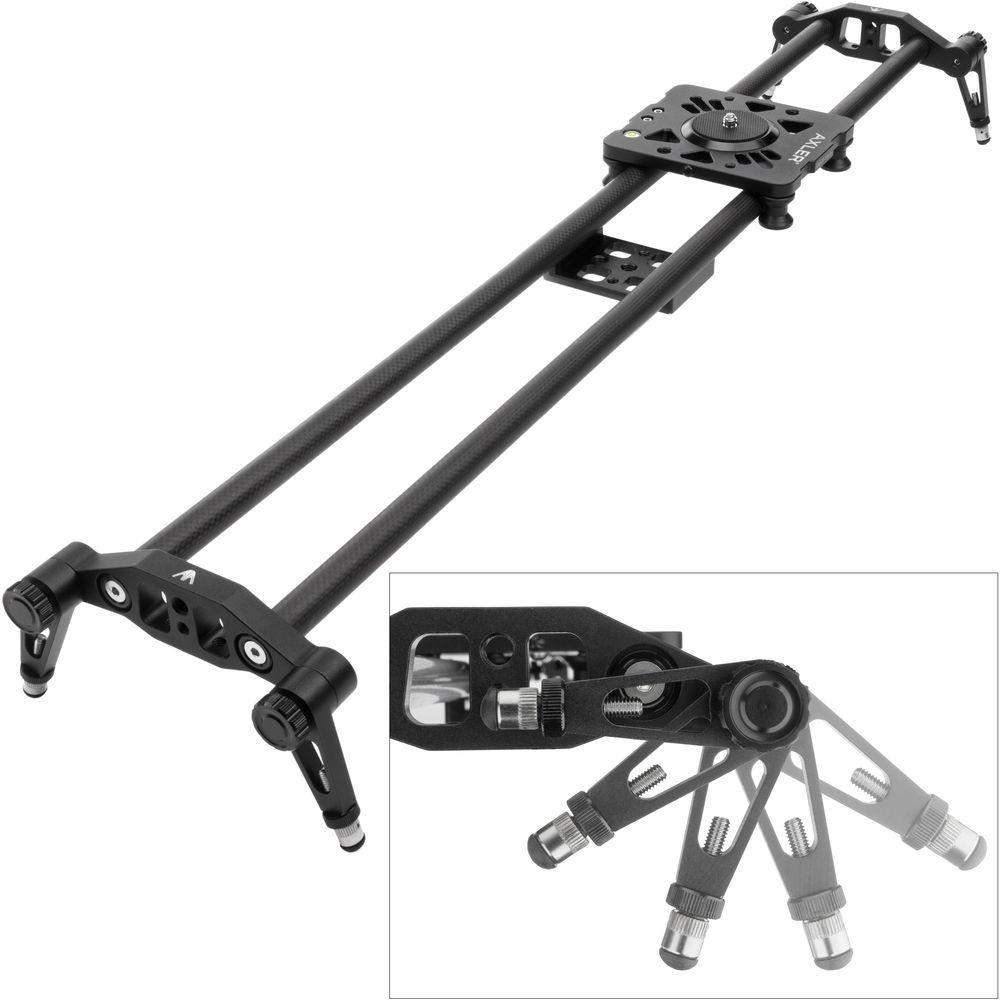

- Adjustable outrigger legs for leveling

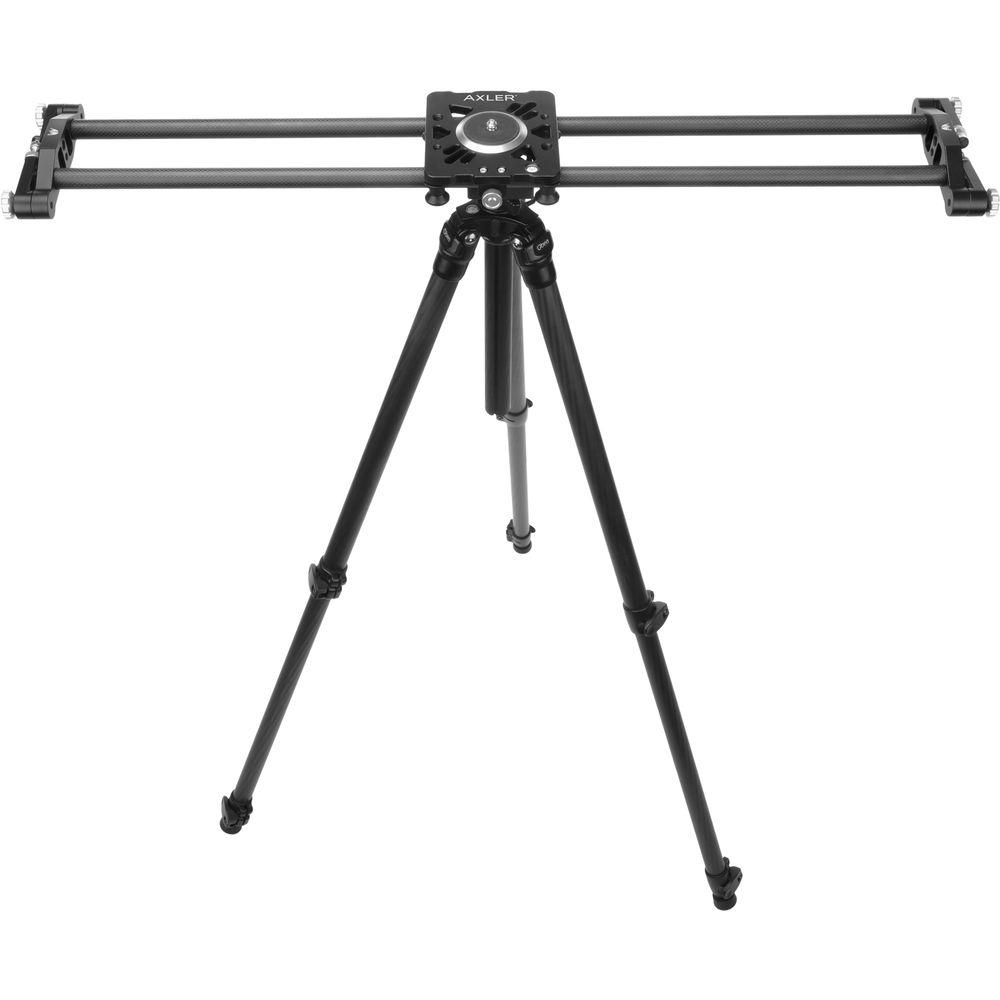

- Center mounting platform accepts 1/4"-20 and 3/8"-16 mounting studs, such as can be found on tripods or light stands

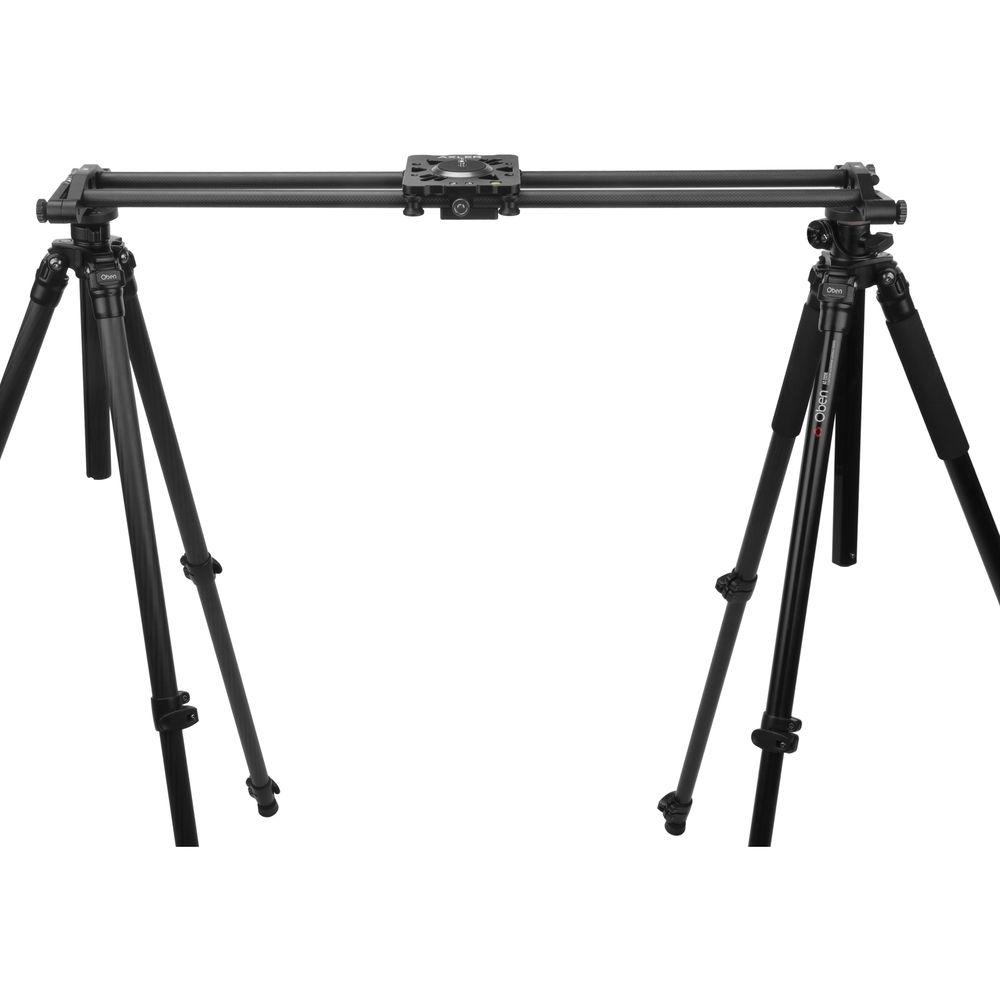

- The end blocks each feature 1/4"-20 and 3/8"-16 threaded mounting holes for accepting supports
- The integrated spring-loaded feet rotate on a rosette system so you can level the slider, tighten the legs, and not worry about the legs slipping
- The leveling feet include more than half an inch of height adjustment, and use a two-thumbwheel locking system so the height doesn't change once set
UPC: 847628004108 In the Box Axler 30" Lightweight Carbon Fiber Camera Slider 3mm Allen Key Padded Carry Case Limited 1-Year Warranty User Manual PDF 766.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Axler 30" Lightweight Carbon Fiber Camera Slider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxler CS-CF-30LW Specs | | | Load Capacity | 18 lb / 8 kg | | Travel Distance | 26" / 66 cm | | | | Camera Mounting Screw | 3/8"-16 Male | | Accessory Mounting | 2 x 3/8"-16 Female
1 x 1/4"-20 Female | | Tripod Mounting | 3 x 3/8"-16 Female Thread
2 x 1/4"-20 Female Thread | | | | Body Material | Aluminum | | Track Length | 32.5" / 82.6 cm | | Track Width | 7.8" / 20 cm | | Track Height | 1.9" / 5 cm | | Leg Height Adjustment | 4.75" / 12.07 cm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 5.7 lb | | Box Dimensions (LxWxH) | 36.0 x 7.5 x 3.0" |
