User Manual for Axler 4.5" Ball Clamp Arm with Cold Shoe Mount Click to enlarge the picture
Contents of the user manual for the Axler 4.5" Ball Clamp Arm with
- Product category: Articulating Arms Axler
- Brand: Axler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Axler Articulating Arms
 |
User manual for the Axler 4.5" Ball Clamp Arm with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Axler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Axler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Axler product will considerably shorten its lifespan!
|

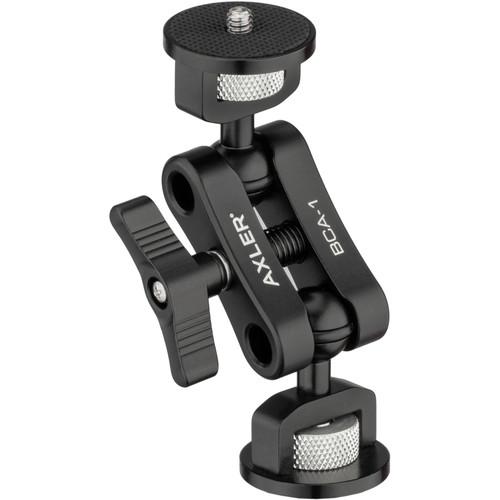

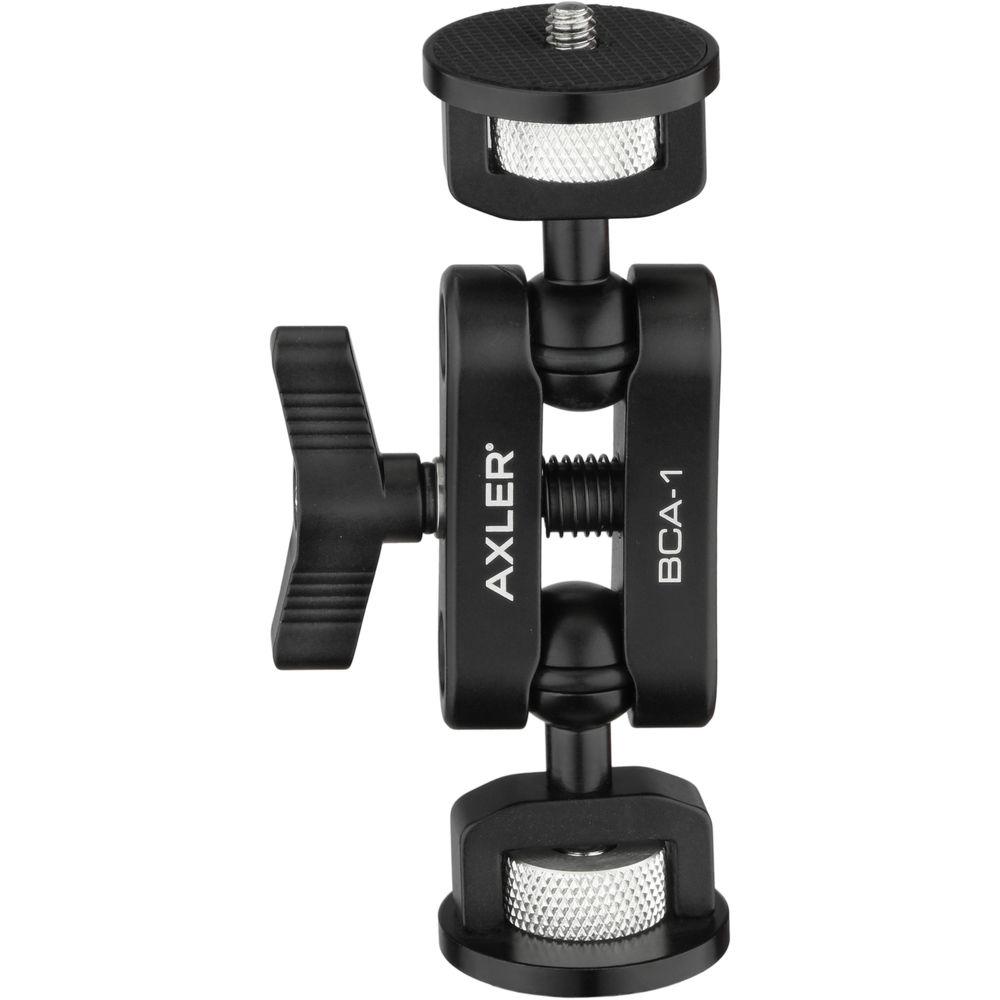

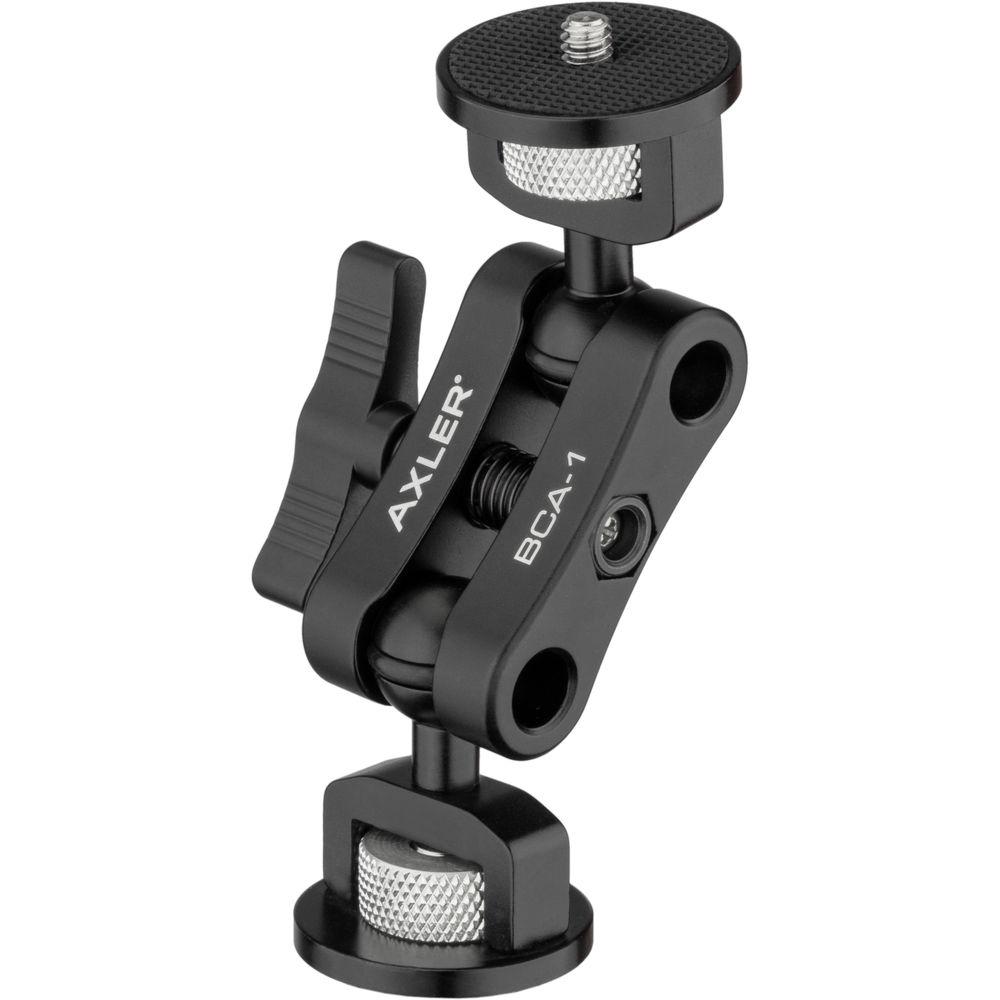

Product description The Axler 4.5" Ball Clamp Arm with Cold Shoe Mount features two articulating joints with 1/4"-20 threaded studs. A center knuckle tightens or loosens the clamp arm. The threaded mounting ends feature a rubber-topped platform with a 1/4"-20 threaded stud. A thumbwheel rotates the studs, enabling you to tighten or loosen accessories.
Made from anodized aluminum, the mounting ends feature a ball joint system with an O-ring integrated into the ball. This allows you to tighten the clamp on the ball joints and lock it in place without having to overtighten the clamp. The ends can swing through more than 180° of arc and can be locked and held in place by merely tightening the center knuckle. This item includes a cold shoe mount that accepts accessories with a cold shoe mounting foot. The mount replaces one of the 1/4"-20 ball ends. - Made from anodized aluminum, this clamp is flexible and lightweight
- The integrated O-ring on the ball ends provides friction to hold the clamp in place, while allowing the ends to move when the clamp is loosened
- The O-rings also eliminate the need to overtighten the clamp, thus reducing stress on the clamp and extending the useful life of the clamp

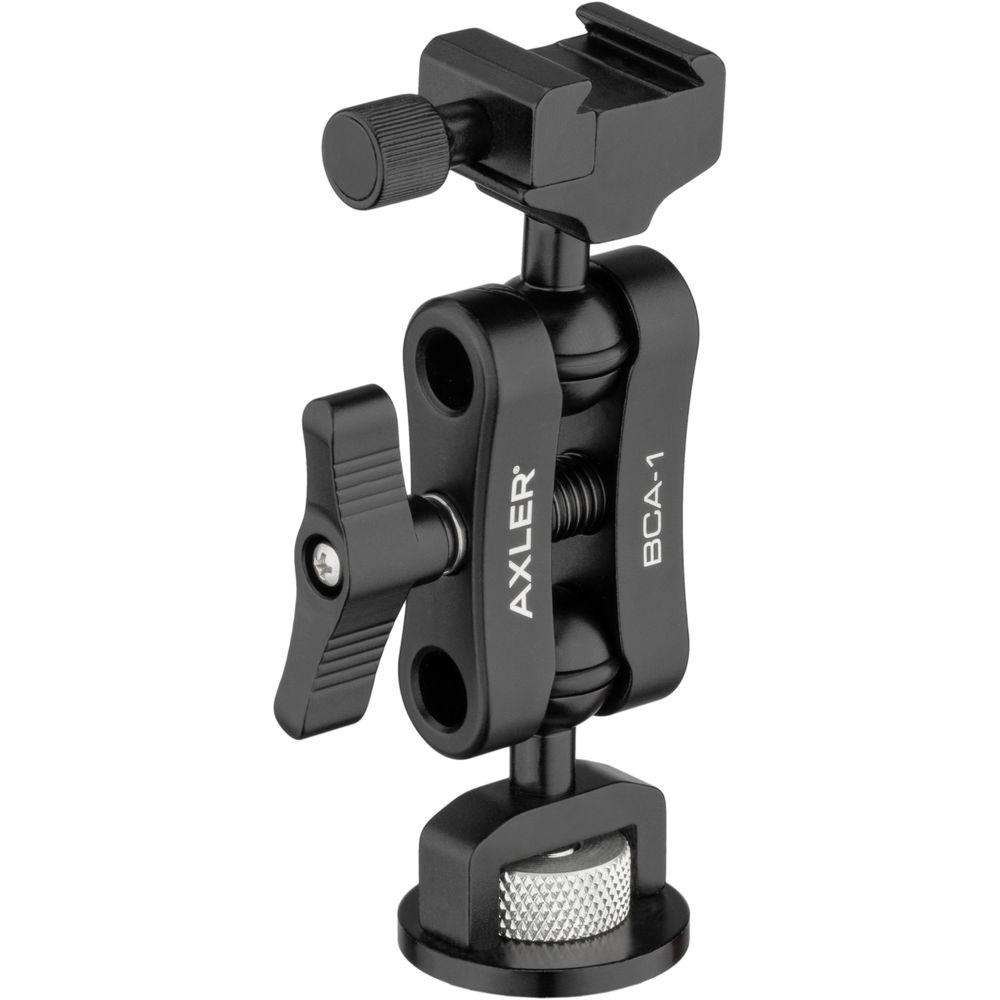

- The included clamping cold shoe mount replaces one of the 1/4"-20 ends by loosening the clamp until you can pop out the ball end and replace it by the cold shoe, which has its own ball end
- The clamping cold shoe mount has a locking lever that tightens onto an accessory with a cold shoe mounting foot for a secure fit
UPC: 847628009332 In the Box Axler 4.5" Ball Clamp Arm with Cold Shoe Mount Cold Shoe Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Axler 4.5" Ball Clamp Arm with Cold Shoe Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxler BCA-1 Specs | Top Mount | 1/4"-20 Screw | | Bottom Mount | 1/4"-20 Screw
Cold Shoe | | Points of Articulation | 2 | | Maximum Length | 4.82" / 12.24 cm | | Weight | 6.3 oz / 179 g | | | | Package Weight | 0.43 lb | | Box Dimensions (LxWxH) | 5.5 x 2.9 x 1.6" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
