Product description

  • Gear Hacks: How to Get Jib Shots Without a Jib
  • Gear Tips: How to Keep Your Video Slider Butter-Smooth
  • Video Tips: Using a Slider to Bring Interviews to Life

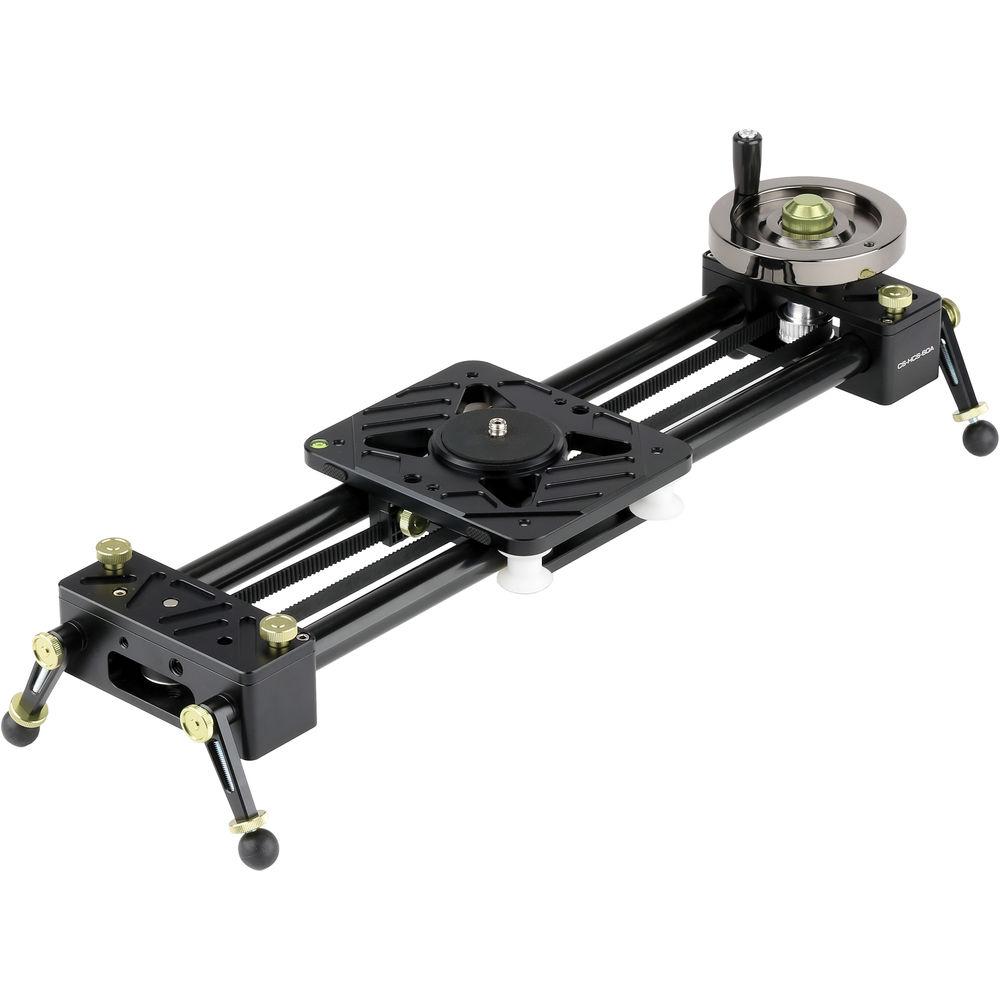

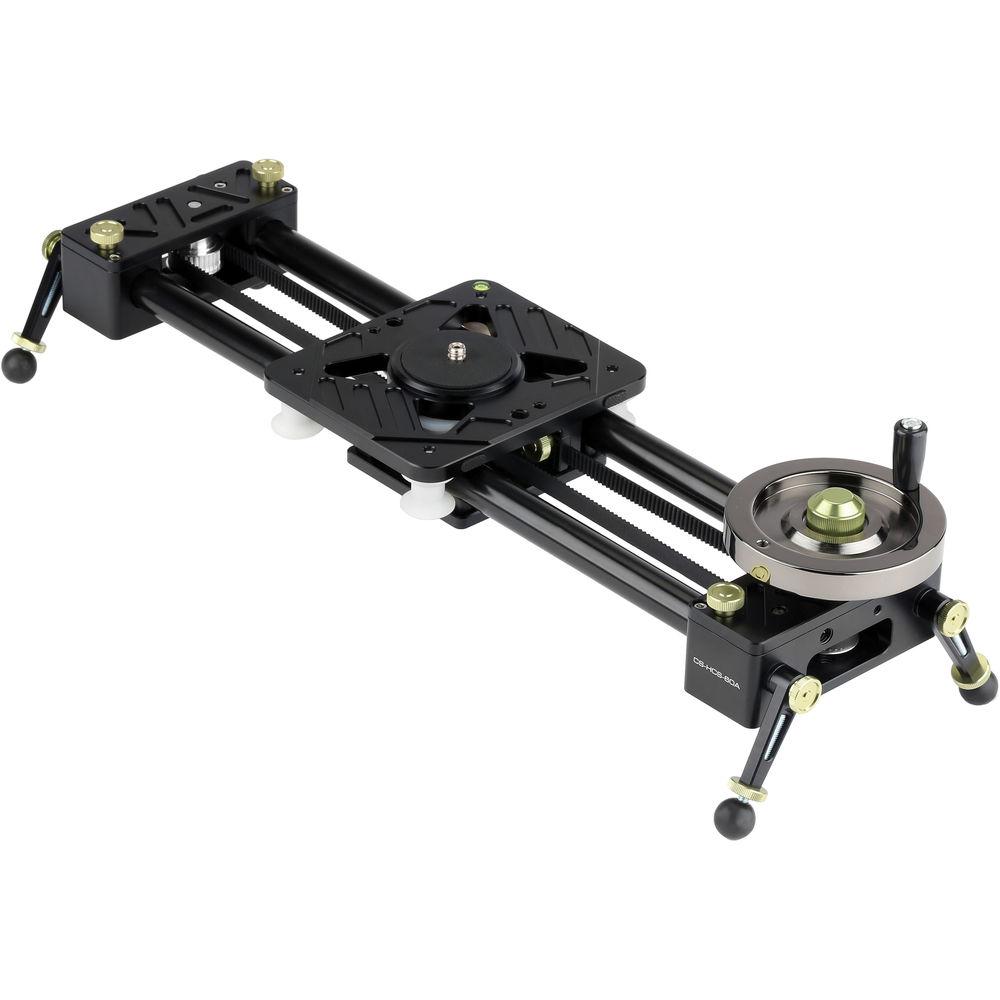

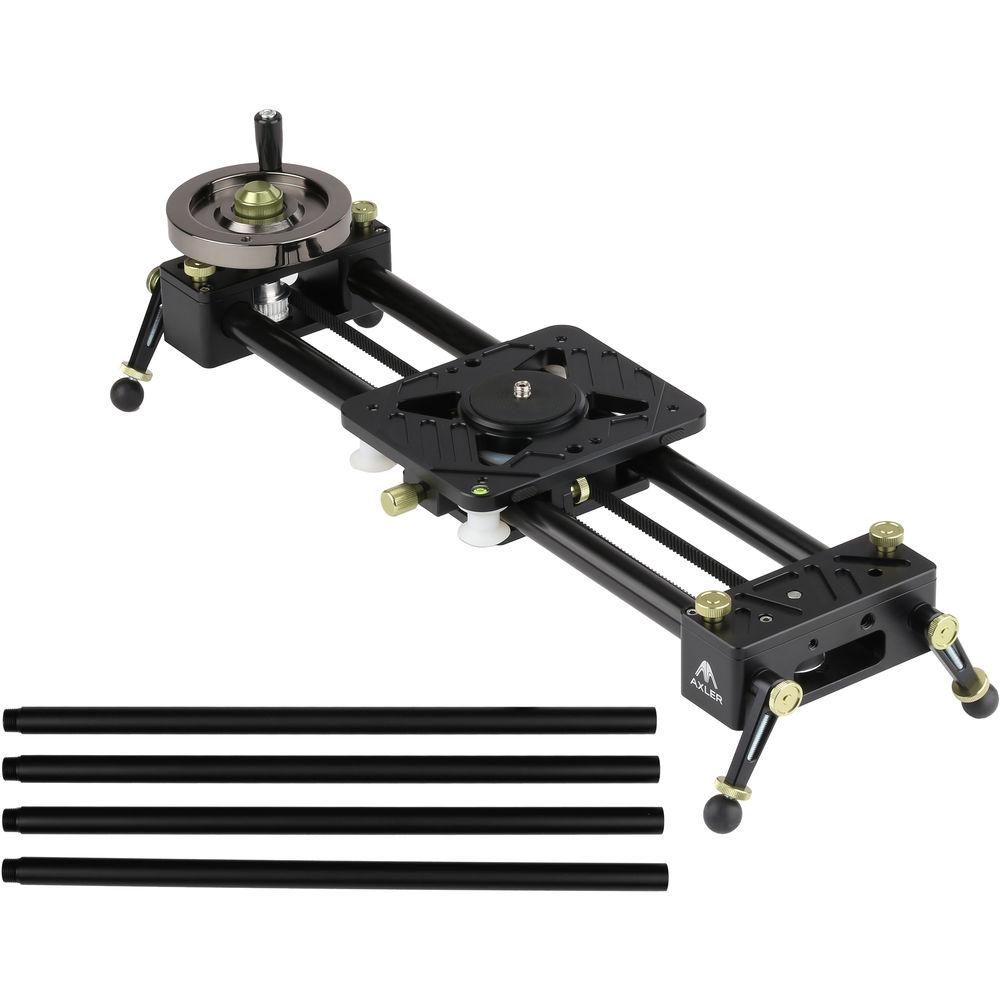

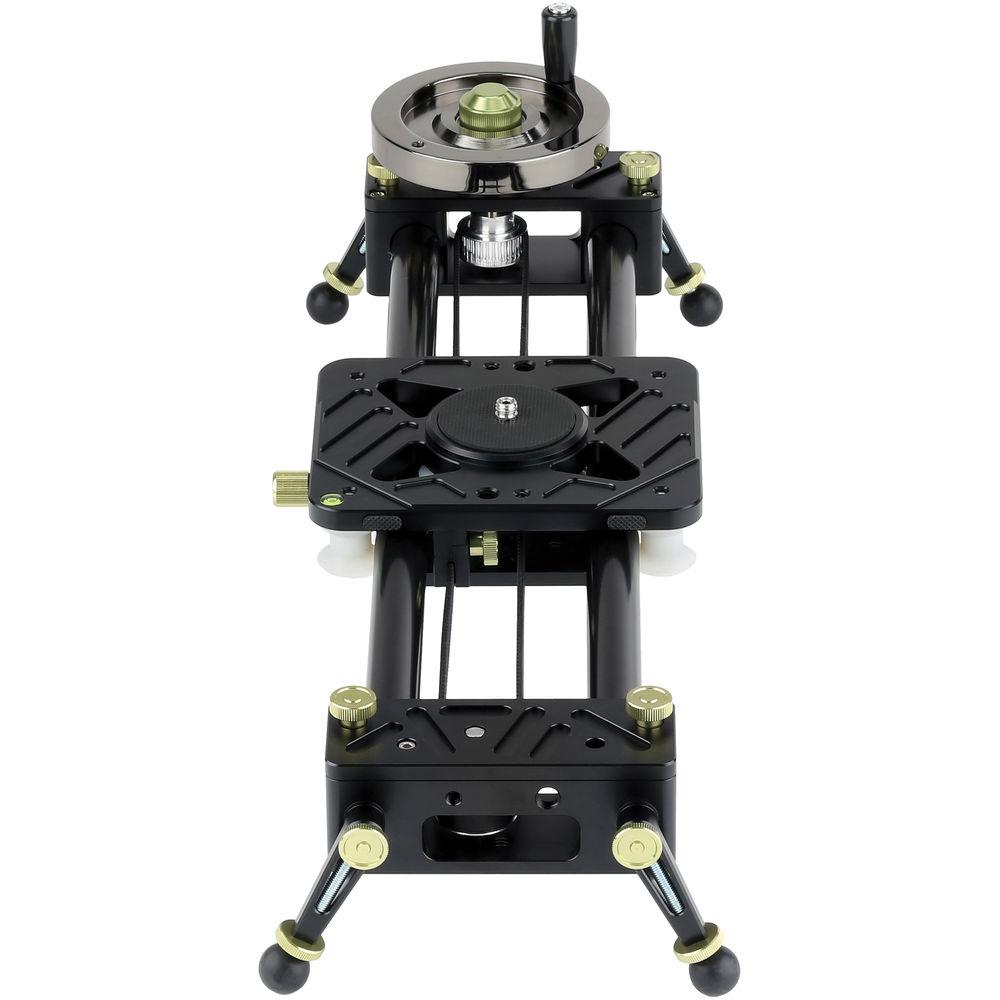

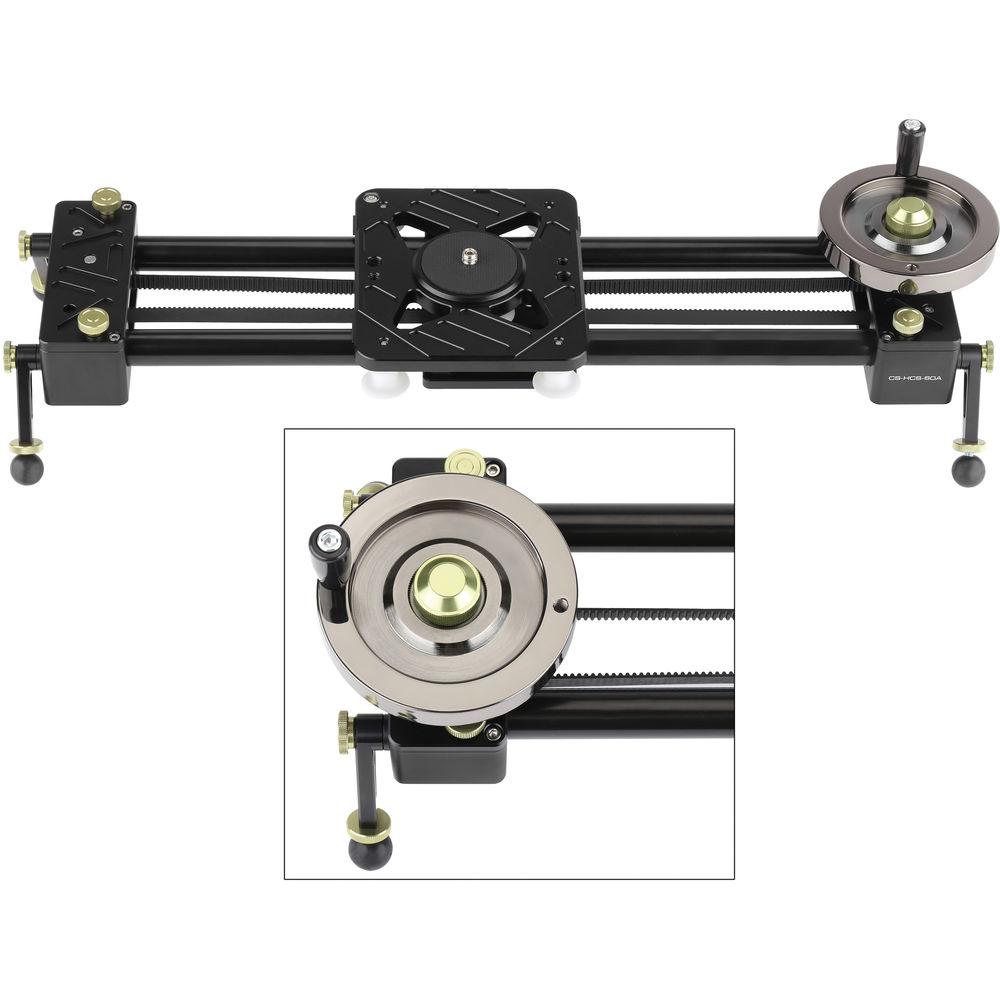

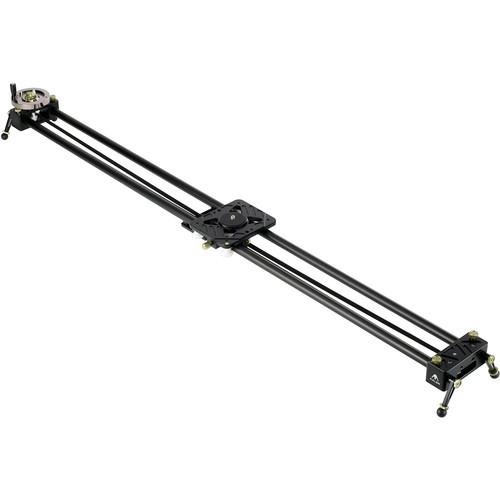

The Axler 60" Adjustable Pro Slider is a portable and extendable solution for adding smooth, linear camera motion to your video productions. It supports loads up to 17.6 pounds and comes with three sets of 20" aluminum rods that can be threaded together, letting you adjust the slider from a travel-friendly 20" length all the way up to 60" for longer tracking shots. Featuring a belt-drive system and a weighted flywheel, the slider can be easily and smoothly operated by a single user using the flywheel's handle or sliding the camera carriage. In addition, the flywheel serves as an inertial dampener that helps your camera stop smoothly for usable tracking shots and push-ins from start to finish of each take.

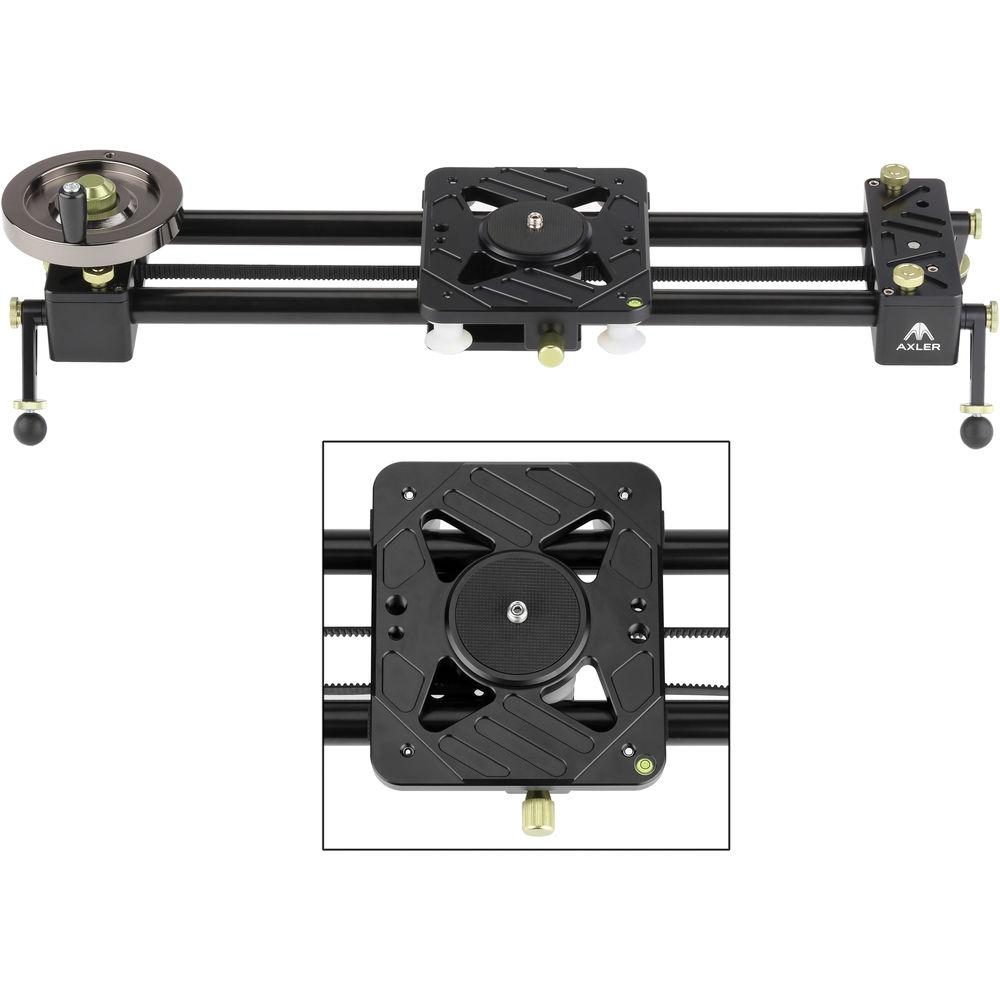

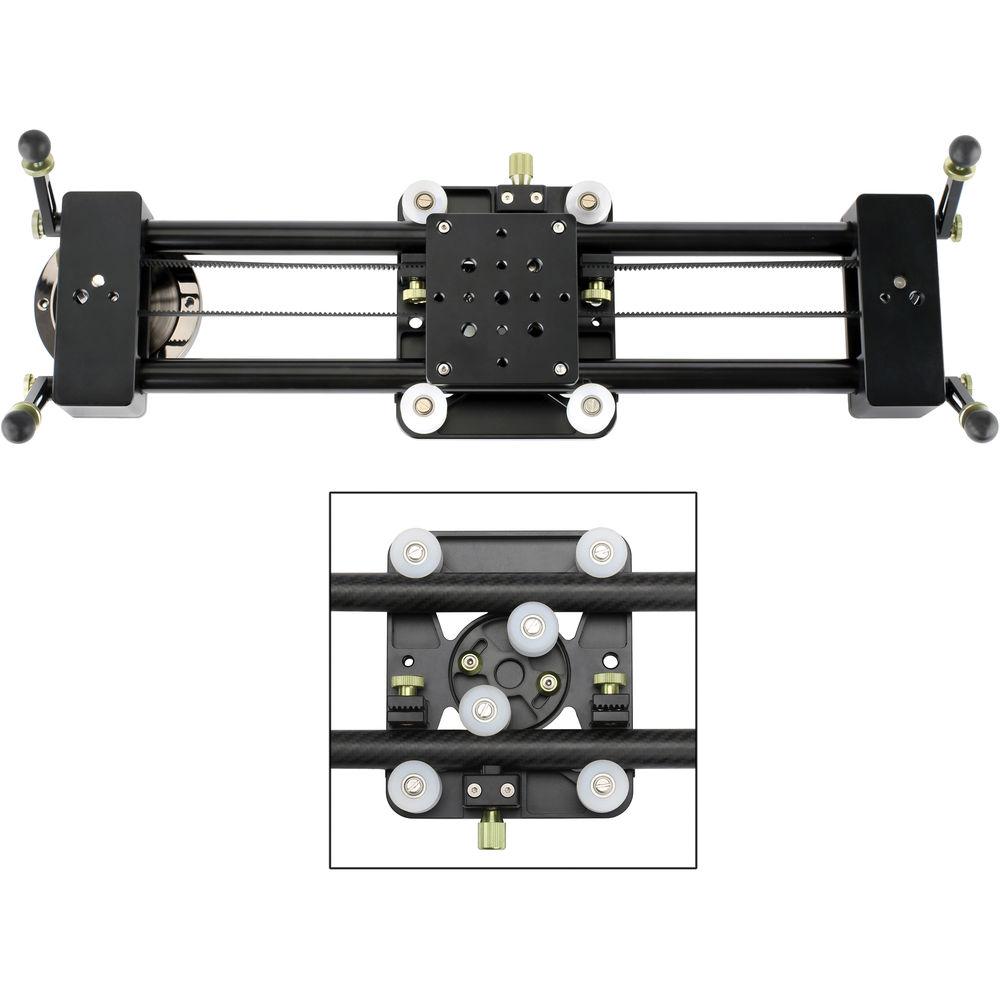

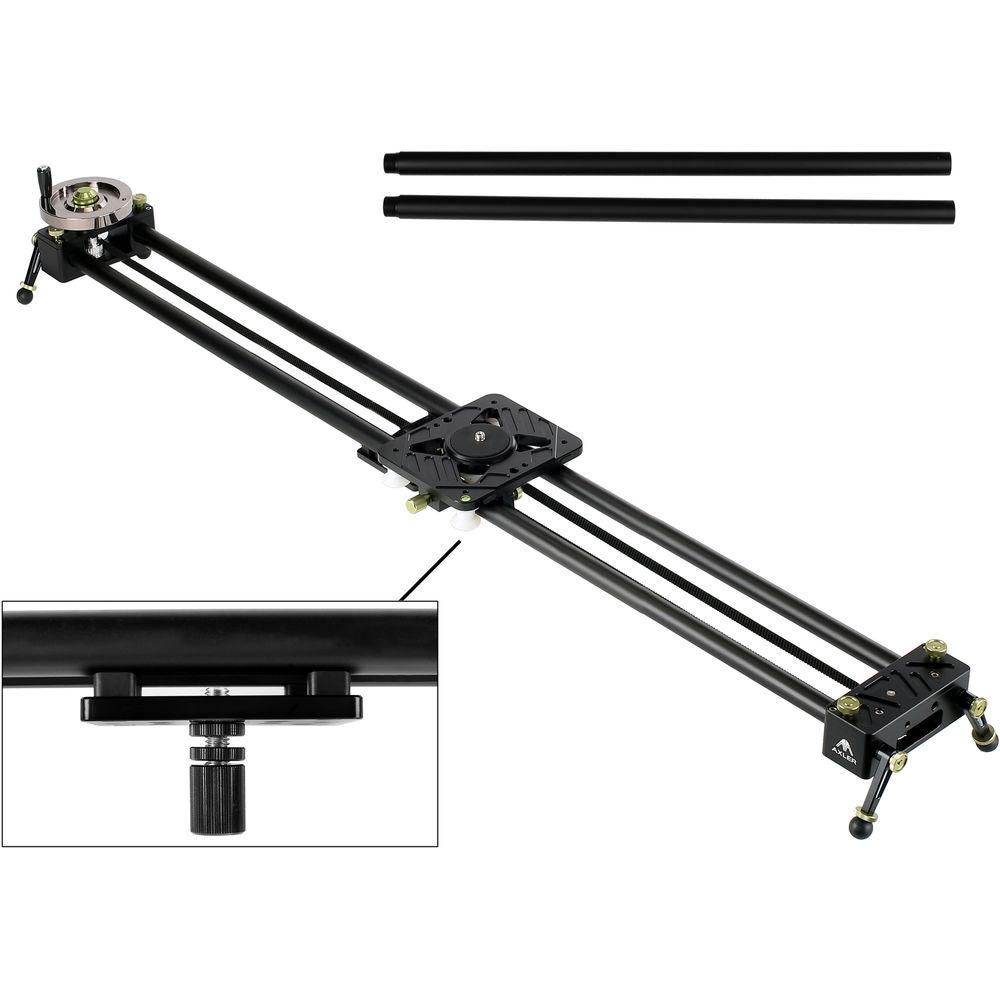

The carriage features a 1/4"-20 screw for attaching your camera, with a 3/8"-16 bushing included for compatibility with most tripod heads. The mounting plate at the bottom of the slider provides several 1/4"-20 and 3/8"-16 threaded holes for tripod mounting. There are also 1/4"-20 and 3/8"-16 threads at each end of the slider, letting you support it with two or even three tripods or light stands for increased stability when using the included extension rods. Extra 1/4"-20 & 3/8"-16 threaded holes on the camera carriage and at the ends of the slider provide attachment points for LED lights, lighting flags, or other accessories.

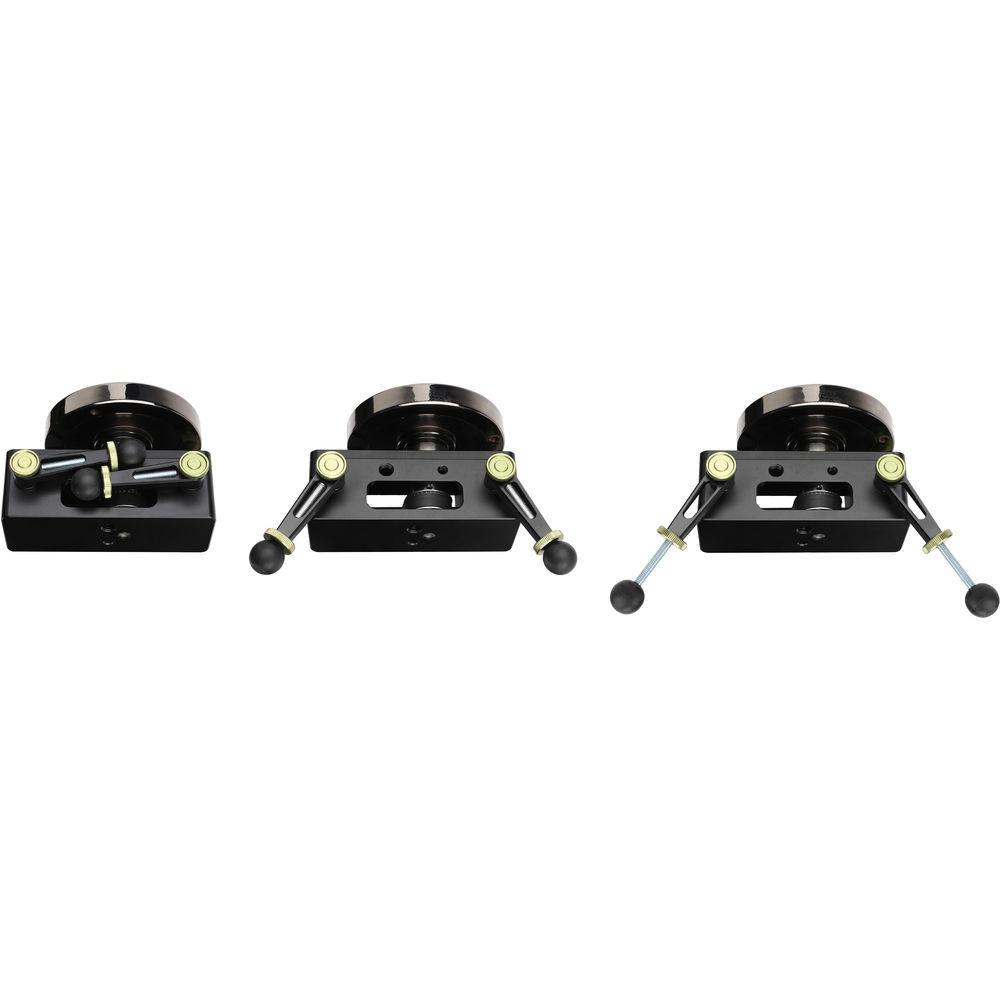

For ground-level or tabletop use, the slider is equipped with four angle-adjustable legs with height-adjustable rubber ball feet that let you get the level or canted shot you're looking for. A built-in bubble level is available to aid in horizontal alignment. For convenient storage and transport, a carry case with custom-cut foam interior is included.
    Key Features
    • Supports loads up to 17.6 lb
    • Travel-sized 20" slider with two sets of threaded aluminum extension rods for 40" and 60" slider lengths
    • Integrated belt-drive system
    • Weighted flywheel with handle for smooth, precise slides
    • Flywheel helps start and stop smoothly
    • 1/4"-20 camera mounting screw with 3/8"-16 bushing for use with tripod heads
    • 1/4"-20 and 3/8"-16 mounting threads at each end and on mounting cheese plate
    • Angle-adjustable legs with height-adjustable rubber feet
    • Mounting threads on carriage and ends of slider for attaching optional accessories
    • Carriage brake to keep it locked in place between shots
    • Bubble level
    • Carry case included
UPC: 847628587342 In the Box Axler 60" Adjustable Pro Slider with Flywheel
  • Flywheel Handle
  • 4 x 20" Extension Rods
  • 40" (100 cm) belt
  • 60" (150 cm) belt
  • 3/8"-16 Bushing (for 1/4"-20 Camera Screw)
  • Adjustable Center Foot
  • Carry Case
  • Limited 1-Year Warranty
  • User Manual PDF 8.4mbwxuxtcuabbxvwtqcwdwwrxetf Table of Contents




    Upload User Manual

    Have you got an user manual for the Axler 60" Adjustable Pro Slider with Flywheel in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Axler CS-HCS-60A Specs

    Load Capacity 17.6 lb / 8 kg
    Travel Distance 20" / 50 cm
    40" / 100 cm, Including Extension
    60" / 150 cm, Including Extension
    Camera Mounting Screw 1/4"-20 Male & 3/8"-16 with Bushing
    Tripod Mounting 1/4"-20 Female Thread
    3/8"-16 Female Thread
    Material Aluminum
    Track Length 26.25" / 66.7 cm
    46.25" / 117.5 cm, Including Extension
    66.25" / 168.3 cm, Including Extension
    Track Width 14.75" / 37.5 cm
    Track Height 4.6" / 11.7 cm
    Weight 10.5 lb / 4.8 kg
    Package Weight 13.4 lb
    Box Dimensions (LxWxH) 27.3 x 13.0 x 5.4"
