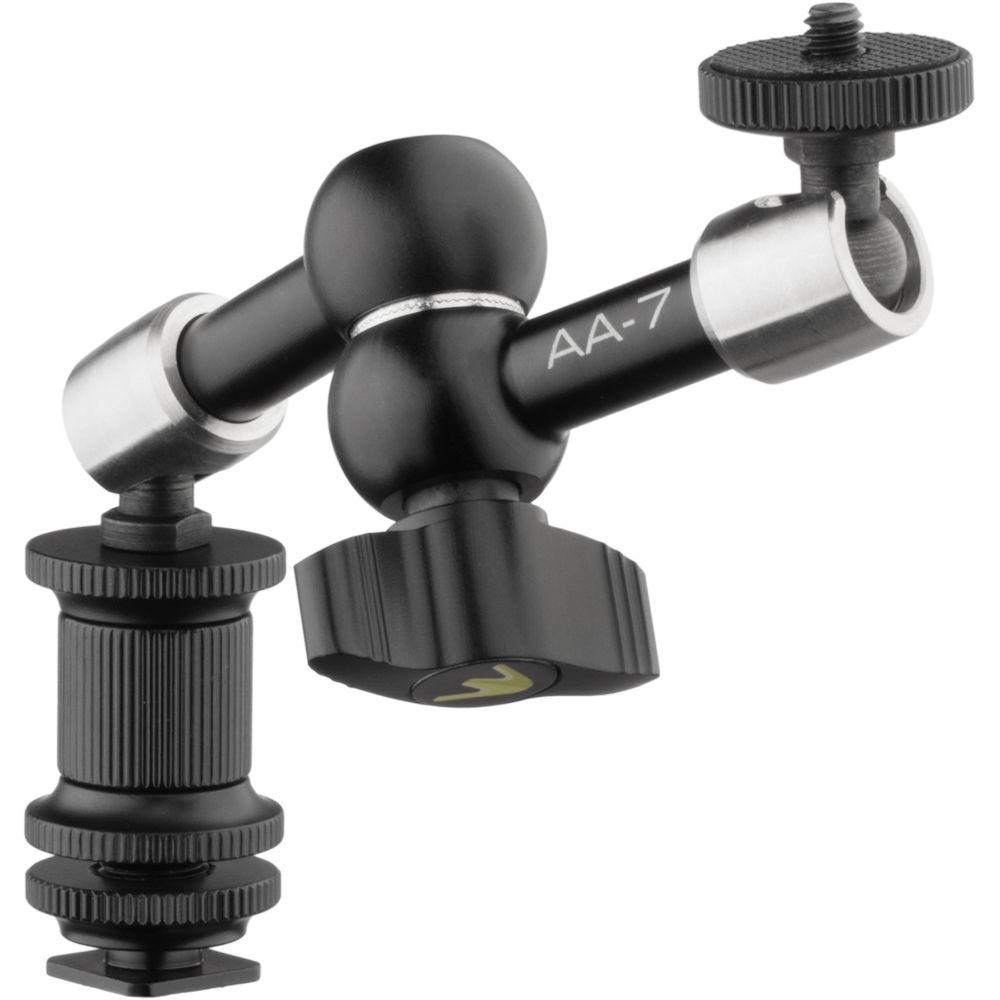

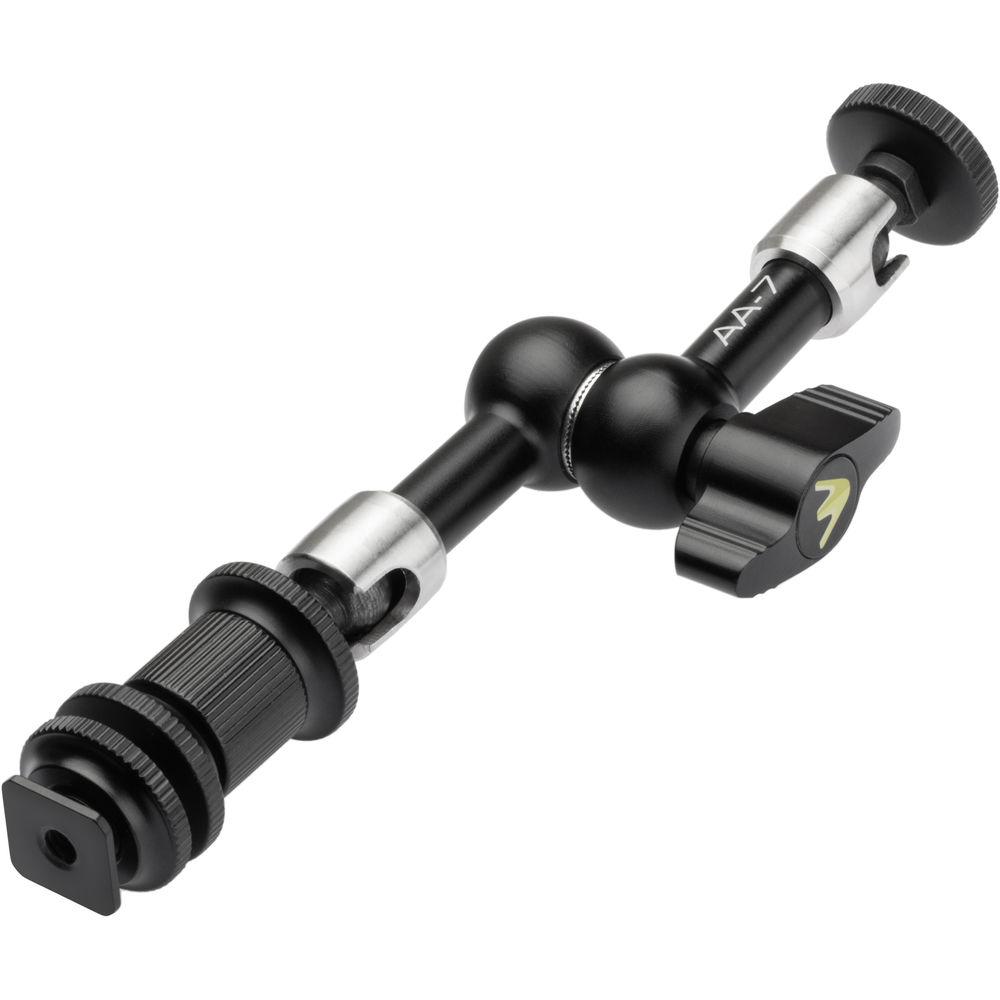

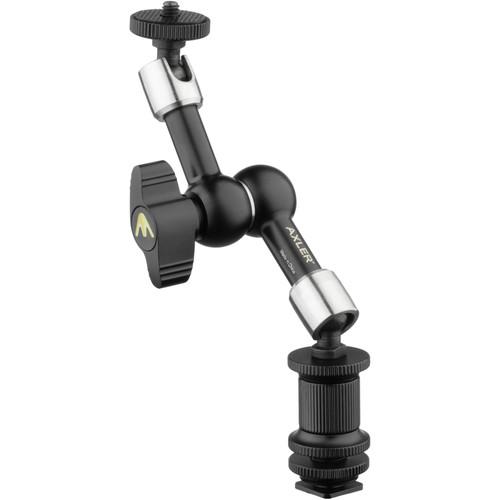

Product description The Axler Recodo Articulating Arm is a flexible 7" long arm that supports up to 8 pounds for attaching and positioning available accessories to your camera or accessory mounting point. It is machined from a metal alloy for strength and features three points of articulation that tighten and loosen using a single locking twist handle.
The ends of the arm feature 1/4"-20 threaded studs set into ball joints, with each joint providing swivel adjustment and lockable position adjustment. The threaded studs feature thumb wheels that allow you to tighten accessories on the threaded studs. The arm includes a removable shoe mount that attaches to your camera's accessory hot/cold shoe. - Cold Shoe Mount Adapter
- The removable shoe mount adapter features a cold shoe foot to 1/4"-20 threaded stud, with two threaded thumbwheels that enable tightening the foot in your camera's cold shoe as well as your 1/4"-20 accessory. The cold shoe foot also features a female 1/4"-20 threaded mounting hole on the bottom, so you can mount it on a 1/4"20 threaded stud. Rounding out the shoe adapter is a 1/4"-20 coupler.
- Single Knob Tightening
- When the arm is loose, the center pivot, and both ball joint ends are flexible and can be moved to almost any position. Tightening the center twist lock tightens the center pivot as well as both ball ends at the same time.
- Center Pivot
- The center pivot features two facing rosettes that provide a secure friction source to prevent the arms from slipping.
UPC: 847628002012 In the Box Axler AA-7 Recodo Articulating Arm (7") Removable Shoe Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Axler AA-7 Recodo Articulating Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxler Recodo Specs | Load Capacity | 8 lb / 3.6 kg | | Length | Unfolded: 7" / 17.8 cm (end-to-end without the coupler) | | Width | Widest: 2.25" / 5.7 cm | | Weight | 7.2 oz / 200 g | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 5.6 x 3.1 x 1.6" |
