User Manual for Axler Carbon Fiber Camera Slider Click to enlarge the picture
Contents of the user manual for the Axler Carbon Fiber Camera Slider
- Product category: Camera Sliders Axler
- Brand: Axler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Axler Camera Sliders
 |
User manual for the Axler Carbon Fiber Camera Slider contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Axler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Axler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Axler product will considerably shorten its lifespan!
|

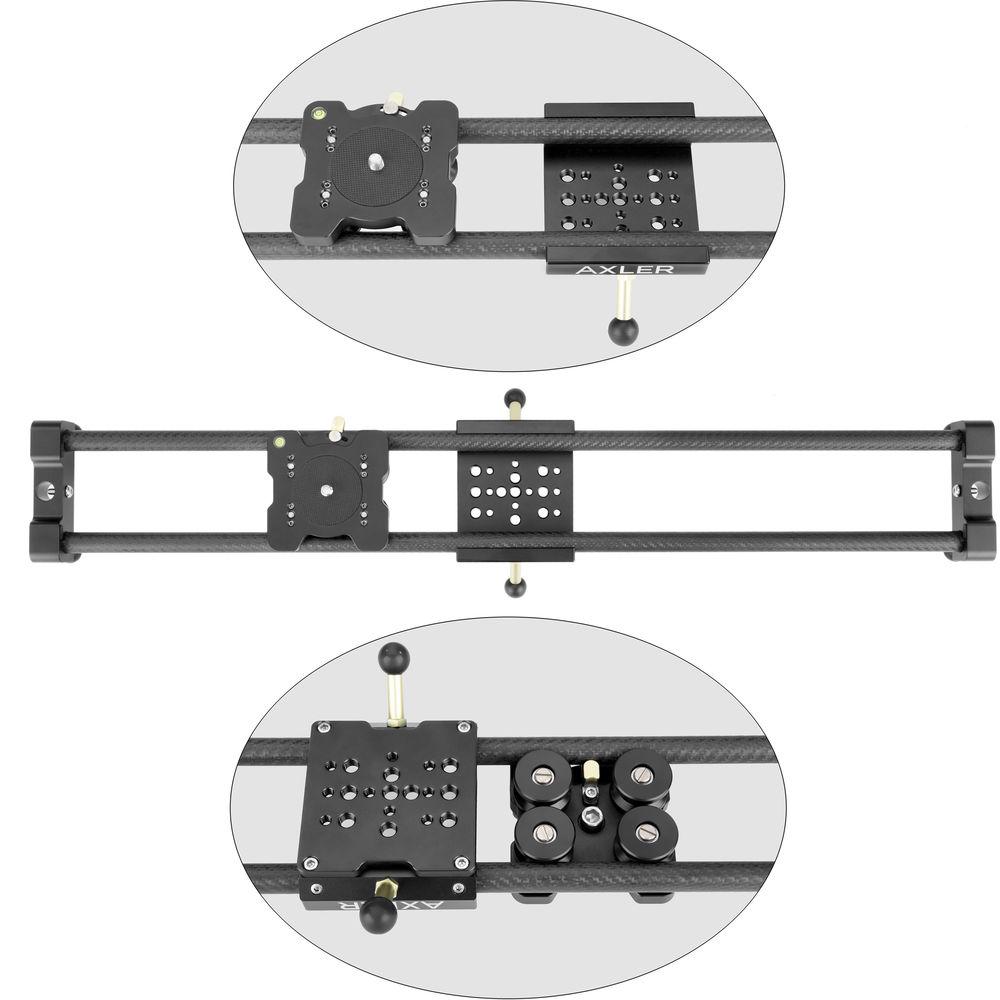

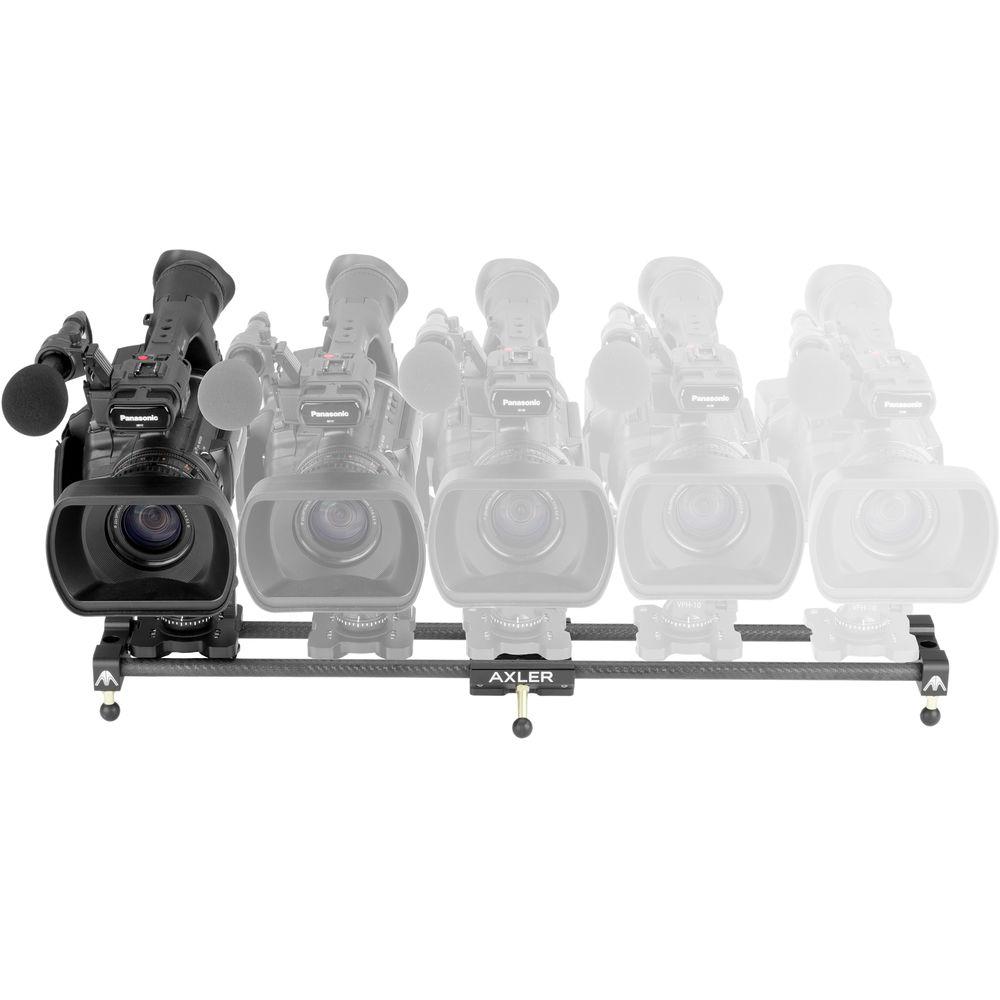

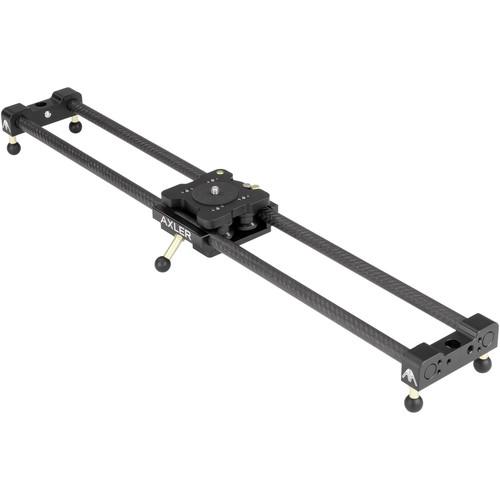

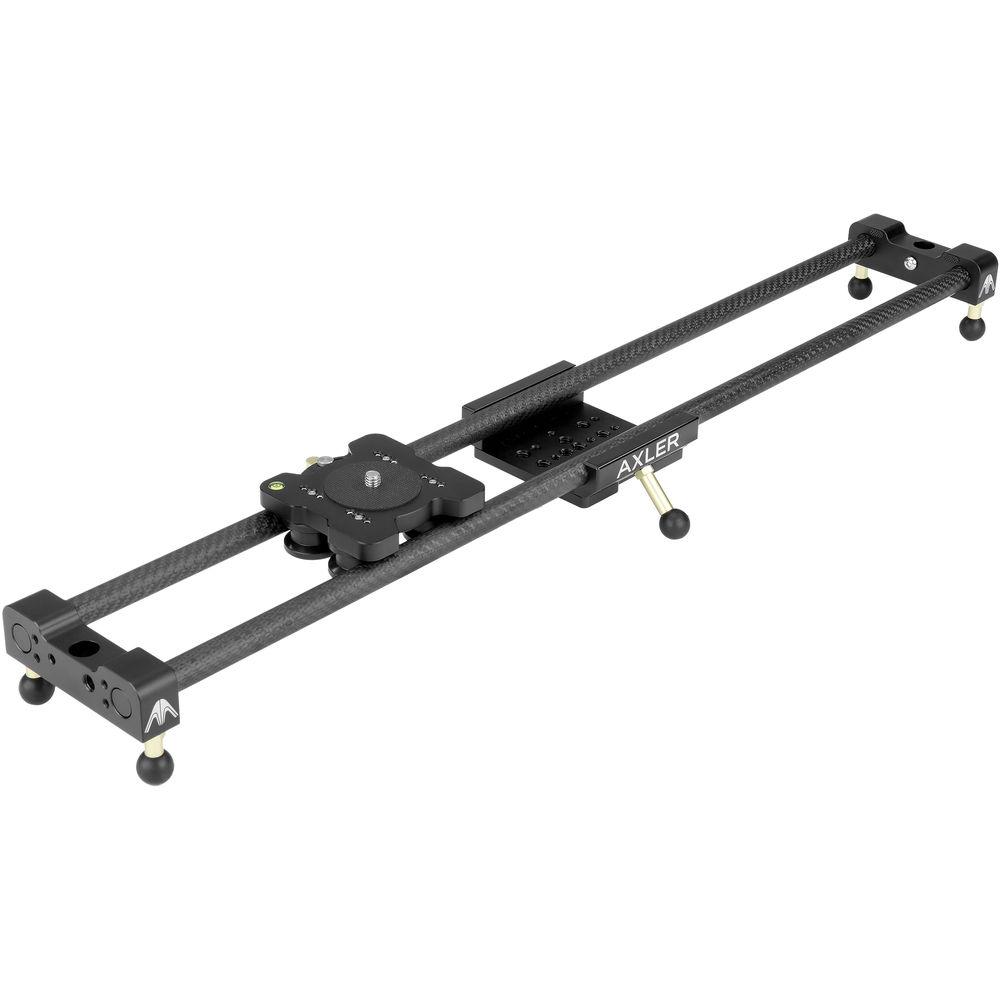

Product description Add smooth linear camera movement to your video productions with the 30" Axler Carbon Fiber Camera Slider. Outfitted with lightweight carbon fiber rails, the slider supports loads up to 50 lb, making it suitable for use with large professional video cameras, as well as smaller DSLR/mirrorless cameras. The aluminum camera carriage features a 3/8"-16 mounting screw for attaching a fluid head or ball head and utilizes a roller bearing system with machined aluminum wheels to provide smooth, quiet operation that won't disrupt your audio recording. A brake lever lets you lock the carriage in place between shots.

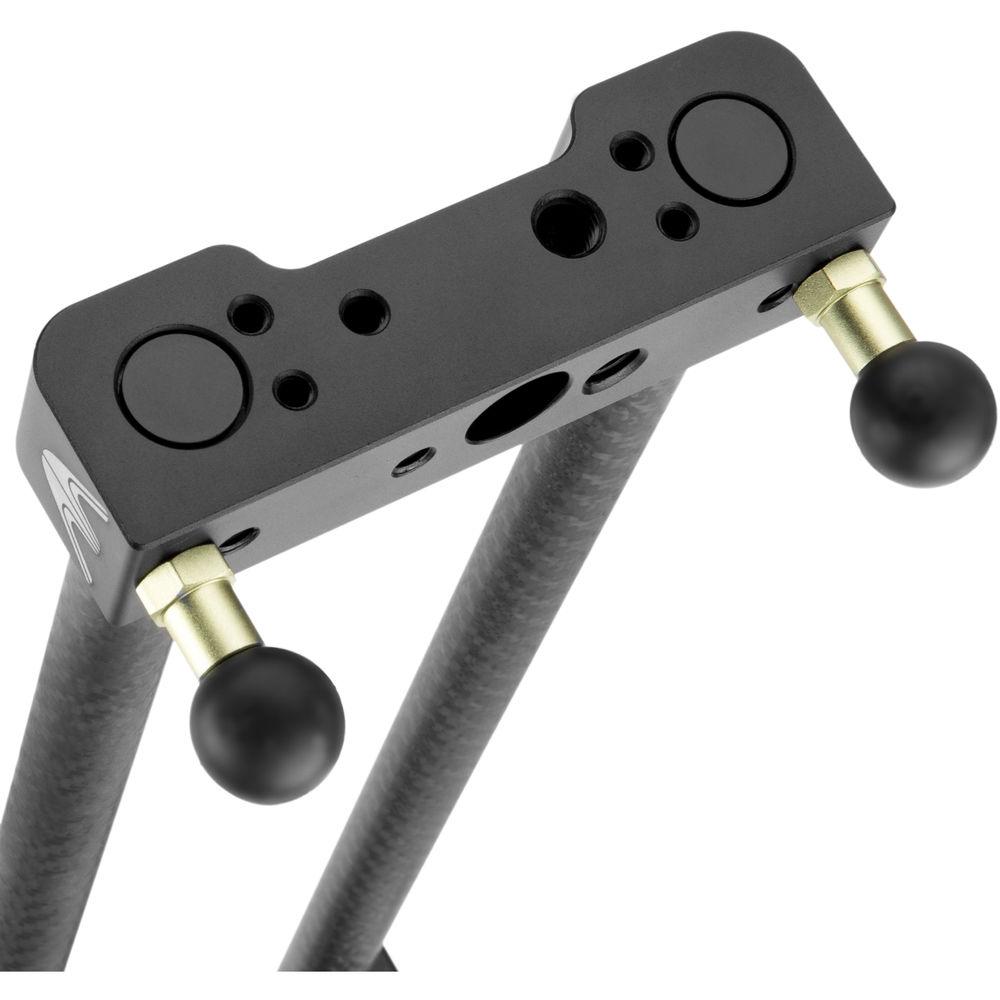

For tabletop or ground-level use, the slider features short detachable legs with rubber ball feet at the ends and center of the slider. For mounting the slider on a tripod, there is a cheese plate at the bottom of the rails that provides several 1/4"-20 and 3/8"-16 threaded holes. There are also 1/4"-20 and 3/8"-16 threads at the ends of the slider, as well as 5/8" sockets, to support heavier camera loads using two tripods or light stands. Additional 1/4"-20 and 3/8"-16 threads at the ends of the slider let you attach optional accessories to your rig, such as LED lights, lighting flags, and microphones. - Features
-
- Supports loads up to 50 lb
- Lightweight carbon fiber rails
- Aluminum camera carriage with 3/8"-16 screw
- Precision-machined aluminum wheels
- Detachable legs with rubber ball feet
- Cheese mounting plate with 1/4"-20 and 3/8"-16 threads
- Tripod mounting threads and 5/8" light stand sockets at ends of slider
- Onboard bubble level

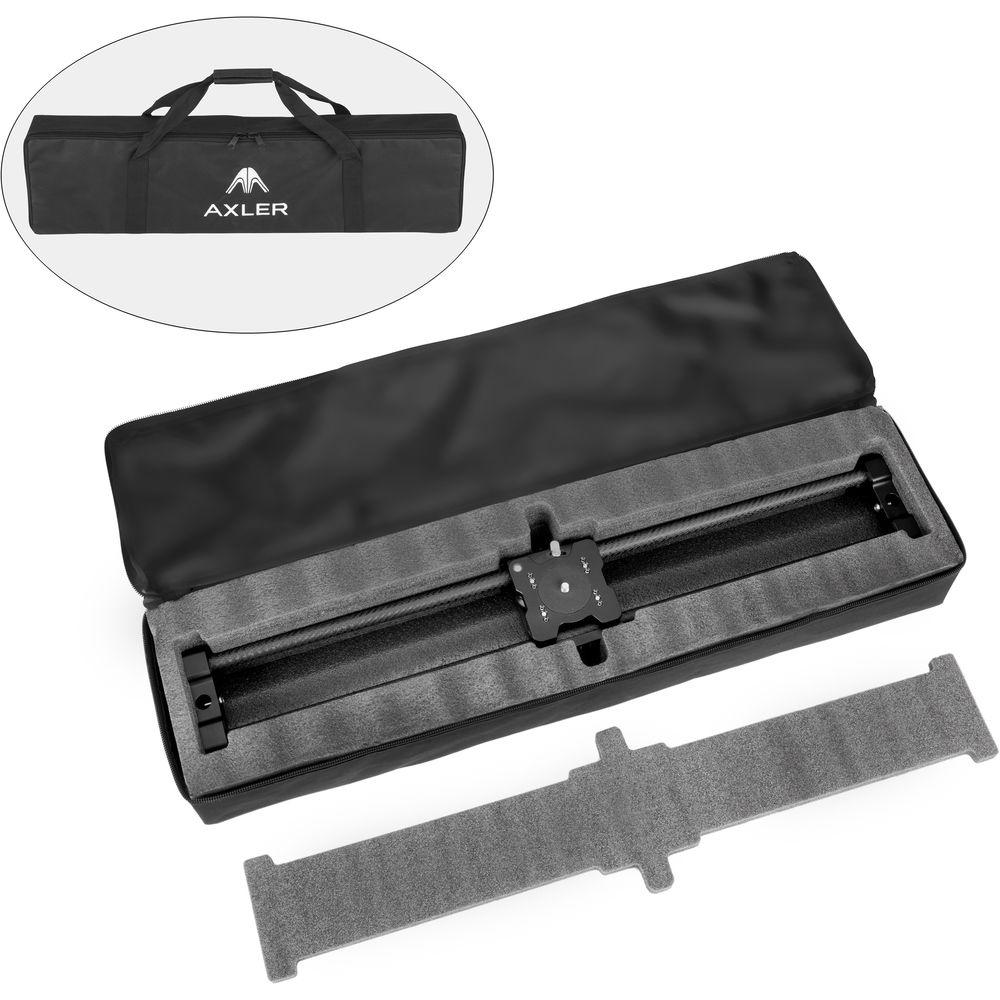

- Carrying case included
UPC: 847628595590 In the Box Axler Carbon Fiber Camera Slider (30") Carrying Case Limited 1-Year Warranty User Manual PDF 900.9kbzftfqsrwyybvydbyrwsvxbavw Table of Contents
|
Upload User Manual
Have you got an user manual for the Axler Carbon Fiber Camera Slider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxler CS-CF-30 Specs | | | Load Capacity | 50 lb / 22.7 kg | | Travel Distance | 30" / 76 cm | | | | Camera Mounting Screw | 3/8"-16 Male | | Tripod Mounting | 1/4"-20 Female Thread
3/8"-16 Female Thread | | | | Track Length | 31.5" / 80 cm | | Track Width | 7" / 17.8 cm | | Track Height | 2.75" / 7 cm | | Weight | 3.55 lb / 1.6 kg | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 34.25 x 9.0 x 4.3" |
Rating66% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
