User Manual for Axler Cheese Plate with 15mm Rod Bridge Click to enlarge the picture
Contents of the user manual for the Axler Cheese Plate with 15mm Rod
- Product category: Rod Brackets & Clamps Axler
- Brand: Axler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Axler Rod Brackets & Clamps
 |
User manual for the Axler Cheese Plate with 15mm Rod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Axler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Axler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Axler product will considerably shorten its lifespan!
|

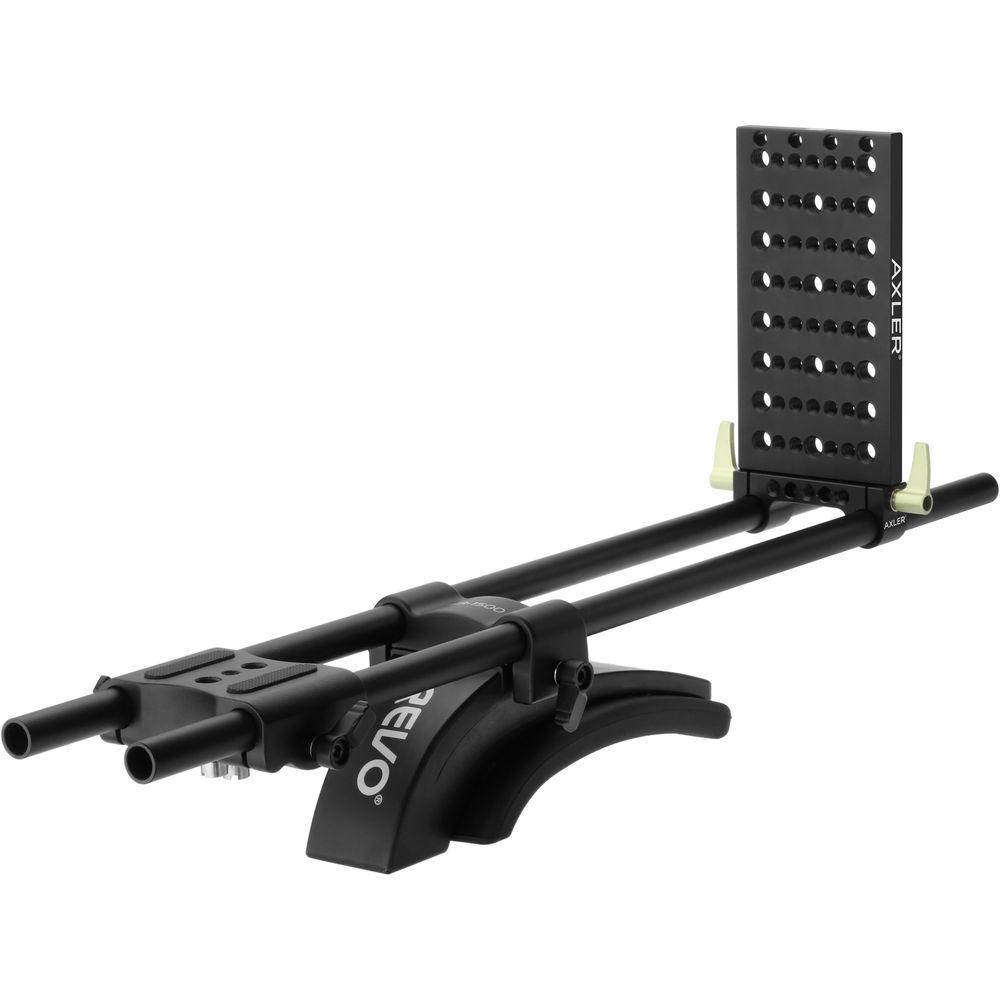

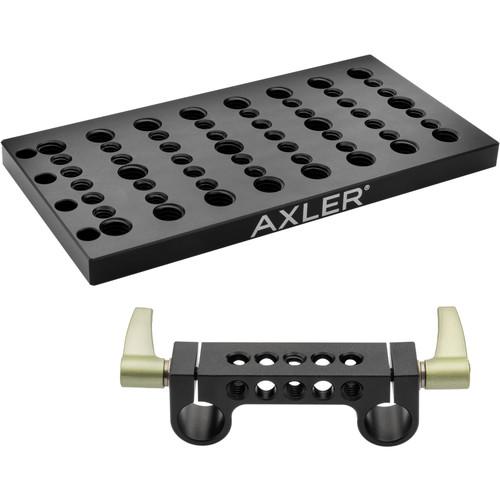

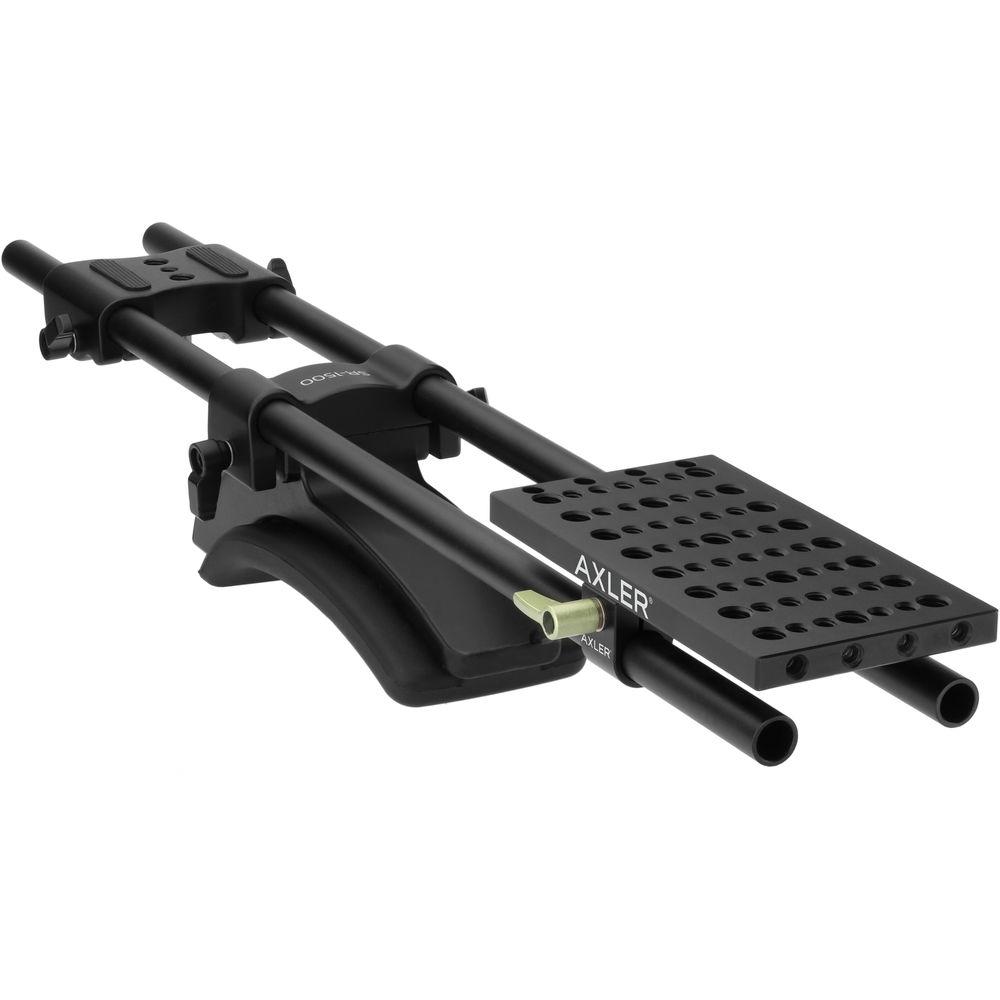

Product description The Axler Cheese Plate with 15mm Rod Bridge provides a convenient way of adding support for accessories to your camera rig. The cheese plate can be secured to the rod bridge in a vertical or horizontal position using included screws, and the rod bridge can then be mounted on any 15mm LWS rods on your rig.
The plate features seventy 1/4"-20 and 3/8"-16 threaded mounting holes and provides an ideal platform for attaching battery plates, transmitters, spigots, articulating arms, shoe mounts, and much more. The plate is precision-machined from a single piece of aluminum, and the mounting holes run from end to end, so you can screw in accessories from either side. - Key Features
-
- Mount on your camera rig in a vertical or horizontal position
- Fifty 1/4"-20 and twenty 3/8"-16 threaded mounting holes

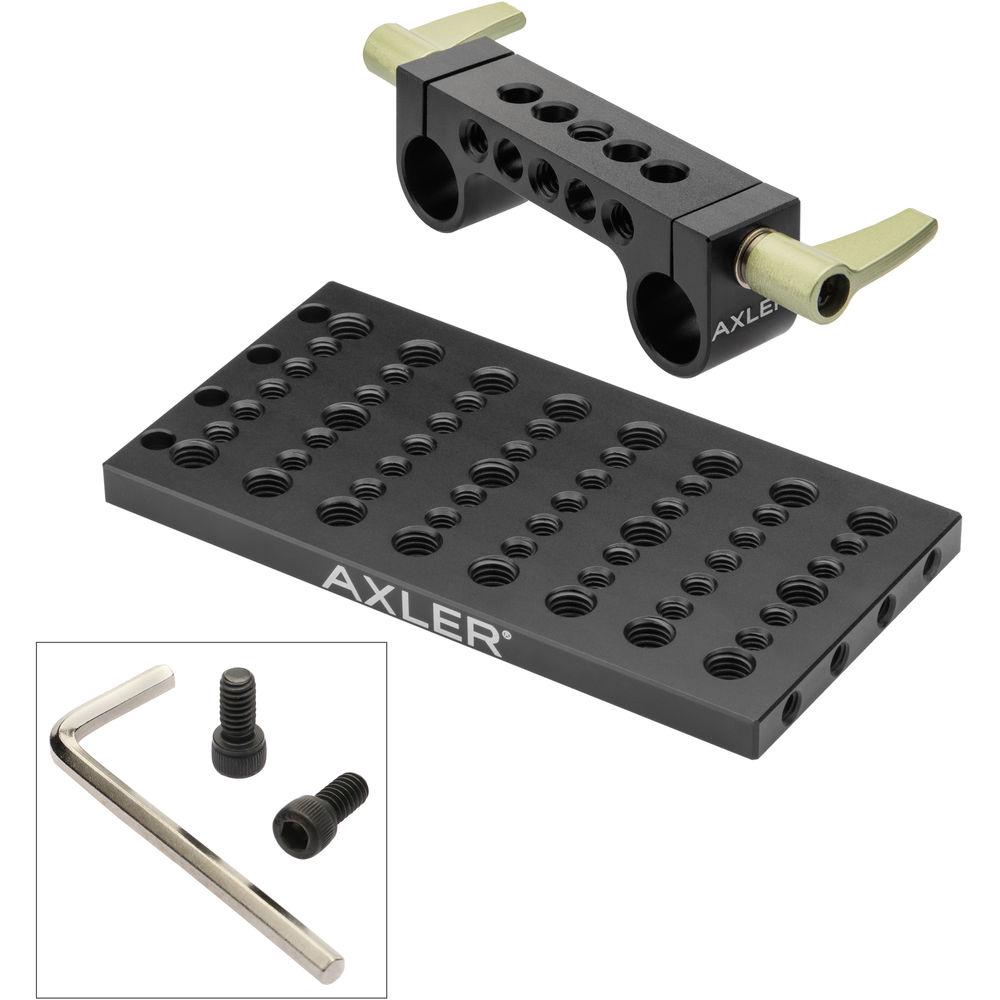

UPC: 847628001688 In the Box Axler Cheese Plate with 15mm Rod Bridge 2 x Hex Screws Hex Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Axler Cheese Plate with 15mm Rod Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxler CP-815-15LWS Specs | Mount Types | 50 x 1/4"-20 threaded holes
20 x 3/8"-16 threaded holes | | Rod Compatibility | 15 mm LWS (standard 60 mm spacing) | | Material of Construction | Aluminum | | Dimensions | 6 x 3 x 0.4" (15 x 8 x 1 cm) | | Weight | 12.2 oz (346 g)
9.7 oz (275 g) (without bridge adapter) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 6.3 x 4.3 x 1.6" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
