User Manual for Axler Hammerhead Follow Focus Click to enlarge the picture
Contents of the user manual for the Axler Hammerhead Follow Focus
- Product category: Follow Focus Systems Axler
- Brand: Axler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Axler Follow Focus Systems
 |
User manual for the Axler Hammerhead Follow Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Axler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Axler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Axler product will considerably shorten its lifespan!
|

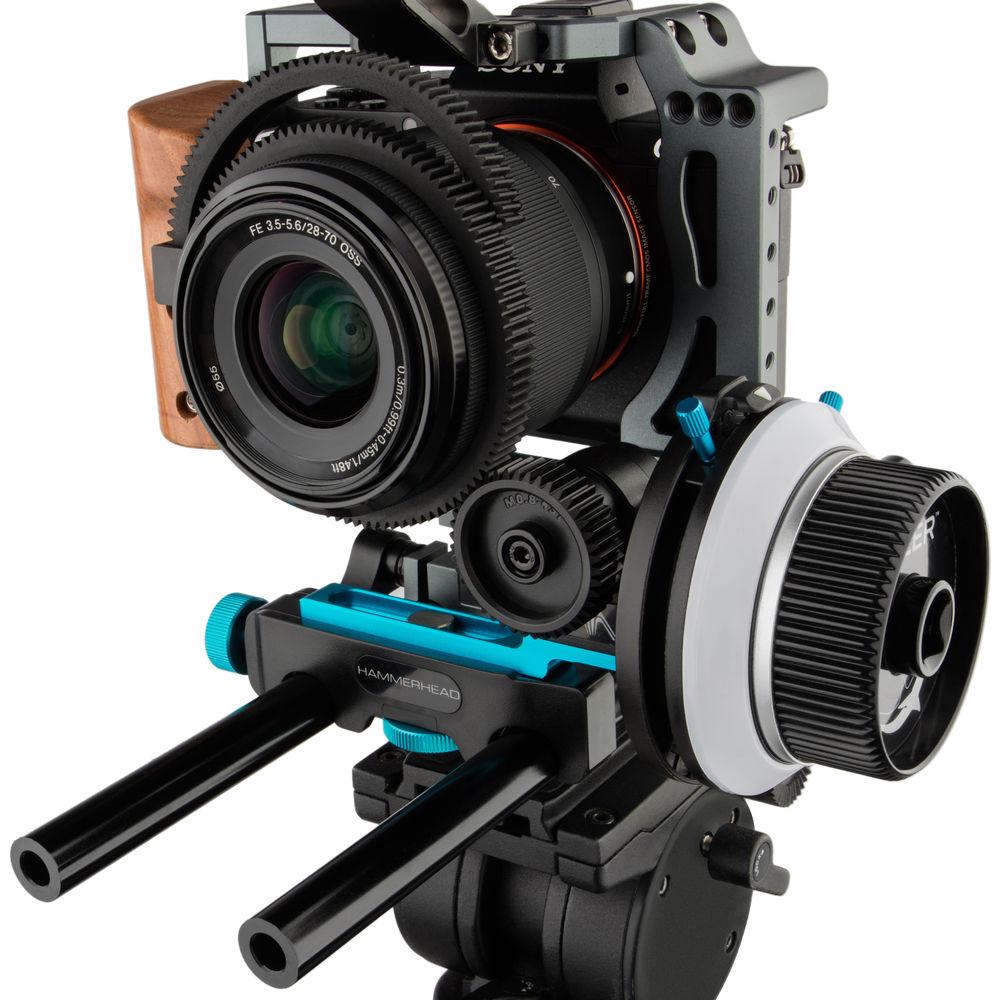

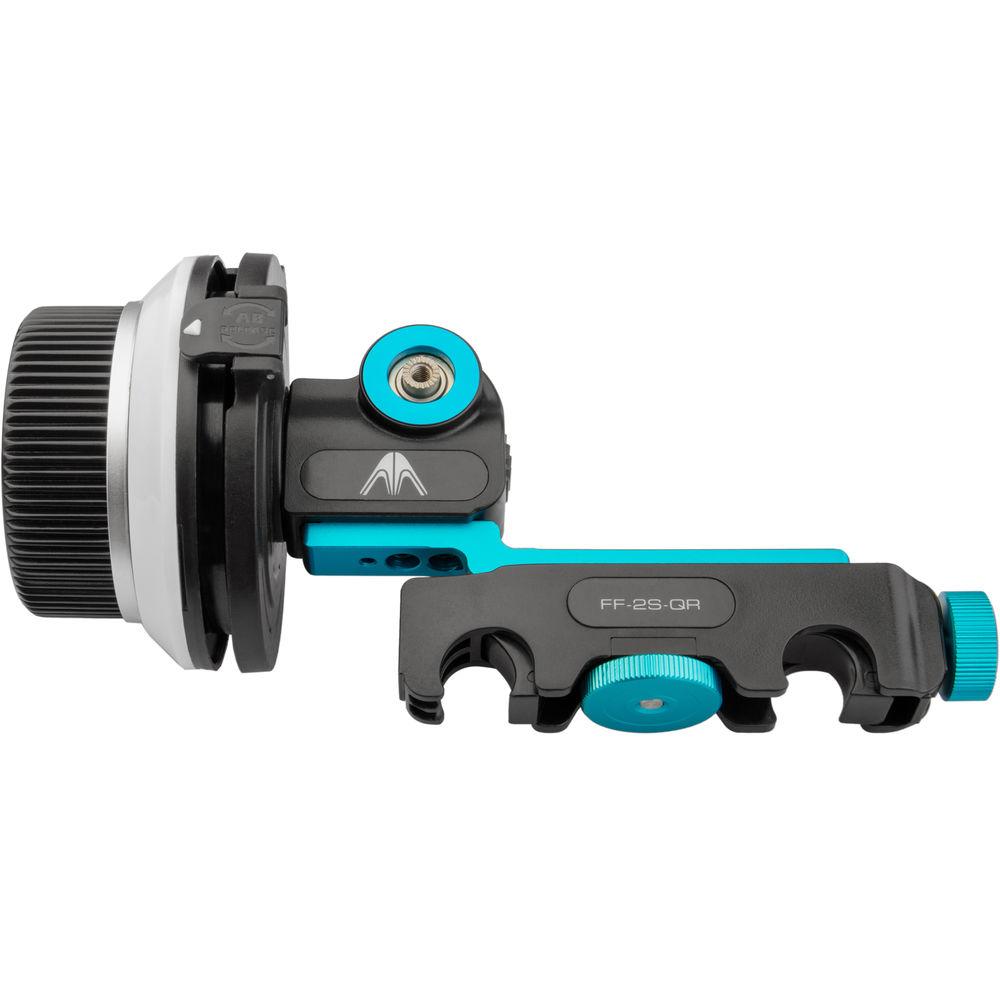

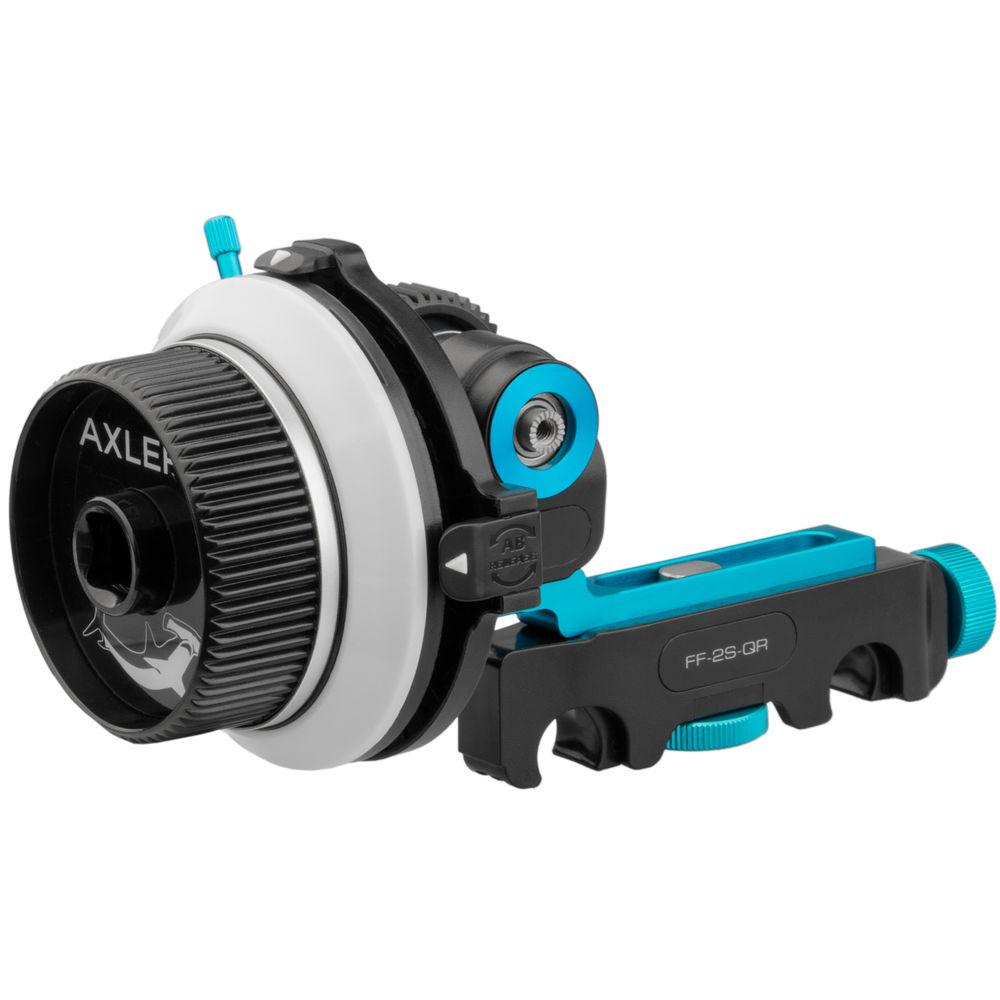

Product description For smooth focus adjustments, slot the Axler Hammerhead Follow Focus onto your 15mm LWS rig. With its large hand wheel, built-in adjustable hard stops, a marking disk, and compatibility with 0.8 MOD lens gearing, the Hammerhead enables precise focus pulling on cinema, DSLR, or mirrorless lenses that have a 0.8 MOD lens gear installed (an adjustable lens gear is included in the box). Since a quick release system is implemented at the base of the unit, the Hammerhead can be easily snapped onto 15mm LWS rods without disrupting other mounted accessories, such as matte boxes or lens supports.While follow focus systems are classically employed when a crew is available, the Hammerhead can also be used by solo operators. The marking disk is angled to be visible from both the side and the rear, for a clear line-of-sight from the operator and assistant positions. Assistants can use the ARRI standard accessory port for whips or speed-cranks. - Smooth Focus Adjustment
- Boasting a large hand wheel, focus adjustments with the Hammerhead can be smooth and precise. Use the included Allen wrench to adjust the gearbox stiffness to your preference.

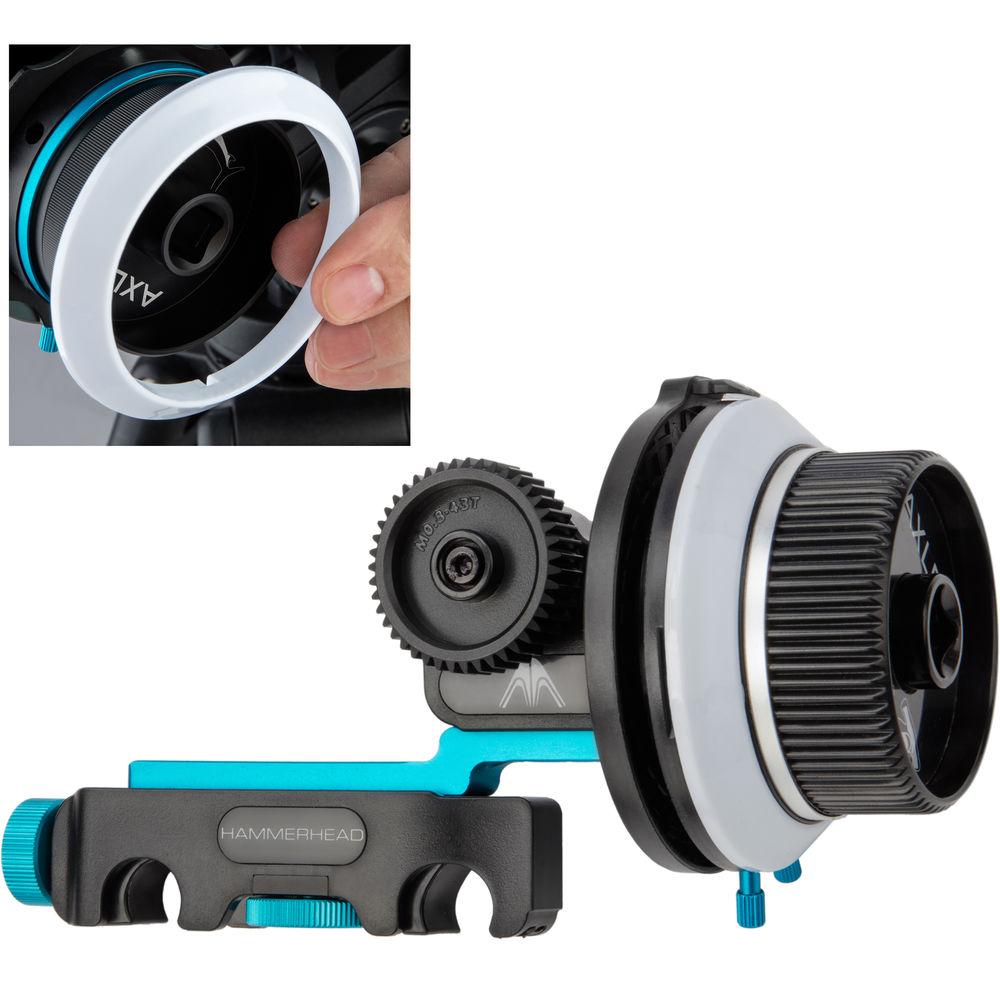

- Adjustable Hard Stops
- Easily repeat focus moves by setting the end stops of the focus move on the hand wheel itself. Flip up the marking index to release the stops so you can reset them for your next shot.
- Accommodates Multiple Lens Diameters
- Release the bottom thumbscrew while the Hammerhead is locked down on the rods to slide the hand wheel and gearbox to mesh with your lens. The sliding range can accommodate lenses ranging in 20-100mm in diameter.

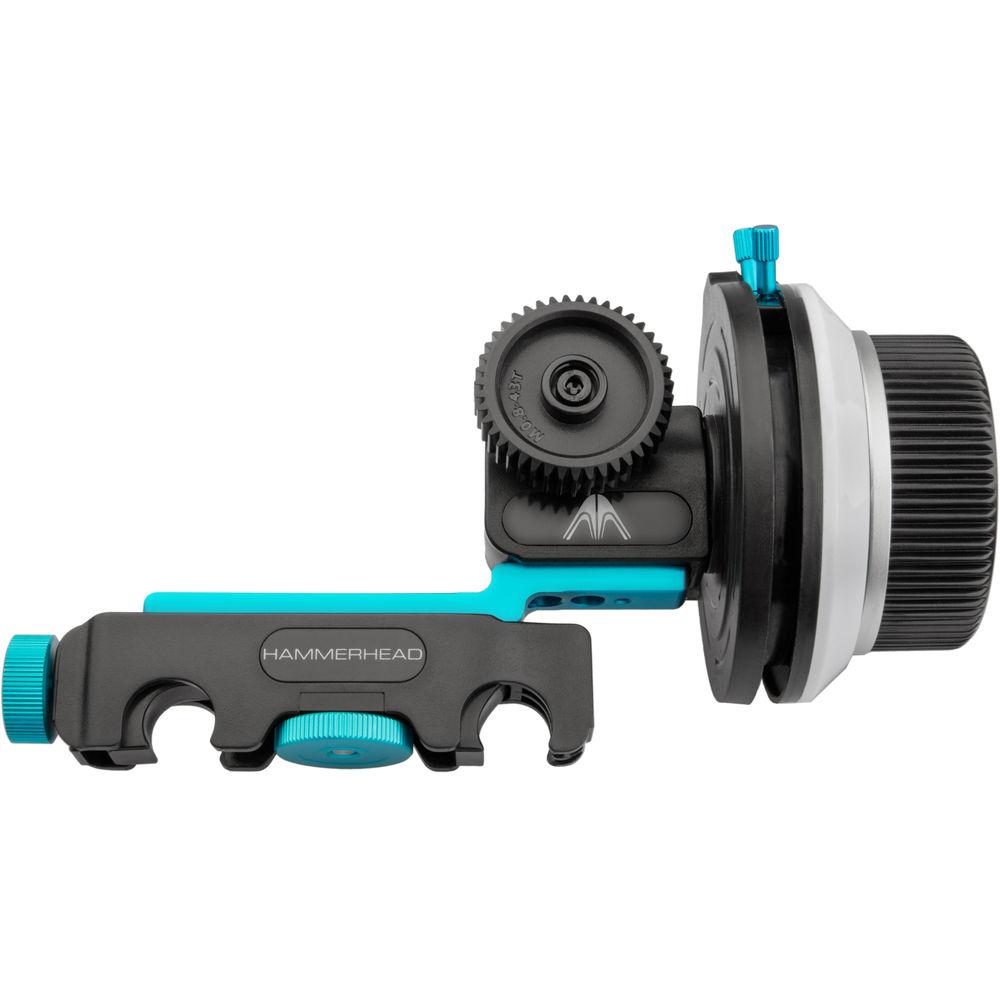

- Switchable Drive Gear
- With shorter lenses, connecting the follow focus can be difficult if the lens gear is fixed. The Hammerhead features a side-switchable drive gear, meaning the drive gear can be mounted on the side closer to the camera for working with short lenses commonly found on mirrorless cameras.
- Accessory Port
- At the center of the hand wheel is an ARRI standard accessory port for whips, cranks, and other accessories, either for the operator or an assistant camera operator.

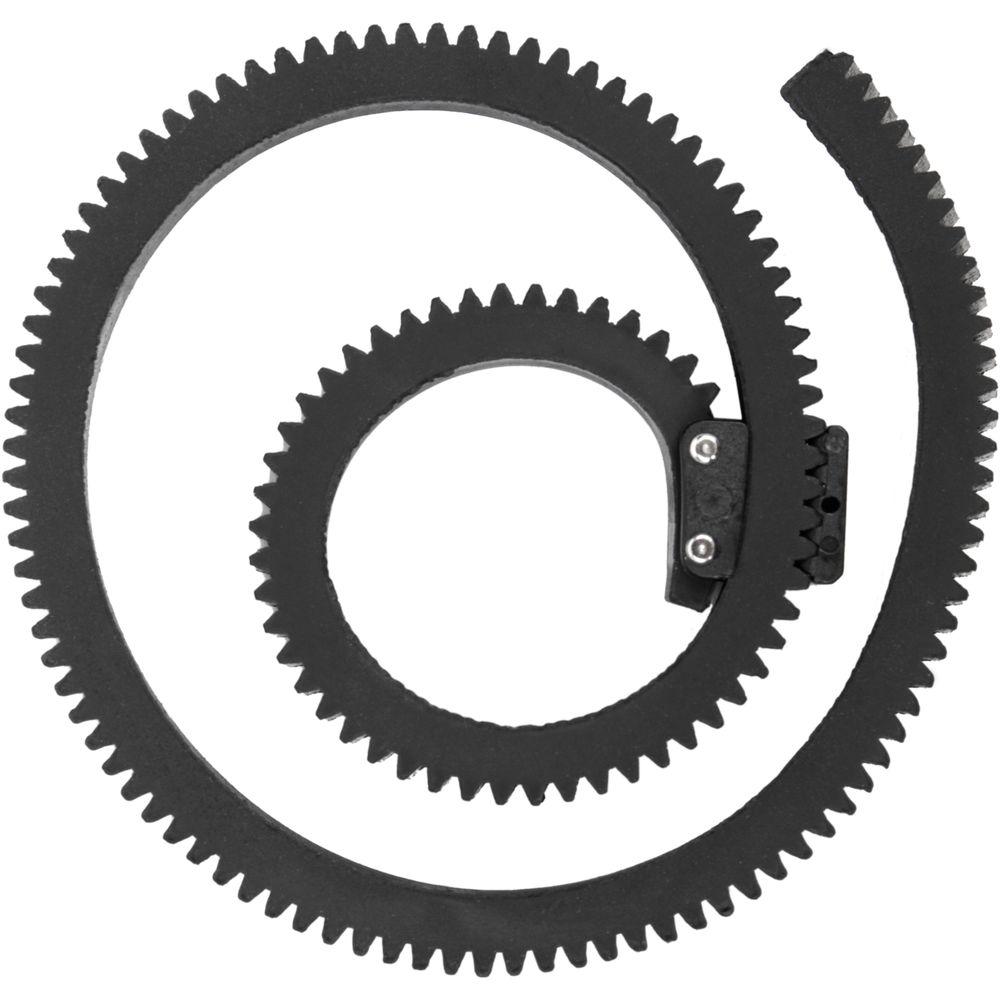

UPC: 847628597990 In the Box Axler Hammerhead Follow Focus Adjustable Lens Gear Drive Gear Allen Wrench Limited 1-Year Warranty User Manual PDF 739kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Axler Hammerhead Follow Focus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxler FF-2S-QR Specs | Included Drive Gear | 0.8 MOD | | Rod Compatibility | 15 mm LWS (Snap-On) | | Number of Sides | Single-Sided | | Built-In Hardstops | 2, Removable | | Witness/Index Mark | Yes | | Marking Disk | Yes | | Maximum Lens Diameter | 3.93700787401575" / 100 mm | | Horizontal Movement | 3.15" / 8 cm | | Switchable Handwheel Speed | No | | Handwheel Accessory Port | Yes | | Dimensions | 6.5 x 3.5 x 3" / 16.5 x 8.9 x 7.6 cm | | Weight | 9.2 oz / 260 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 11.5 x 9.3 x 3.7" |
Rating74% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
