User Manual for Axler Hammerhead Pro Follow Focus Click to enlarge the picture
Contents of the user manual for the Axler Hammerhead Pro Follow Focus
- Product category: Follow Focus Systems Axler
- Brand: Axler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Axler Follow Focus Systems
 |
User manual for the Axler Hammerhead Pro Follow Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Axler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Axler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Axler product will considerably shorten its lifespan!
|

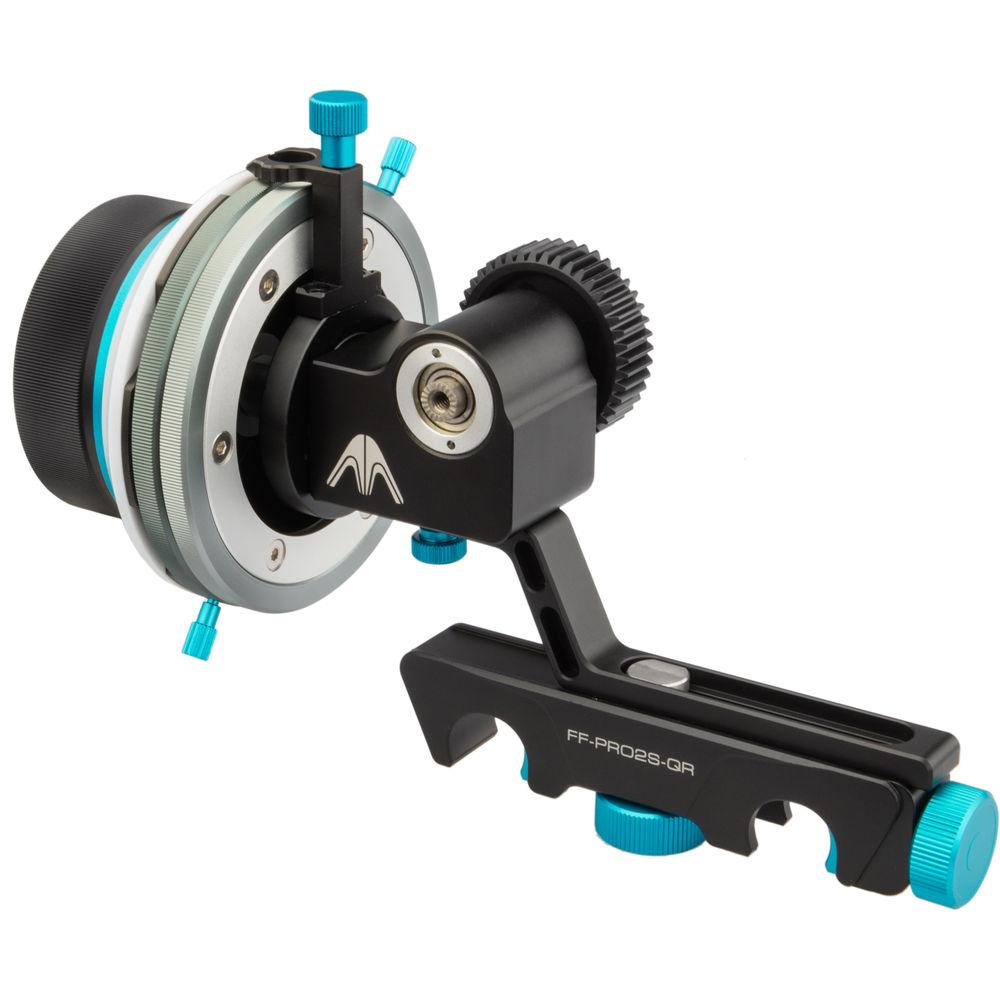

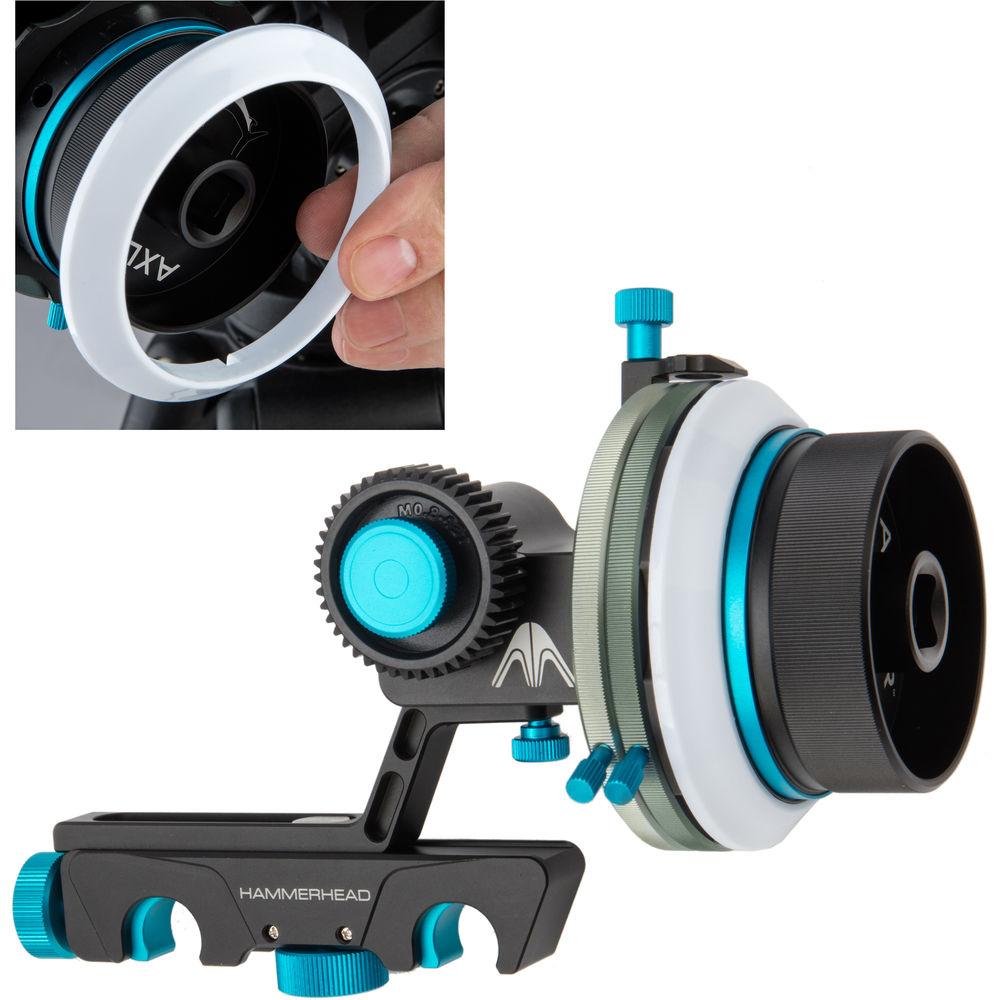

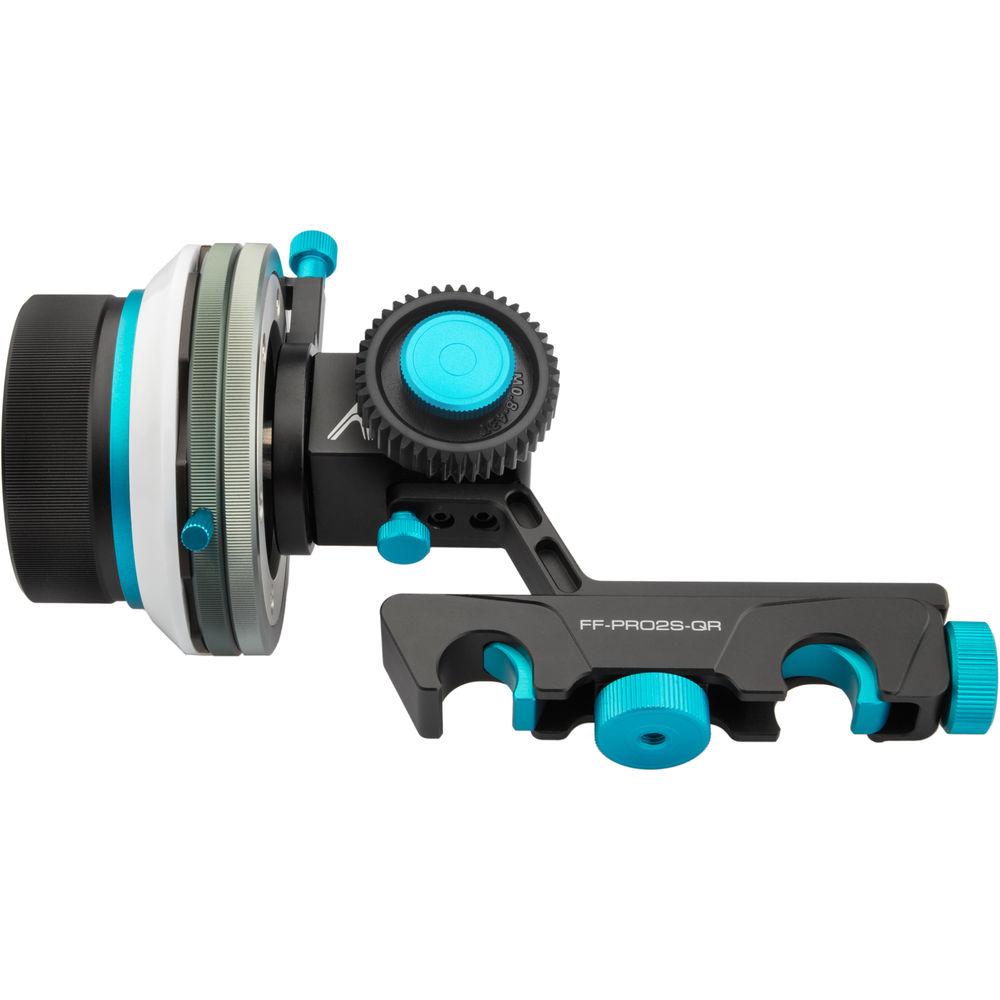

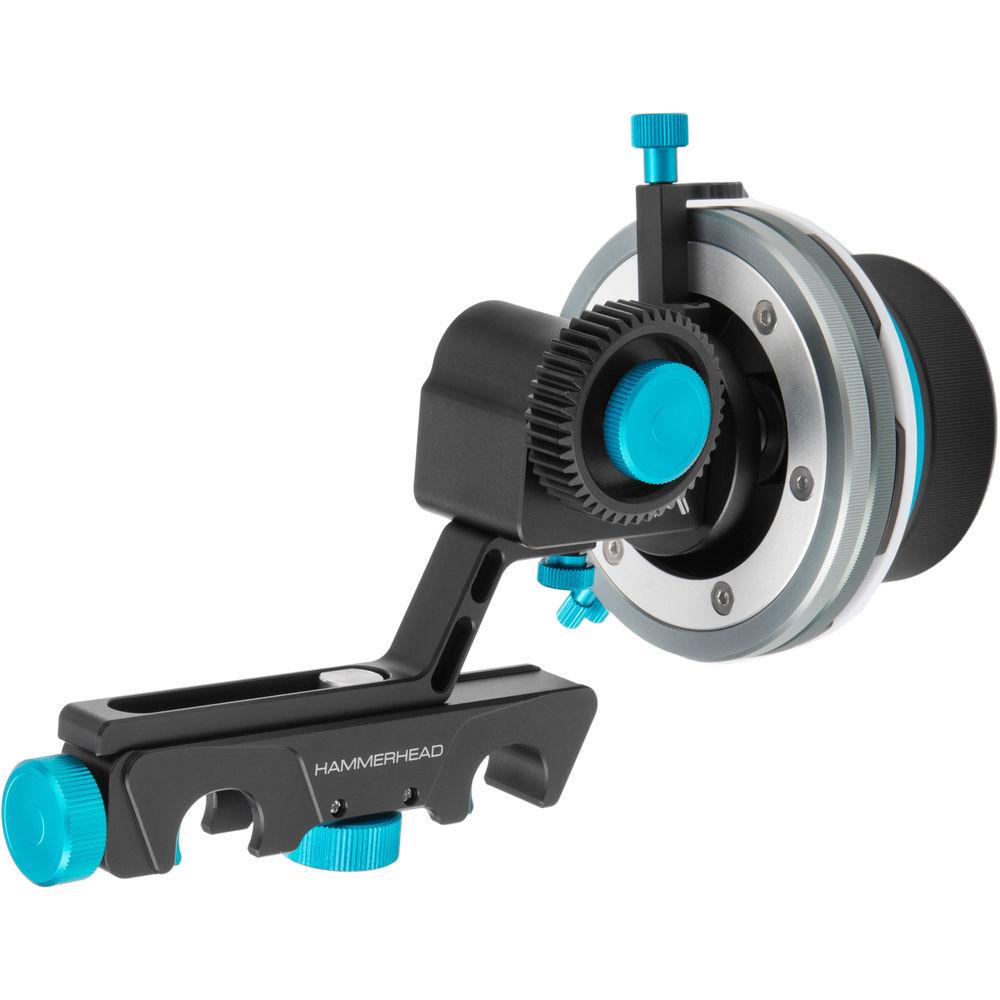

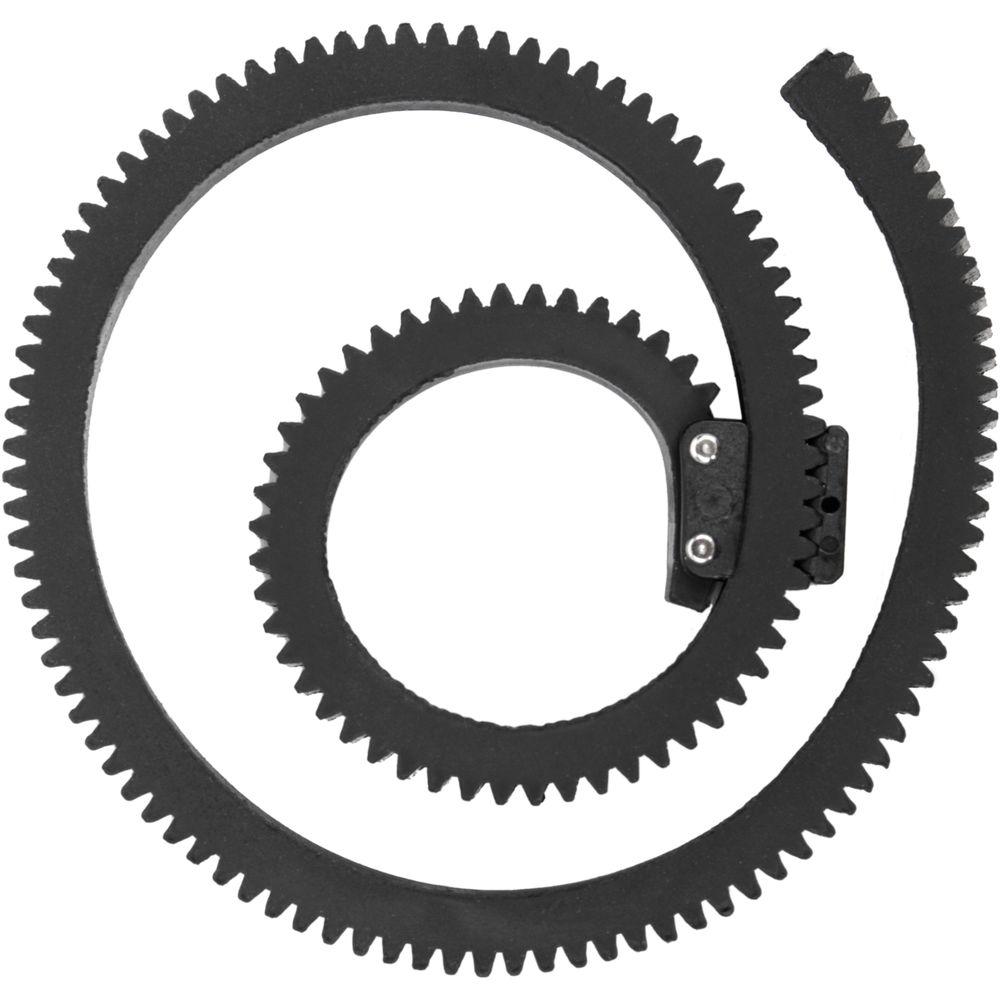

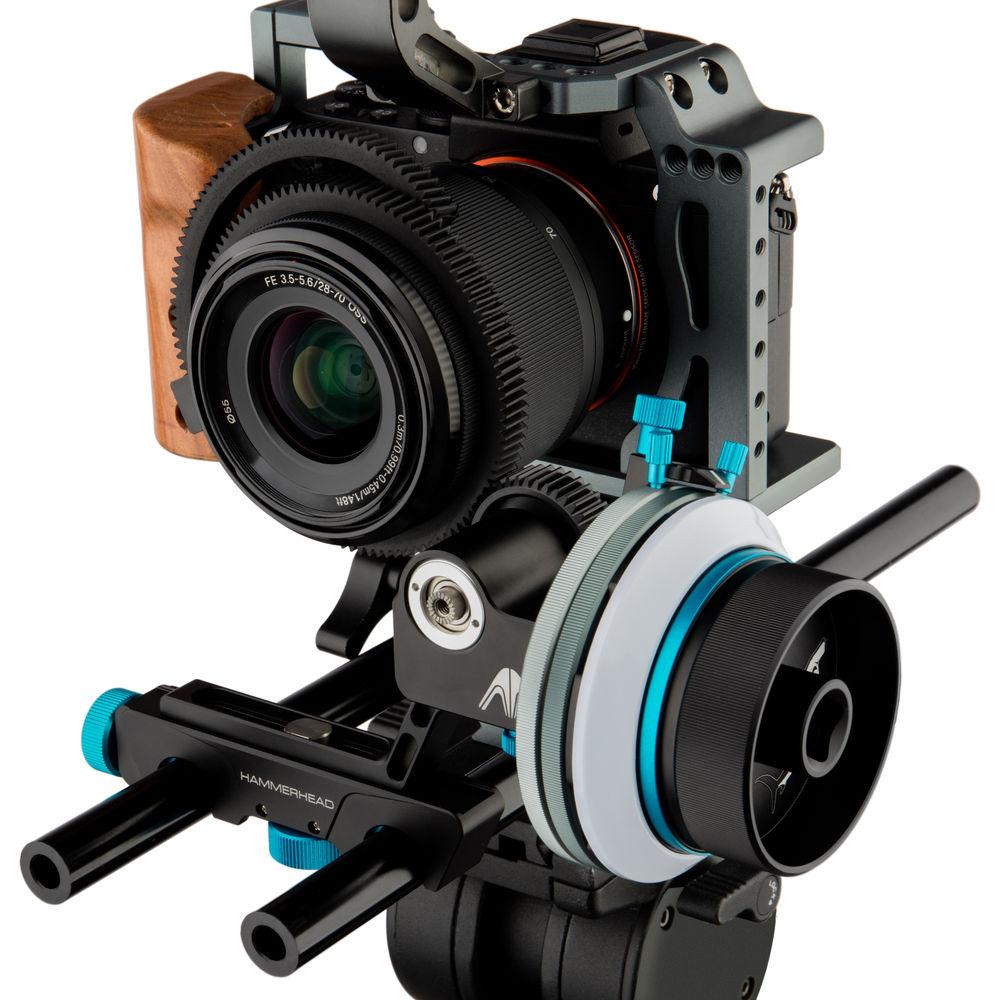

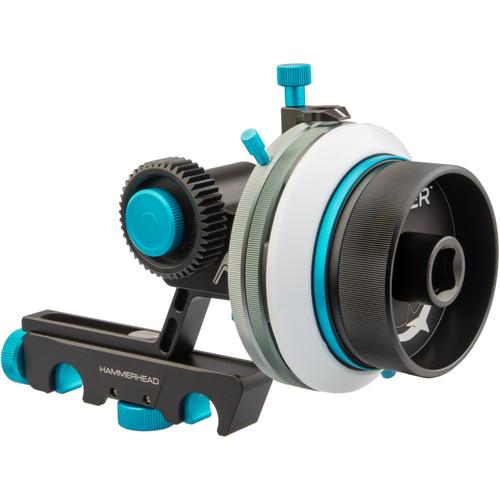

Product description Featuring solid metal construction and minimal gearbox play, the Axler Hammerhead Pro Follow Focus earns the "Pro" moniker. The knurled hand wheel rotates smoothly and has built-in hard stops for repeatable focus pulls. Alternatively, release the hard stops and mark your focus points on the marking disk for visual aid, visible from the operator and assistant positions. Camera assistants will also appreciate the presence of an ARRI standard accessory port for whips, cranks, and other focusing accessoriesA 0.8 MOD drive gear is included for meshing with standard cinema lens gearing, or with the included lens gear which can be installed on DSLR or mirrorless camera lenses that don't already have gearing. With the quick release mechanism, the Hammerhead Pro can be easily installed on rigs that employ 15mm LWS rods without disrupting other mounted accessories, such as matte boxes or lens supports. This saves valuable time on set. - Smooth Focus Adjustment
- The large knurled hand wheel on the Hammerhead Pro provides a sure grip and smooth focusing action. A small thumbscrew at the base of the gearbox can be tightened or loosened to adjust gearbox stiffness.
- Adjustable Hard Stops
- Easily repeat focus moves by setting the end stops of the focus move on the hand wheel itself. Release the stops to regain full rotation of the hand wheel, or to just reset them for your next shot.
- Accommodates Multiple Lens Diameters
- Release the bottom thumbscrew while the Hammerhead Pro is locked down on the rods to slide the hand wheel and gearbox to mesh with your lens. The sliding range can accommodate lenses ranging in 30-120mm in diameter.
- Switchable Drive Gear
- With shorter lenses, connecting the follow focus can be difficult if the lens gear is fixed. The Hammerhead Pro features a side-switchable drive gear, meaning the drive gear can be mounted on the side closer to the camera for working with short lenses commonly found on mirrorless cameras.
- Accessory Port
- At the center of the hand wheel is an ARRI standard accessory port for whips, cranks, and other accessories, either for the camera operator or an assistant.
UPC: 847628597983 In the Box Axler Hammerhead Pro Follow Focus Adjustable Lens Gear Drive Gear Limited 1-Year Warranty User Manual PDF 738kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Axler Hammerhead Pro Follow Focus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxler FF-PRO2S-QR Specs | Included Drive Gear | 0.8 MOD | | Rod Compatibility | 15 mm LWS (Snap-On) | | Number of Sides | Single-Sided | | Built-In Hardstops | 2, Removable | | Witness/Index Mark | Yes | | Marking Disk | Yes | | Maximum Lens Diameter | 4.7244094488189" / 120 mm | | Gear Position | Swappable | | Horizontal Movement | 3.54" / 9 cm | | Switchable Handwheel Speed | No | | Gear Material | Composite | | Handwheel Accessory Port | Yes | | Dimensions | 6.54 x 3.5 x 2.99" / 16.6 x 8.9 x 7.6 cm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 11.5 x 9.4 x 3.6" |
