Product description Filters and Capturing Images with Drones Read More - Quick Start: How to Balance an Axler Wisp 20M

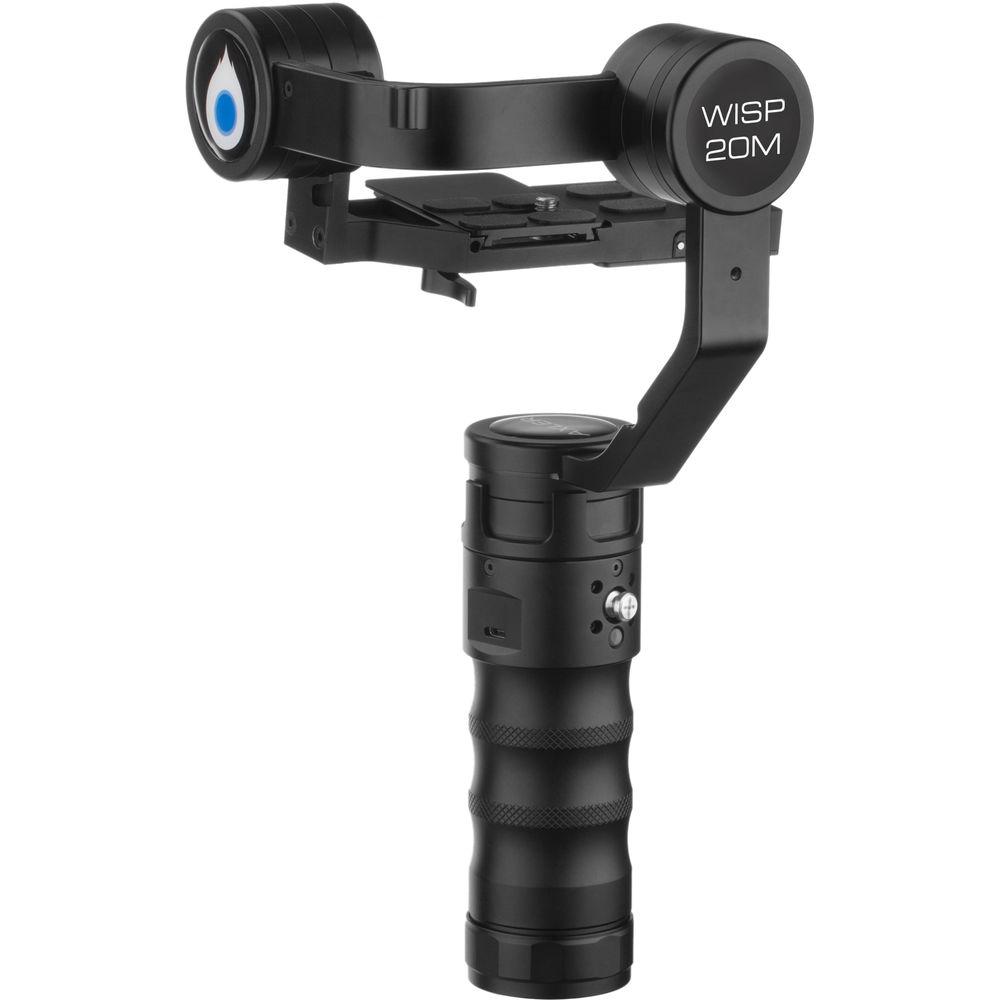

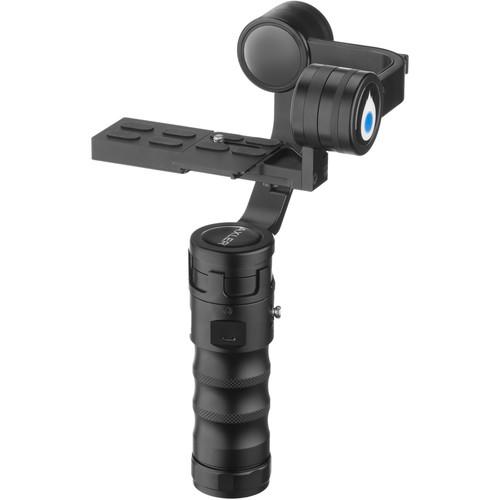

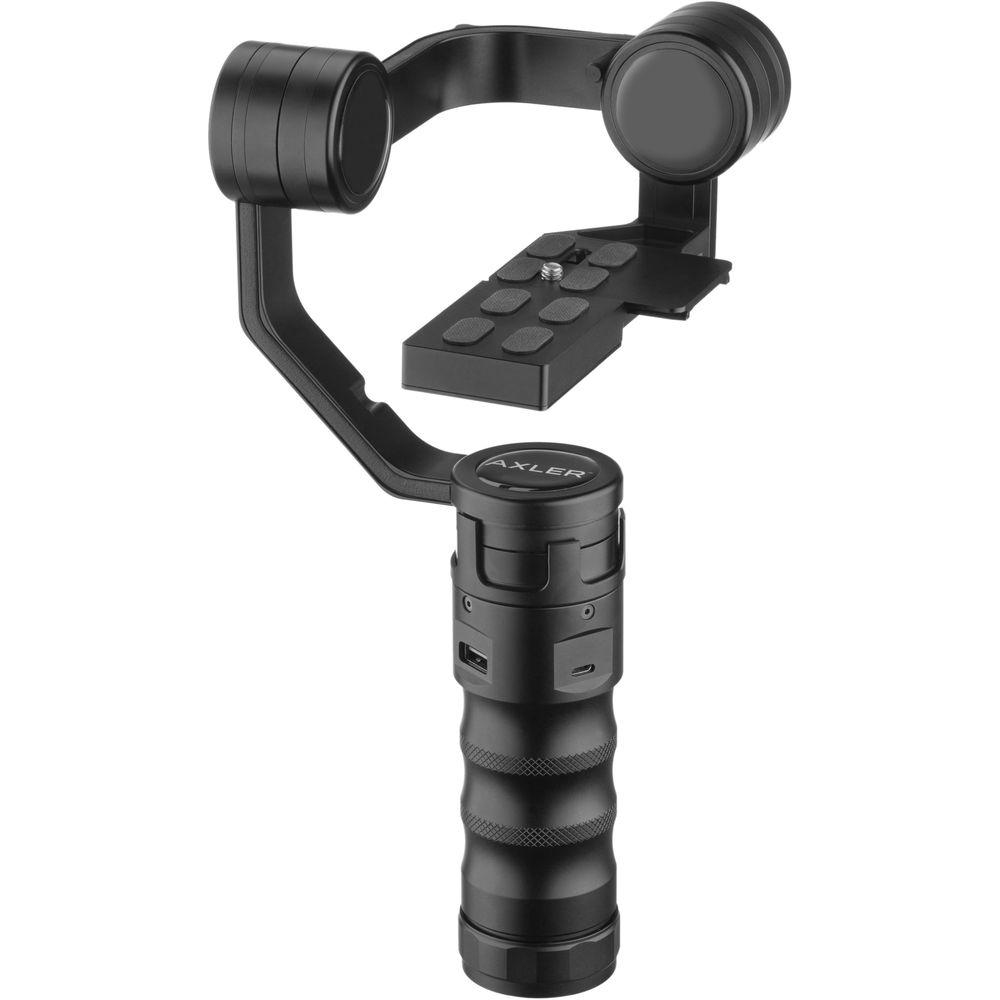

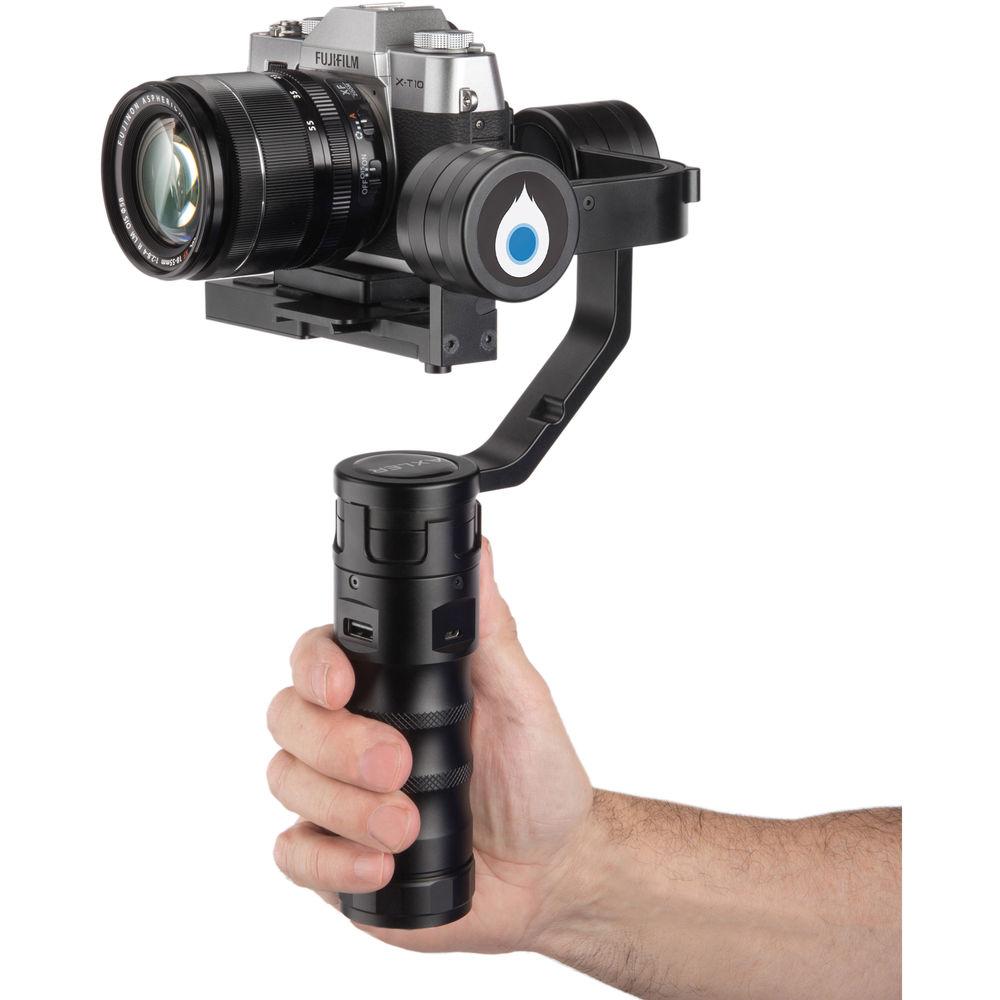

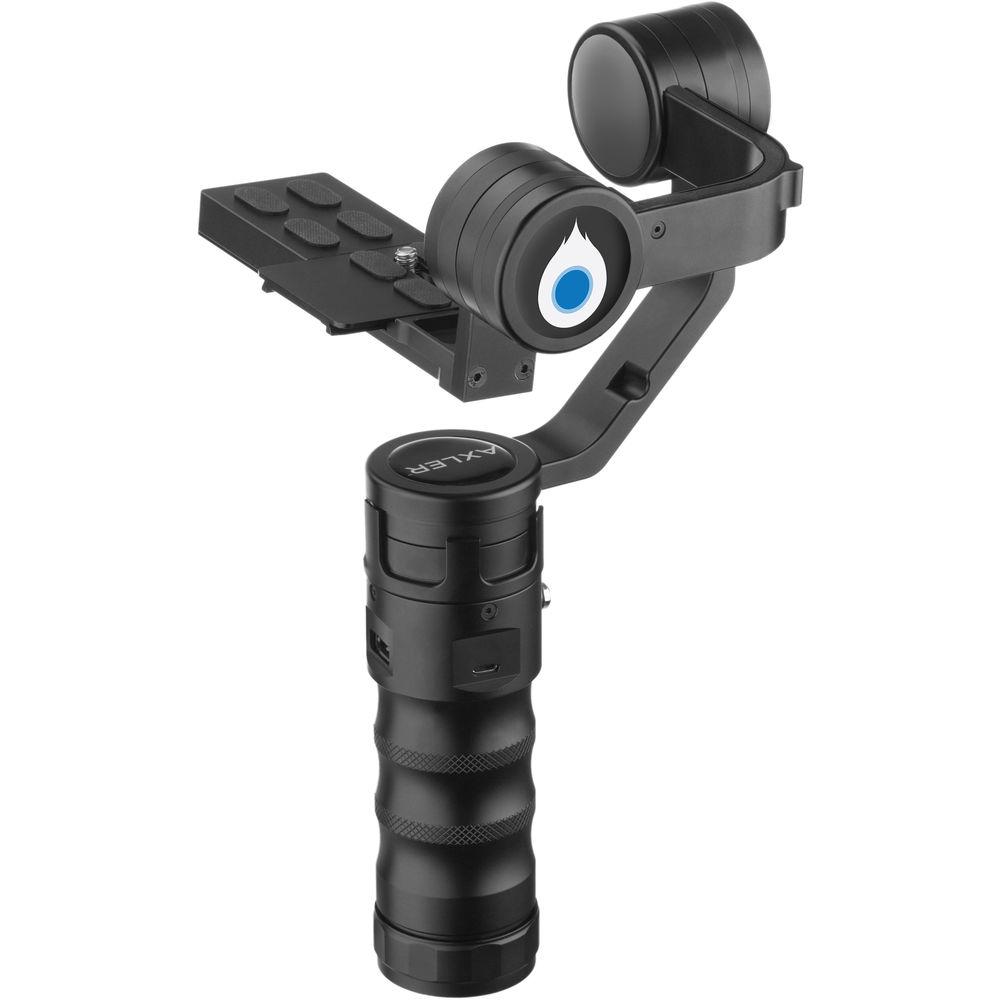

The WISP-20M from Axler is a handheld motorized gimbal stabilizer designed for use with mirrorless or similarly sized cameras. It utilizes quiet brushless motors to isolate your camera from unwanted hand shake along the yaw (pan), pitch (tilt), and roll axes, allowing you capture smooth, fully stabilized shots with camera and lens combinations weighing up to 1.9 lb.
The gimbal stabilizer offers two distinct operating modes: a Follow Mode that allows the camera to smoothly follow the pan and tilt motion of the unit, and a Lock Mode to keep the camera in a single position, regardless of how the stabilizer is moved. A thumbstick on the back of the handle is used to switch between modes and adjust camera pan and pitch tilt. Additionally, a button on the camera platform activates a Low mode, lettings you invert the stabilizer for easier low-angle shots.

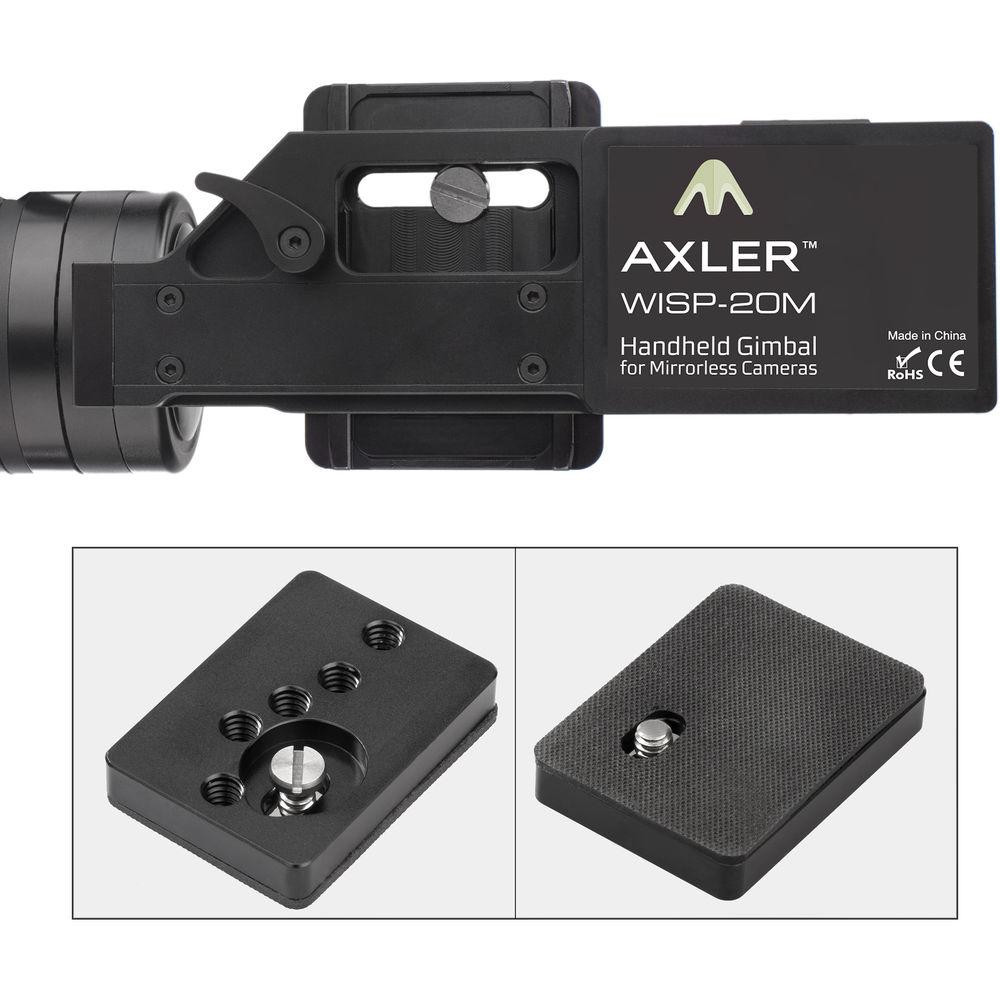

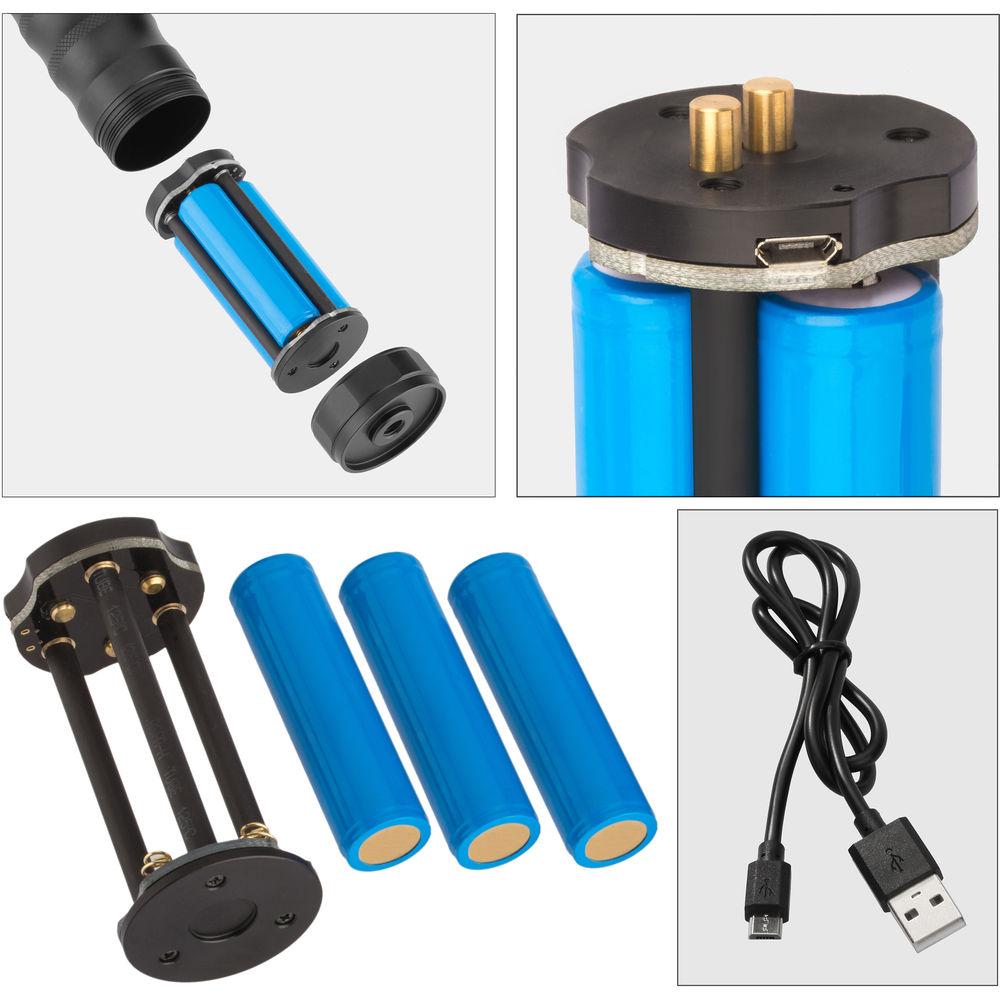

Designed for ease of use, the WISP-20M features a sliding quick release plate for quick camera attachment and balancing. An offset adapter plate is included to fit wider cameras or cameras with an off-center 1/4"-20 socket. Once balanced, the internal gyros automatically stabilize your camera when the device is powered on. The motors are powered using three readily available 18650 rechargeable lithium-ion batteries, which provide around two to three hours of continuous operation. Batteries and a micro-USB charging cable are included.

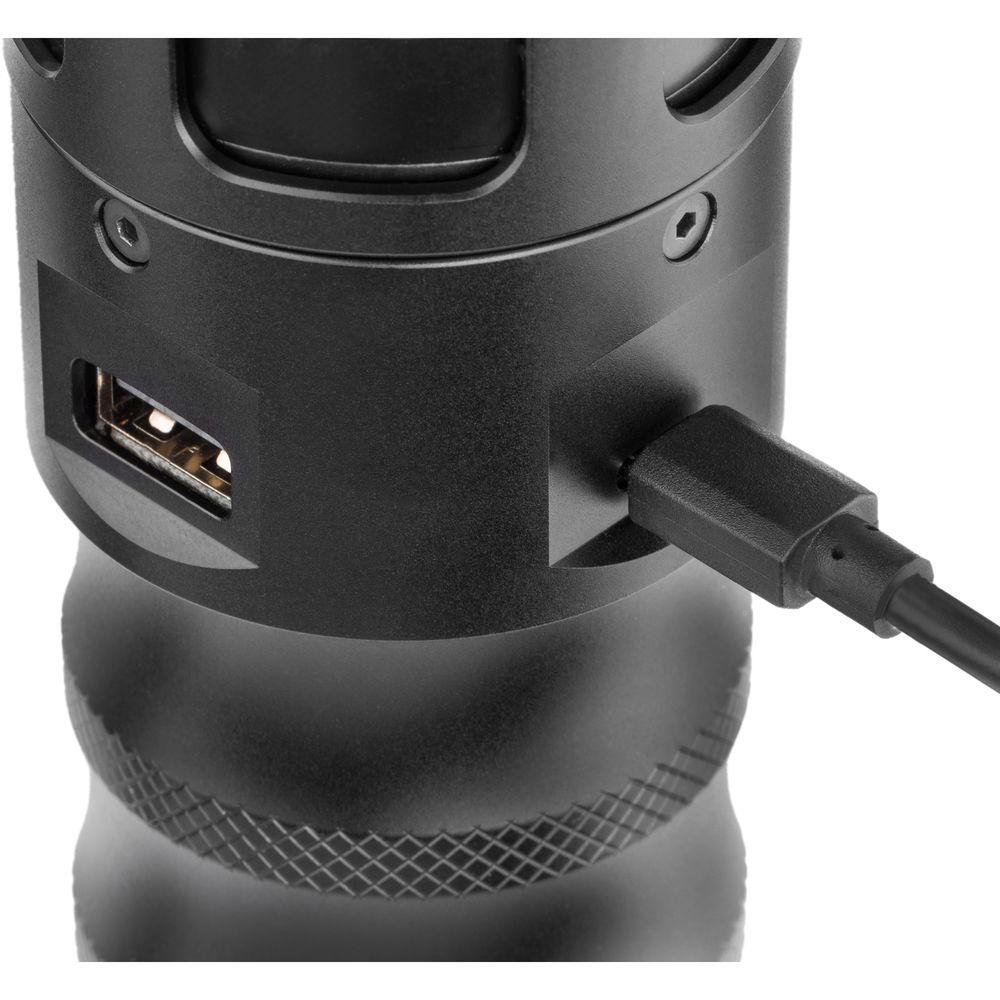

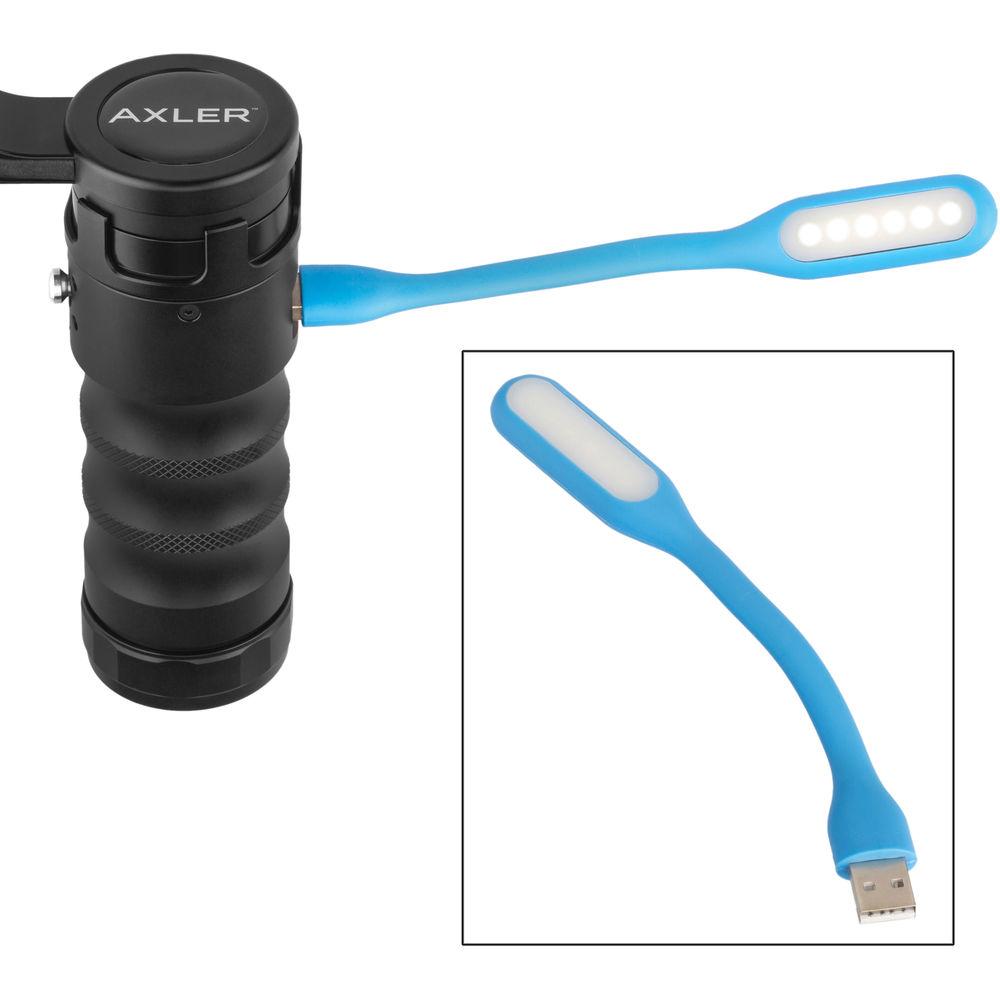

For added versatility, there is a 3/8"-16 threaded socket at the bottom of the handle that allows the stabilizer to be mounted on a tripod, monopod, or jib. A 5V USB port on the handle can be used to charge a smartphone or to power an included compact and flexible LED light, useful when working in dimly light environments. - Key Features
-
- Handheld motorized gimbal for mirrorless and point-and-shoot cameras
- Supports loads up to 1.9 lb
- Pitch, roll, and yaw axis stabilization
- Sliding quick release plate for camera attachment and balancing
- Offset adapter plate increases range of camera that can be used with stabilizer
- Follow Mode and Lock Mode
- Inverted Mode
- Thumbstick for mode selection and yaw/pitch (pan/tilt) control
- Quiet brushless motors
- Powered using three 18650 rechargeable lithium-ion batteries
- 3/8"-16 mounting thread at bottom of handle
- 5V USB port on handle to charge smartphone or power included compact LED light
- Operating Modes
- Follow Mode: Camera smoothly trails the movement of the handle
Lock Mode: Camera holes its position regardless of the handle angle
Low Mode: Inverts the camera for low-angle shots - Camera Compatibility
- The WISP-20M is compatible with the following cameras (as well as other similarly-sized cameras):
Sony a7-series cameras
Sony a6000, a6300, and NEX-series cameras
Sony RX100
Panasonic GH4 and GH3
Panasonic G7
Blackmagic Pocket Cinema Camera

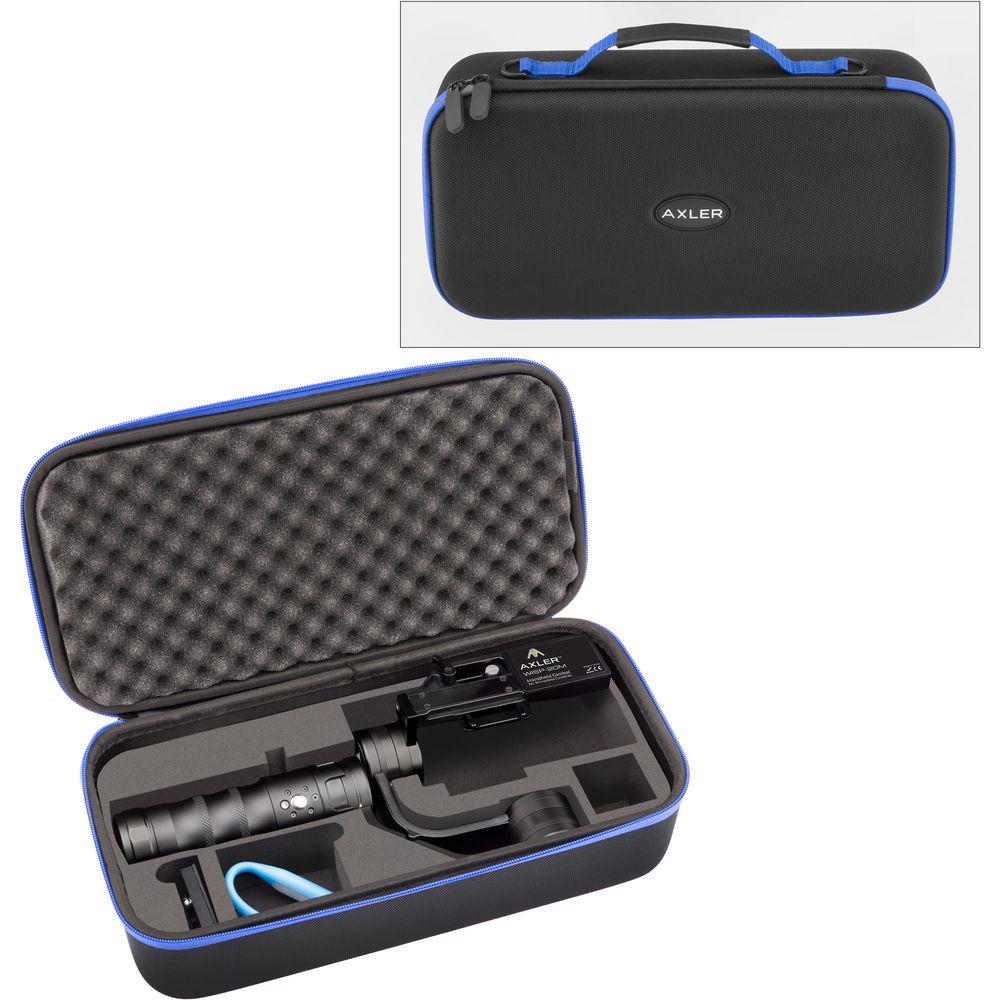

Canon EOS M3 UPC: 847628589285 In the Box Axler Handheld Gimbal for Mirrorless Cameras Quick Release Plate Offset Adapter Plate 2 x 1/4"-20 Mounting Screws Rubber Grips Battery Tray 3 x Rechargeable 18650 Batteries Micro-USB to USB Cable USB-Powered LED Light Carrying Case Limited 1-Year Warranty User Manual PDF 10.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Axler Handheld Gimbal for Mirrorless Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxler WISP-20M Specs | | | Number of Axes | 3-Axis | | Rotation Range | Roll: 355
