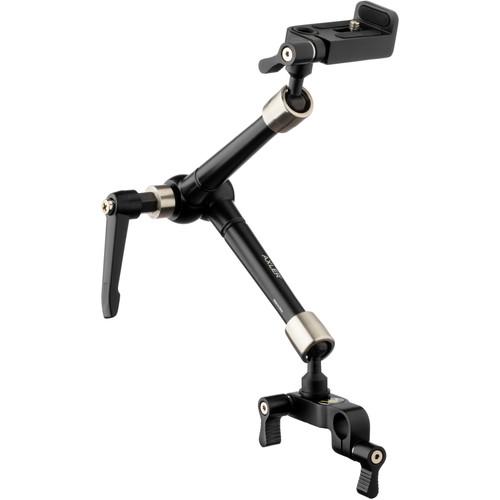

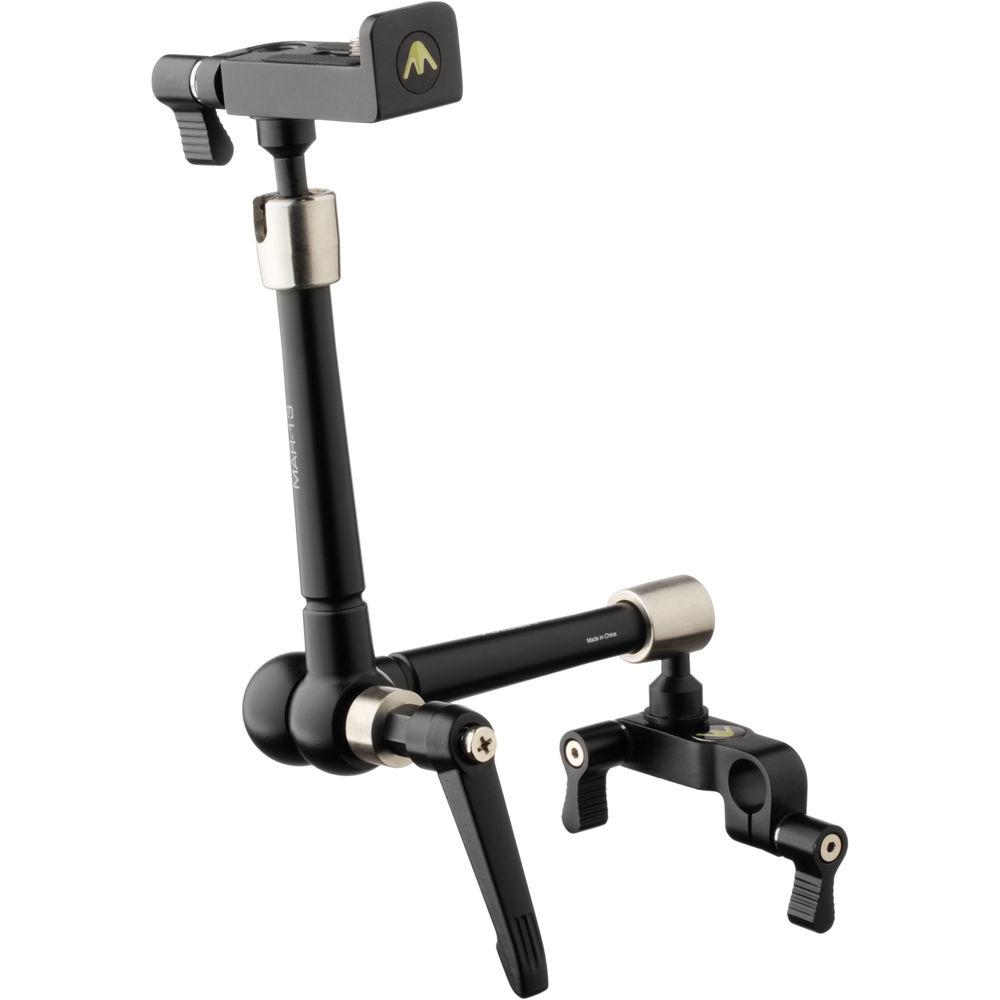

Product description Specifically designed for mounting your on-camera monitor to 15mm rods, the Axler MAR-13 Recodo Articulating Monitor Arm is a 13" long articulating arm that supports up to 10 pounds. It is machined from a metal alloy for strength and features three points of articulation that tighten and loosen using a single spring-loaded locking lever. The MAR-13 features 15mm diameter short rods on the end of each ball joint, as opposed to the usual 1/4"-20 threaded studs.

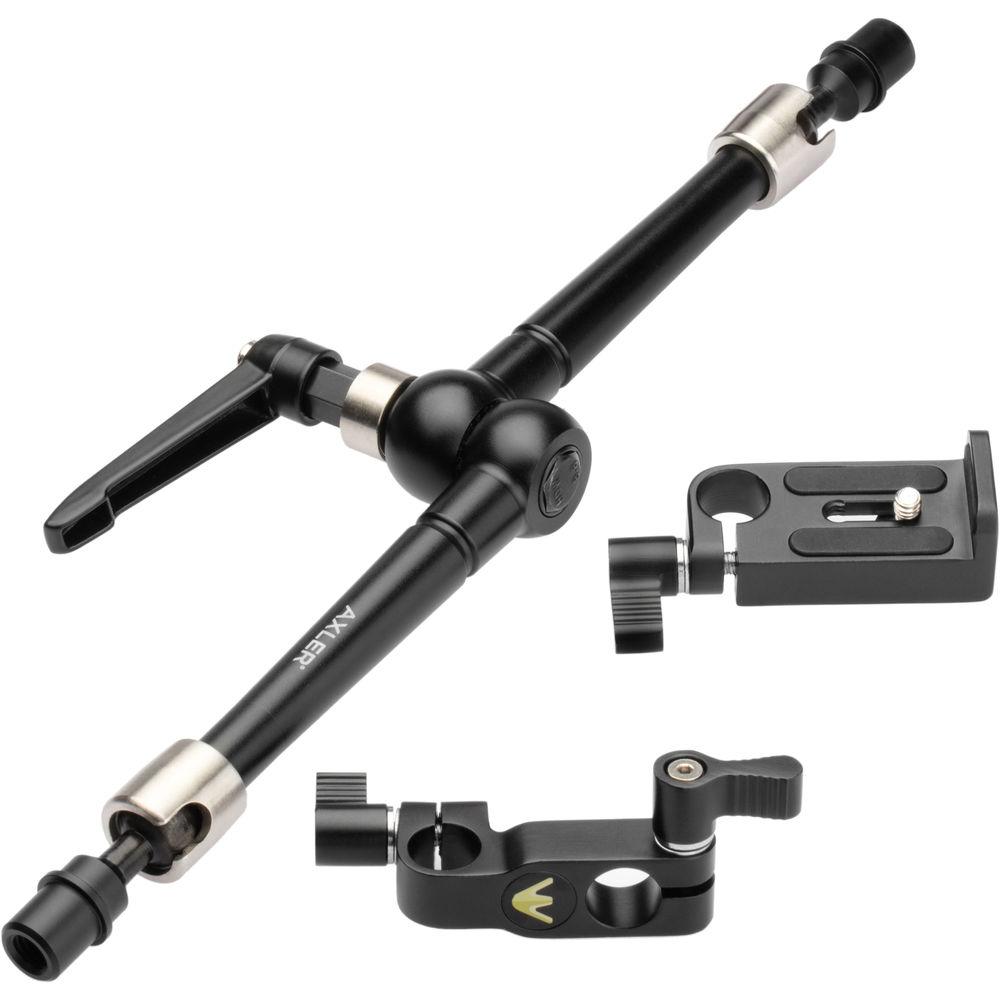

An included anti-twist monitor plate attaches to your on-camera monitor and has a built-in 15mm rod clamp, which allows you to quickly mount and remove your monitor from the arm. All locking levers are spring-loaded and provide good leverage when you need to tighten or loosen the arm. The center pivot features a friction washer to better handle loads up to 10 pounds. - Quick Release Rod Mounts
- An included 90° 15mm rod clamp enables mounting the MAR-13 to a 15mm rod setup. This also allows you to mount and remove the arm from the rod clamp quickly, without having to spin it on and off of the rod clamp, simply slide it on and tighten the spring-loaded locking lever.
- Monitor Plate
- Mount your on-camera monitor to the included anti-twist monitor plate, which features a captive 1/4"-20 tie-down screw and a D-ring clip to help you tighten it without using tools. The captive tie-down screw is in a 3/4" long channel, so you can adjust the position of your monitor, or snug it up against the plate's raised back, which will prevent it from twisting.
- Single Knob Tightening
- When the arm is loose, the center pivot, and both ball joint ends are flexible and can be moved to almost any position. Tightening the center twist lock tightens the center pivot as well as both ball ends at the same time.
- Threaded Mounting Ends
- The short 15mm rod ends on each ball joint feature 3/8"-16 internal threading, so you can attach 3/8"-16 threaded accessories or 1/4"-20 adapters.
- Center Pivot
- The center pivot features a friction washer to prevent the arms from slipping.
UPC: 847628002005 In the Box Axler MAR-13 Recodo Articulating Monitor Arm (13") Anti-Twist Monitor Plate 15mm Rod Clamp Limited 1-Year Warranty User Manual PDF 585.3kbxyazsaawdfedusadbwecub Table of Contents
|
Upload User Manual
Have you got an user manual for the Axler MAR-13 Recodo Articulating Monitor Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxler Recodo Specs | Load Capacity | 10 lb / 4.54 kg | | Threading | Rod Ends: 3/8"-16 (female) | | Length | Unfolded: 13" / 33.02 cm | | Width | Widest: 4.3" / 11 cm | | Weight | 1.25 lb / 0.57 kg | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 7.4 x 4.2 x 1.6" |
