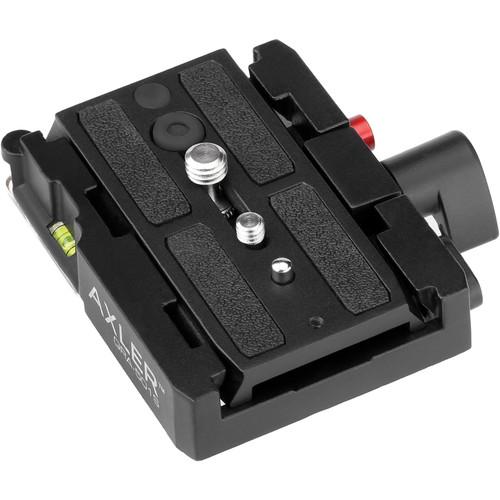

User Manual for Axler QRA-501S Quick Release Assembly Click to enlarge the picture
Contents of the user manual for the Axler QRA-501S Quick Release Assembly
- Product category: Tripods & Support Axler
- Brand: Axler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Axler Tripods & Support
 |
User manual for the Axler QRA-501S Quick Release Assembly contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Axler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Axler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Axler product will considerably shorten its lifespan!
|

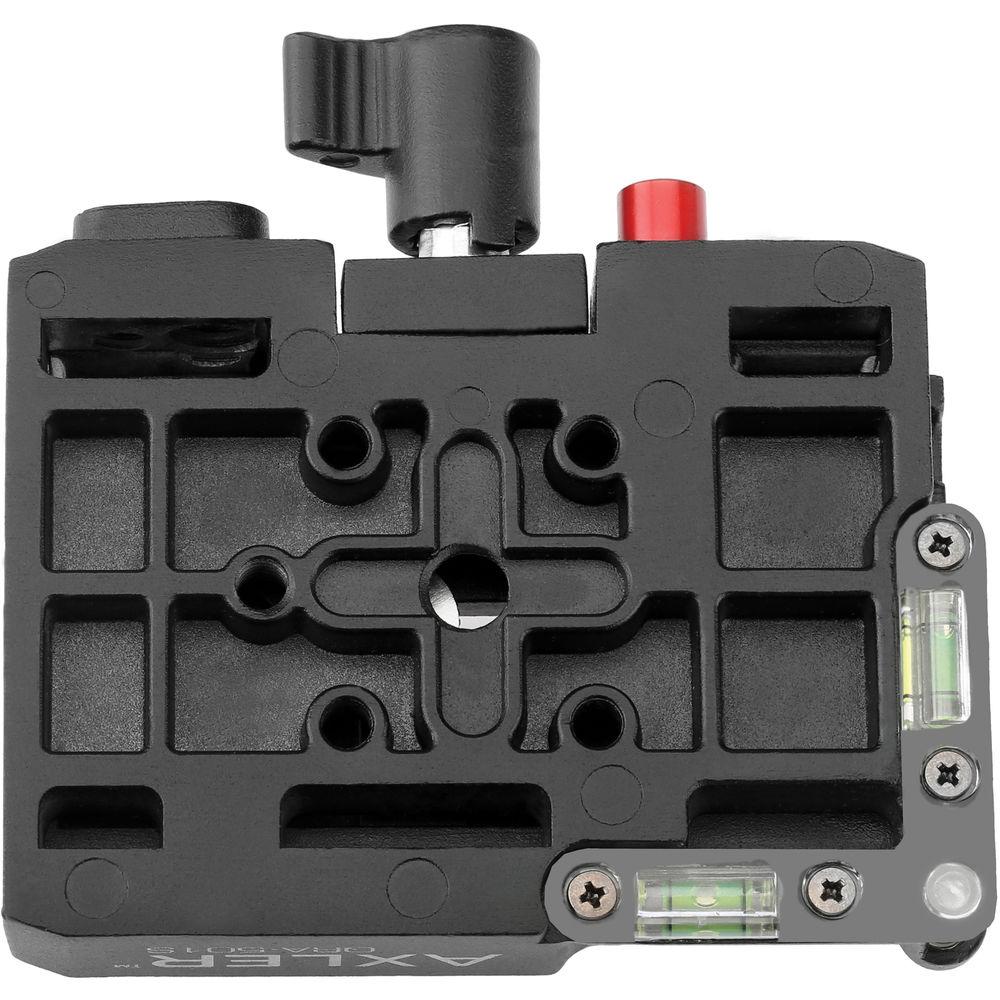

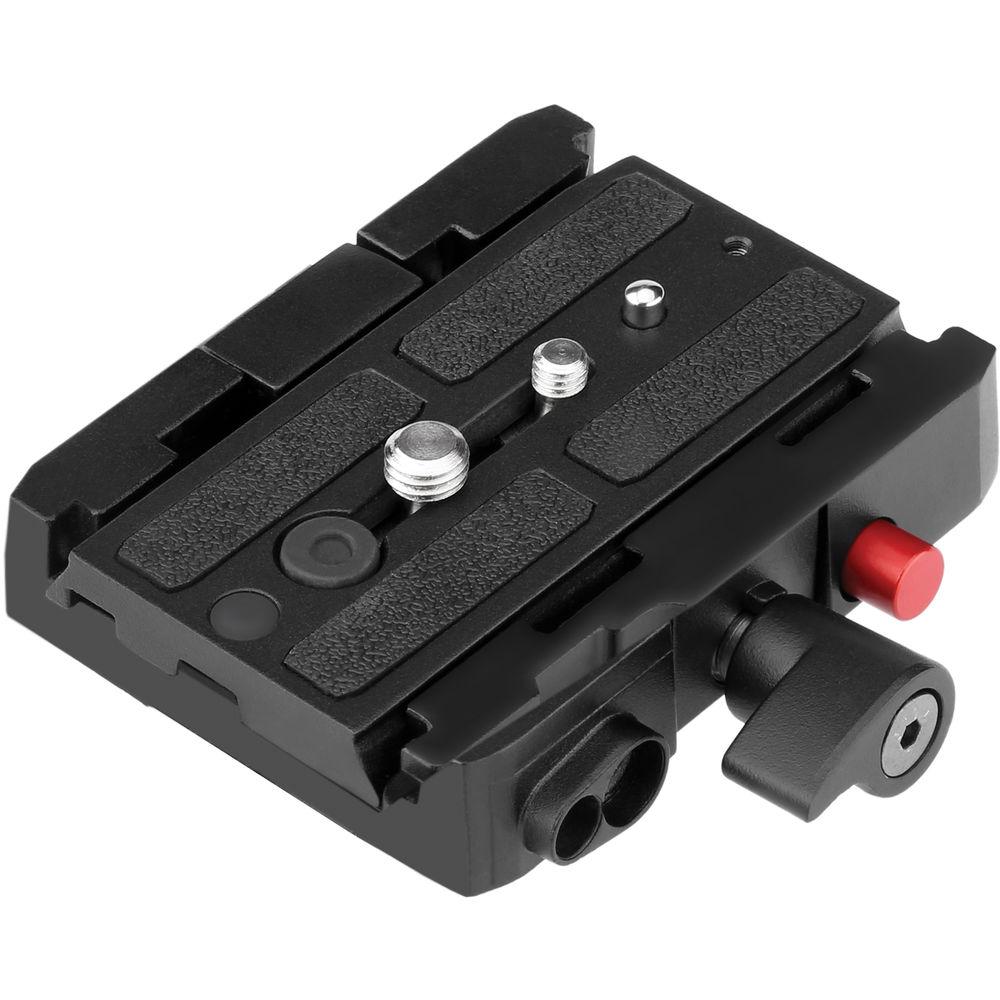

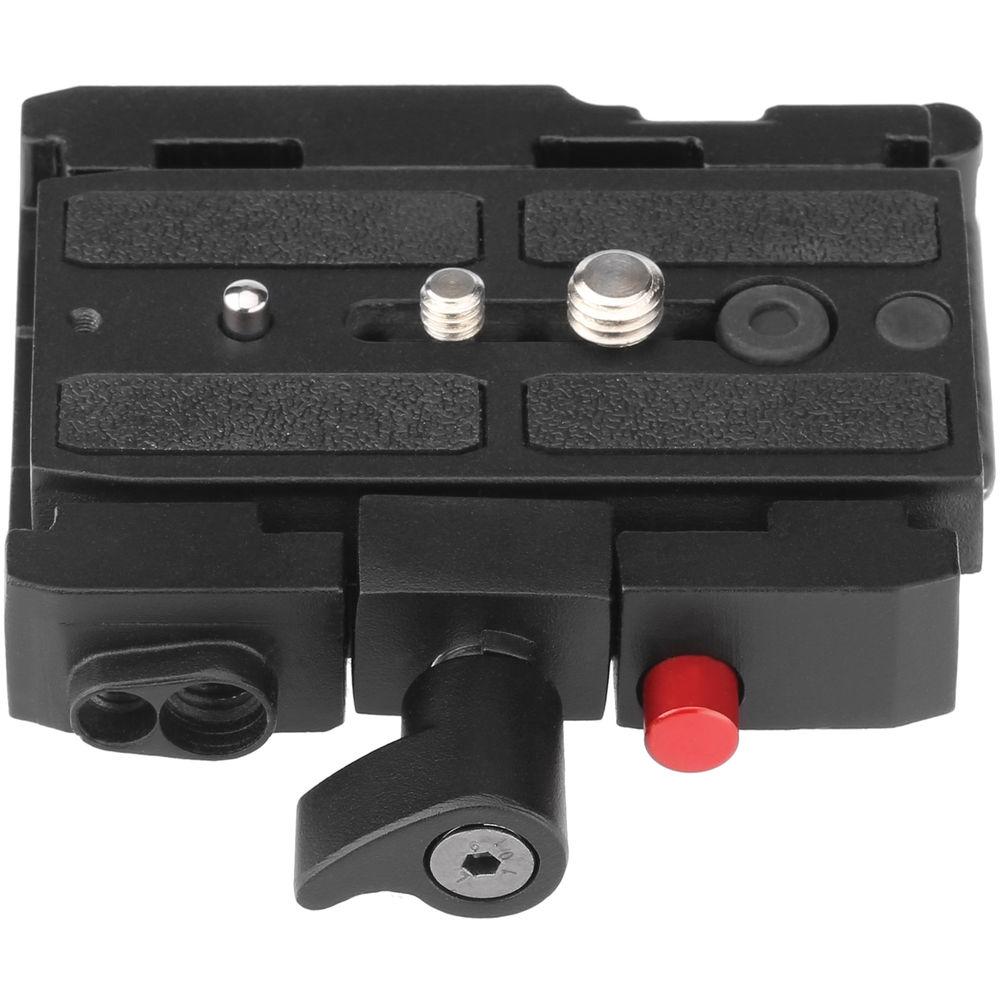

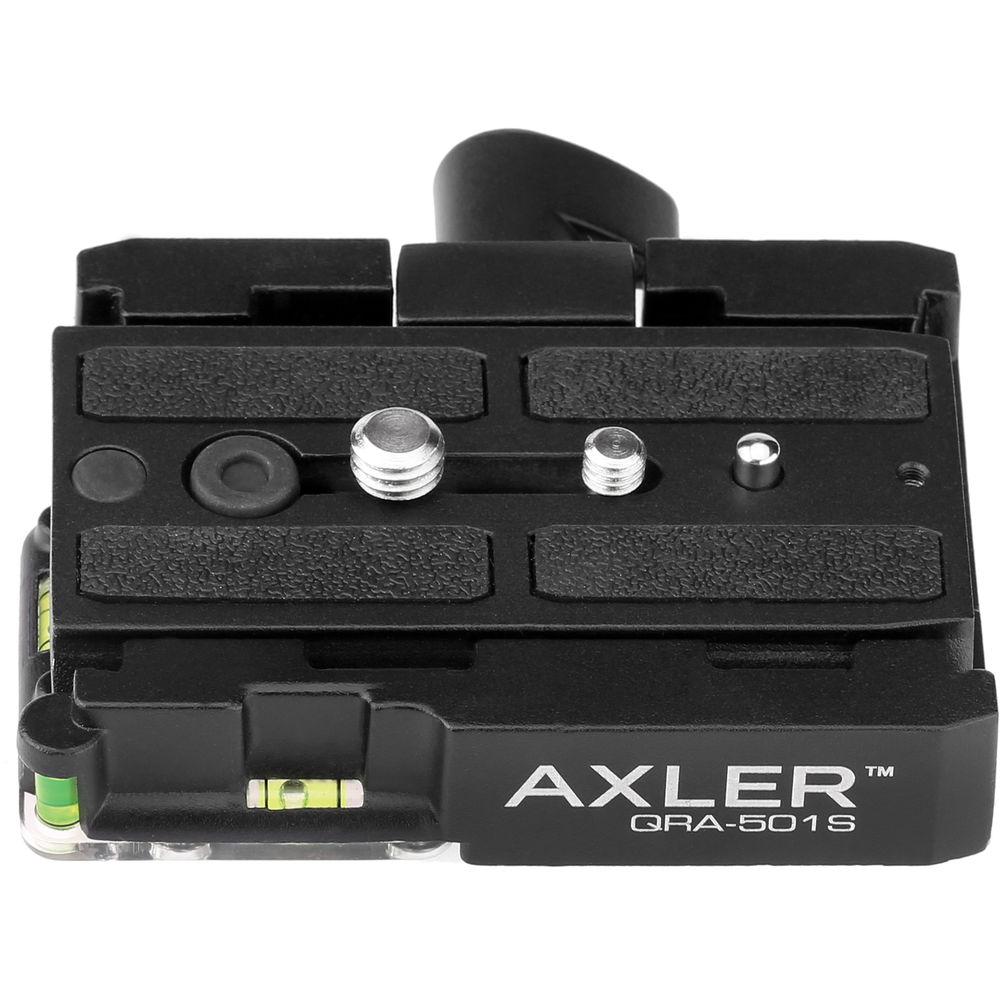

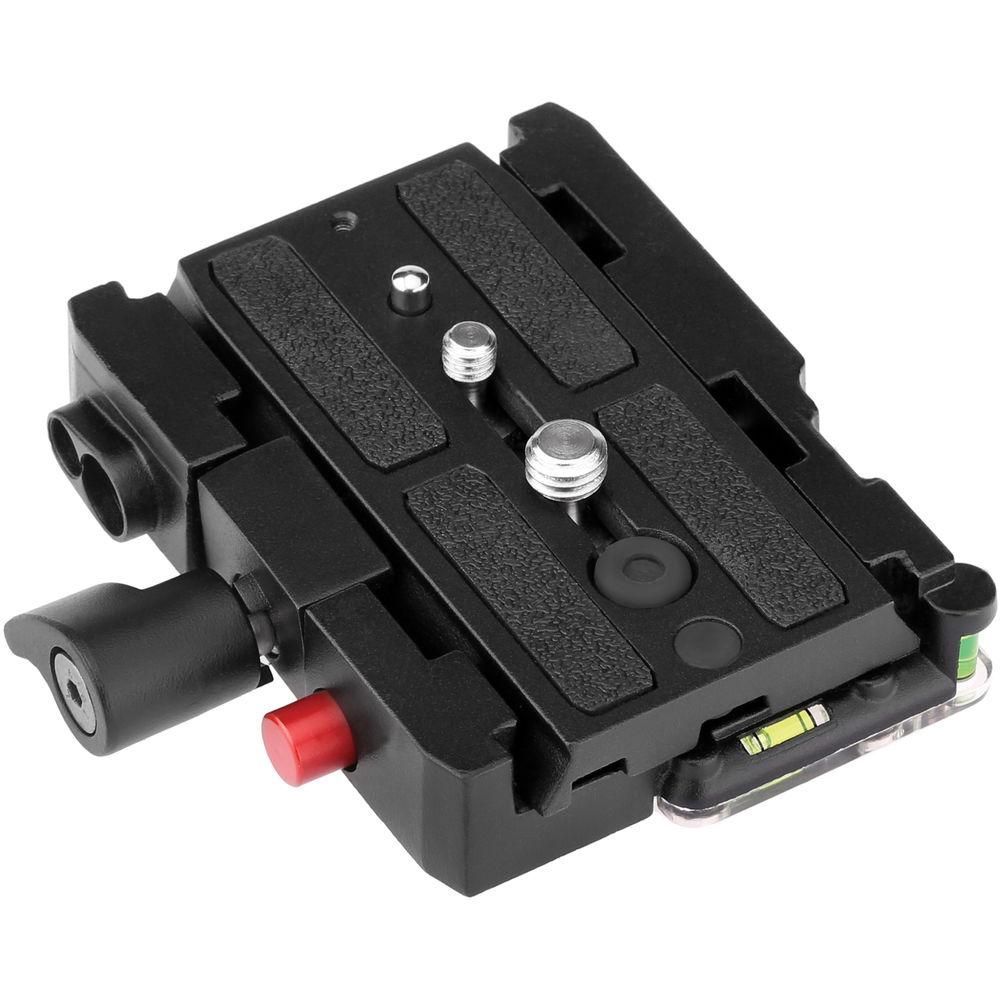

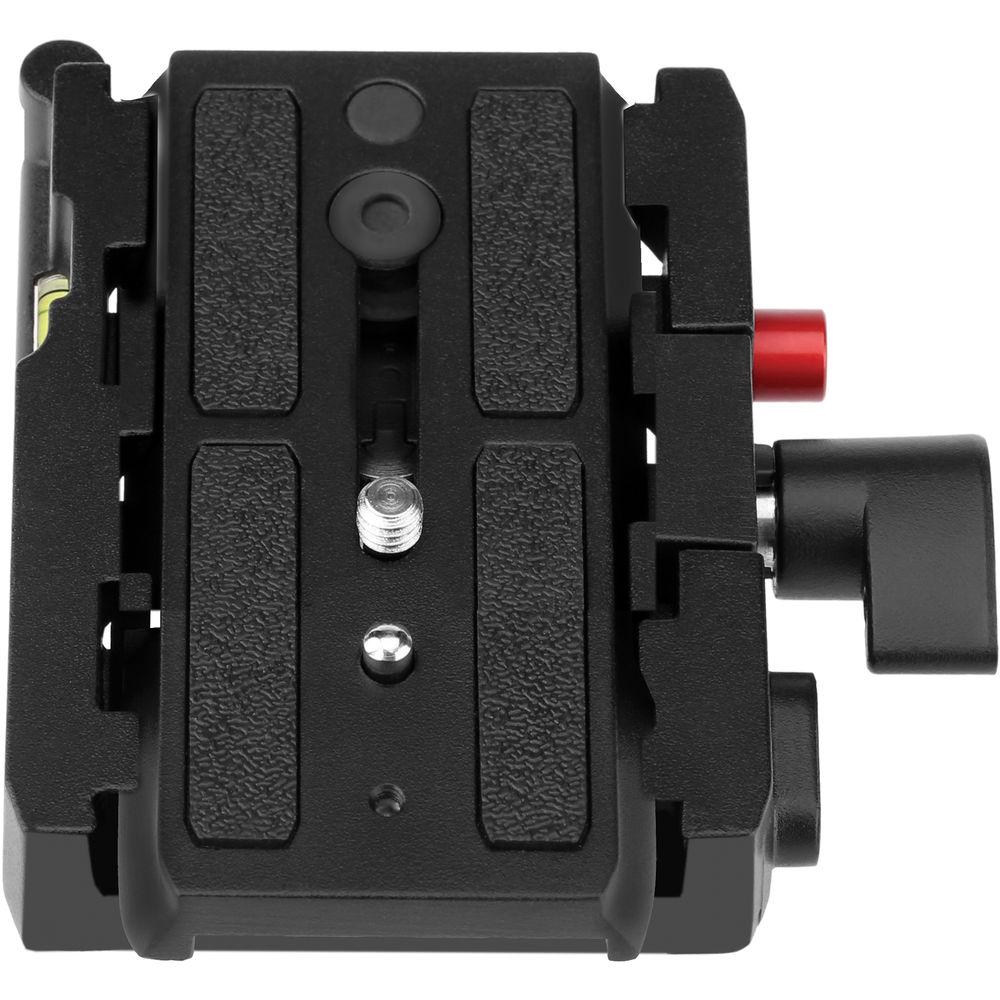

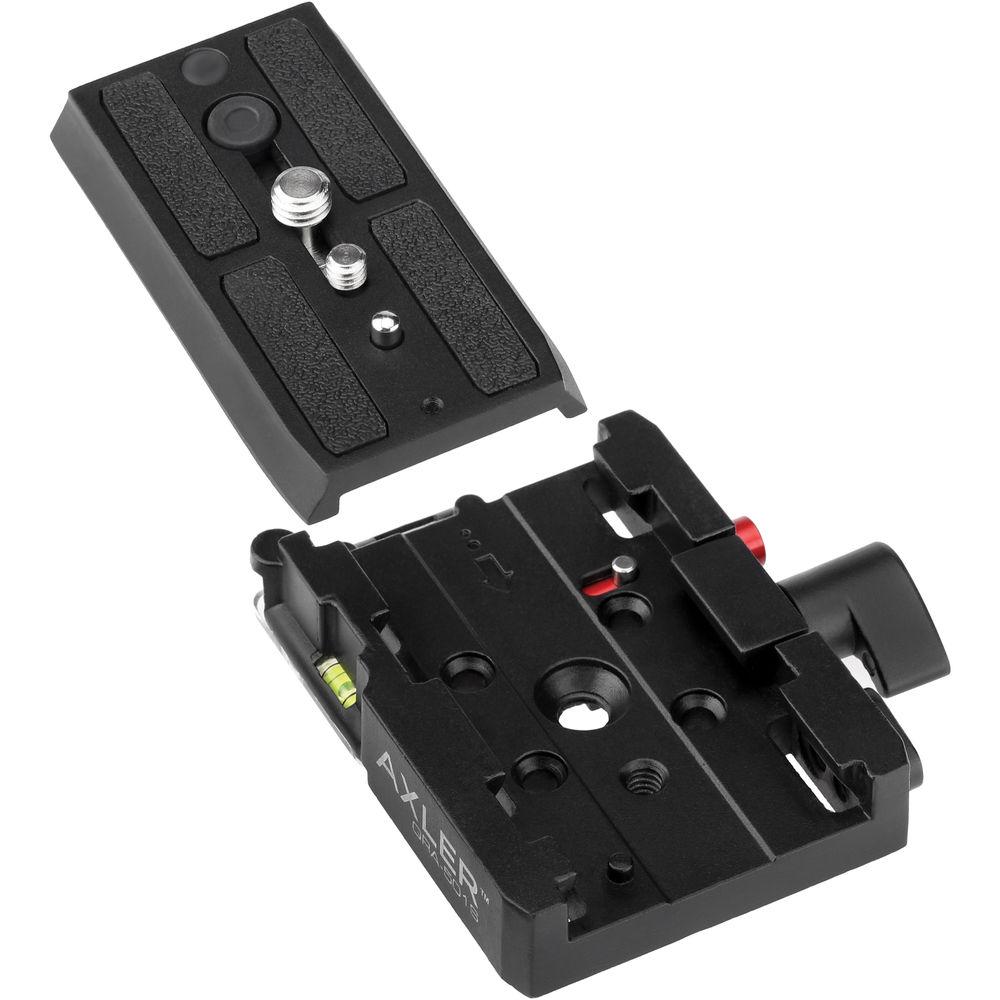

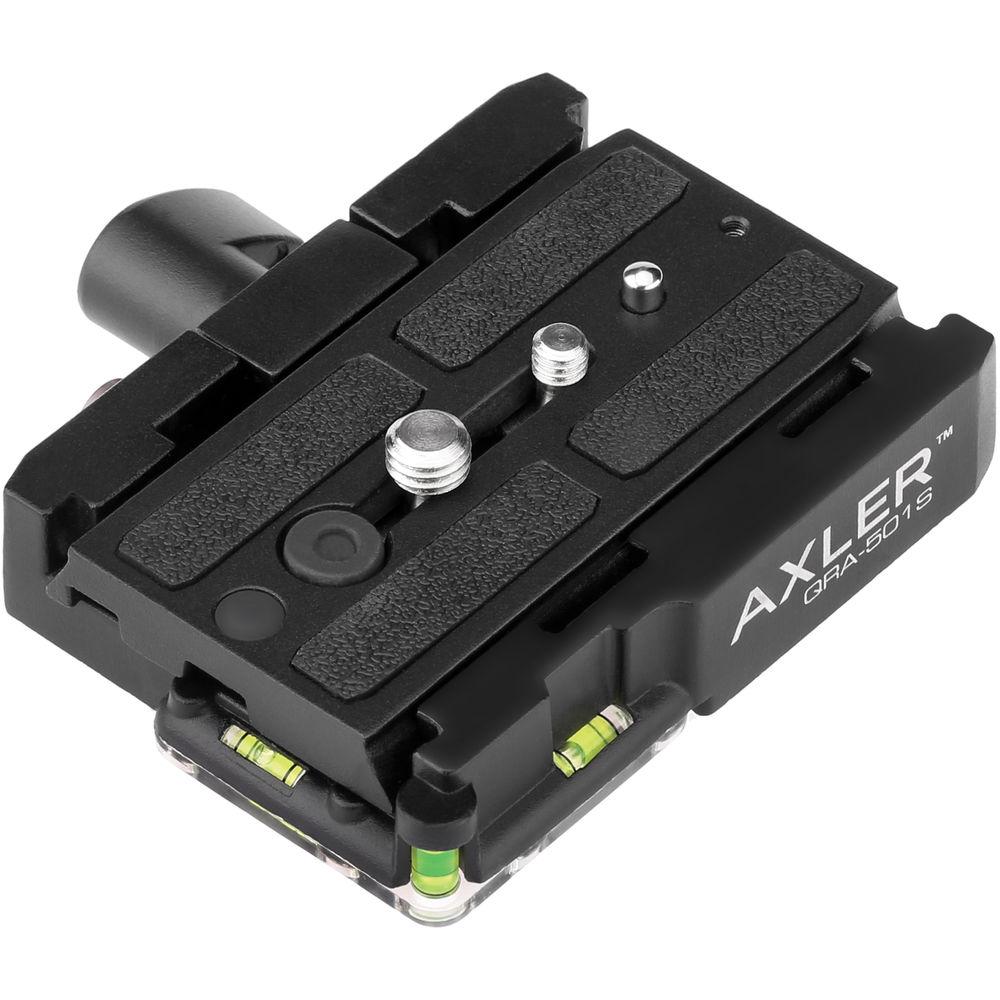

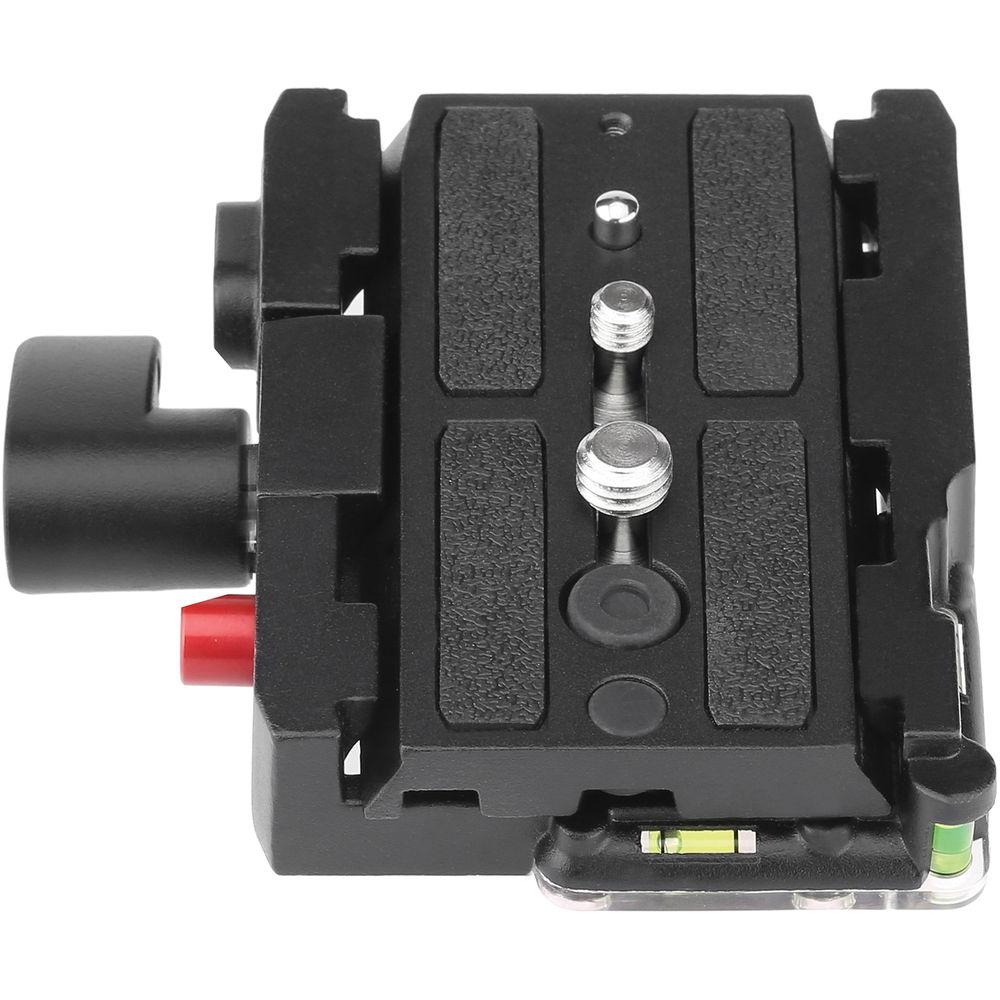

Product description The Axler QRA-501S Quick Release Assembly gives you the freedom to remove your camera from a tripod, stabilizer, or support rig without having to spend time unscrewing it from the device. It includes a quick release adapter and Manfrotto 501PL style sliding camera plate for smooth and easy camera positioning. The plate includes 1/4"-20 and 3/8"-16 camera screws for use with a variety of cameras, and features three built-in bubble levels to assist with leveling. 1/4"-20 and 3/8"-16 threaded holes on the underside of the adapter are provided for mounting to tripods, stabilizers, or other support rigs. Additionally, a 3/8"-16 screw and hex key are included which give you the flexibility to mount the adapter to any 3/8"-16 threaded hole. - Key Features
-
- Compatible with Manfrotto 501PL and 501PLONG plates
- Sliding camera plate with 1/4"-20 and 3/8"-16 camera screws
- Locking pin on camera plate
- Threaded holes on the side of the adapter to store unused camera screws
- Ratchet-style locking knob
- Three built-in bubbles levels
- 3/8"-16 screw and hex key for securing adapter to female 3/8"-16 threaded hole
UPC: 847628583405 In the Box Axler QRA-501S Quick Release Assembly Quick Release Adapter QRP-501S Quick Release Plate (Standard) 3/8"-16 Mounting Screw Hex Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Axler QRA-501S Quick Release Assembly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxler QRA-501S Specs | Quick Release Plate | Manfrotto 501PL type | | Camera Screw(s) | 1/4"-20 and 3/8"-16 | | Mounting Threads | 1 x 1/4"-20
1 x 3/8"-16 | | Plate Length | 3.75" / 9.5 cm | | Dimensions (LxWxH) | Quick Release Adapter: 3.75 x 2.90 x 0.75" / 9.5 x 7.4 x 1.9 cm | | Weight | 9.6 oz / 272 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 8.268 x 4.173 x 0.945" |
