Product description
Float Your Video Camera with the Axler Robin 20 Stabilizer Read More
ESCAPE BORING! Axler Robin 20S Video Stabilizer
Tutorial: How to Balance Your Axler Robin 20 Stabilizer S
A Tip for Lefties (Does This Guy Have the Camera Backwards?)
Adjusting the Gimbal Height
More Tweaking and Fine-Tuning (Warning: Boring Video)
Fixing Listing and Spinning Issues

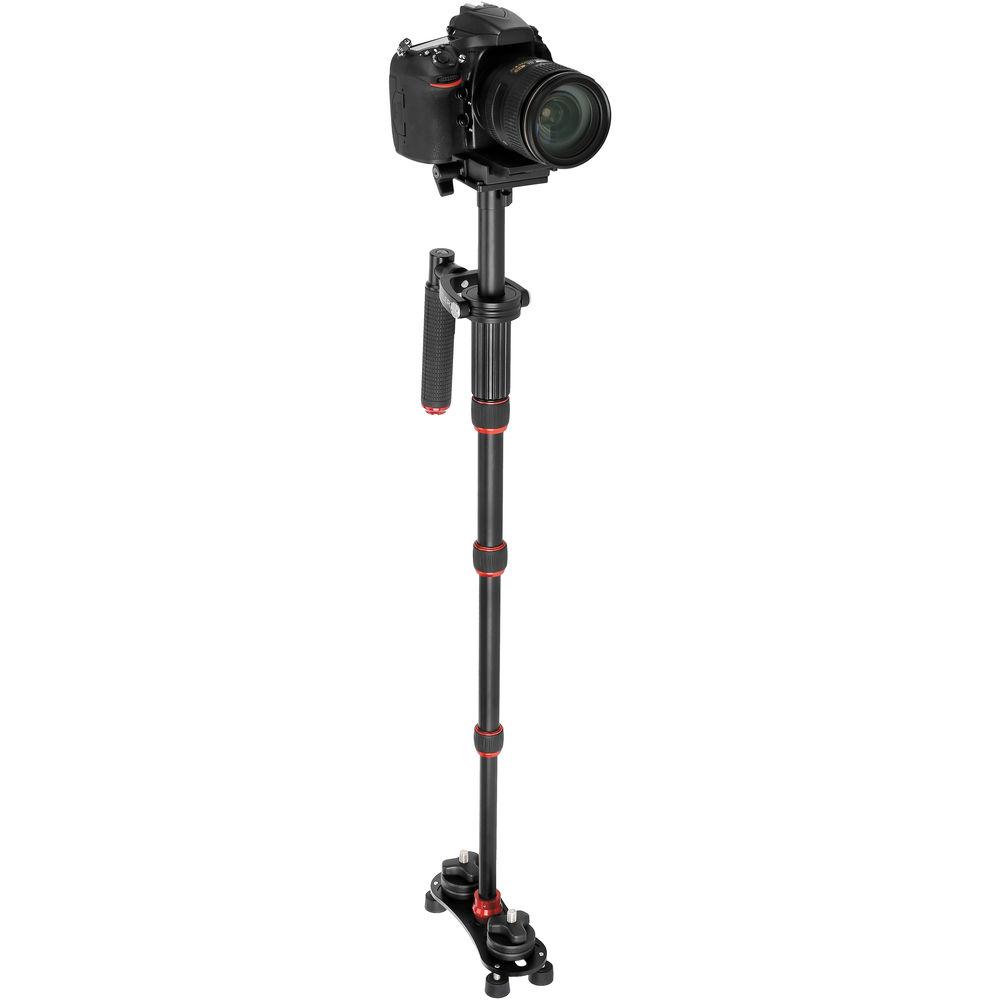

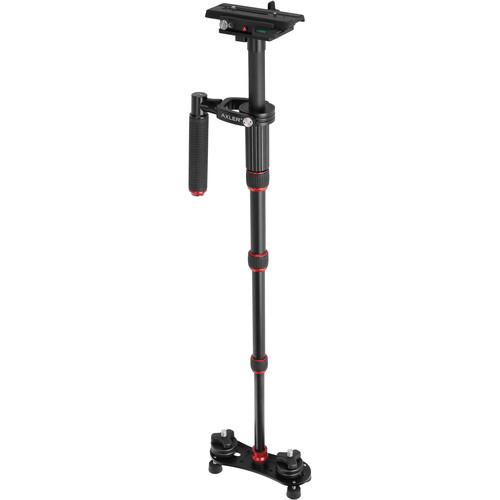

The Axler Robin 20 Stabilizer S lets you capture smooth, free-floating handheld shots with camcorders and camera rigs weighing up to 7 pounds. The system employs a height-adjustable gimbal and three-stage center column which collapses to a compact, travel-ready size for convenient transport. The center column also makes it easy to balance heavier loads without increasing the weight of the stabilizer, letting you shoot for longer periods of time with less arm fatigue. Four counterweights are included, which fit onto two posts at the base of the stabilizer.The camera platform features a quick release plate for easy camera attachment, and allows for front-to-back and side-to-side adjustments for quick balancing. Once balanced, the stabilizer isolates the camera from your body movements, letting you walk or even climb stairs while capturing smooth, elegant-looking footage. The weight plate is outfitted with four rubber feet that can be rotated to reveal metal spikes. When you need to set the unit down, the feet offer a stable base for the stabilizer to stand upright on nearly any terrain.A durable nylon carry case is included for easy storage and transport of the stabilizer and counterweights.
7 lb Maximum Load Capacity
Rated to support a payload of up to 7 lb, this stabilizer is ideal for DSLRs with small rig systems as well as pro camcorders. It will allow for the capture of steady handheld video from a compact camera system, with a difference that is unmistakable from unstabilized footage.

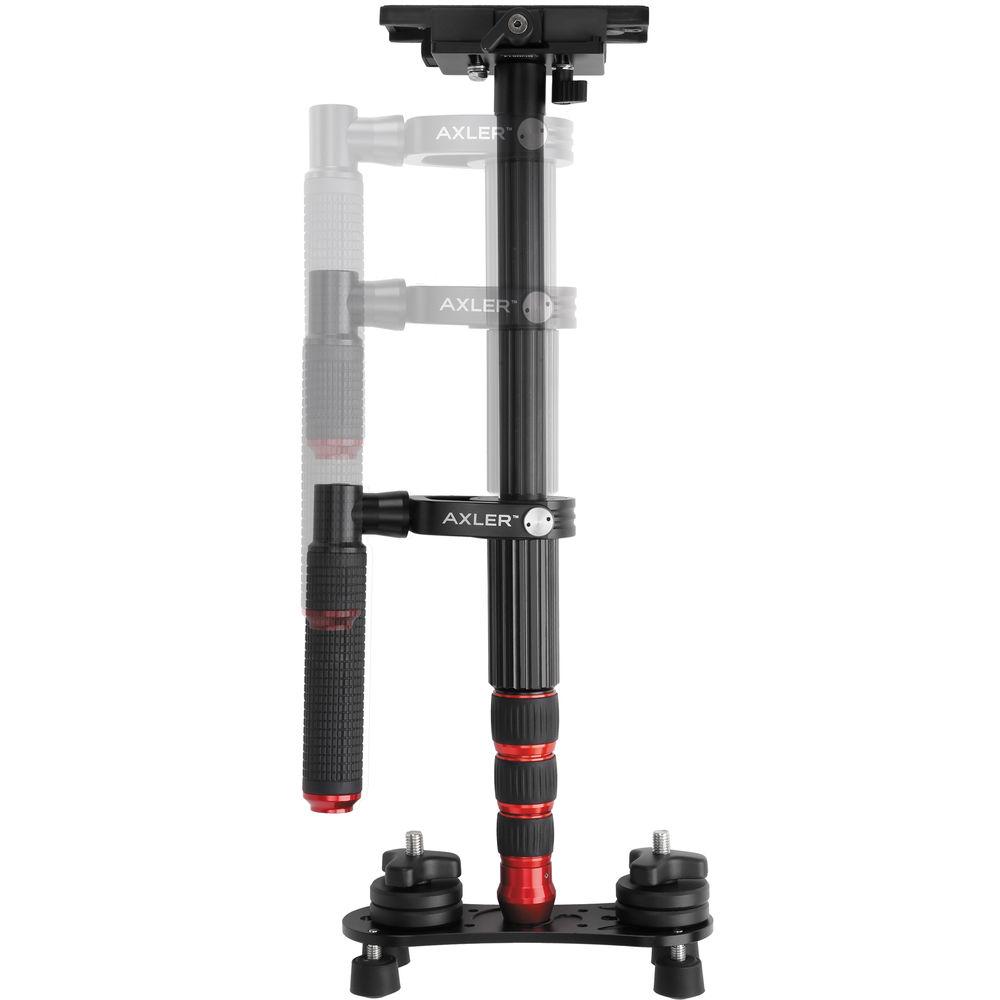

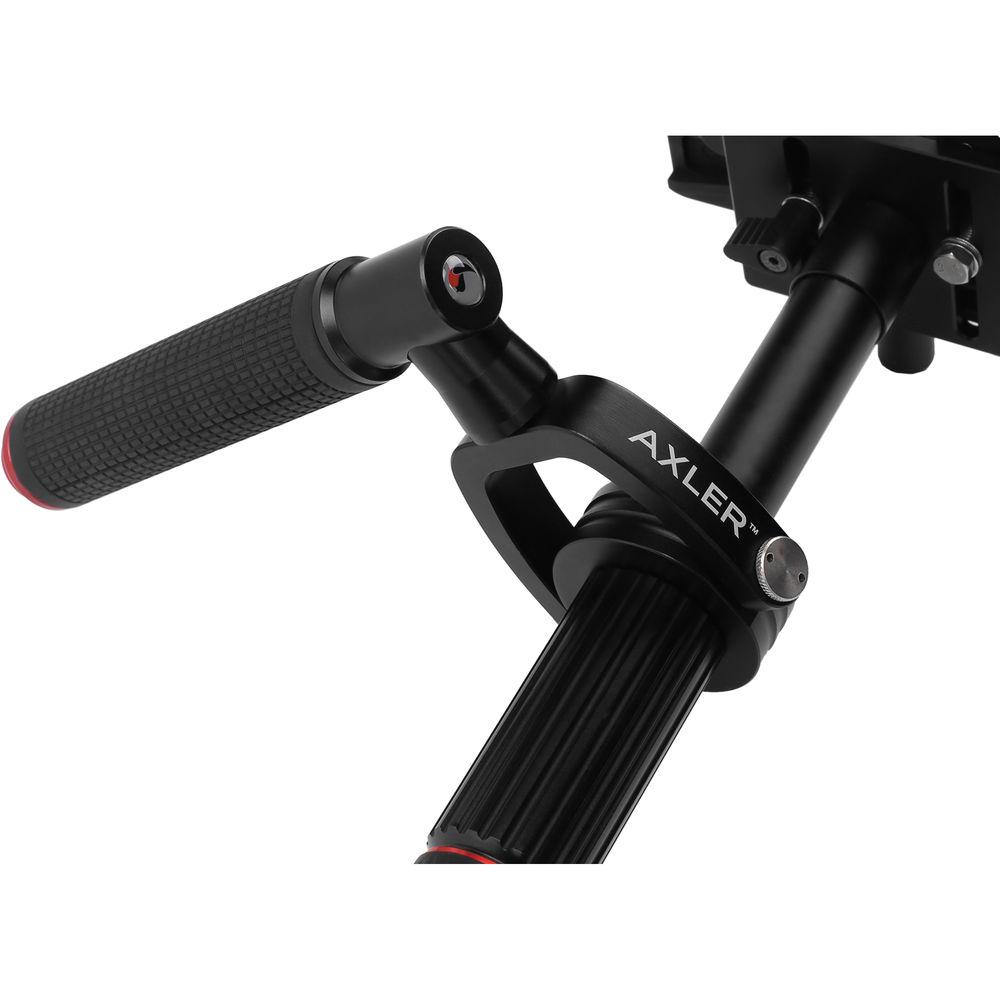

Adjustable Gimbal
The height-adjustable gimbal can be positioned anywhere along the center column. This helps you balance heavier loads by moving the gimbal higher up on the column, reducing the amount of counterweight you need. Fewer counterweights means less stress on your arm, which results in longer shooting times before fatigue sets in.

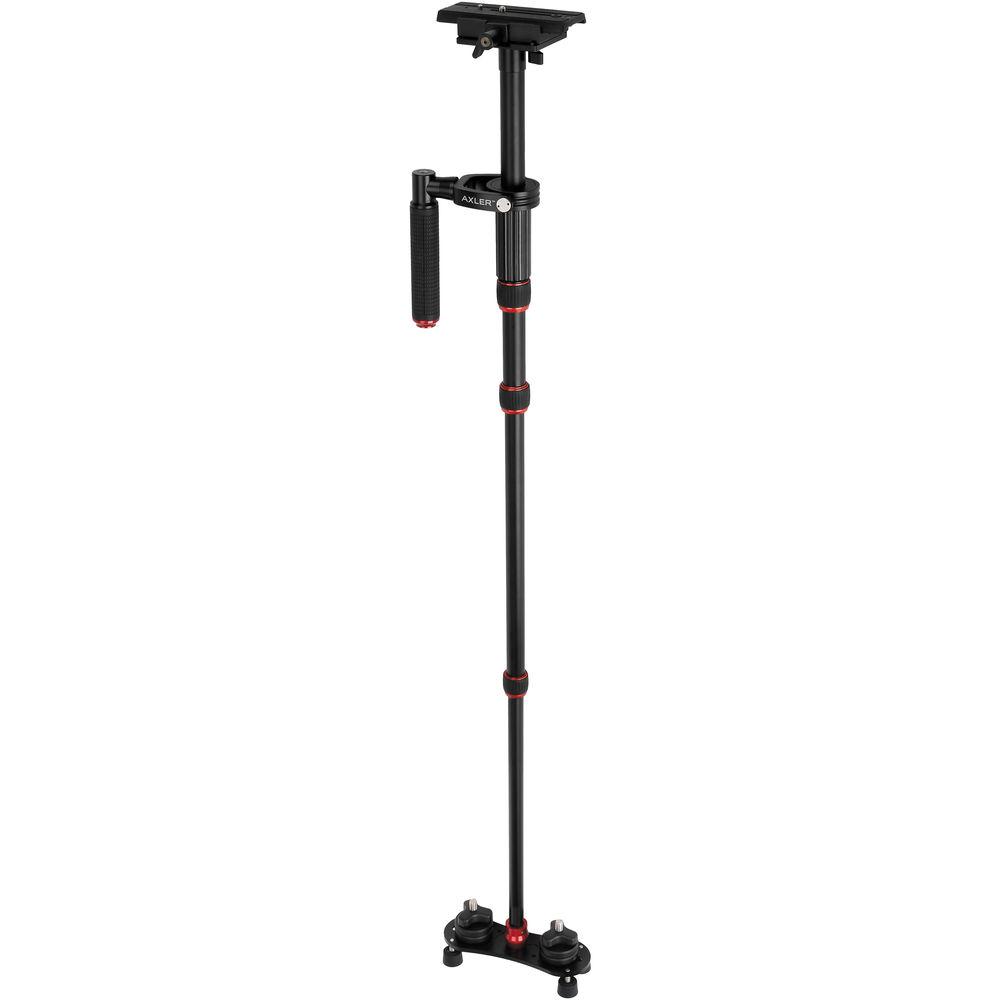

Three-Stage Center Column
Before adding more counterweights to the stabilizer, you can extend the center column to help balance your camcorder. The stabilizer has a maximum extended height of 48.75" and a minimum height of 20.25".

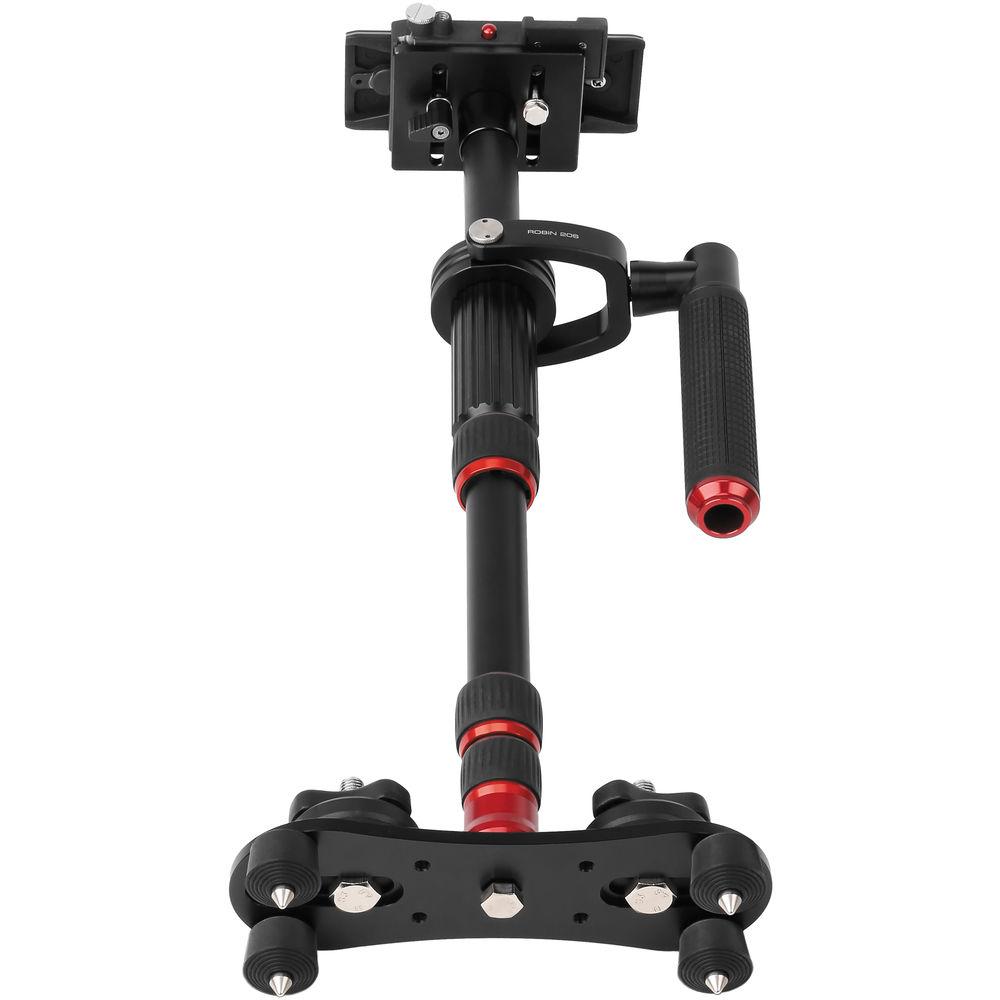

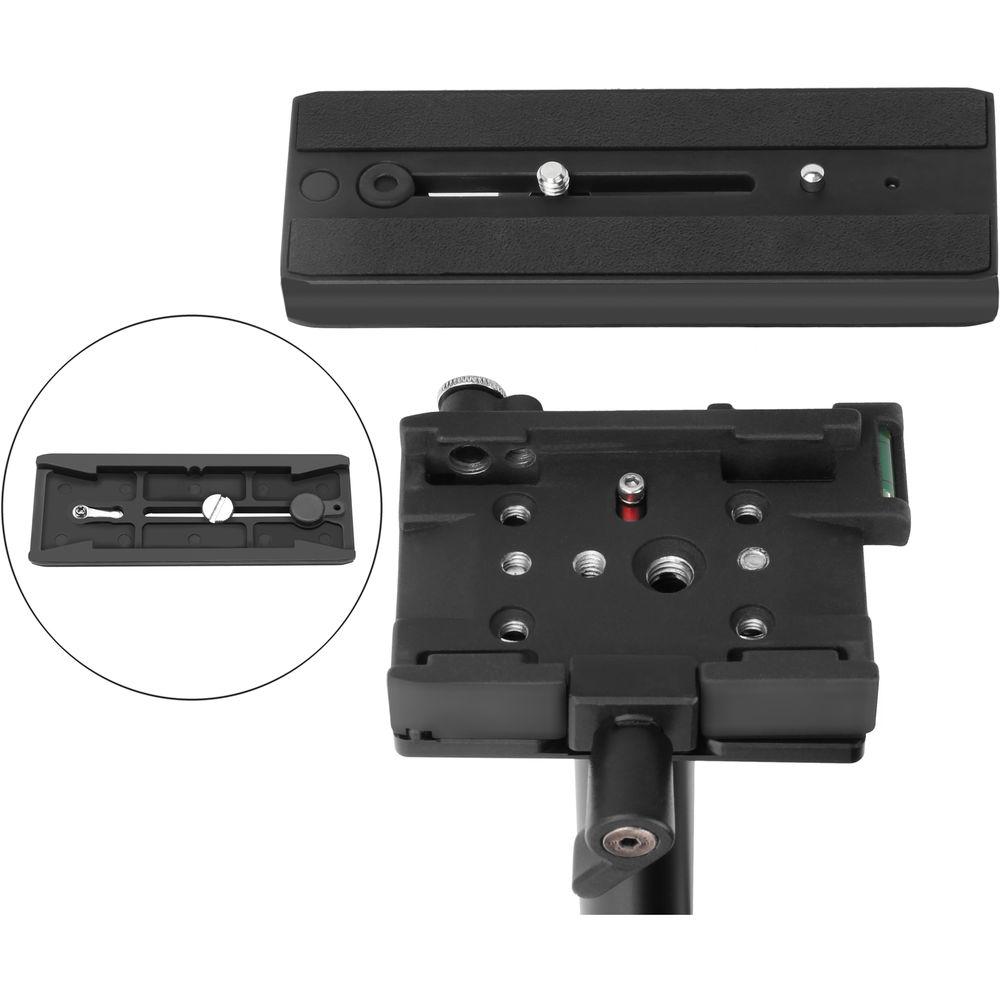

Quick Release Plate with Easy Balance Adjustment
A quick release plate provides a fast way to mount your camera on the stabilizer, and allows you to easily adjust the forward/backward and left/right position of your camera to help achieve perfect balance. The plate is locked in place using a ratchet-style locking lever. The ratcheting feature lets you reposition the lever if your camera position prevents you from fully turning it.

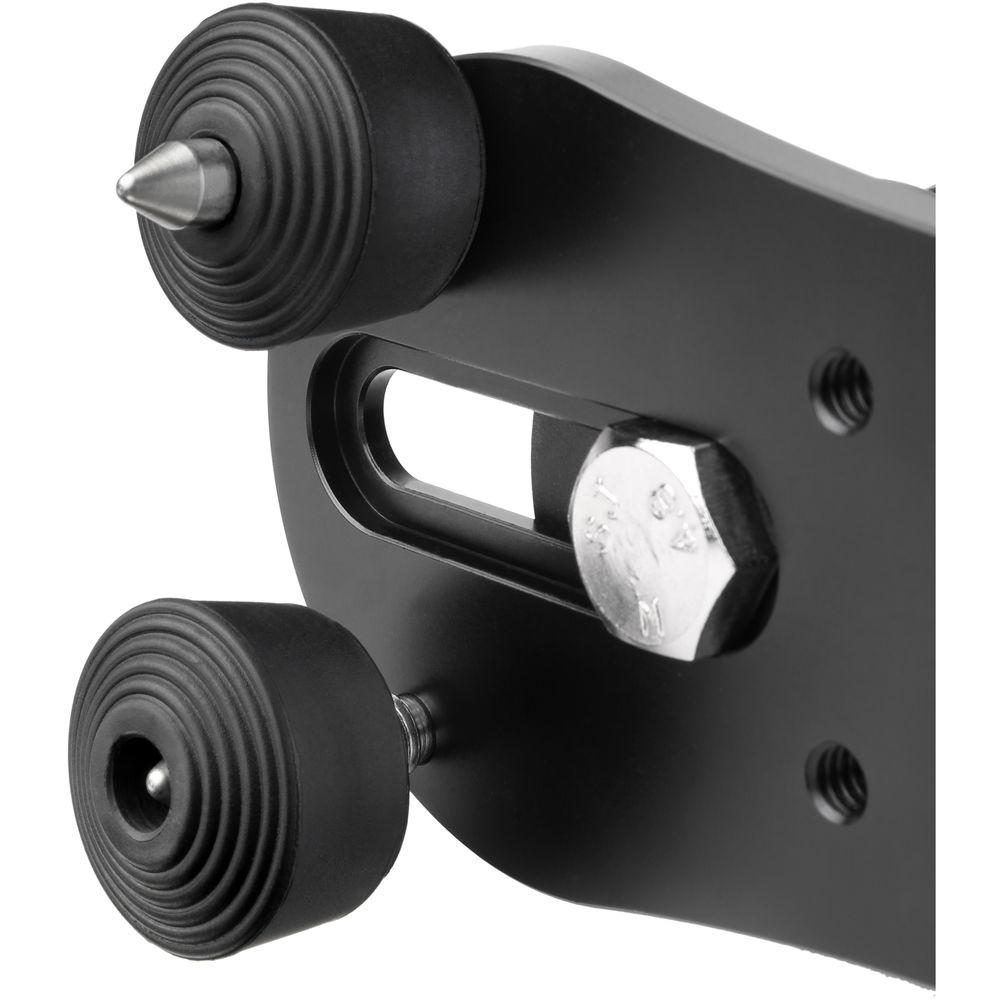

Retractable Spiked Feet
The base of the stabilizer features four rubber feet which retract to reveal metal spikes, allowing you to safely rest the stabilizer on a variety of surfaces once fatigue sets in. The feet even allow the stabilizer to function as a short monopod, providing added versatility when shooting. Two posts on the base platform accept the included counterweight discs for adjusting the system's center of gravity. The counterweights are secured in place via thumbscrews.
Textured Rubber Grip
The stabilizer features a textured rubber grip on the handle for comfort and to aid against slippage with sweaty palms. There is also a rubber grip on the center column twist-locks for easier tightening and loosening. The textured surfaces also make them easy to find in low-light situations.
Bubble Levels
The built-in bubble levels on the quick release plate can assist with precise balancing while setting up the stabilizer. This is useful when setting up on a hill or other uneven surfaces, where it's difficult to determine by eye whether the camera is level.

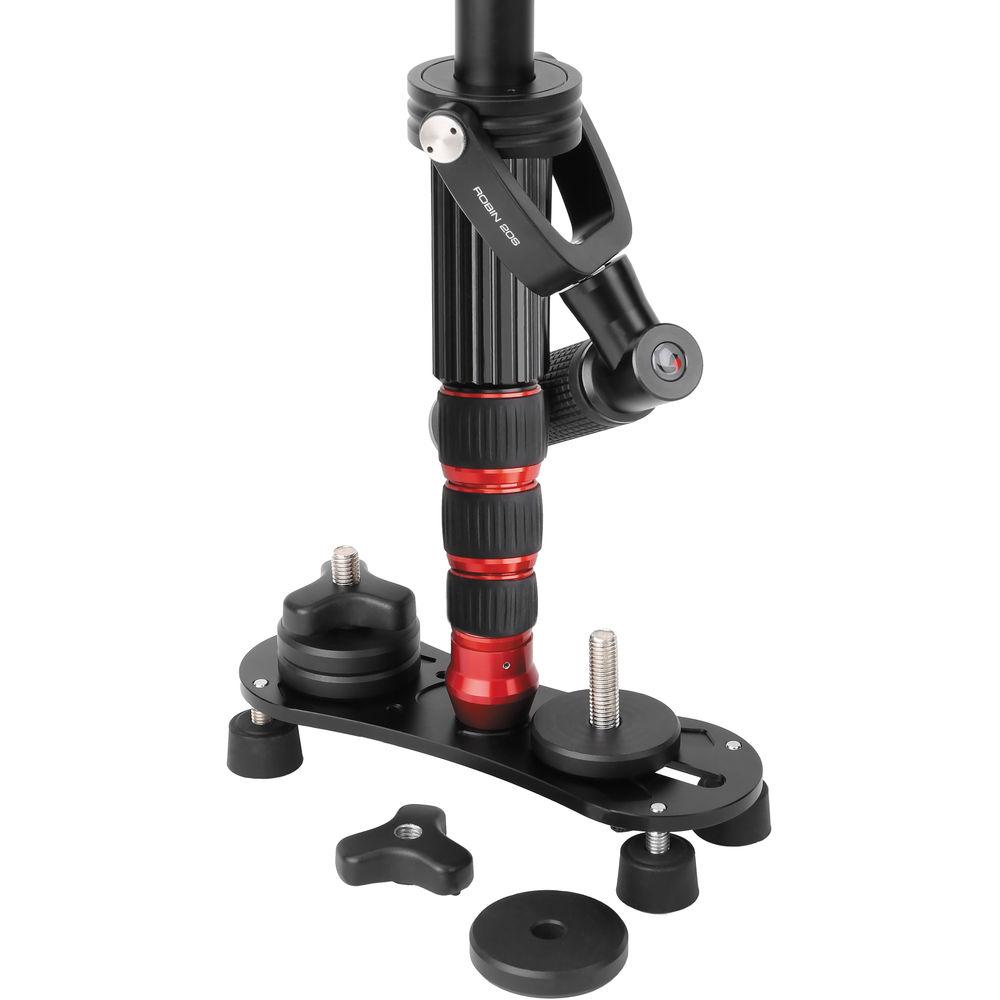

Four Included Counterweights
The four included counterweights fit onto the two counterweight posts, which allows you to add them one at a time to adjust the unit's center of gravity.
Included Carrying Case
A padded carrying case is included for easy transport and storage of stabilizer and counterweights.
1/4"-20 and 3/8"-16 Threads
The stabilizer features 1/4"-20 and 3/8"-16 threads on the head for storing the 1/4"-20 and 3/8"-16 camera mounting screws when not in use.
UPC: 847628581715 In the Box Axler Robin 20 Stabilizer S
Weight Plate
4 x Counterweight
Quick Release Plate
1/4"-20 Screw
3/8"-16 Screw
Carry Bag
Limited 1-Year Warranty
User Manual PDF 1.1mb Table of Contents
Upload User Manual
Have you got an user manual for the Axler Robin 20 Stabilizer S in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
Axler RBN-20S Specs
Stabilizer Type
Single-Grip Handheld
Load Capacity
7 lb / 3.1 kg
Height
20.25 to 48.75" / 51.4 to 123.8 cm
Depth
8" / 20.3 cm
Width
4" / 10.2 cm
Weight
3.4 lb / 1.5 kg
Counterweights
4 x 5.6 oz / 158.8 g
Package Weight
6.8 lb
Box Dimensions (LxWxH)
22.5 x 6.0 x 6.0"
