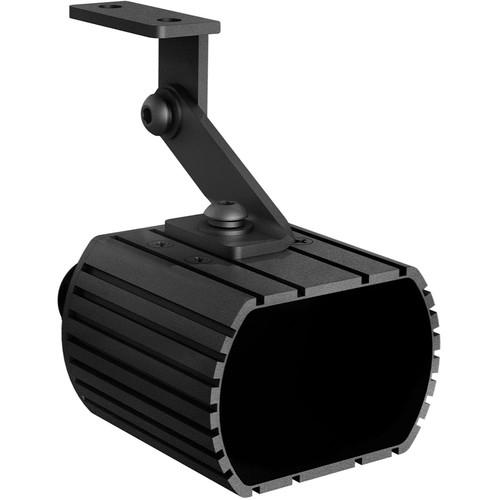

User Manual for AXTON Nano AT-3M-S 140'-Range Compact Infrared Illuminator with Day Night Sensor Click to enlarge the picture
Contents of the user manual for the AXTON Nano AT-3M-S 140'-Range Compact Infrared
- Product category: Illuminators AXTON
- Brand: AXTON
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AXTON Illuminators
|
User manual for the AXTON Nano AT-3M-S 140'-Range Compact Infrared contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AXTON product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AXTON user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AXTON product will considerably shorten its lifespan!
|
Product description The Nano AT-3M-S 140'-Range Compact Infrared Illuminator with Day/Night Sensor from AXTON synchronizes with your camera or other system device. Pulsed mode allows syncing with a camera shutter for industrial, machine vision, and ANPR/LPR applications. The illuminator transmits infrared light at a wavelength of 850nm to a range of 140'. The illuminator is IP67 rated and vandal resistant, receives power via PoE, and includes a pan/tilt U bracket for simple installation. You can link multiple Blaze illuminators together to increase coverage. External IR illuminators work with true day/night cameras that use removable IR cut filters. Focus adjustment may be required for non IR-corrected lenses as it may produce blurry images. - Emits 850nm (semi-covert LEDs) wavelength infrared light
- I/O ports for seamless camera sync
- Pulsed mode allows syncing with camera shutter
- IP67-rated for outdoor or indoor use
- Includes pan/tilt U bracket
UPC: 819960013803 In the Box AXTON Nano AT-3M-S 140'-Range Compact Infrared Illuminator with Day/Night Sensor (850nm, 30°) Pan/Tilt U Bracket Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AXTON Nano AT-3M-S 140'-Range Compact Infrared Illuminator with Day Night Sensor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAXTON AT-3M-S Specs | Wavelength | 850 nm | | Coverage Angle | 30° | | Illumination Distance | Range: 140' / 42 m
HFOV: 72' / 22 m | | Input Voltage | 9 to 18 VDC | | Power Consumption | 3 W | | Operating Temperature | -58 to 140°F / -50 to 60°C | | Environmental | IP67 | | Dimensions | 2 x 2.25 x 1.5" / 57 x 57 x 38 mm | | Weight | 5 oz / 142 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
