User Manual for Azden 310HT UHF On-Camera Handheld System Click to enlarge the picture
Contents of the user manual for the Azden 310HT UHF On-Camera Handheld System
- Product category: Wireless Systems Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Wireless Systems
 |
User manual for the Azden 310HT UHF On-Camera Handheld System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|

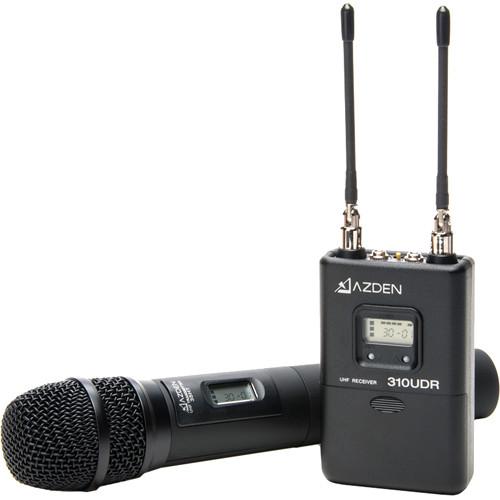

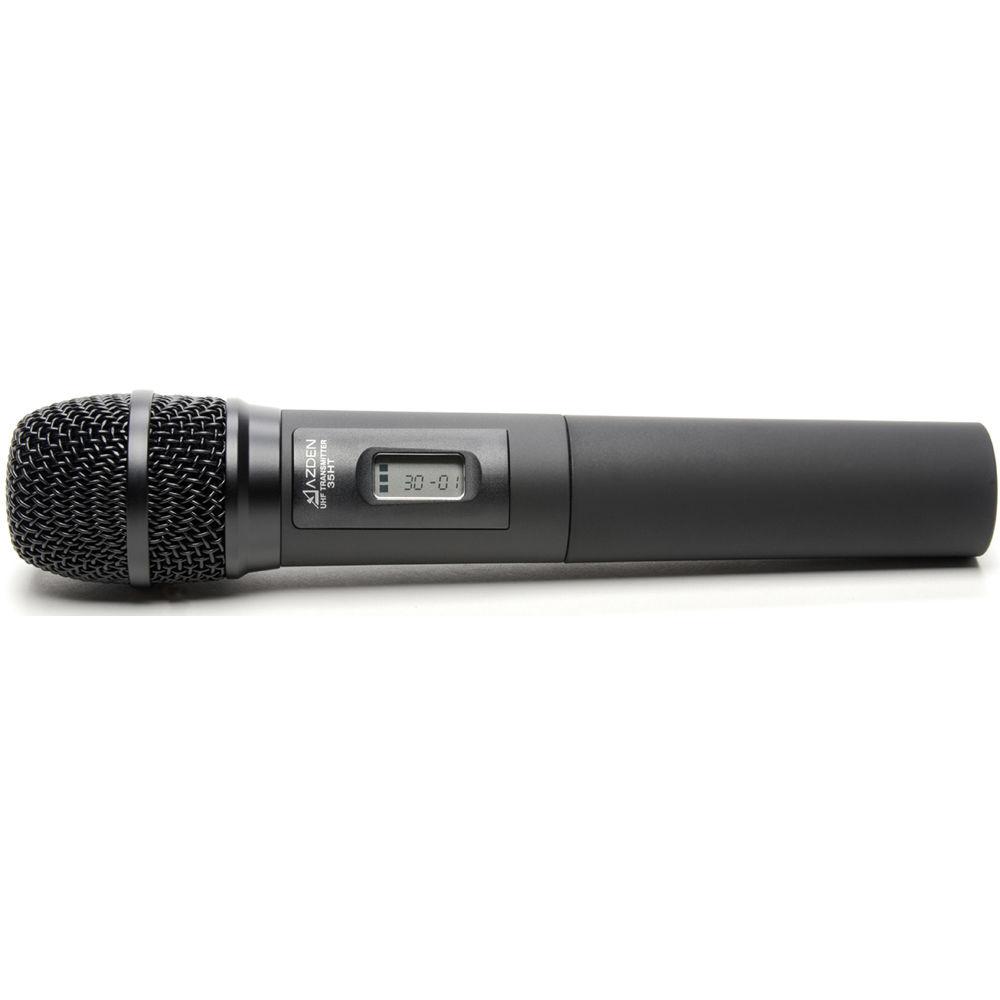

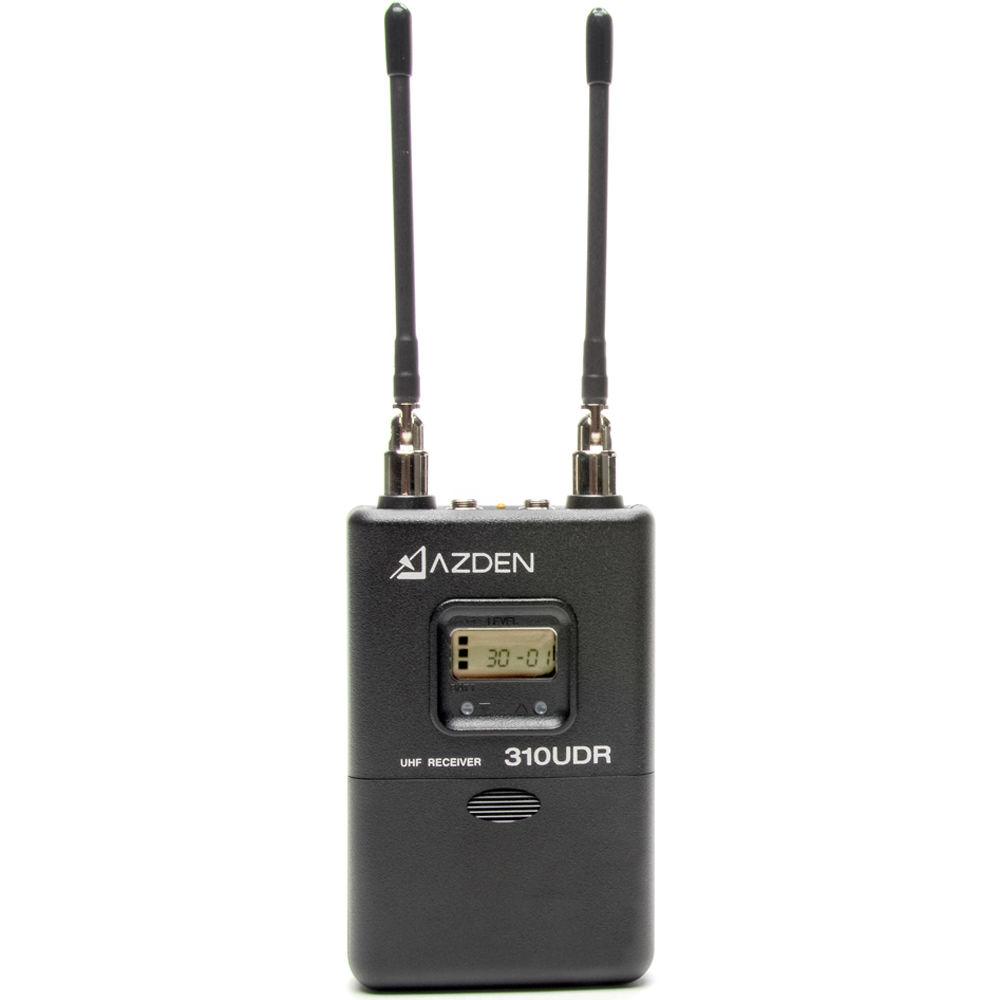

Product description The Azden 310HT UHF On-Camera Handheld System is a powerful yet affordable UHF wireless microphone system for camera-mount applications. The system consists of Azden's 35HT handheld microphone transmitter, and 310UDR camera-mount diversity receiver. With a feature set that includes 188 user selectable UHF frequencies, pivoting high-gain diversity antennas, and LCD digital display, the 310HT is guaranteed to meet the demands of consumer and professional video applications alike. The 310UDR receiver features main and headphone monitor outputs, and a removable shoe-mount adapter. Both the transmitter and receiver operate on standard AA alkaline batteries (not included). - 188 Selectable UHF Freq. (566.125-589.875 MHz)
- New, Pivoting diversity High-Gain Antenna
- Digital LCD Display w/Multifunction Readout
- Mini-Jack Out w/Supplied 24" Mini-to-XLR Cable

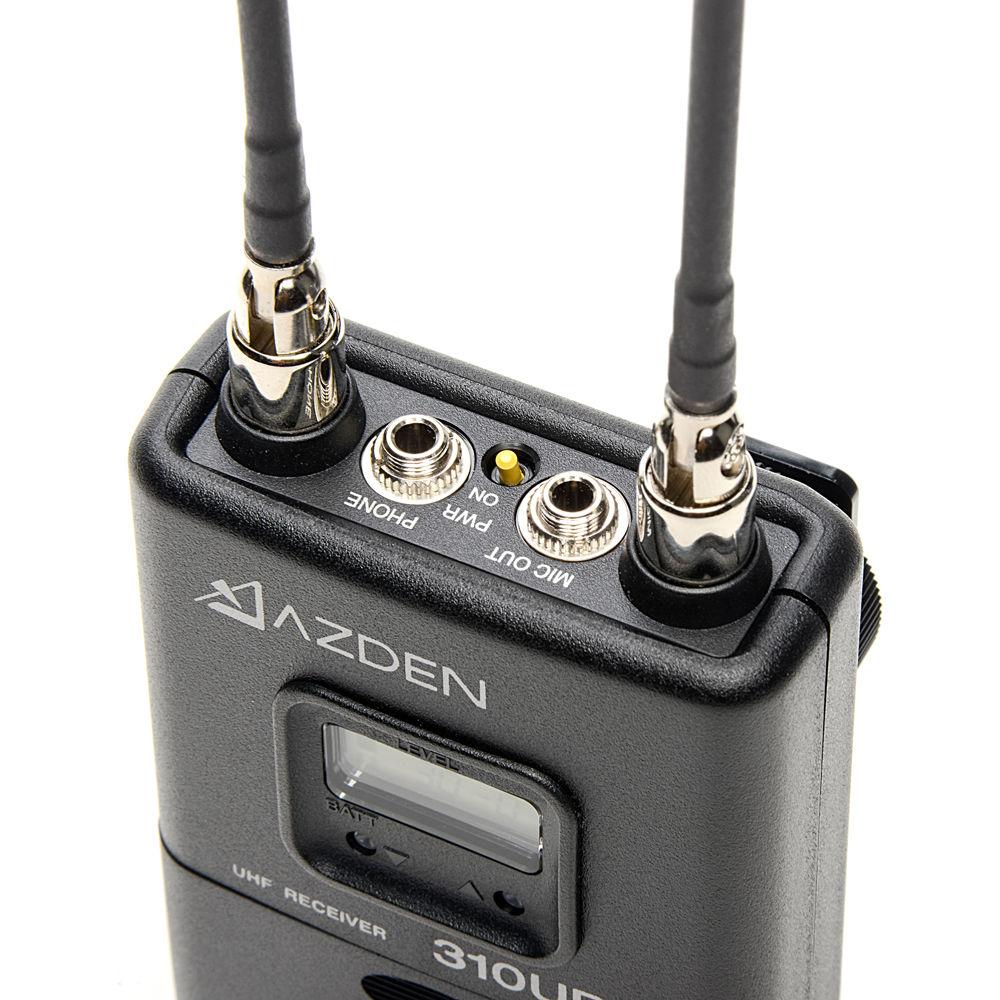

- Headphone Output on Receiver
- Attached/Removable Shoe-Mount

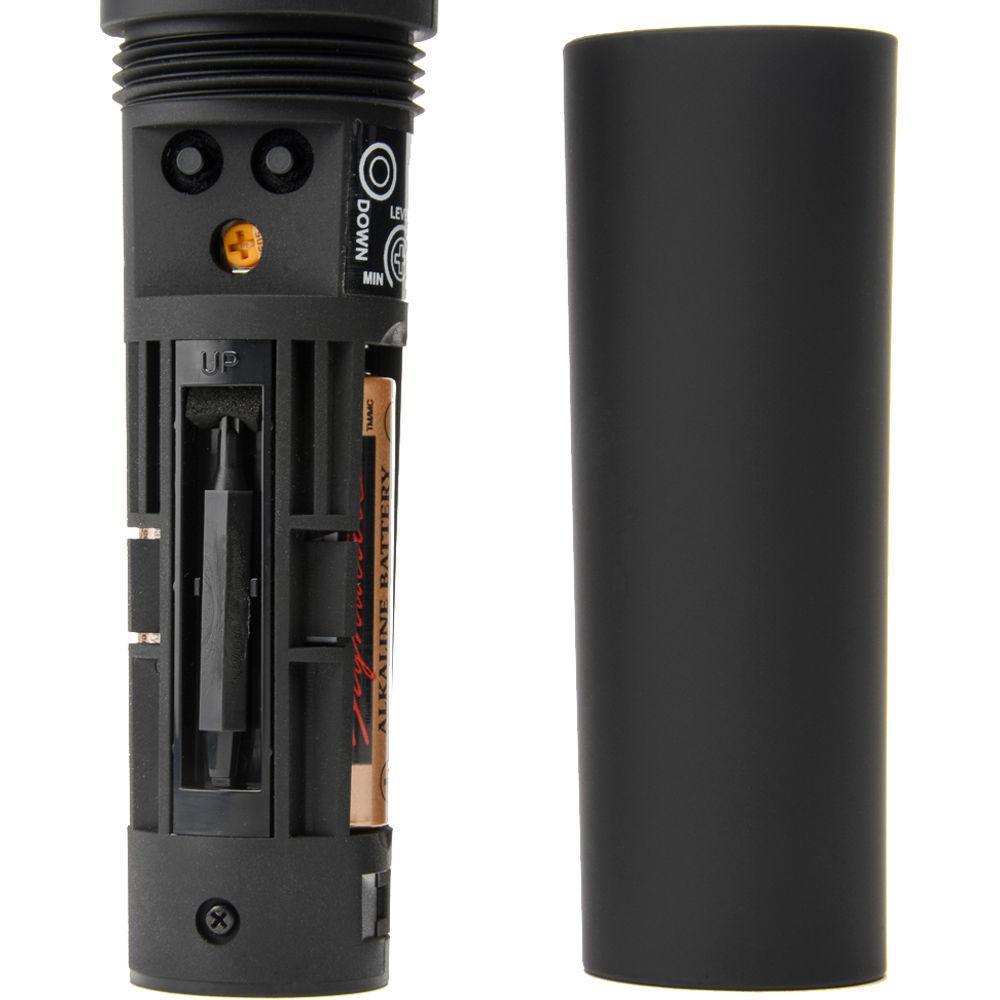

- Powered by 2 "AA" Batteries (not included)

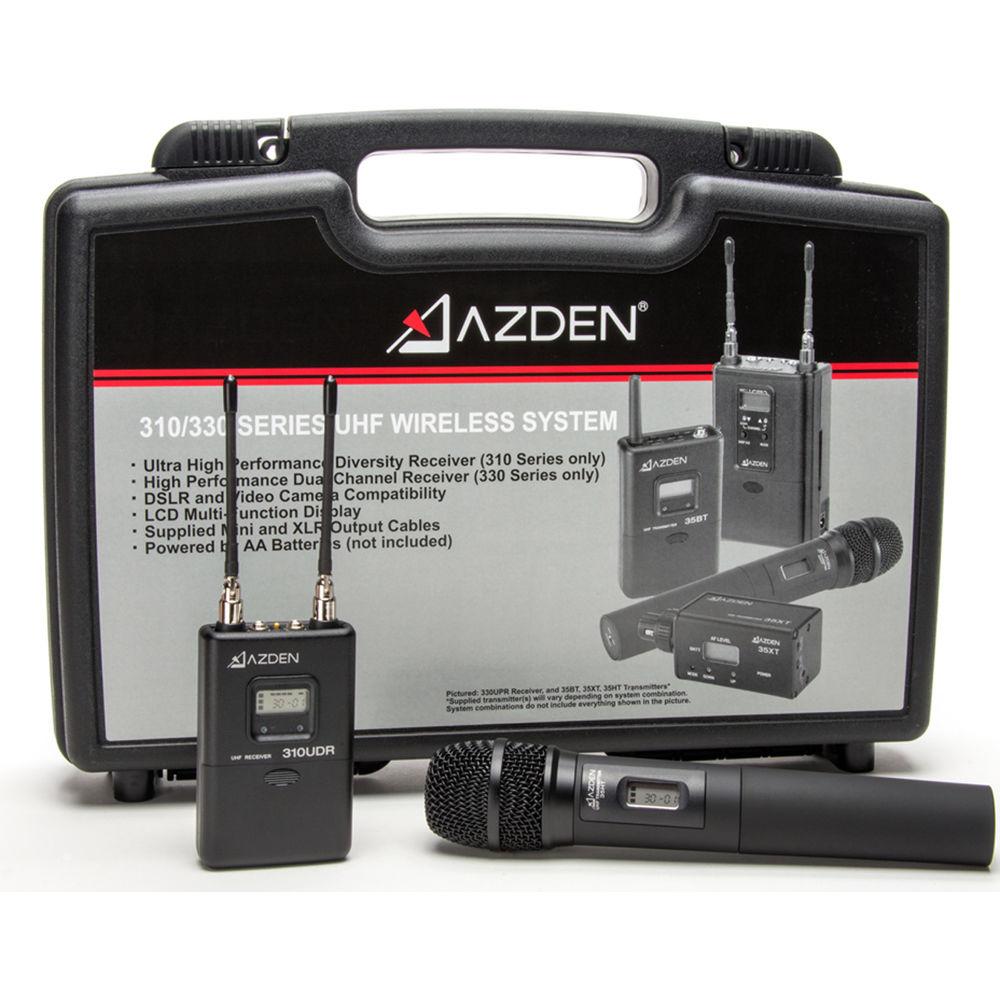

UPC: 095528310083 In the Box Azden 310HT UHF On-Camera Handheld System 310UDR Receiver 35HT Handheld Transmitter Mini to XLR Cable - 24" (60.96cm) 2 x Pivoting High-Gain Antennas Removable Shoe-Mount 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden 310HT UHF On-Camera Handheld System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden 310HT Specs | | | Type of System | Portable UHF Handheld | | RF Carrier Frequency Range | UHF 188 Freq. (566.125-589.875 MHz) | | Approx. Working Range | 200 - 300' | | Overall Frequency Response | 50 to 15kHz | | Signal-to-Noise Ratio | >84dB (100% Deviation) | | # Of Channels | 188 | | # Of Simultaneous Systems | 9 | | | | Type of Receiver | 310UDR On-Camera Diversity Receiver | | Type of Outputs | MIC Level - Balanced
1/8" (3.5mm) Mini-Jack -28 dBm (100% Deviation - Mic Level) | | Headphone Monitoring | Yes 1/8" (3.5mm) Mini-Jack | | Battery Type/Approx. Life | 2x "AA" Alkaline (2 x 1.5V) - 5-6 hours runtime
2x "AA" rechargeable Ni-MH (2 x 1.2V) | | Display | LCD Digital | | Mounting Options | Attached/Removable Shoe-Mount | | Antenna Type | 2x Pivoting Diversity High-Gain Antenna | | Dimensions (WxHxD) | 2.48 x 3.86 x 1.12" (63 x 98 x 28.5mm) | | Weight | 6.7oz (190g) w/batteries | | | | Type of Transmitter | 35HT Handheld Transmitter | | Interchangeable Mic Heads | No | | Battery Type/Approx. Life | 2x "AA" Alkaline (2 x 1.5V) - 6-8 hours runtime
2x "AA" rechargeable Ni-MH (2 x 1.2V) | | Mute Switch | On/Off | | RF Power | 25mW | | Display | LCD Digital | | Dimensions (L x D) | 9.2 x 1.89" (48 x 234.5mm) | | Weight | 9.6oz (270g) | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 16.5 x 12.0 x 3.9" |
