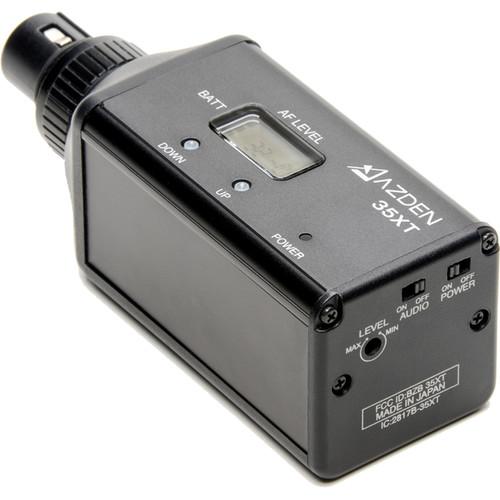

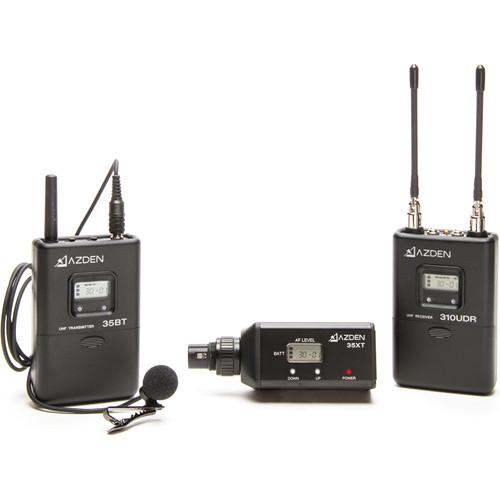

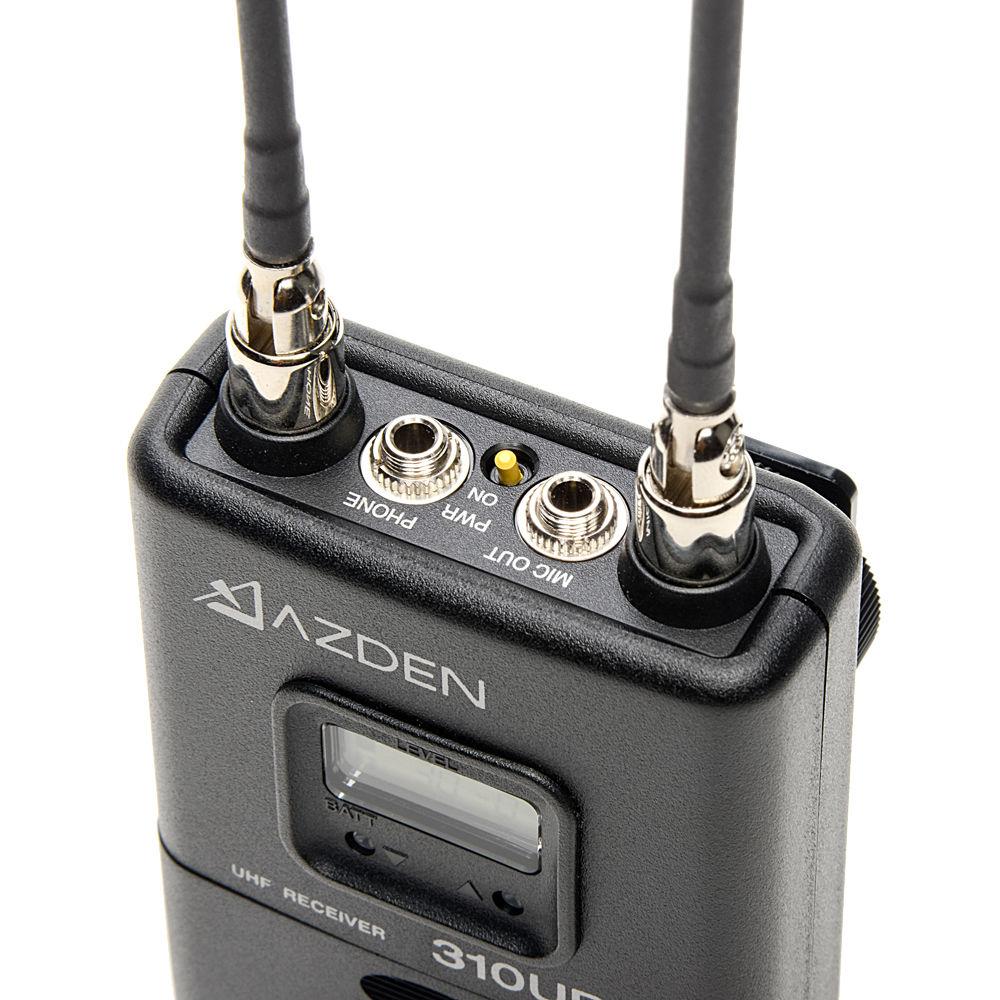

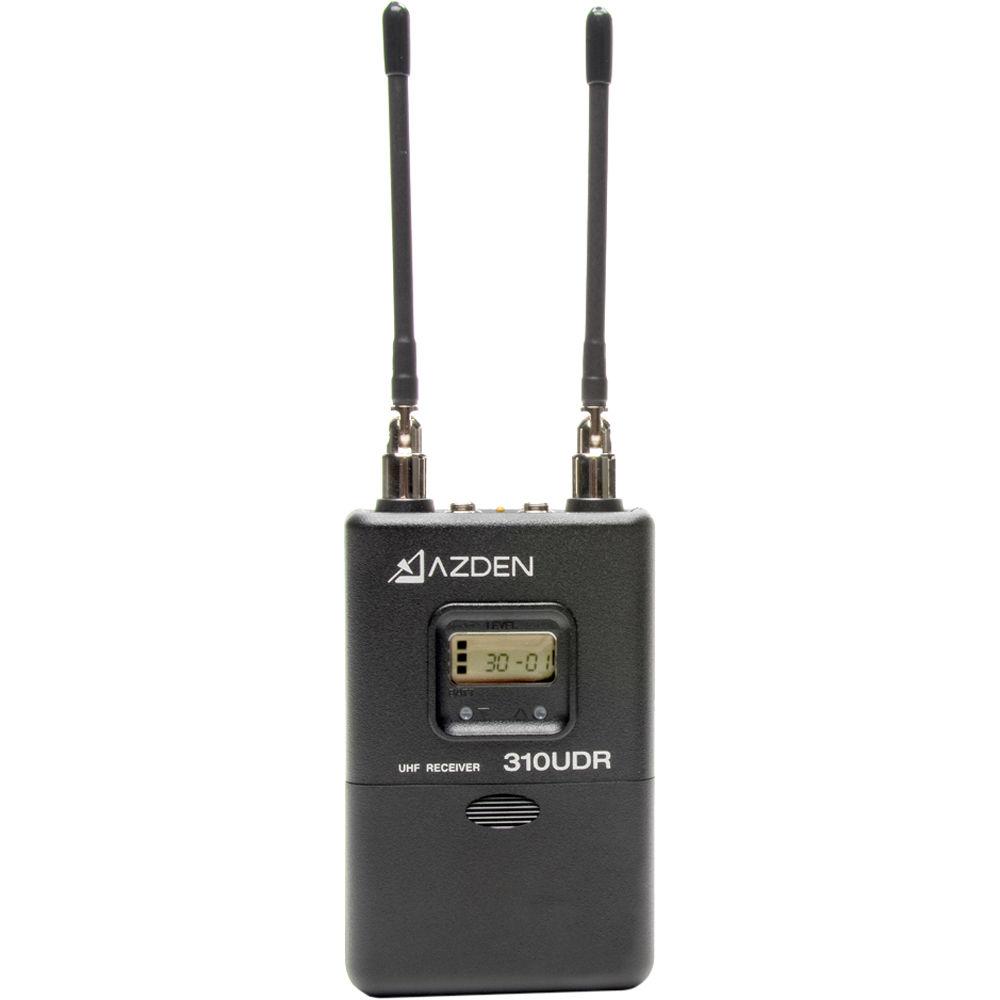

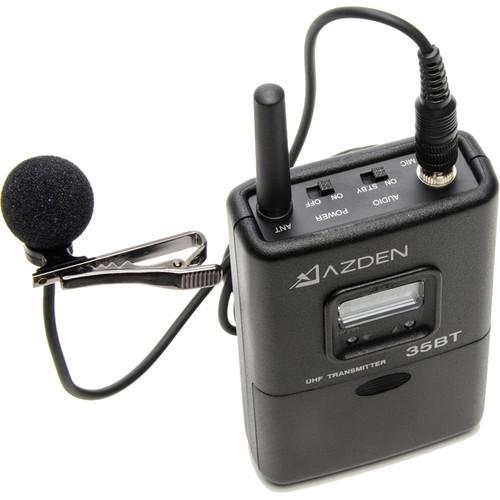

Product description The Azden 310LX UHF On-Camera Bodypack & Plug-In System is a powerful yet affordable UHF wireless combo-microphone system for camera-mount applications. The system consists of Azden's 35BT bodypack transmitter, 35XT plug-in microphone transmitter, and 310UDR camera-mount diversity receiver. The inclusion of both bodypack and plug-in transmitters, allows users the flexibility of choosing the right microphone for the right job.With a feature set that includes 188 user selectable UHF frequencies, pivoting high-gain diversity antennas, and LCD digital display, the 310LX is guaranteed to meet the demands of consumer and professional video applications alike. The 310UDR receiver features main and headphone monitor outputs, and a removable shoe-mount adapter. Both the transmitter and receiver operate on standard AA alkaline batteries (not included). - 188 Selectable UHF Freq. (566.125-589.875 MHz)
- New, Pivoting diversity High-Gain Antenna
- Digital LCD Display w/Multifunction Readout
- Mini-Jack Out w/Supplied 24" Mini-to-XLR Cable
- Headphone Output on Receiver
- Attached/Removable Shoe-Mount
- Powered by 2 "AA" Batteries (not included)

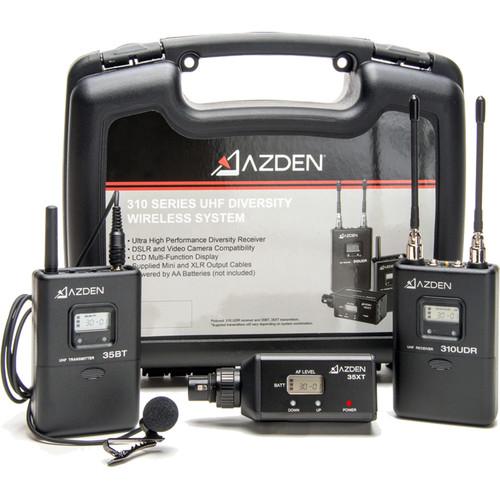

UPC: 095528310694 In the Box Azden 310LX UHF On-Camera Bodypack & Plug-In System 310UDR Receiver 35XT Plug-In Transmitter 35LT Bodypack Transmitter EX-503 Lavalier Microphone Mini to XLR Cable - 24" (60.96cm) 2 x Pivoting High-Gain Antennas Removable Shoe-Mount 1 Year Warranty User Manual PDF 1mbvrrvatdxardtucwydbtszcbftuuuezuvfu Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden 310LX UHF On-Camera Bodypack & Plug-In System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden 310LX Specs | | | Type of System | Portable UHF Combo System | | RF Carrier Frequency Range | UHF 188 Freq. (566.125-589.875 MHz) | | Approx. Working Range | 200 - 300' | | Overall Frequency Response | 50 to 15kHz | | Signal-to-Noise Ratio | >84dB (100% Deviation) | | # Of Channels | 188 | | # Of Simultaneous Systems | 9 | | | | Type of Receiver | 310UDR On-Camera Diversity Receiver | | Type of Outputs | MIC Level - Balanced
1/8" (3.5mm) Mini-Jack -28 dBm (100% Deviation - Mic Level) | | Headphone Monitoring | Yes 1/8" (3.5mm) Mini-Jack | | Battery Type/Approx. Life | 2x "AA" Alkaline (2 x 1.5V) - 5-6 hours runtime
2x "AA" rechargeable Ni-MH (2 x 1.2V) | | Display | LCD Digital | | Mounting Options | Attached/Removable Shoe-Mount | | Antenna Type | 2x Pivoting Diversity High-Gain Antenna | | Dimensions (WxHxD) | 2.48 x 3.86 x 1.12" (63 x 98 x 28.5mm) | | Weight | 6.7oz (190g) w/batteries | | | | Type of Transmitter | 35BT Bodypack Transmitter | | Microphone | EX-503 Lavalier | | Battery Type/Approx. Life | 2x "AA" Alkaline (2 x 1.5V) - 6-8 hours runtime
2x "AA" rechargeable Ni-MH (2 x 1.2V) | | Deviation | +/- 40kHz @ 1kHz Modulation
MIC Input - 11dBm | | Mute Switch | On/Off | | RF Power | 25mW | | Display | LCD Digital | | Dimensions (WxHxD) | 2.52 x 3.93 x 1.16" (64 x 100 x 27mm) | | Weight | 6oz (170g) | | | | Type of Transmitter | 35XT Plug-in Transmitter | | Input Connector | 3-pin XLR | | Battery | 2x "AA" Alkaline (2 x 1.5V) - 6-8 hours runtime
2x "AA" rechargeable Ni-MH (2 x 1.2V) | | Antenna | Internal | | Maximum Input Level | -16dBm
Audio Adjust. Range: -65dBm to 46dBm | | Input Impedance | 25k Ohms | | Mute Switch | On/Off | | RF Power | 25mW | | Display | LCD Digital | | Antenna Dimensions (WxHxL) | 1.57 x 1.57 x 4.49" (40 x 40 x 114mm) | | Weight | 6.35oz (180g) | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 16.5 x 12.1 x 3.8" |
