User Manual for Azden 330LT UHF On-Camera Dual Bodypack System Click to enlarge the picture
Contents of the user manual for the Azden 330LT UHF On-Camera Dual Bodypack
- Product category: Wireless Systems Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Wireless Systems
 |
User manual for the Azden 330LT UHF On-Camera Dual Bodypack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|

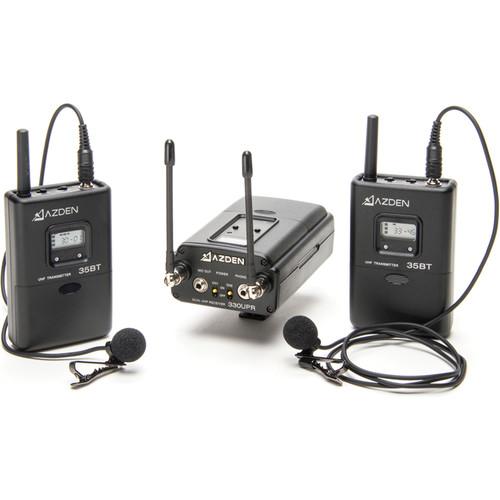

Product description The Azden 330LT UHF On-Camera Dual Bodypack System is a powerful dual-channel UHF wireless microphone system for camera-mount applications. The system consists of two Azden 35BT bodypack transmitters, EX-503 lavalier microphones, and 330UPR portable dual-channel diversity receiver. The inclusion of both bodypacks allows users to operate both microphones simultaneously.With a feature set that includes 188 user selectable UHF frequencies, pivoting high-gain diversity antennas, and LCD digital display, the 330LT is guaranteed to meet the demands of consumer and professional video applications alike. The 330UPR receiver features main and headphone monitor outputs, and a removable shoe-mount adapter. Both the transmitter and receiver operate on standard AA alkaline batteries (not included). - Discrete 2-channel Camera-mount UHF Receiver
- 188 Selectable UHF Freq. (566.125-589.875 MHz)
- New, Pivoting diversity High-Gain Antenna
- Digital LCD Display w/Multifunction Readout
- Mini-Jack Out w/Supplied 46" Mini and 24" XLR Cables
- Headphone Output on Receiver
- Attached/Removable Shoe-Mount
- Powered by 2 "AA" Batteries (not included)

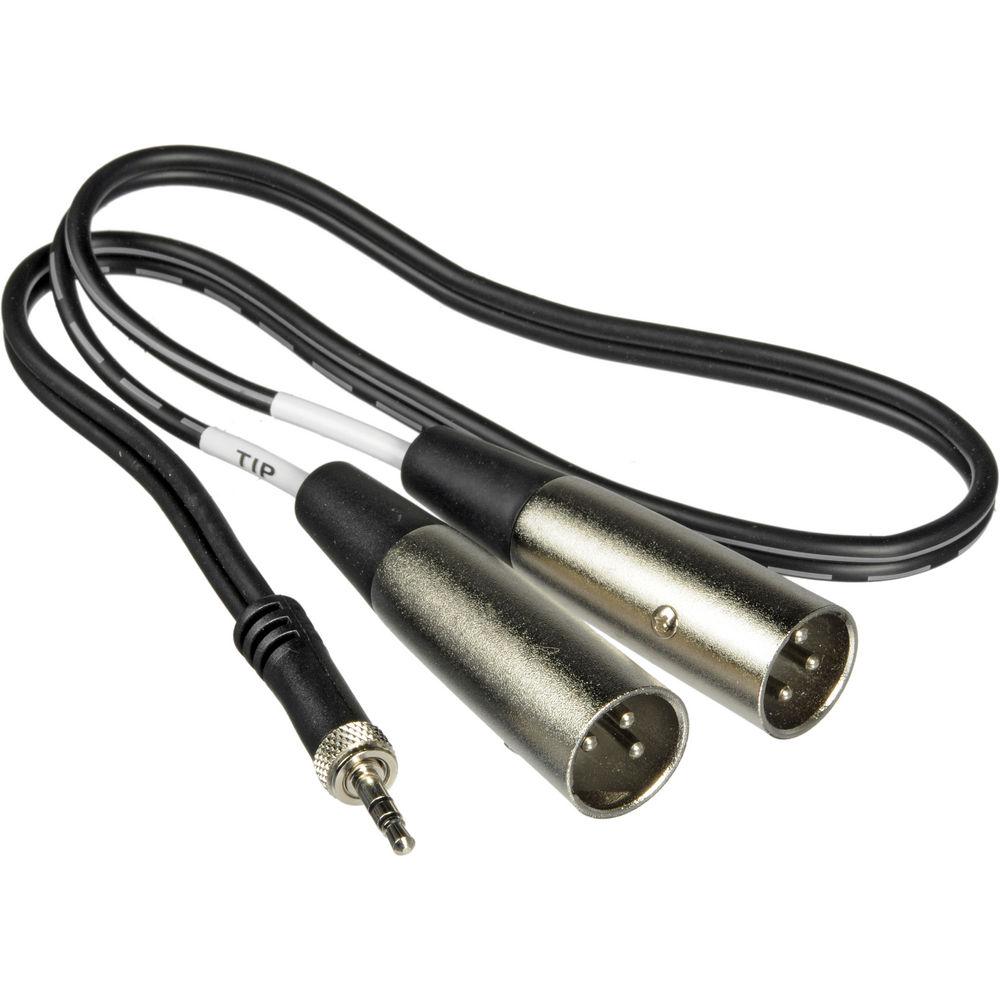

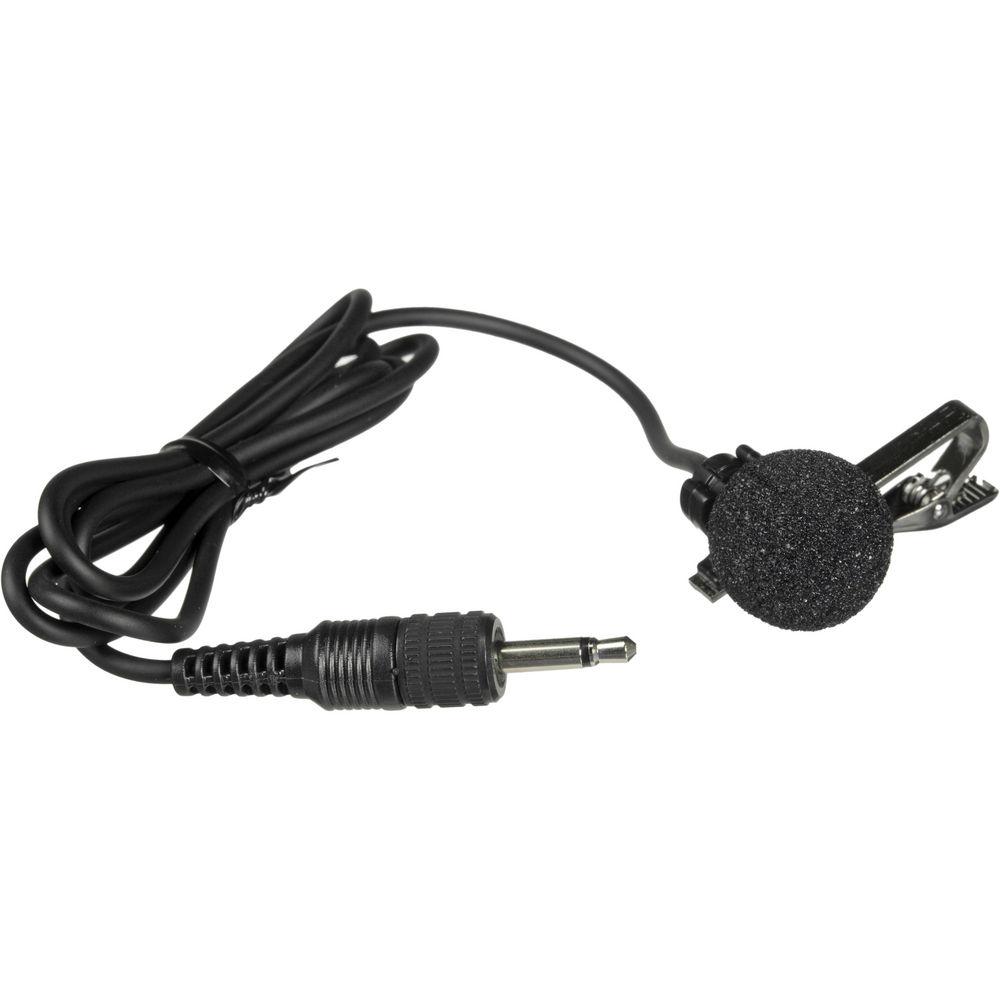

UPC: 095528330067 In the Box Azden 330LT UHF On-Camera Dual Bodypack System 330UPR Dual-Channel Receiver 2 x 35LT Bodypack Transmitter 2 x EX-503 Lavalier Microphone Mini to XLR Cable - 24" (60.96cm) Mini to Mini Cable - 46" (116cm) 2 x Pivoting High-Gain Antenna Removable Shoe-Mount Hardshell Carrying Case 1-Year Warranty User Manual PDF 775.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden 330LT UHF On-Camera Dual Bodypack System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

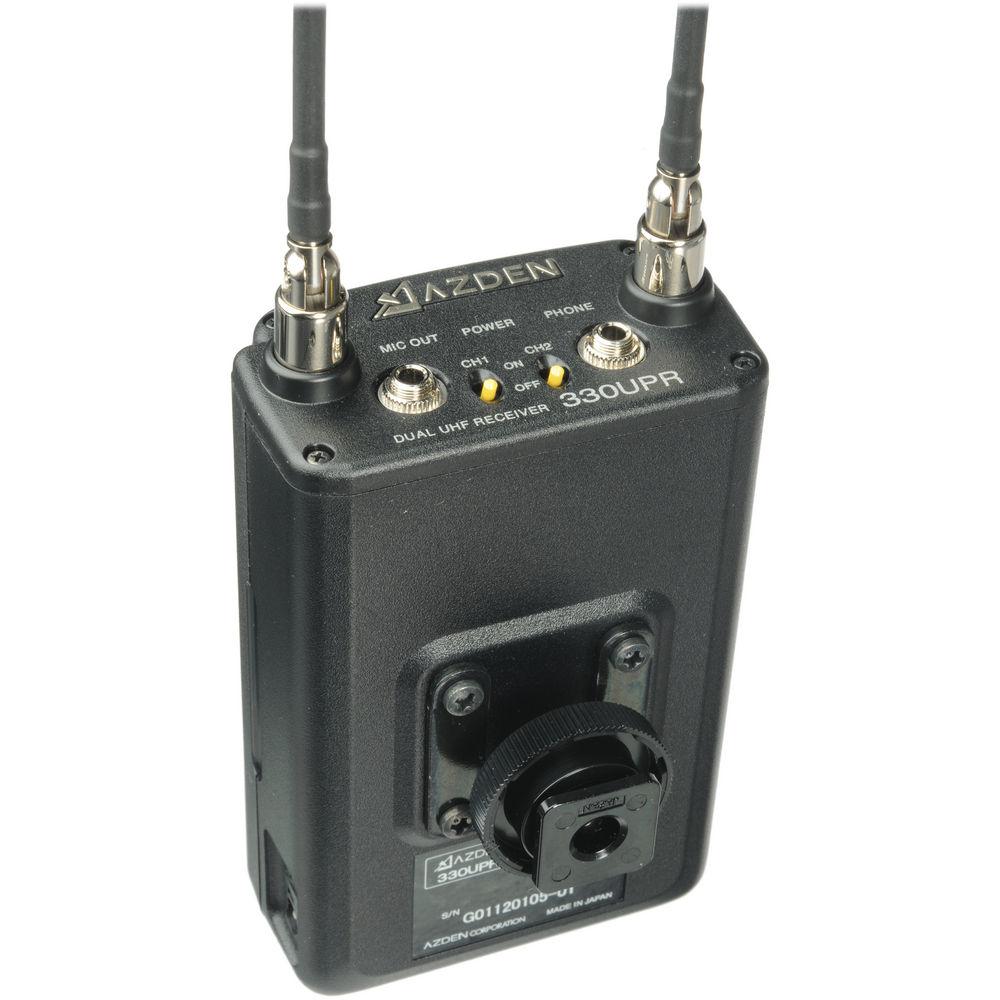

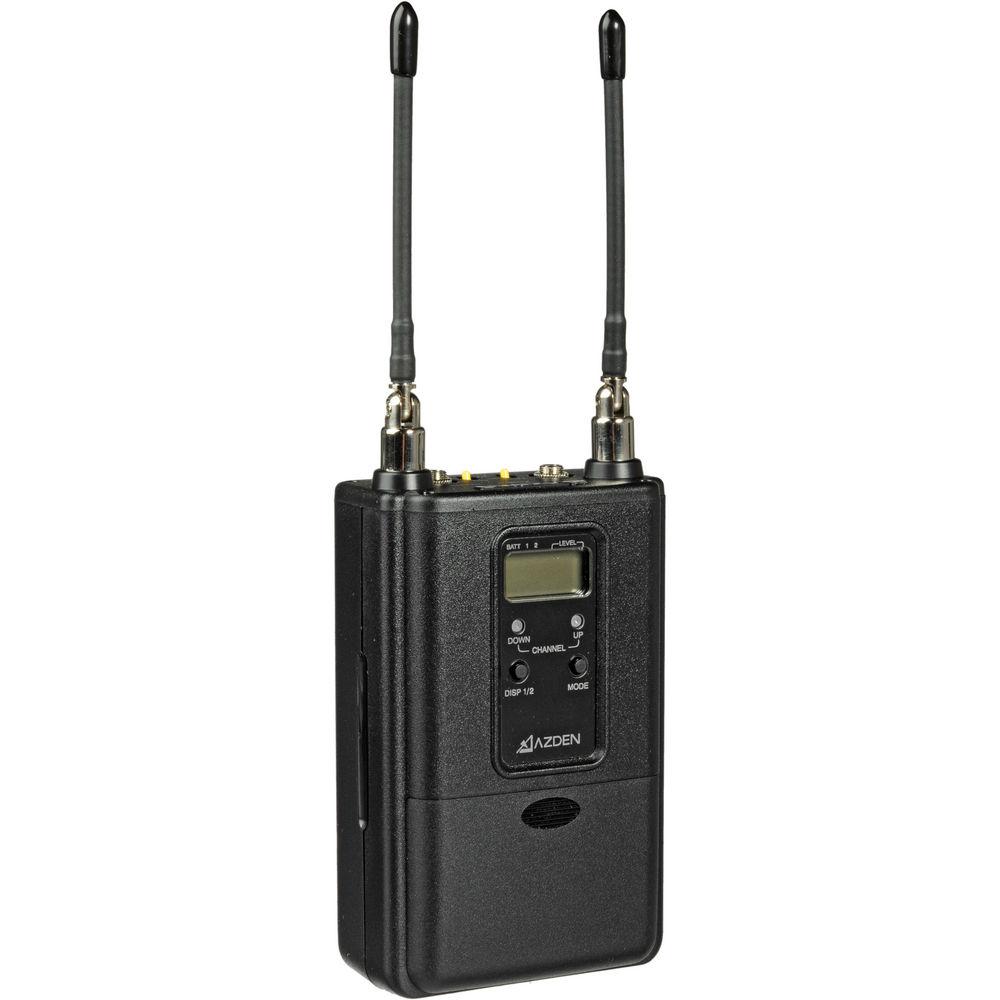

Technical parametersAzden 330LT Specs | | | Type of System | Portable UHF Dual-Channel Bodypack System | | RF Carrier Frequency Range | UHF 188 Freq. (566.125-589.875 MHz) | | Approx. Working Range | 200 - 300' | | Overall Frequency Response | 50 to 15 kHz | | Signal-to-Noise Ratio | >84 dB (100% Deviation) | | # Of Channels | 188 | | # Of Simultaneous Systems | 9 | | | | Type of Receiver | 330UPR On-Camera Dual-Channel Receiver | | Type of Outputs | MIC Level - Balanced
1/8" (3.5 mm) Mini-Jack -28 dBm (100% Deviation - Mic Level) | | Headphone Monitoring | Yes 1/8" (3.5 mm) Mini-Jack | | Battery Type/Approx. Life | 2x "AA" Alkaline (2 x 1.5 V) - 5-6 hours runtime

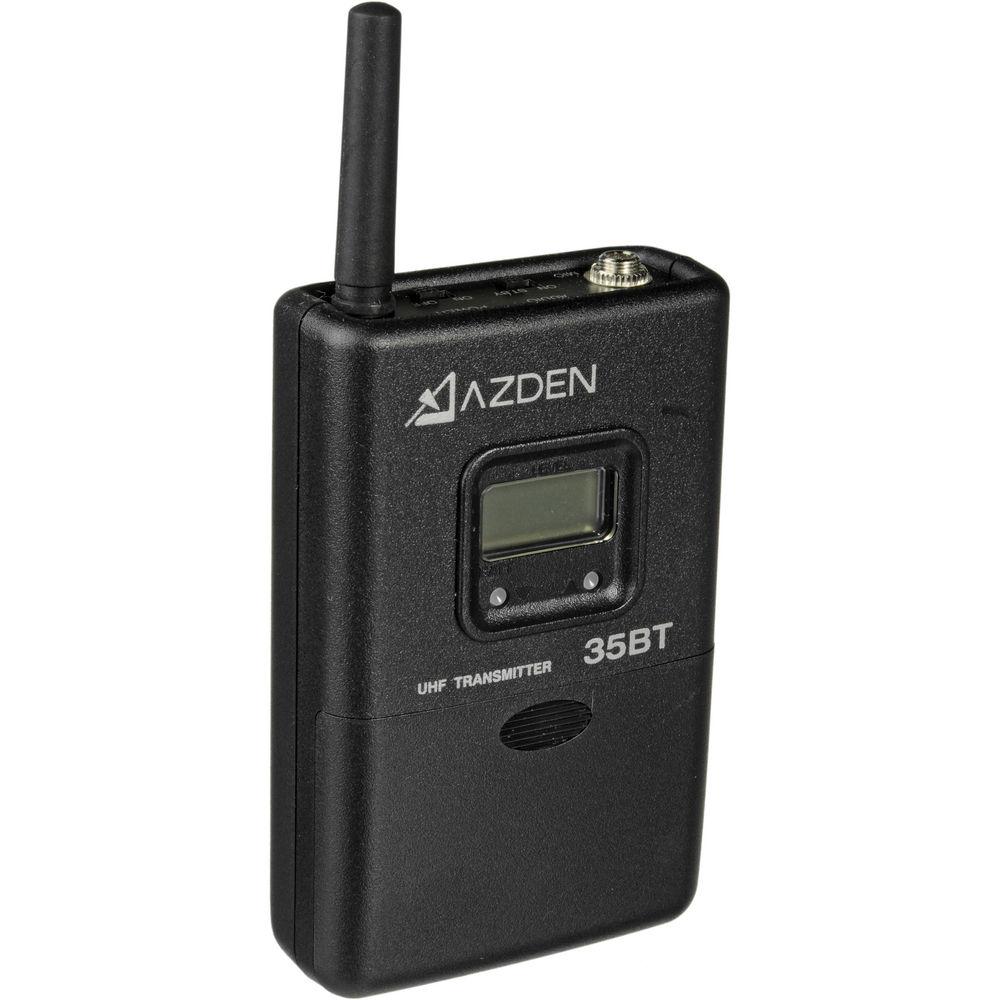

2x "AA" rechargeable Ni-MH (2 x 1.2 V) | | Display | LCD Digital | | Mounting Options | Attached/Removable Shoe-Mount | | Antenna Type | 2x Pivoting Diversity High-Gain Antenna | | Dimensions (WxHxD) | 2.87 x 4.45 x 1.59" (73 x 113 x 40.5 mm) | | Weight | 10.2 oz (290 g) w/batteries | | | | Type of Transmitter | 35BT Bodypack Transmitter | | Microphone | EX-503 Lavalier | | Battery Type/Approx. Life | 2x "AA" Alkaline (2 x 1.5 V) - 6-8 hours runtime
2x "AA" rechargeable Ni-MH (2 x 1.2 V) | | Deviation | +/- 40 kHz @ 1 kHz Modulation
MIC Input - 11 dBm | | Mute Switch | On/Off | | RF Power | 25 mW | | Display | LCD Digital | | Dimensions (WxHxD) | 2.52 x 3.93 x 1.16" (64 x 100 x 27 mm) | | Weight | 6 oz (170 g) | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 16.5 x 12.0 x 3.8" |
