Azden Dual Wireless VHF Bodypack Kit

Search your instruction manual in PDF to download

User Manual for Azden Dual Wireless VHF Bodypack Kit

Click to enlarge the picture
Azden Dual Wireless VHF Bodypack Kit Contents of the user manual for the Azden Dual Wireless VHF Bodypack Kit
  • Product category: Wireless Systems Azden
  • Brand: Azden
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Azden Wireless Systems

Azden Dual Wireless VHF Bodypack Kit Azden Dual Wireless VHF Bodypack Kit Azden Dual Wireless VHF Bodypack Kit
User manual for the Azden Dual Wireless VHF Bodypack Kit contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Azden product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!



Product description

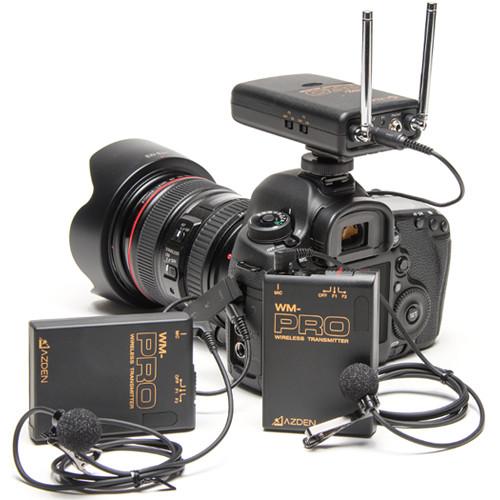

Unveiled: Camera-Mountable Dual VHF Wireless and Smartphone Lav from Azden Read More The Azden Dual Wireless Bodypack Kit features the WR32-Pro Dual-Channel Receiver as well as two 2-channel WM-Pro Wireless VHF Bodypack Transmitters with EX-503 Omnidirectional Lavalier Microphones and tie clips. The lavalier microphones and bodypacks can be worn by two different subjects and transmit on the 169.445 and 170.245 MHz channels simultaneously. The dual-channel receiver can then be shoe mounted on top of a camera or camcorder to receive the two channels of audio.

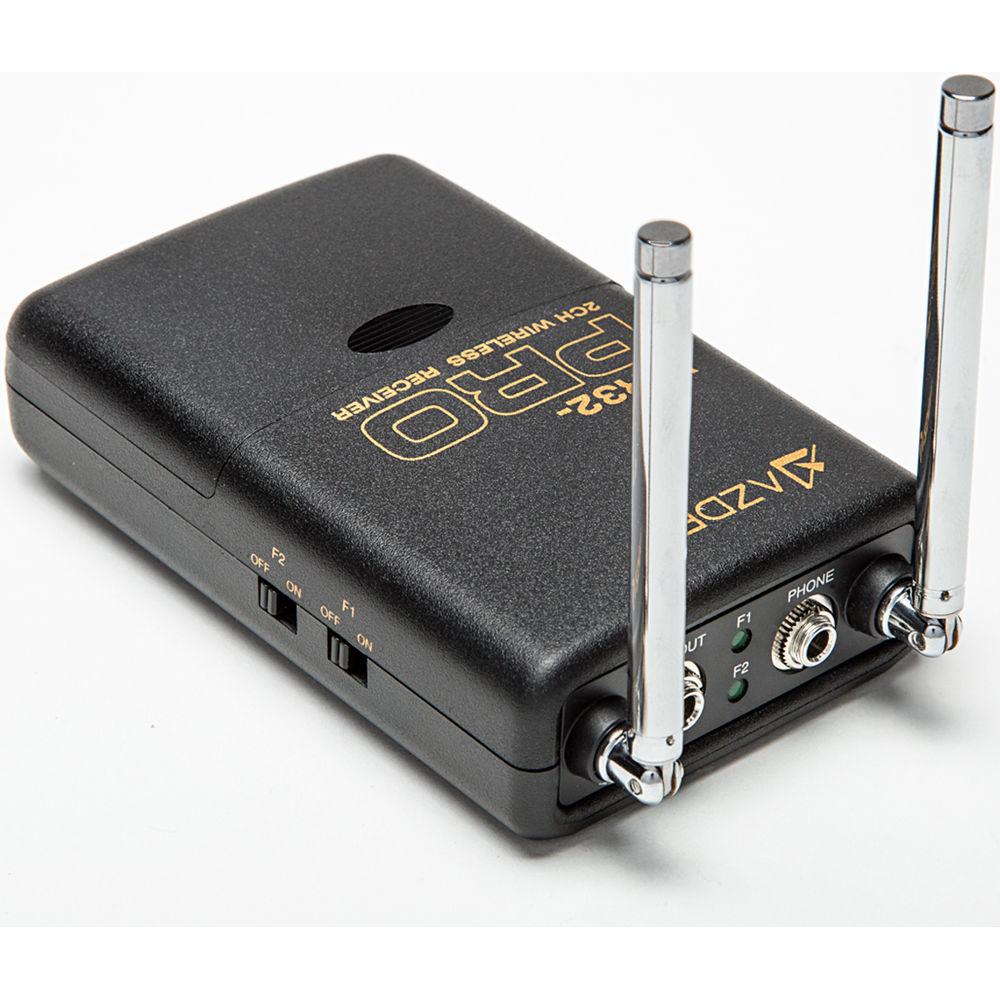

  • WR32-Pro VHF Dual-Channel Receiver for DSLR (169.445 and 170.245 MHz) The Azden WR32-Pro VHF Dual-Channel Receiver (169.445 and 170.245 MHz) is designed to be mounted on top of a camcorder or video capable camera for reception of two independent channels of wireless audio from two WM-PRO bodypack transmitters and/or WM/T-PRO handheld microphone transmitters. Each channel has a separate on and off switch. The receiver features two high-gain telescopic antennas that can bend to improve the angle of reception.

    For outputs, the receiver features both a phone output for earphone monitoring as well as an output for connecting to the input of a camera with the included stereo mini cable. An optional MX-2 stereo to dual XLR cable is available for connecting to a professional camera. The unit also comes with a shoe mount and locking adhesive strips for attaching to a camera or camcorder.

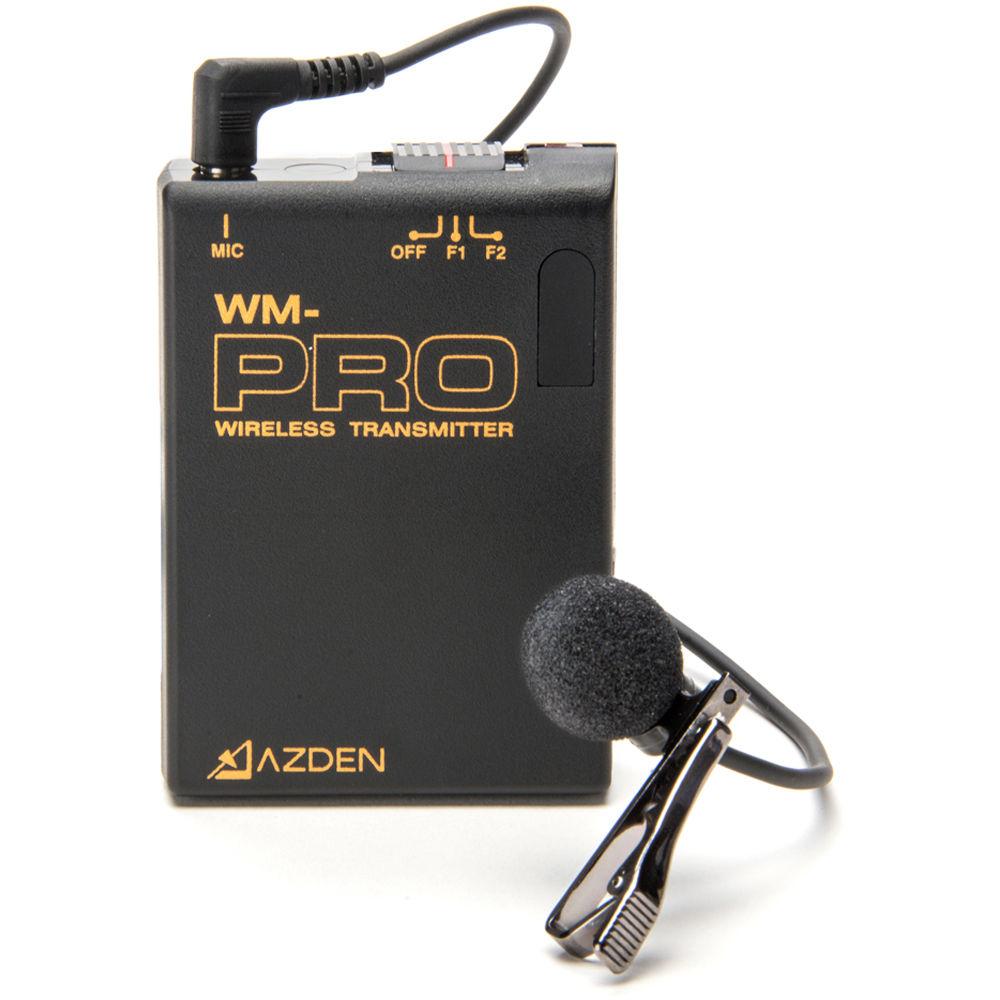

  • WLT/PRO VHF Wireless Bodypack Transmitter The Azden WLT/PRO VHF Wireless Bodypack Transmitter consists of the WM-Pro bodypack transmitter and EX-503 omnidirectional lavalier microphone. The transmitter features 2 switchable VHF channels (169.445 MHz and 170.245 MHz) and is compatible with all Azden "PRO" series VHF receivers. The WLT/PRO is powered by a single 9V battery and includes a belt clip.
    • Compact and lightweight bodypack transmitter
    • Electret condenser, omnidirectional lavalier microphone
    • 2 switchable frequencies 169.445 MHz & 170.245 MHz)
    UPC: 095528000212
In the Box Bundle Items WR32-Pro VHF Dual-Channel Receiver for DSLR (169.445 and 170.245 MHz) ubsrsvfd
  • 3.5mm Stereo Mini Output Cable
  • Shoe Mount
  • Set of Locking Adhesive Strips
  • Monitor Earphone
  • Limited 2-Year Warranty
2 x WLT/PRO VHF Wireless Bodypack Transmitter ubsrsvfd
  • EX-503 Lavalier Microphone
  • Belt Clip
  • Limited 2-Year Warranty

Also Includes

  • Limited 2-Year Warranty
User Manual - WR 32 PDF 534.9kb Table of Contents




Upload User Manual

Have you got an user manual for the Azden Dual Wireless VHF Bodypack Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • WR32-Pro VHF Dual-Channel Receiver for DSLR (169.445 and 170.245 MHz)
    Reception F1.169.445 MHz
    F2.170.245 MHz
    Reception System Double superheterrodyne
    Reception Sensitivity 2μV at S/N 40 dB
    Batteries & Power 2x 1.5 V AA (not included)
    Power Consumption 100 mA
    Output Voltage 0.7 V
    Load 30 Ω
    Modulation 1 kHz
    Deviation ±7 kHz
    Output Voltage 25 mV
    Load 10 kΩ
    Modulation 1 kHz
    Deviation ± 7 kHz
    Impedance 300 Ω
    Dimensions (H x W x D) 2.48 x 3.86 x 1.12" (63.0 x 98.0 x 28.5 mm)
    Weight 0.377 lb (171 g) including battery
    Box Dimensions (LxWxH) 8.0 x 4.1 x 1.3"
  • WLT/PRO VHF Wireless Bodypack Transmitter
    Modulation FM
    Sensitivity 94 dB SPL @ +/- 2.5 kHz Deviation
    Battery 9 V Battery x1
    Power Consumption 30 mA
    Dimensions (HxWxD) 3.3 x 2.4 x 0.85" (86 x 60 x 21.5 mm)
    Weight 3.4 oz (98 g)
    Box Dimensions (LxWxH) 11.0 x 3.0 x 3.0"
