User Manual for Azden DW-10C Dual-Channel Base Station with Power Cord Click to enlarge the picture
Contents of the user manual for the Azden DW-10C Dual-Channel Base Station with
- Product category: Base Stations Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Base Stations
|
User manual for the Azden DW-10C Dual-Channel Base Station with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|

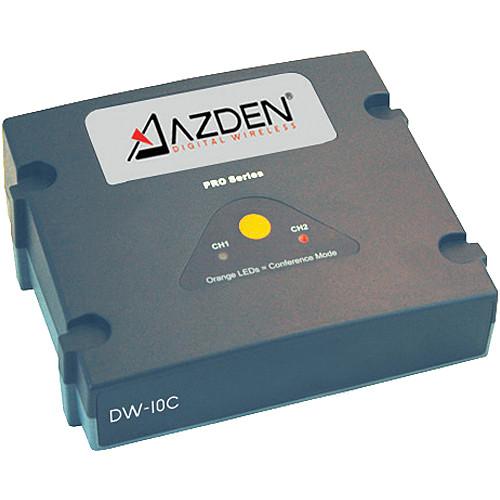

Product description The Azden DW-10C is a dual-channel base station for use with wireless headsets. - Outstanding Range
- Full-duplex communication up to 400 yards in any direction from base station
- Dual-Channel with Conferencing
- Two groups of four users can communicate separately or all together
- Digital, Full Duplex Voice
- DECT frequency band (1900 MHz) is reserved by FCC for "PCS" voice communications only
- Expandable
- Small, field programmable headsets; up to 8 total
- Totally Portable
- Operable with AC plug or AA batteries
- Simple, Instant Setup
- Self tuning, no antenna required
In the Box Azden DW-10C Dual-Channel Base Station with Power Cord Power Cord NiMh Rechargeable Battery Charging Station Battery Sled for AA Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden DW-10C Dual-Channel Base Station with Power Cord in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden DW-10C Specs | Standard | DECT 6.0 (Digital Enhanced Cordless Telecommunications) | | Frequency Response | 1880 to 1900 GHz | | Channel Bandwidth | 1.728 MHz | | Modulation Type | GFSK | | Transmission Speed | 1.152 Mbps (Baud rate) | | Duplex Operation | Time division duplex (TDD) | | Encoding | Speech: ADPCM / 32kbit/s | | Radio Frequency | Time division multiple access (TDMA) | | Range | 437 yds (400 m) in open space | | Power Supply | AC adapter - Input 110 - 240 VAC
Output: 9.0 VDC 1000 mA | | Charge Time | 6 hrs | | Operation Time | Standby: 100 hours
Talk: 10 hours | | Operating Temperature | 32 to 100° F (0 to 40° C) | | Storage Temperature | 19 to 160° F (-10 to 60 °C) | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 10.0 x 9.1 x 4.6" |
