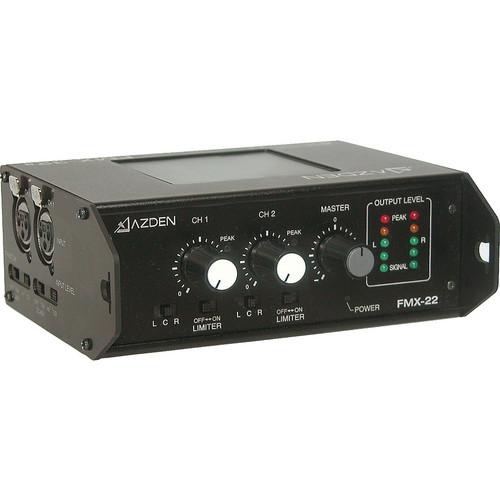

Product description The FMX-22 Portable Field Mixer by Azden is a lightweight 2-channel battery-powered solution for any remote audio application. It features 2 XLR microphone inputs with individually switchable phantom power and two gain stages.
Each channel of the FMX-22 has a volume control, a 3-way (left, right, center) pan selector, and a limiter on/off switch. A master volume control and dual 5-segment output level indicators help maintain optimal signal strength and prevent clipping.
The FMX-22 has balanced XLR outputs in addition to an 1/8" TRS stereo output. A 1/4" headphone output with an independent volume adjustment allows you to comfortably monitor your signal. - Azden - FMX-22 Portable Field Mixer
-
- Powered by 4 AA batteries
- 2 XLR microphone inputs
- Individually switchable phantom power, gain staging, panning, and limiter per channel
- Master volume control
- Dual 5-segment output level indicators
- Balanced XLR outputs
- 1/8" TRS stereo output for video cameras
- Headphone output with volume control
- Lightweight yet rugged construction
UPC: 095528070093 In the Box Azden FMX-22 Portable Field Mixer - Adhesive Touch-Fastener Strip
- 2-Year Limited Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden FMX-22 Portable Field Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden FMX-22 Specs | Inputs | 2 x XLR | | Outputs | 2 x XLR balanced
1 x 1/8" TRS stereo unbalanced
1 x 1/4" headphone/monitor | | Maximum Input Level | Mic Lo: -20 dBu
Mic Hi: -3 dBu | | Maximum Gain | Mic Lo: +58
Mic Hi: +42 dB | | Input Impedance | Mic Lo: 2kΩ
Mic Hi: 2kΩ | | Maximum Output Level | Balanced Main Outputs: +15 dBu @ 5kΩ
Unbalanced Stereo Mic Output: -20 dBu @ 2kΩ
Headphone/Monitor Output: +1.5 dBu @ 32kΩ | | Frequency Response | 20 to 20,000 Hz (+0 /-0.5 dB) | | Noise Level | -119 dBu | | THD | < 0.005% @ 1 kHz, + 19 dBu | | Phantom Power | +48V ±1.5V, individually switchable | | Power | 4 x AA alkaline batteries
DC 12V 200 mA | | Battery Life | Up to 15 hours of continuous use | | Dimensions (L x W x H) | 5.7 x 4.7 x 2.1" (145 x 120 x 53.5 mm) | | Weight | 1.48 lb (670 kg) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 10.2 x 6.6 x 3.5" |
