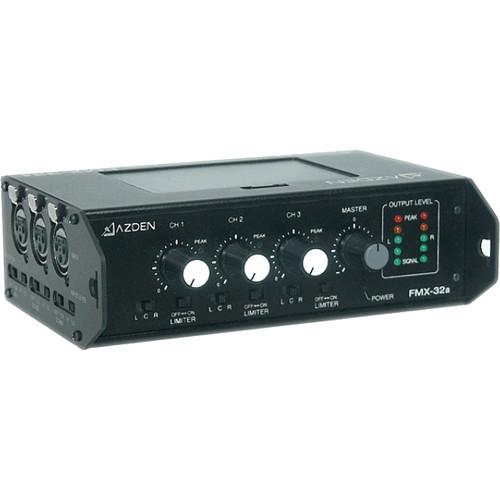

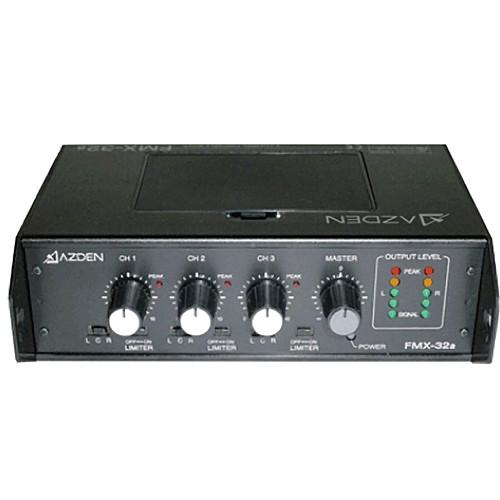

Product description The Azden FMX-32A 3-Channel Portable Field Mixer is a portable 3-channel audio mixer designed for professional field audio capturing. The FMX-32A features the same compact design and primary features as the FMX-32, now with the circuit topology of the FMX-42 series mixers. This provides an improved signal to noise ratio and a wider frequency response, ideal for professional applications.
The mixer features a compact and durable metal chassis that can be strapped directly to a camera with the supplied hook-and-loop fastener, or worn around the neck with an optional carrying case. The mixer has 3 balanced XLR microphone inputs with 2 input settings and +48VDC phantom power for use with condenser microphones. Each channel has its own input level control and a switchable limiter. There is also a master level control for adjusting the overall signal.

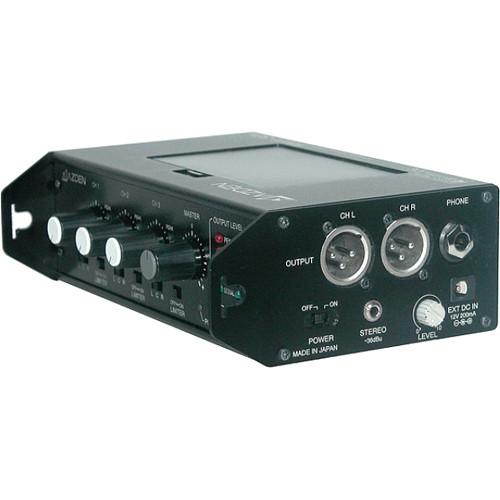

The mixer has channel-addressable (L-C-R) stereo XLR and mini outputs, plus a 1/4" headphone monitoring jack with its own level control. A 5-step LED array offers visual signal monitoring. The mixer can operate via 6 standard AA batteries for convenient use in the field. It can also be used with an optional 12VDC power supply for longer recording sessions. - High-Quality Circuitry
- While the FMX-32A shares the design and features of the FMX-32, it has the circuit topology of the FMX-42 series mixers. This provides an improved signal to noise ratio and a wider frequency response, ideal for professional applications
- Portable and Durable
- The compact and durable metal chassis provides lasting durability that withstands the rigors of use in the field. It can be strapped directly to a camera with the supplied hook-and-loop fastener, or worn around the neck with an optional carrying case
- XLR Inputs
- There are 3 balanced XLR microphone inputs, each with 2 input settings, an input level control, and a switchable limiter
- Phantom Power
- Switchable +48VDC phantom power is available for use with condenser microphones
- Master Control
- A master level control is provided for adjusting the overall signal
- Multiple Outputs
- The mixer has channel-addressable (L-C-R) stereo XLR and mini outputs, plus a 1/4" headphone monitoring jack with its own level control
- LED Metering
- A 5-step LED array offers visual signal monitoring
- Power Options
- The mixer can operate via 6 standard AA batteries for convenient use in the field. It can also be used with an optional 12VDC power supply for longer recording sessions
UPC: 095528070079 In the Box Azden FMX-32A 3-Channel Portable Field Mixer Hook-and-Loop Fastener 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden FMX-32A 3-Channel Portable Field Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden FMX-32a Specs | Frequency Response | Main and Unbalanced Out: 20 Hz - 20 kHz (+0/-0.5 dB)
Monitor Out: 50 Hz - 17 kHz (-3 dB) | | Noise | L&R Channel: -120 dBu (A weighted, input equivalent level) | | Total Harmonic Distortion | < 0.005% @ 1 kHz (+10 dBu output) | | Input Level | Lo: -20 dBu gain -6 dB
Hi: -3 dBu gain +45 dB | | Output Level | Balanced: + 20 dBu (5k ohms)
Unbalanced: -19 dBu (2k ohms) | | Monitor Output | -4 dBu @ 32 ohms (recommended load 16-100 ohms) | | Phantom Power | 48 VDC (±4 VDC) | | Battery Type/Life | 6 x AA alkaline batteries, approx 15 hours | | Current Drain | 47 mA nominal (phantom off)
100 mA maximum (phantom on) | | Dimensions (HxWxD) | 2.19 x 6.93 x 4.75" (54 x 170 x 120 mm) | | Weight | 1.65 lbs (0.75 kg) (without batteries) | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 10.2 x 6.6 x 3.6" |
