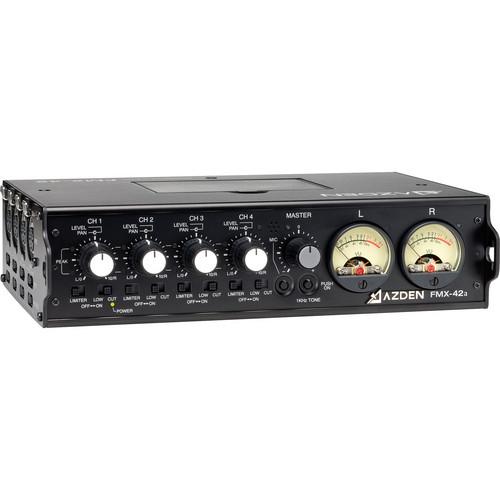

User Manual for Azden FMX-42a 4-Channel Microphone Field Mixer with 10-Pin Camera Return Click to enlarge the picture
Contents of the user manual for the Azden FMX-42a 4-Channel Microphone Field Mixer
- Product category: Field Mixers Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Field Mixers
|
User manual for the Azden FMX-42a 4-Channel Microphone Field Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|
Product description The Azden FMX-42a is a portable 4-channel audio mixer designed for professional and semi-professional field audio capturing. Equipped with both mini-jack and 10-pin camera returns, the FMX-42a also features 4 balanced 3-pin XLR microphone inputs with individually switched +48V phantom power. A pair of balanced XLR outputs provide line or mic level (switchable) signal to cameras, recorders, etc.
Additional features include a switchable input limiter to reduce the possibility of overload distortion, Left/Center/Right pan switches on all input channels, and enhanced circuitry for improved signal-to-noise ratio. The FMX-42a can be powered either by 6 AA batteries or an optional 12 VDC external power supply. A ballistic nylon carrying case is included.
The FMX-42a is an affordable field mixing solution for event videos, ENG/EFP applications, documentaries, and more. - Features:
-
- On-board A/D converter and 2-channel mini-USB digital audio output
- Mini-USB output connects to computer, smartphone, or tablet
- Simultaneous use of both outputs allows the analog signal to be sent to the camera while a backup digital signal can be sent to a smartphone or tablet or computer via mini-USB
- 4 balanced XLR line/mic inputs and pan controls
- Switchable 48V phantom power and limiting
- Professional-quality VU meters
- 2 balanced XLR outputs (line/mic switchable)
- Stereo mini-jack output for DV cameras
- 6 x AA battery powered
- Optional A/C adapter (sold separately)
UPC: 095528070062 In the Box Azden FMX-42a 4-Channel Microphone Field Mixer with 10-Pin Camera Return Nylon Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden FMX-42a 4-Channel Microphone Field Mixer with 10-Pin Camera Return in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden FMX-42a Specs | | | Balanced Input | 4 x XLR 3-pin female (CH 1, 2, 3 & 4) | | Level | Line-
Standard: +4 dBu (electronically balanced)
Maximum: > +26 dBu
Impedance: 20 kOhms
MIC HI-
Standard: -38 dBu (electronically balanced)
Maximum: +4 dBu
Impedance: 2 kOhms
MIC LO-
Standard: -58 dBu (electronically balanced)
Maximum: -15 dBu
Impedance: 2 kOhms | | High Pass Filter | 100 Hz - 6 dB/oct | | Input Level | -20 to +19 dBu (unbalanced) | | Impedance | 11 kOhms | | Return Input | Hirose 10-pin female for Hirose plug part #RM15TD-10P
1/8" / 3.5 mm stereo mini-jack
Input level: -20 to +19 dBu (unbalanced)
Impedance: 11 kOhms | | | | Balanced Output | 2 x XLR 3-pin male (output L & R) | | Unbalanced Outputs | 1/8" / 3.5 mm stereo mini-jack | | Monitor Output | 1/4" / 6.3 mm stereo jack | | Balanced Output Level | LINE-
Standard: +4 dBu (electronically balanced, greater than 10 kOhms load)
Maximum: +20 dBu (electronically balanced, greater than 10 kOhms load)
Impedance: 600 ohms
MIC-
Standard: -36 dBu (electronically balanced, greater than 10 kOhms load)
Maximum: -20 dBu (electronically balanced, greater than 10 kOhms load)
Impedance: 600 ohms | | Unbalanced Output Level | Standard: -36 dBu (electronically balanced, 10 kOhms load)
Maximum: -20 dBu (electronically balanced, 10 kOhms load)
Impedance: 120 ohms | | Monitor Output | Max Output: +1 dBu (32 Ohm load at 9 V), 16 - 100 Ohm load recommended | | Meters | Standard Output Level: 0 VU (+4 dBu) | | Digital Output | No | | | | Frequency Response | Balanced or Unbalanced Output: 20 Hz - 30 kHz (+0/-1.5 dB)
Monitor Output: 30 Hz - 30 kHz (+0/-2 dB) | | Signal-to-Noise Ratio | Balanced Output: -120 dBu (A weighted, input equivalent level) | | THD | Balanced Output: < 0.005% @ 1 kHz (at LINE position +19 dBu output) | | Phantom Power | 48 V (±1.5 V) | | Sample Frequency | 1 kHz | | Battery Requirement | 6 x alkaline AA | | Current Drain | 164 mA (Meter Illum & Phantom OFF @ 9 V)
192 mA (Meter Illum OFF, Phantom ON w/1 MIC @ 9 V)
125 mA (Meter Illum & Phantom OFF @ 15 V) | | External Power | 10.5 ~ 17 VDC @ 200 mA | | Dimensions | 9.0 x 6.5 x 2.3" / 220 x 160 x 56 mm (without protrusions) | | Weight | 3.0 lb / 1.35 kg (without batteries) | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 10.9 x 9.3 x 5.7" |
