User Manual for Azden FMX-42u 4-Channel Microphone Field Mixer with USB Digital Audio Output Click to enlarge the picture
Contents of the user manual for the Azden FMX-42u 4-Channel Microphone Field Mixer
- Product category: Field Mixers Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Field Mixers
 |
User manual for the Azden FMX-42u 4-Channel Microphone Field Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|

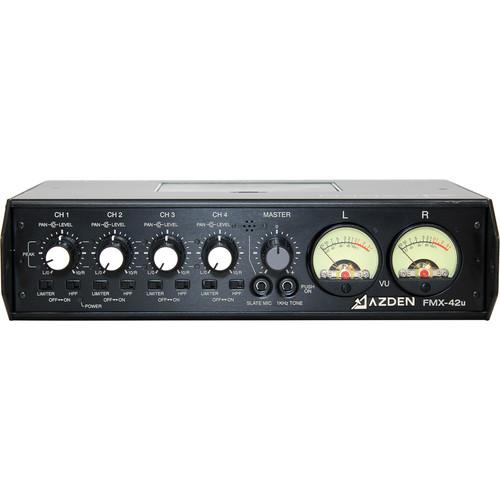

Product description The Azden FMX-42u is a portable 4-channel audio mixer with built-in A/D conversion and audio output via mini-USB for connection to smartphones, tablets, and computers. It is designed for professional and semi-professional field audio capturing.

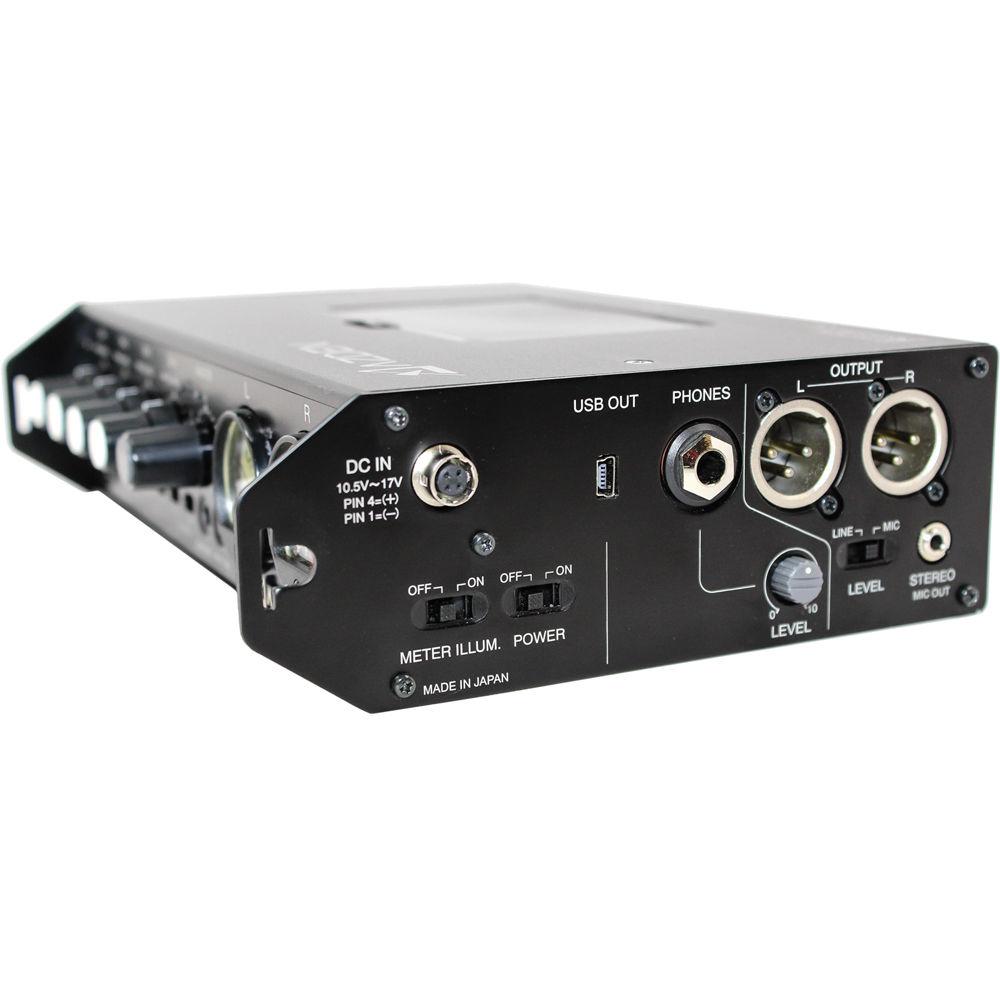

The FMX-42u also features 4 balanced 3-pin XLR microphone inputs with individually switched +48V phantom power. A pair of balanced XLR outputs provide line or mic level (switchable) signal to cameras, recorders, etc. Additional features include a switchable input limiter to reduce the possibility of overload distortion, Left/Center/Right pan switches on all input channels, and enhanced circuitry for improved signal-to-noise ratio. The FMX-42u can be powered either by 6 AA batteries or an optional 12 VDC external power supply. A ballistic nylon carrying case is included.
The FMX-42u is an affordable field mixing solution for event videos, ENG/EFP applications, documentaries, and more. - Features:
-
- On-board A/D converter and 2-channel mini-USB digital audio output
- Mini-USB output connects to computer, smartphone, or tablet

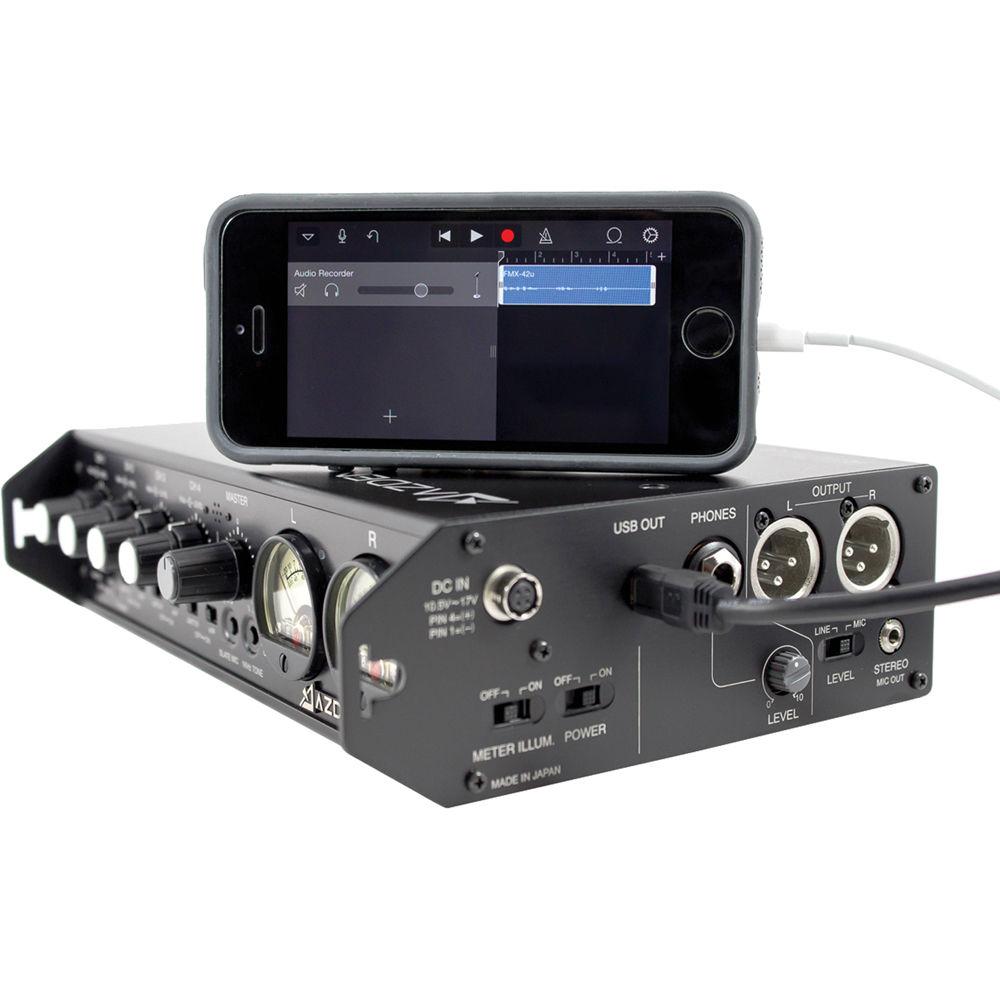

- Simultaneous use of both outputs allows the analog signal to be sent to the camera while a backup digital signal can be sent to a smartphone or tablet or computer via mini-USB
- 4 balanced XLR line/mic inputs and pan controls
- Switchable 48V phantom power and limiting
- Professional-quality VU meters
- 2 balanced XLR outputs (line/mic switchable)
- Stereo mini-jack output for DV cameras
- 6 x AA battery powered
- Optional A/C adapter (sold separately)
UPC: 095528122211 In the Box Azden FMX-42u 4-Channel Microphone Field Mixer with USB Digital Audio Output Nylon Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden FMX-42u 4-Channel Microphone Field Mixer with USB Digital Audio Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden FMX-42u Specs | | | Balanced Input | 4 x XLR 3-pin female (CH 1, 2, 3 & 4) | | Level | Line-
Standard: +4 dBu (electronically balanced)
Maximum: > +26 dBu
Impedance: 20 kOhms
MIC HI-
Standard: -38 dBu (electronically balanced)
Maximum: +4 dBu
Impedance: 2 kOhms
MIC LO-
Standard: -58 dBu (electronically balanced)
Maximum: -15 dBu
Impedance: 2 kOhms | | High Pass Filter | 100 Hz - 6 dB/oct | | Input Level | -20 to +19 dBu (unbalanced) | | Impedance | 11 kOhms | | Return Input | No | | | | Balanced Output | 2 x XLR 3-pin male (output L & R) | | Unbalanced Outputs | 1/8" / 3.5 mm stereo mini-jack | | Monitor Output | 1/4" / 6.3 mm stereo jack | | Balanced Output Level | LINE-
Standard: +4 dBu (electronically balanced, 5 kOhms load)
Maximum: +20 dBu (electronically balanced, 5 kOhms load)
Impedance: 600 ohms
MIC-
Standard: -36 dBu (electronically balanced, 5 kOhms load)
Maximum: -20 dBu (electronically balanced, 5 kOhms load)
Impedance: 600 ohms | | Unbalanced Output Level | Standard: -36 dBu (electronically balanced, 2 kOhms load)
Maximum: -20 dBu (electronically balanced, 2 kOhms load)
Impedance: 120 ohms | | Monitor Output | Max Output: +1 dBu (32 Ohm load at 9 V), 16 - 100 Ohm load recommended | | Meters | Standard Output Level: 0 VU (+4 dBu) | | Digital Output | Connector: USB mini-B (female)
Interface Format: USB 2.0 full speed
Audio Data Format: Isochronous data format
Sampling Frequencies: 16 / 22.05 / 32 / 44.1 / 48 kHz compatible
Bit Depth: 8 / 16-bit compatible
Channels: 2
Device Name: USB AUDIO CODEC | | | | Frequency Response | Balanced or Unbalanced Output: 20 Hz - 30 kHz (+0/-1.5 dB)
Monitor Output: 30 Hz - 30 kHz (+0/-2 dB) | | Signal-to-Noise Ratio | Balanced Output: -120 dBu (A weighted, input equivalent level) | | THD | Balanced Output: < 0.005% @ 1 kHz (at LINE position +19 dBu output) | | Phantom Power | 48 V (±1.5 V) | | Sample Frequency | 1 kHz | | Battery Requirement | 6 x alkaline AA | | Current Drain | Not Specified By Manufacturer | | External Power | 10.5 ~ 17 VDC @ 200 mA | | Dimensions | 9.0 x 6.5 x 2.3" / 220 x 160 x 56 mm (without protrusions) | | Weight | 2.9 lb / 1.3 kg (without batteries) | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 10.4 x 6.7 x 3.7" |
