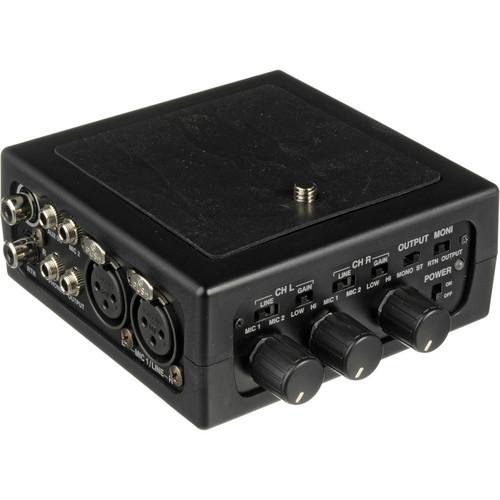

User Manual for Azden FMX-DSLR Portable Audio Mixer for Digital SLR Camera Click to enlarge the picture
Contents of the user manual for the Azden FMX-DSLR Portable Audio Mixer for
- Product category: Camcorder XLR Adapters Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Camcorder XLR Adapters
|
User manual for the Azden FMX-DSLR Portable Audio Mixer for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|
Product description Azden's FMX-DSLR Portable Audio Mixer for Digital SLR Camera is a two-channel mixer designed specifically for use with a DSLR camera. It features twin XLR inputs so that you can utilize professional microphones with your camera by using the camera's mini-jack output. The mixer has automatic gain control, a return feature and can be mounted directly to the camera or to a tripod for placement flexibility. - Two-Channel Mixer
- This stereo mixer is designed specifically for those who want to use pro-quality microphones with a digital SLR camera. The XLR inputs are compatible with a wide range of audio recording devices like shotguns, wireless mics and more
- Automatic Gain Control
- The mixer has an automatic gain control circuit, so when it's turned on it creates a constant signal to go to the camera. This is always engaged to reduce noise in the signal
- Return Feature
- This lets you take the signal from the headphone out on your camera and send it into the mixer so you can listen to the camera's sound as opposed to the mixer sound. That way you can hear what's on the tape as opposed to what's coming out of the mixer
- Mounting
- The mixer has a mount that allows you to mount it directly to the bottom of your camera. It also has a tripod mount on the bottom for flexibility in placement
UPC: 095528070086 In the Box Azden FMX-DSLR Portable Audio Mixer for Digital SLR Camera Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden FMX-DSLR Portable Audio Mixer for Digital SLR Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden FMX-DSLR Specs | Frequency Response | Main and unbalanced output: 20-20,000 Hz (+0/-1 dB)
Monitor output: 50-20,000 Hz (-1 dB) | | Noise Level | Left and right channel: -110 dB | | Total Harmonic Distortion (THD) | < 0.01% @ 1 kHz | | Inputs | Line/Aux Low setting: Max Input Level +22 dBu Max Gain -22 dB
Line/Aux Hi setting: Max Input Level +6 dBu Max Gain -6 dB
MIC1/MIC2 Low setting: Max Input Level 0 dBu Max Gain 0 dB
MIC1/MIC2 Hi setting: Max Input Level -16 dBu Max Gain +16 dB | | Output | 1/8" (3.5 mm) stereo: -3.5 dBu (32 Ω load) | | Maximum Output Level | Unbalanced output (1/8" / 3.5 mm) +0 dBu (2 kΩ) | | Batteries & Runtime | 4 x AA alkaline
15 hours with phantom power off | | Current Drain | 40 mA nominal (phantom power off)
80 mA maximum (phantom power on) | | Dimensions (HxWxD) | 1.75 x 4.2 x 4.2" (44 x 105 x 105 mm) | | Weight | 16.6 oz (470 g) without batteries | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 10.2 x 6.7 x 3.6" |
