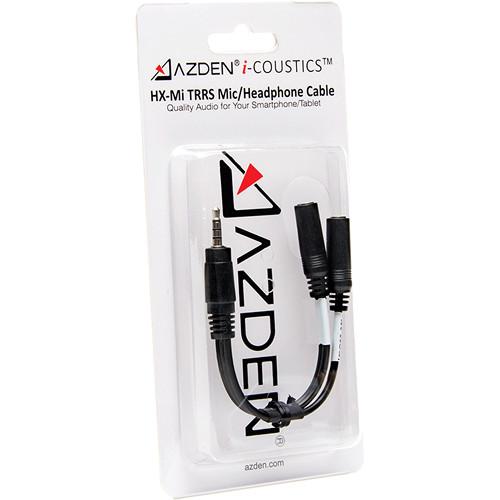

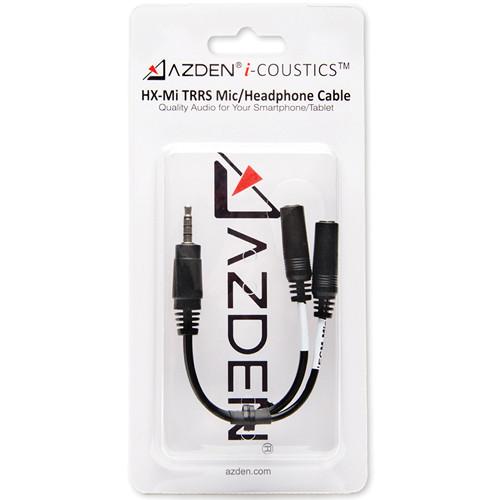

User Manual for Azden i-Coustics HX-Mi TRRS Mic & Headphone Cable for Smartphones & Tablets Click to enlarge the picture
Contents of the user manual for the Azden i-Coustics HX-Mi TRRS Mic &
- Product category: Cables & Adapters Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Cables & Adapters
 |
User manual for the Azden i-Coustics HX-Mi TRRS Mic & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|

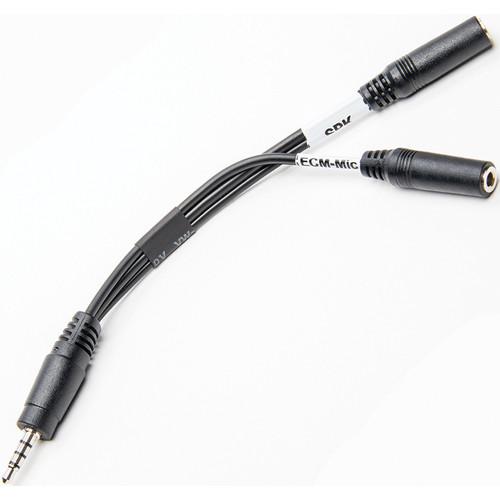

Product description The i-Coustics HX-Mi TRRS Mic & Headphone Cable for Smartphones & Tablets from Azden is a Y cable designed to make an Azden TRRS microphone compatible with various mobile devices. It can be used by plugging a microphone into the HX-Mi mic input and attaching the cable to the microphone/headphone jack of your device. Plug your headphones into the headphone input of the cable to listen to recordings. The Y cable works with any device that has a TRRS jack, including iPhone 3, 4 and 5, iPad (3rd generation and newer), Samsung Galaxy S 3, 4 and 5, Galaxy Tab 3, and most Android devices. The headphones typically support playback of recordings and will not work to monitor the mic while recording, unless you use a recording app with that monitoring feature. Additionally, the i-Coustics HX-Mi TRRS mic & headphone cable is compatible with the following products: Azden WR-PRO, WR32-PRO, 105UPR, 310UDR, 330UPR, SGM-990, SGM-DSLR, SMX-5, SMX-10, SMX-20, FMX-DSLR, FMX-22, FMX-32a, FMX-42, or FMX-42a microphones. Note: The Azden SMX-5, SMX-10, and SMX-20 are stereo microphones, but will record in mono when using the HX-Mi with your smartphone/tablet. Dual-channel receivers such as the WR32-PRO and 330UPR can only output one channel through the HX-Mi cable. The HX-Mi is compatible with all Azden mixers but will not allow for stereo mixing into your device. - Makes your microphones and wireless systems work with smartphones and tablets
- Compatible with iPhone 3, 4, 5, iPad (3rd generation and newer), Samsung Galaxy S 3, 4, 5, Galaxy Tab 3 and most Android devices
- Works with most available recording apps
UPC: 095528404140 In the Box Azden i-Coustics HX-Mi TRRS Mic & Headphone Cable for Smartphones & Tablets Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden i-Coustics HX-Mi TRRS Mic & Headphone Cable for Smartphones & Tablets in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden HX-MI Specs | Connector 1 | Connector: 1 x 1/8" (3.5 mm) mini-jack TRRS | | Connector 2 | Headphone Output: 1 x 1/8" (3.5 mm) stereo jack | | Connector 3 | Mic Input: 1 x 1/8" (3.5 mm) mono jack | | Length | 6.5" (16.5 cm) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 7.1 x 3.2 x 0.9" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
