User Manual for Azden IR-CS Infrared Wireless Microphone and Ceiling Mounted Speaker System for Classrooms Click to enlarge the picture
Contents of the user manual for the Azden IR-CS Infrared Wireless Microphone and
- Product category: Assistive Listening Systems Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Assistive Listening Systems
|
User manual for the Azden IR-CS Infrared Wireless Microphone and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|

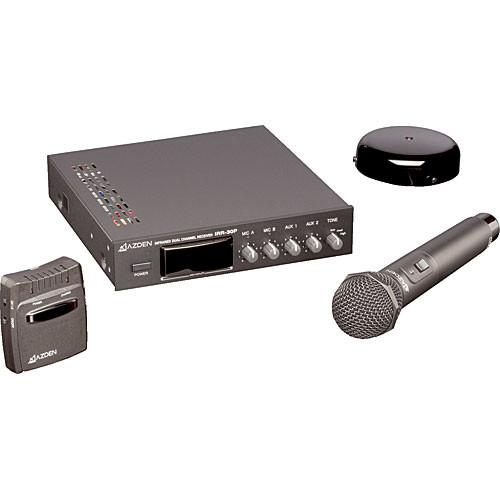

Product description The Azden IR-CS Infrared Classroom System is a complete wireless microphone and speaker system for any classroom. The system includes an infrared receiver, wireless handheld microphone, wireless chest-worn microphone, ceiling mounted infrared sensor and four ceiling mounted speakers (not shown).Both of the included microphones may be used simultaneously for dual teaching, student response applications, etc. Infrared wireless transmission eliminates the noise and interference associated with crowded UHF and VHF, resulting in clear reception and minimal signal loss.The receiver features volume controls for each microphone and inputs that allow external player devices such as, mp3 players, VCRs and DVD players to be connected through the system. An audio output jack will send audio to external recording devices and video cameras for documenting classes.All of the components are available separately and up to 3 additional infrared sensors can be attached for use in larger or odd-shaped rooms. The Azden IR-CS Infrared Classroom System combines the benefits of infrared wireless technology with an intuitive public-address system that's custom made for classrooms. - IRR-30P Receiver
- The IRR-30P receives signal from both microphones simultaneously. The receiver also features two auxiliary audio inputs for connecting external line devices. An audio output sends audio to external records, video cameras, etc. Volume level controls are provided for individual volume control of each microphone and line device.
- IRN-10 Chest-worn Microphone
- The IRN-10 is both a microphone and bodypack transmitter that sends audio to the IRR-30P receiver. It features excellent noise rejection and includes a lanyard. Two AA alkaline or rechargeable batteries keep the microphone powered for a full school day without recharging.
- IRH-15c Handheld Microphone
- The IRH-15c is a wireless handheld microphone that is ideal for student participation, speeches, etc. The microphone operates on two AA alkaline or rechargeable batteries and may be used simultaneously with the IRN-10.
- ACS-6.5 Ceiling Mount Speakers
- Four ACS-6.5 speakers mount flush into classroom ceilings and provide excellent sound quality. The speakers are designed to provide optimum reproduction of the voice, mp3 and CD audio.
- IRD-60 Infrared Sensor
- The included IRD-60 infrared sensor is designed to be ceiling mounted and relay infrared signal between the included transmitters and receiver. Up to three additional IRD-60 sensors may be installed for optimum performance in large or oddly-shaped rooms.
- Dual Channel Operation
- Dual channel operation enables teachers to operate their microphones with separate systems, in different classrooms with the flick of a switch.
In the Box Azden IR-CS Infrared Wireless Microphone and Ceiling Mounted Speaker System for Classrooms (Ceiling Mount Speakers) IRR-30P Receiver IRN-10 Chest-worn Microphone IRH-15c Handheld Microphone IRD-60 Sensor 4 x ACS-6.5 In-Ceiling Speaker BC-30 Power Supply for Receiver 2 x BC-29 Transmitter Chargers 4 x AA NiMH Rechargeable Batteries Ceiling Brackets for IRD-60 Infrared Sensor 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden IR-CS Infrared Wireless Microphone and Ceiling Mounted Speaker System for Classrooms in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden IR-CS Specs | | | Type of System | Dual Channel Infrared Wireless Microphone and Speaker System | | RF Carrier Frequency Range | Sub-carrier Frequencies: 2.06MHz & 2.56MHz | | Approx. Working Range | Not Specified By Manufacturer | | Overall Frequency Response | 50Hz to 8kHz +/- 3dB | | Signal-to-Noise Ratio | >75dB A-weighted | | # Of Channels | Two | | # Of Simultaneous Systems | Not Specified By Manufacturer | | | | Type of Receiver | IRR-30P - Two Channel Receiver with Power Amplifier | | Type of Outputs | Line Output
Audio Output: 5W x 4 @ 4 ohms | | Headphone Monitoring | No | | Power Requirements | 15VDC @ 2.7A (use model BC-30) | | Battery Type/Approx. Life | BC-30 Power Supply (Included) | | Display | No | | Mounting Options | Not Specified By Manufacturer | | Antenna Type | No | | Dimensions (WxHxD) | 8.03 x 9.19 x 1.73" (204 x 233 x 44mm) | | Weight | 2.86lb (1.3kg) | | | | Type of Transmitter | IRN-10 Chest-Worn Infrared Bodypack | | Type of Input Connector | 1/8" (3.5mm) Mini | | Type of Microphone | Accommodates Microphones with 1/8" (3.5mm) Mini Connection | | Polar Pattern | Cardioid | | Interchangeable Mic Heads | No | | Battery Type/Approx. Life | Battery type: 2x "AA" Alkaline or NiMH (1.5V x 2)
Battery life: > 8 hours w/alkaline batteries | | Mute Switch | Not Specified By Manufacturer | | Level Control | +6dB to approx. -10dB | | Antenna Type | No | | Display | No | | Dimensions (WxHxD) | 2.75 x 3.15 x 1.06" (70 x 80 x 27mm) | | Weight | 4.3oz (120g) (with batteries) | | | | Type of Transmitter | IRH-15c Handheld Two-Channel Infrared Transmitter | | Type of Input Connector | Not Applicable | | Type of Microphone | Electret Condenser | | Polar Pattern | Cardioid | | SPL | Not Specified By Manufacturer | | Battery Type/Approx. Life | Battery type: 2x "AA" Alkaline or NiMH (1.5V x 2)
Battery life: > 8 hours w/alkaline batteries | | Mute Switch | Not Specified By Manufacturer | | Level Control | No | | Antenna Type | No | | Display | No | | Dimensions (LxDiameter) | 9.65 x 1.38" (245 x 35mm) | | Weight | 9.1oz (258g) (with batteries) | | | | Box Dimensions (LxWxH) | 28.0 x 16.0 x 14.0" |
