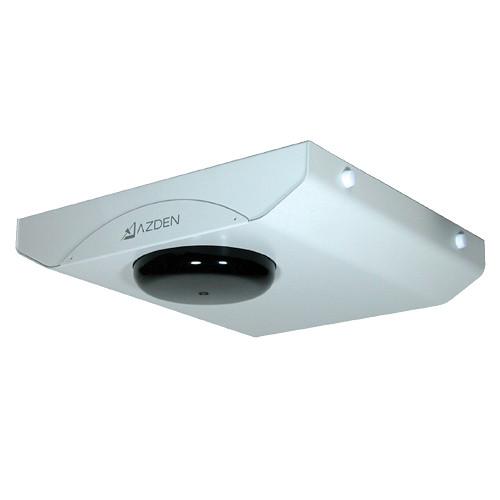

Product description The Azden IR-CSX Complete IR Classroom System with Remote Transmitter Volume Control is an IR classroom audio system designed to aid in increasing student awareness while minimizing teacher fatigue. It includes a self-contained infrared receiver/amplifier with a built-in sensor which provides power for the 4 included ceiling-mount speakers for audio coverage throughout the classroom. 3 IR transmitters are provided, one for the teacher, another for a student and one for transmitting MP3, CD/DVD or any other audio source. The system also includes a Paging Override feature and the IR-CSX can integrate with the school's existing audio system so important announcements won't be missed. The 4 included ACS-6.5 Speakers feature a 6.5" ceiling mount midrange/woofer designed to provide articulate voice as well as other audio playback, while its coaxially-mounted 1" polycarbonate tweeter provides clear, extended high-end frequency response. A wireless remote is included to adjust any or all of the amplifiers' 3-channels and can power on and off the system. Audio outputs are provided for external recording devices and for additional amplification possibilities. An additional (optional) sensor input is available for larger room coverage. Speaker wire not included and must be purchased separately. All components are available individually for different applications and system configurations. - 3-Transmitters: Desktop, Neck-worn and Handheld
- Integrates with existing or future school audio system
- 3 separately controllable audio channels
- Complete all-in-one system

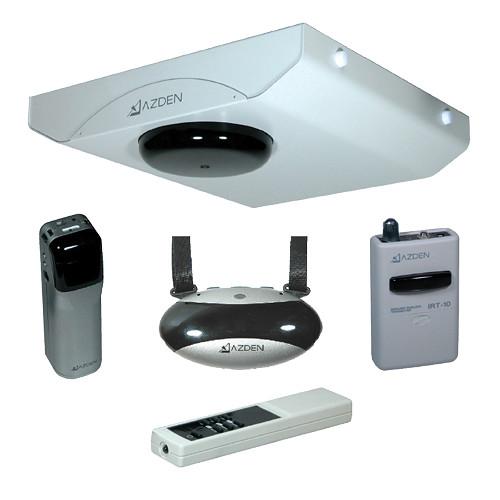

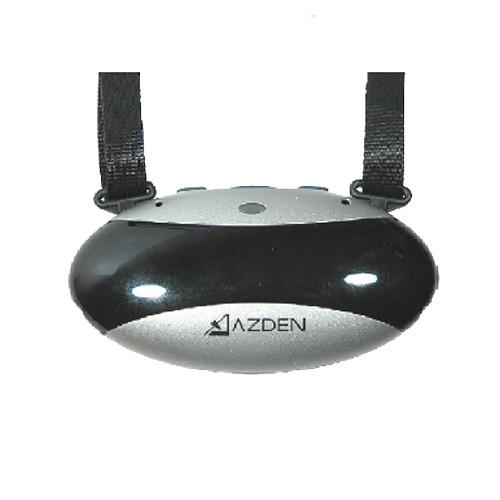

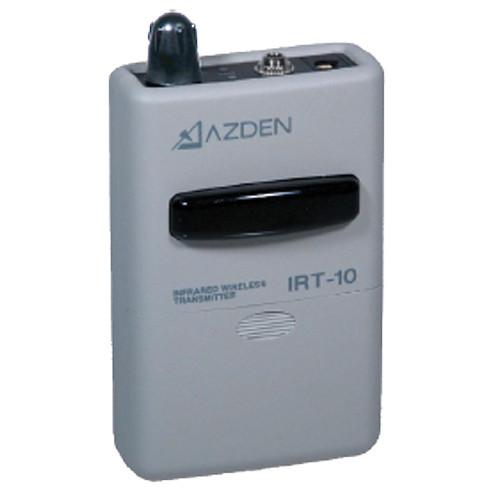

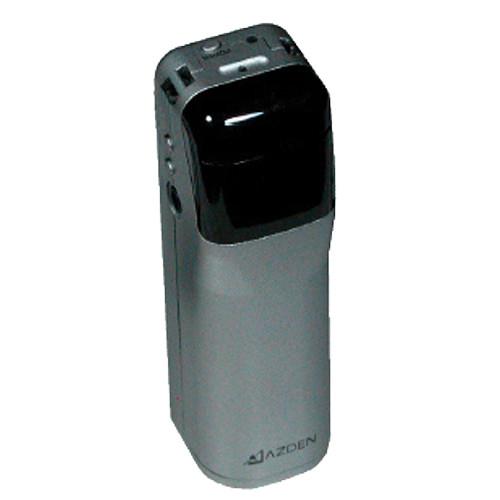

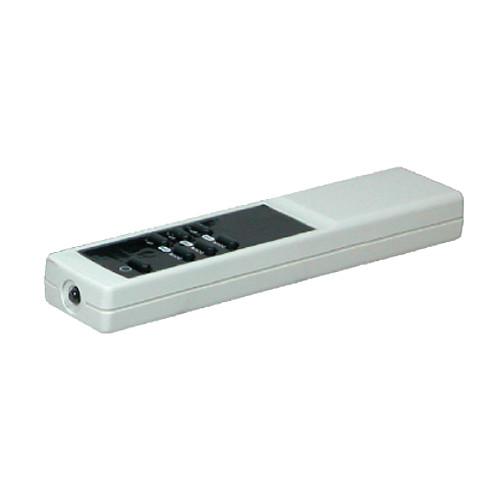

UPC: 095528112731 In the Box Azden IR-CSX IR Classroom System with Remote Transmitter Volume Control IRR-50P 3-Channel Ceiling Mounted IR Receiver IRN-20 Pendant Transmitter IRN-30 Handheld Transmitter Desktop Audio Transmitter for MP3 Remote Control 4 x ACS-6.5 Drop Ceiling Coaxial 8 Ohm Speaker 2 x BC-31 Battery Chargers 4 x IHR-3U AA Rechargeable Batteries Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden IR-CSX IR Classroom System with Remote Transmitter Volume Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden IR-CSX Specs | | | Sub-Carrier Frequencies | 2.06 MHz / 2.56 MHz 2.80 MHz simultaneously | | Type | Super heterodyne crystal controlled | | Modulation | FM | | Frequency Response | 35 Hz - 7.0 kHz +/- 10 dB | | Distortion | less than 1% | | Speaker Output | 5W x 4 @ 4 ohms | | Input Terminal | Paging (100 V / 70 V / 20 V-8 ohms / off) x 1, external sensor x 1 | | Output Terminal | Pre out x 1 / rec out x 1 | | Wireless Remote Control Set | Power (on/off), audio volume (up/down) | | Power Requirement | DC 15 V, 28 mA (stand-by) / 560 mA (1/8 w output) | | Dimensions | 9.84 x 9.84 x 1.85" (250 x 250 x 47 mm) | | Weight | 4.14 lb (2.2 kg) | | | | Transmitter | IRN-20 (neck-worn) | | Sub-Carrier Frequencies | 2.06 MHz | | Modulation | FM | | Microphone Element | Unidirectional ECM x2 | | Frequency Deviation Range | <± 40 kHz frequency (maximum) | | Frequency Response | 100 - 8 kHz ± 3 dB | | Auxiliary Input | 3.5 mm mini jack (Aux/Line) | | Microphone Input | 3.5 mm mini jack | | Microphone Level Control | From +6 dB to -10 dB (gain adjustment) | | Input Attenuation | N/A | | Battery Type | 1 AA alkaline / 1 AA rechargeable NiMH | | Battery Life | >8 hours with alkaline battery | | Dimensions | 3.74 x 0.98 x 1.97" (95 x 25 x 50 mm) | | Weight | 0.26 lb (74 g) with battery | | Transmitter | IRN-30 (handheld) | | Sub-Carrier Frequencies | 2.56 MHz | | Modulation | FM | | Microphone Element | Unidirectional ECM x 1 | | Frequency Deviation Range | <± 40 kHz frequency (maximum) | | Frequency Response | 100 - 8 kHz ± 3 dB | | Auxiliary Input | 3.5 mm mini jack (Aux/Line) | | Microphone Input | 3.5 mm mini jack | | Microphone Level Control | From +6 dB to -10 dB (gain adjustment) | | Input Attenuation | N/A | | Battery Type | "AA" alkaline / 1 "AA" rechargeable NiMH | | Battery Life | >8 hours with alkaline battery | | Dimensions | 1.06 x 1.06 x 3.54" (27 x 27 x 90 mm) | | Weight | 0.26 lb (74 g) with battery | | Transmitter | ITR-10 (desk-top) | | Sub-Carrier Frequencies | 2.80 MHz | | Modulation | FM | | Frequency Deviation Range | <± 40 kHz (maximum) | | Frequency Response | 50 - 10 kHz ± 3 dB | | Auxiliary Input | 3.5 mm mini jack (aux/line input) | | Microphone Input | N/A | | Input Gain Adjustment | x1 | | Battery Type | 2 "AA" alkaline / 2 "AA" recharegable NiMH | | Battery Life | >8 hours with alkaline battery | | Dimensions | 3.94 x 2.52 x 1.06" (100 x 64 x 27 mm) | | Weight | 0.35 lb (160g) with battery | | | | Woofer | Polypropylene midrange/woofer 6.5" (16.51 cm) | | Tweeter | Polycarbonate 1" (2.54 cm) | | Chassis | Flush-mounted ceiling | | | | System Weight | Total System Weight: 30.00 lbs (13.60 kg) | | | | Box Dimensions (LxWxH) | 28.0 x 16.0 x 14.0" |
