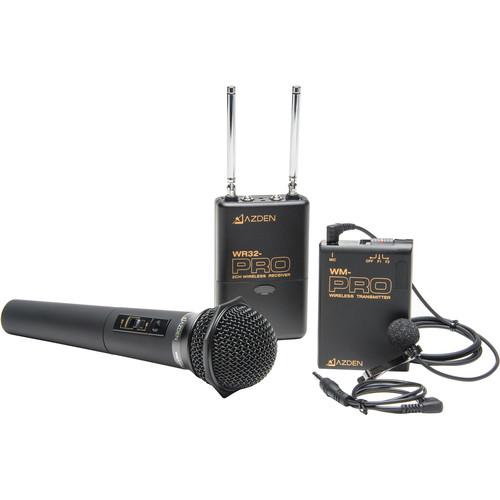

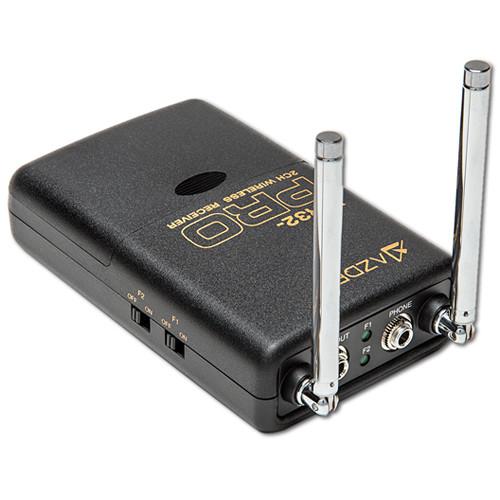

Product description The Azden Pro Series Dual-Channel VHF Wireless Kit includes the WR32-Pro Dual-Channel Receiver as well as one WM-Pro 2-Channel Wireless VHF Bodypack Transmitter with an EX-503 Omnidirectional Lavalier Microphone and a tie clip, and one WMT-Pro Handheld Wireless Microphone Transmitter. The lavalier microphone and bodypack can be worn by one subject, and the handheld microphone transmitter can be used by a different subject to transmit on the 169.445 and 170.245 MHz channels simultaneously. The dual-channel receiver can then be shoe mounted on top of a camera or camcorder to receive the two channels of audio. - WR32-Pro VHF Dual-Channel Receiver for DSLR (169.445 and 170.245 MHz) The Azden WR32-Pro VHF Dual-Channel Receiver (169.445 and 170.245 MHz) is designed to be mounted on top of a camcorder or video capable camera for reception of two independent channels of wireless audio from two WM-PRO bodypack transmitters and/or WM/T-PRO handheld microphone transmitters. Each channel has a separate on and off switch. The receiver features two high-gain telescopic antennas that can bend to improve the angle of reception.

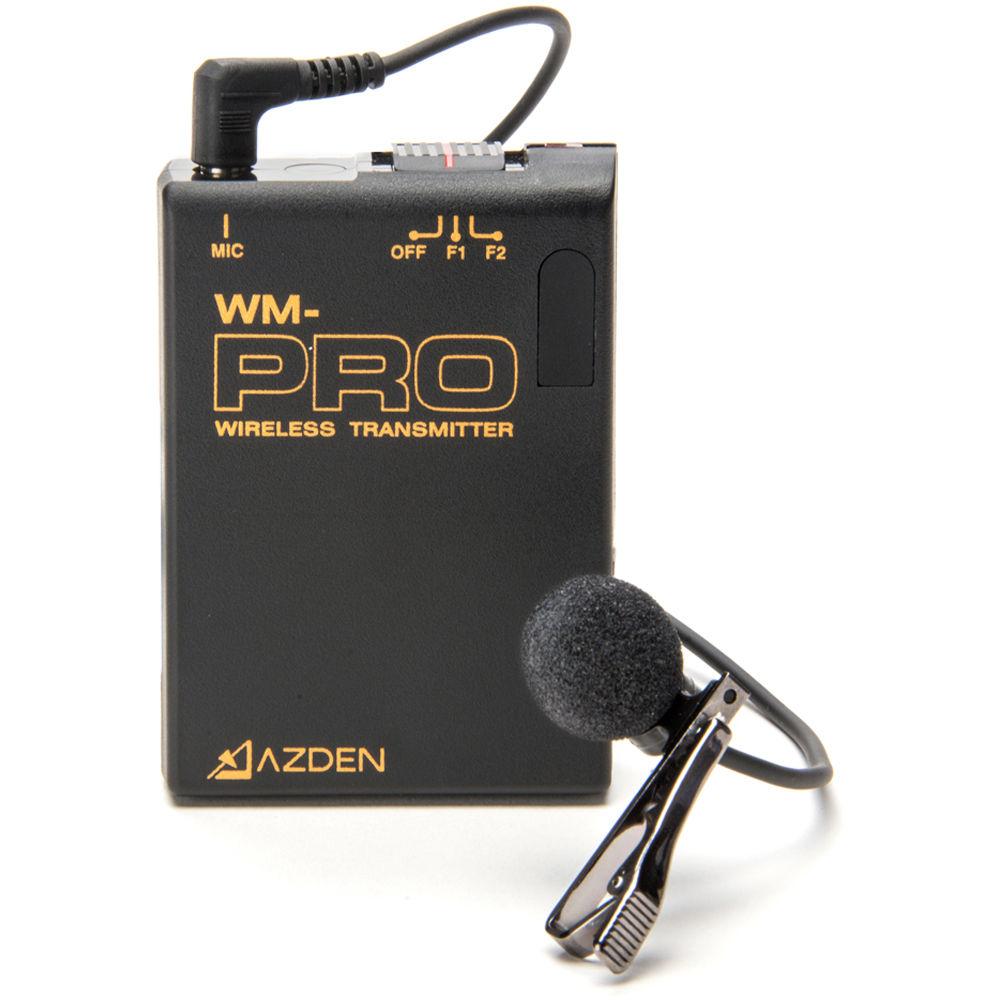

For outputs, the receiver features both a phone output for earphone monitoring as well as an output for connecting to the input of a camera with the included stereo mini cable. An optional MX-2 stereo to dual XLR cable is available for connecting to a professional camera. The unit also comes with a shoe mount and locking adhesive strips for attaching to a camera or camcorder. - WLT/PRO VHF Wireless Bodypack Transmitter The Azden WLT/PRO VHF Wireless Bodypack Transmitter consists of the WM-Pro bodypack transmitter and EX-503 omnidirectional lavalier microphone. The transmitter features 2 switchable VHF channels (169.445 MHz and 170.245 MHz) and is compatible with all Azden "PRO" series VHF receivers. The WLT/PRO is powered by a single 9V battery and includes a belt clip.
- Compact and lightweight bodypack transmitter
- Electret condenser, omnidirectional lavalier microphone
- 2 switchable frequencies 169.445 MHz & 170.245 MHz)

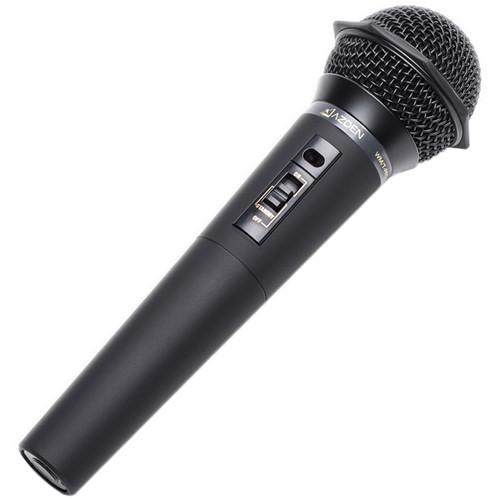

UPC: 095528000212 - WM/T-Pro Handheld Mic/Transmitter The WMT-PRO is the same self-contained, handheld microphone as used in the WHX-PRO, it can also be used with WLX-PRO, WDR-PRO, WR22-PRO receivers. Features a 3-position on, off and "standby" switch for quiet switchlng. Choose from 2 frequencies for cleanest signal. Note: For system compatibility, the component's frequency MUST match your existing system/component frequency.
- Uni-Directional Polar Pattern to Reduce the Chance of Feedback.
- 3-position on, off and "standby" switch.
- 2 switchable frequencies.
UPC: 095528000175 In the Box Bundle Items WR32-Pro VHF Dual-Channel Receiver for DSLR (169.445 and 170.245 MHz) trezsasxtybxfwwwyzsfztvazbeffw - 3.5mm Stereo Mini Output Cable
- Set of Locking Adhesive Strips
WLT/PRO VHF Wireless Bodypack Transmitter trezsasxtybxfwwwyzsfztvazbeffw - EX-503 Lavalier Microphone
WM/T-Pro Handheld Mic/Transmitter
Also Includes Guides & Manuals trezsasxtybxfwwwyzsfztvazbeffw Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden Pro Series Dual-Channel VHF Wireless Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Azden Pro Series Dual-Channel VHF Wireless Kit can be downloaded in PDF format at the link stated below.
Technical parameters - WR32-Pro VHF Dual-Channel Receiver for DSLR (169.445 and 170.245 MHz)
| Reception | F1.169.445 MHz
F2.170.245 MHz | | Reception System | Double superheterrodyne | | Reception Sensitivity | 2μV at S/N 40 dB | | Batteries & Power | 2x 1.5 V AA (not included) | | Power Consumption | 100 mA | | | | Output Voltage | 0.7 V | | Load | 30 Ω | | Modulation | 1 kHz | | Deviation | ±7 kHz | | | | Output Voltage | 25 mV | | Load | 10 kΩ | | Modulation | 1 kHz | | Deviation | ± 7 kHz | | | | Impedance | 300 Ω | | Dimensions (H x W x D) | 2.48 x 3.86 x 1.12" (63.0 x 98.0 x 28.5 mm) | | Weight | 0.377 lb (171 g) including battery | | | | Box Dimensions (LxWxH) | 8.0 x 4.1 x 1.3" | - WLT/PRO VHF Wireless Bodypack Transmitter
| Modulation | FM | | Sensitivity | 94 dB SPL @ +/- 2.5 kHz Deviation | | Battery | 9 V Battery x1 | | Power Consumption | 30 mA | | Dimensions (HxWxD) | 3.3 x 2.4 x 0.85" (86 x 60 x 21.5 mm) | | Weight | 3.4 oz (98 g) | | | | Box Dimensions (LxWxH) | 11.0 x 3.0 x 3.0" | - WM/T-Pro Handheld Mic/Transmitter
| Type of Transmitter | 2 Channel Handheld Wireless VHF Microphone | | # Of Channels | 2, Switchable (169.445 MHz & 170.245 MHz) | | Type of Input Connector | None, Microphone is Permanently Attached to Transmitter | | Type of Microphone | Azden's Own High Quality Dynamic Microphone Element | | Polar Pattern | Unidirectional (Cardioid) | | Interchangeable Mic Heads | No | | Battery Type/Approx. Life | 1 "AA" Battery / 8-10 Hours When Using Alkaline Batteries | | Mute Switch | Yes, "Stand By" Switch | | Level Control | No | | Antenna Type | Internal | | Display | None | | Dimensions | 4.7 x 1.3" (120 x 33mm) | | Weight | 3.3 oz. (92 g) without Battery | | | | Box Dimensions (LxWxH) | 10.0 x 5.0 x 1.0" |
