User Manual for Azden PRO-XD 2.4 GHz Digital Wireless Lavalier System Click to enlarge the picture
Contents of the user manual for the Azden PRO-XD 2.4 GHz Digital Wireless
- Product category: Wireless Systems Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Wireless Systems
 |
User manual for the Azden PRO-XD 2.4 GHz Digital Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|
Product description - PRO-XD Digital Wireless Microphone System

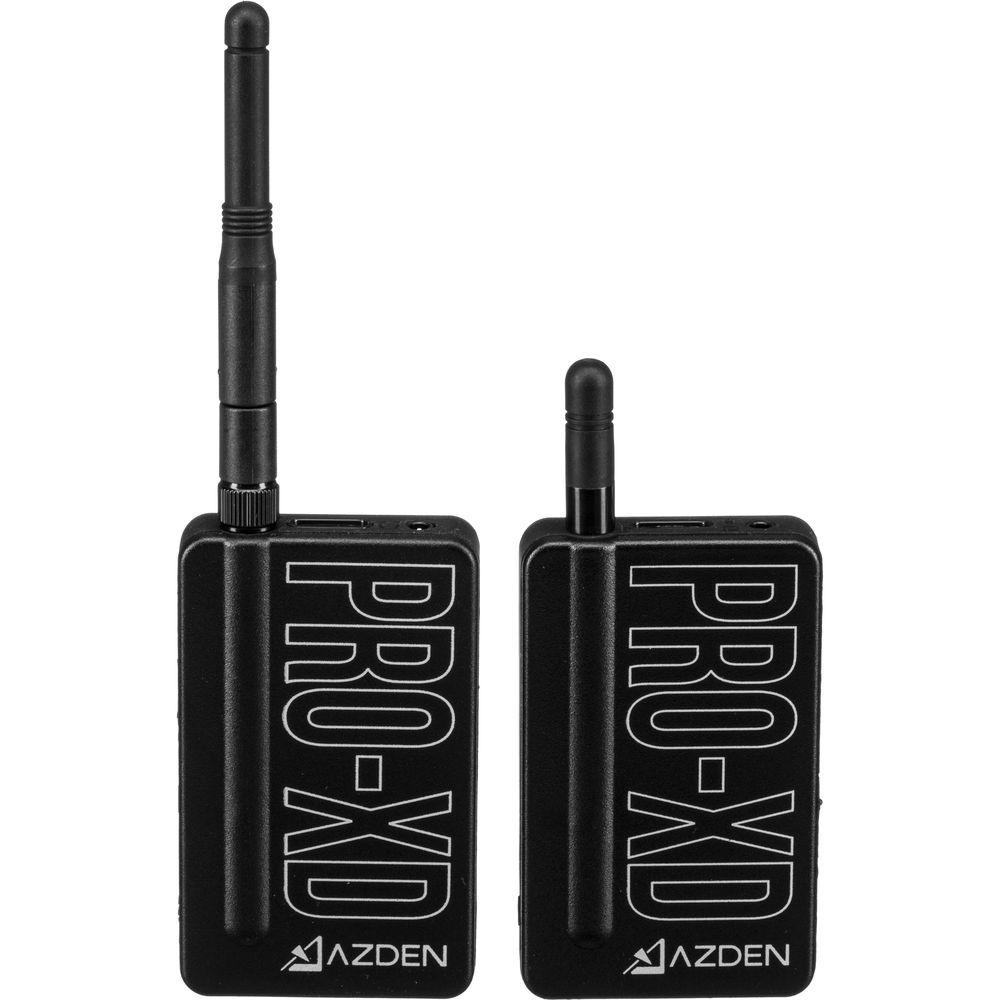

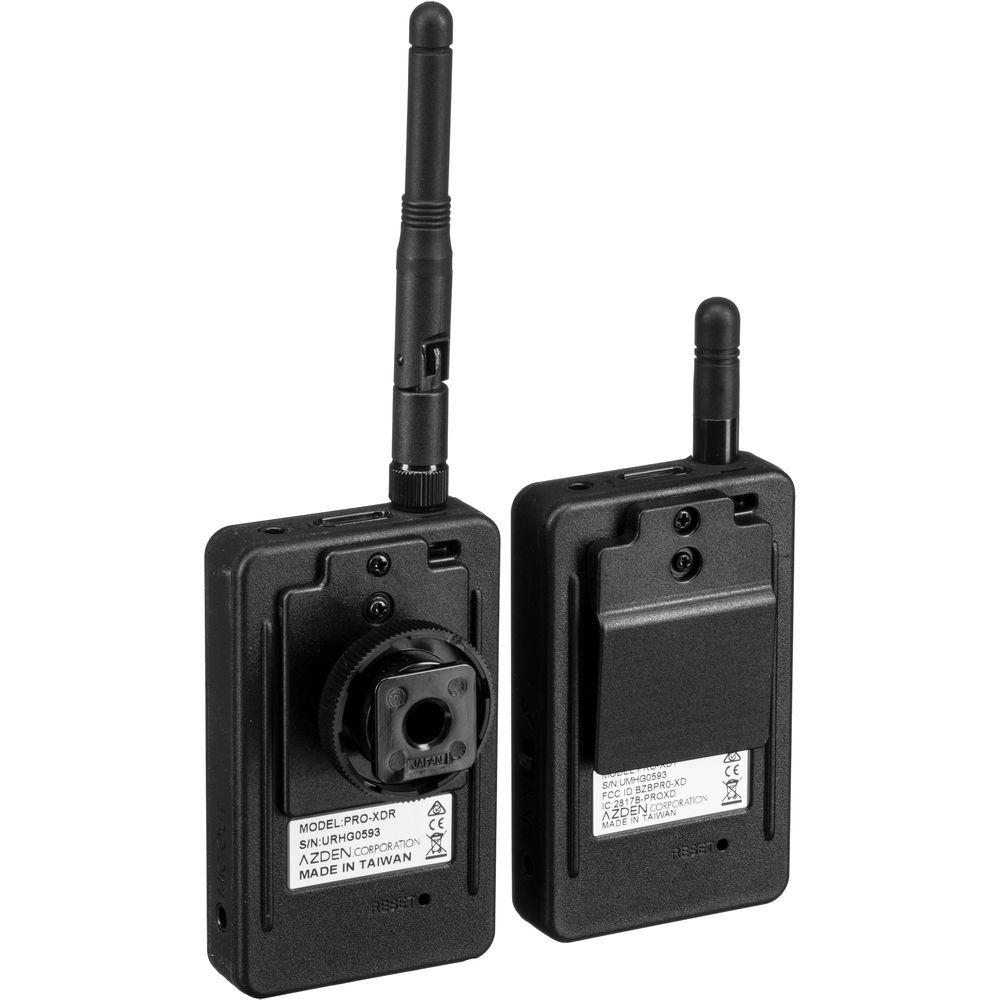

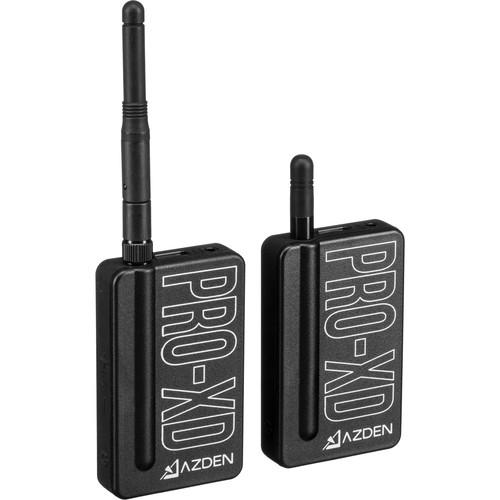

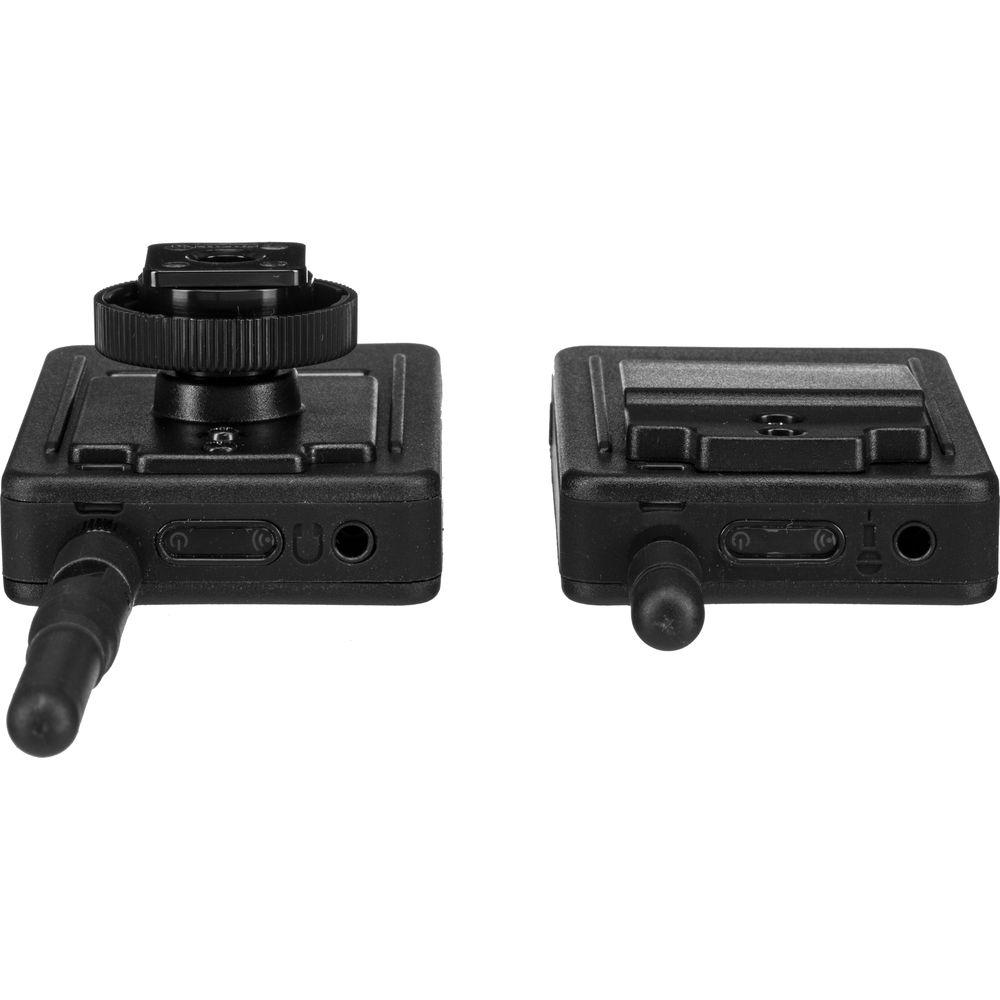

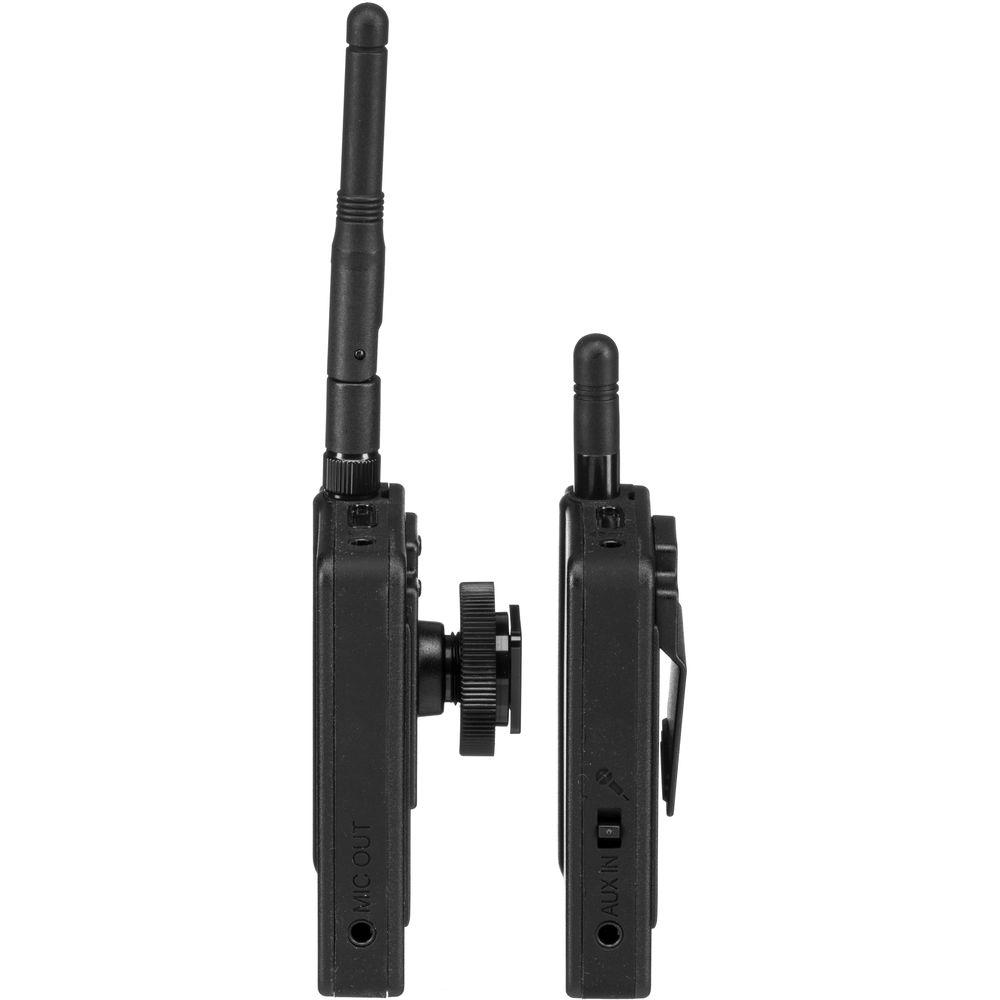

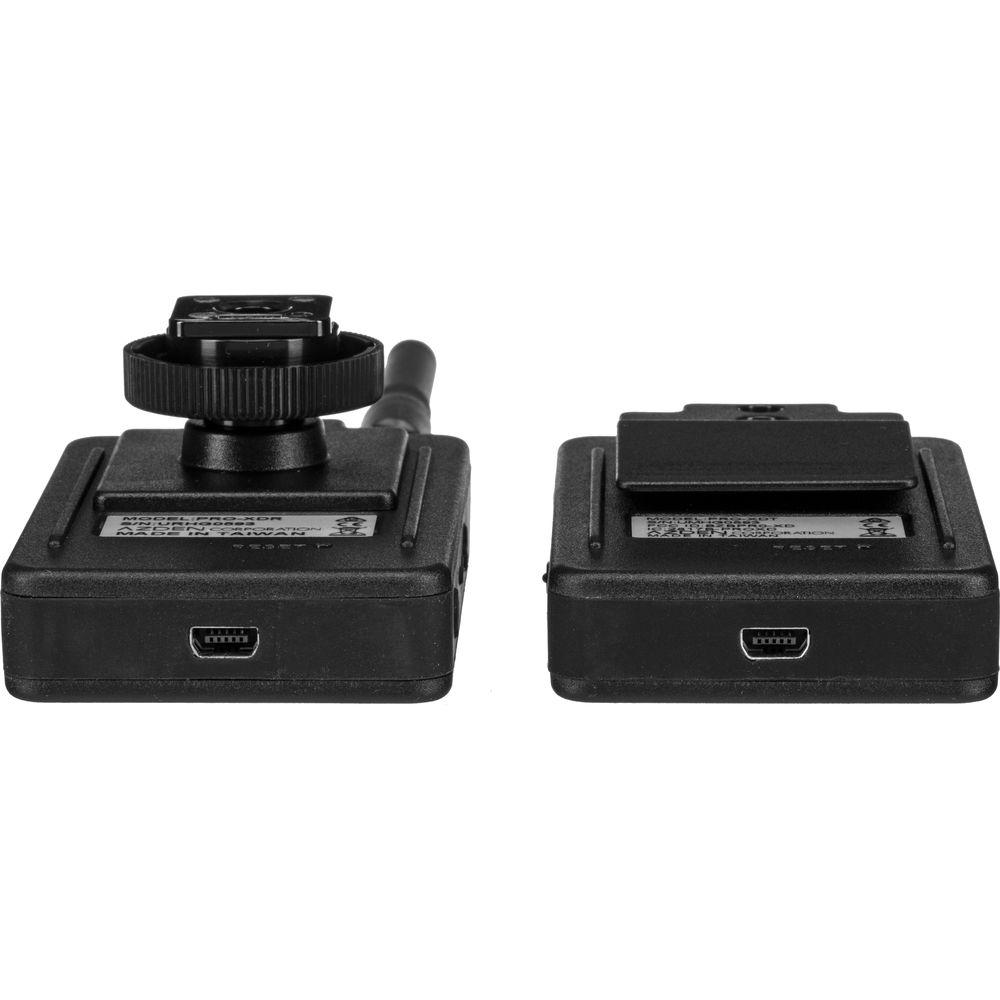

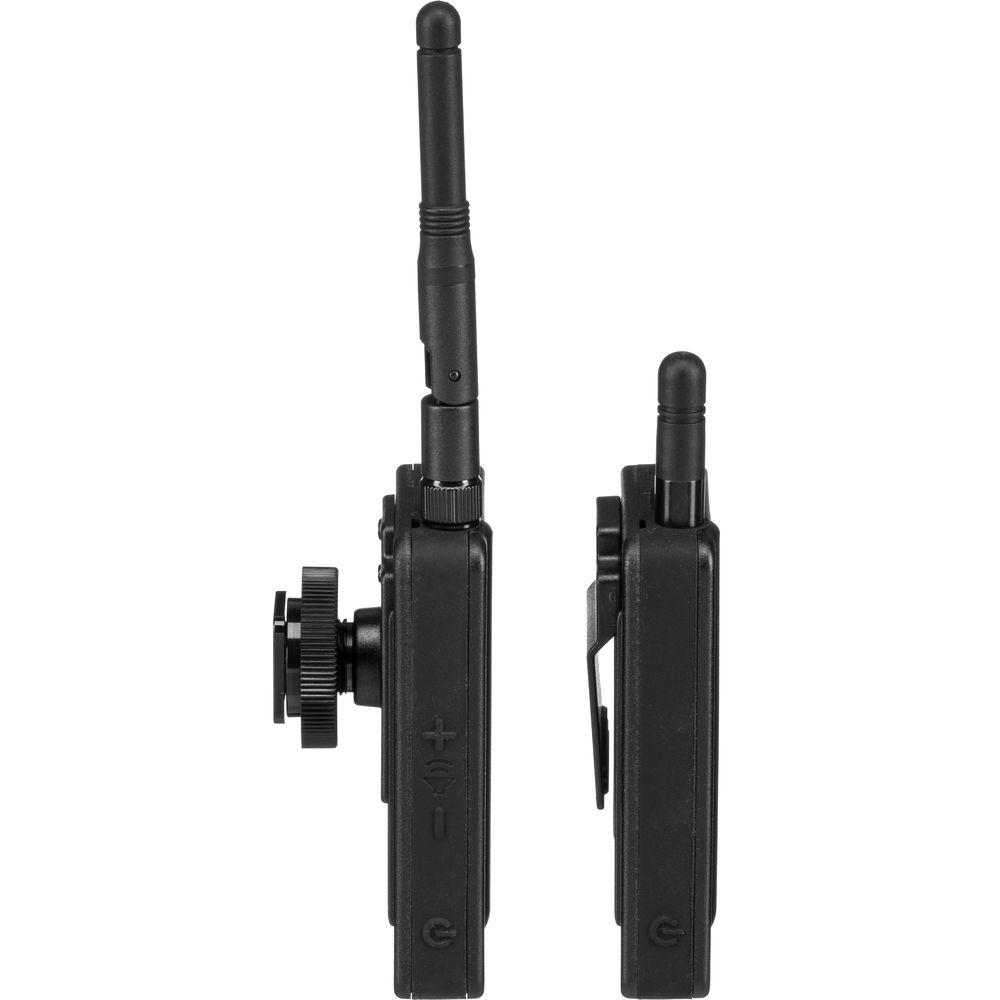

The PRO-XD from Azden is a 2.4 GHz digital wireless lavalier system that has over a 100' range with automatic frequency scan and sync capabilities. It can be used to capture audio in several environments for applications such as camcorders, DSLR, mobile devices, recorders, and more. The PRO-XD system features a PRO-XDT bodypack transmitter, a PRO-XDR camera-mount receiver, and an EX-503XD lavalier microphone. The receiver is built with mic and headphone output jacks. The bodypack transmitter includes a line level jack and a mixed input jack to allow for several source options. The PRO-XD's transmitter and receiver are powered by internal lithium-ion batteries, and each can operate for over 10 hours when fully charged. In addition, up to four systems can be used simultaneously with no interference. Finally, set up is a breeze with automatic syncing between receiver and transmitter. The EX-503XD lavalier microphone features an omnidirectional polar pattern with a frequency response of 30 Hz to 20 kHz. The PRO-XD system also includes an 1/8" mini-output cable, a USB cable, a lapel clip, a shoe mount, and a battery charger. - Operates in 2.4 GHz wireless range, which is completely free of TV and radio interference
- 48 kHz/16-bit digital audio quality
- Rechargeable internal batteries will run for approximately 10 hours
- Wide frequency response and low internal noise
UPC: 095528622520 In the Box Azden PRO-XD 2.4 GHz Digital Wireless Lavalier System PRO-XDR Receiver PRO-XDT Transmitter EX-503XD Lavalier Microphone and Windscreen 1/8" Mini-Jack Stereo Output Cable TRRS Audio Adapter Cable for Mobile Devices USB Charging Unit (Cable and AC Adapter) Shoe Mount Lapel Clip Belt Clip Limited 2-Year Warranty User Manual PDF 541.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden PRO-XD 2.4 GHz Digital Wireless Lavalier System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden PRO-XD Specs | | | Operating Frequency | 2.4 GHz ISM band | | Dynamic Range | 90 dB | | Signal to Noise | 80 dB | | Operating Range | 115' (35 m) typical; up to 394' (120 m) in ideal conditions | | Frequency Response | 20 Hz - 20 kHz, ± 1 dB | | Digital Sampling | 16-bit/48 kHz | | System Latency | 14 ms | | Battery Life | 300 cycles | | Battery Type | Lithium-ion | | Power Supply | USB 5 V | | | | RF Output Power | 10 mW | | Maximum Output Level | -14 dBV | | Mic Output | 1/8" (3.5 mm) dual-mono/stereo | | Headphone Output | 1/8" (3.5 mm) stereo | | Output Impedance | Mic: 600 ohms
Headphone: 16 ohms | | Battery Life | 16 hours | | Battery Charge Time | 3 hours | | Dimensions (W x H x D) | 1.9 x 3.1 x 0.6" (48 x 79 x 14 mm) | | Weight | 2.4 oz (68 g) | | | | RF Output Power | 10 mW | | Mic Input | 3.5 mm mono TRRS | | Aux Input | 1/8" (3.5 mm) stereo, line level | | Input Impedance | Mic: 2.2 kOhms
Aux: 10 kOhms | | Maximum Input | 300 mV RMS | | Battery Life | 11 hours | | Dimensions (W x H x D) | 1.9 x 3.1 x 0.6" (48 x 79 x 14 mm) | | Weight | 2.2 oz (62 g) | | | | Microphone Element | Electret condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 30 Hz to 20 kHz | | Sensitivity | -46 dB at 1 kHz (0 dB=1 V/Pa) | | Impedance | 2.2 kOhms (at 1 kHz) | | Power Requirement | Plug-in power DC 1-10 V | | Connector Type | 1/8: (3.5 mm) TRRS | | Cord Length | 41" (105 cm) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 9.6 x 4.3 x 1.9" |
