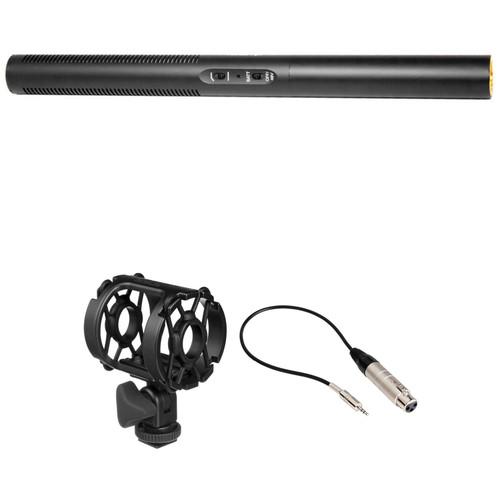

User Manual for Azden SGM-250 Shotgun Microphone & Shockmount Kit with Low to High Impedance Matching Transformer Click to enlarge the picture
Contents of the user manual for the Azden SGM-250 Shotgun Microphone & Shockmount
- Product category: Shotgun Microphones Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Shotgun Microphones
|
User manual for the Azden SGM-250 Shotgun Microphone & Shockmount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|
Product description The Azden SGM-250 Shotgun Microphone & Shockmount Kit with Low to High Impedance Matching Transformer from comes with everything you need to get started recording audio to your DSLR or camcorder with high-impedance 3.5mm mini input. The kit is ideal for ENG, film, video and more. The package ships with the Azden SGM-250 Shotgun Microphone, a universal shock mount and a 1.5' low to high impedance matching transformer. - Azden SGM-250 Shotgun Microphone The SGM-250 from Azden is a supercardioid, dual-power, broadcast-quality shotgun microphone that can be used in various environments to capture audio to camcorders, DSLRs, recorders, and more. The SGM-250 features a 20 Hz to 20 kHz frequency response and a two-step low cut filter. The mic is built with a rugged all-metal barrel and has tightly spaced vertical slots along the tip to provide side and rear rejection. In addition to the dual-power design, a status LED indicator is provided to monitor the AA battery (1.5V) or phantom (48V) power source. The mic includes a gold-plated XLR output, and comes with a shock-mount holder, a foam windshield, and a zippered carrying case. UPC: 095528122228
- Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
- Kopul LMT100 - Low to High Impedance Matching Transformer (1.5') The Kopul LMT100 cable simply enables a microphone or mic-level device to be input into a high-impedance 3.5mm mini input found on DSLRs, camcorders, and other devices. It is 1.5' long and has a 3-pin XLR female connector on one end and a standard 3.5mm mini plug on the other. It is designed for use with mono microphones.
- Matches low-impedance XLR output to high-impedance 1/8" (3.5mm) audio input
- Ideal for plugging professional XLR microphones into DSLRs, camcorders, and other devices with a 1/8˝ microphone input
- For use with battery-powered and dynamic microphones
- Designed for a mono source, but will split the signal to both channels of a stereo device
UPC: 847628562615 In the Box - SGM-250 Shotgun Microphone cqvfewereb
- Shock-Mount Holder
- Foam Windshield
- Zippered Carry Case
- Limited 10-Year Warranty
- Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
- Kopul - LMT100 - Low to High Impedance Matching Transformer (1.5')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden SGM-250 Shotgun Microphone & Shockmount Kit with Low to High Impedance Matching Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Azden SGM-250 Shotgun Microphone
| Polar Pattern | Supercardioid | | Frequency Response | 20 Hz to 20 kHz | | Low Cut Filters | Selectable @ 160 Hz, 3 dB/oct | | Sensitivity | -38 dB at 1 kHz | | Dynamic Range | Phantom：115 dB
Battery：110 dB | | Signal-to-Noise Ratio | 77 dB, 1 kHz @1 Pa | | Maximum Input Sound Level | 1 kHz @ 1% T.H.D.:
Phantom: 132 dB SPL
Battery: 127 dB SPL | | Output Impedance | 120 ohms | | Power Requirement | Phantom: 11-52 V
Battery: 1.5 V AA/UM3 | | Output Connector | Gold plated 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | Selectable HPF @ 160 Hz/3 dB octave | | Dimensions (L x W) | 9.8 x 0.8" (250 x 21 mm) | | Weight | 5.6 oz (160 g) | | | | Box Dimensions (LxWxH) | 12.7 x 4.6 x 2.4" | - Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
| | | Box Dimensions (LxWxH) | 4.65 x 3.2 x 2.65" | - Kopul LMT100 - Low to High Impedance Matching Transformer (1.5')
| Connectors | XLR to 1/8" (3.5 mm) | | | | Box Dimensions (LxWxH) | 4.1 x 0.6 x 0.1" |
