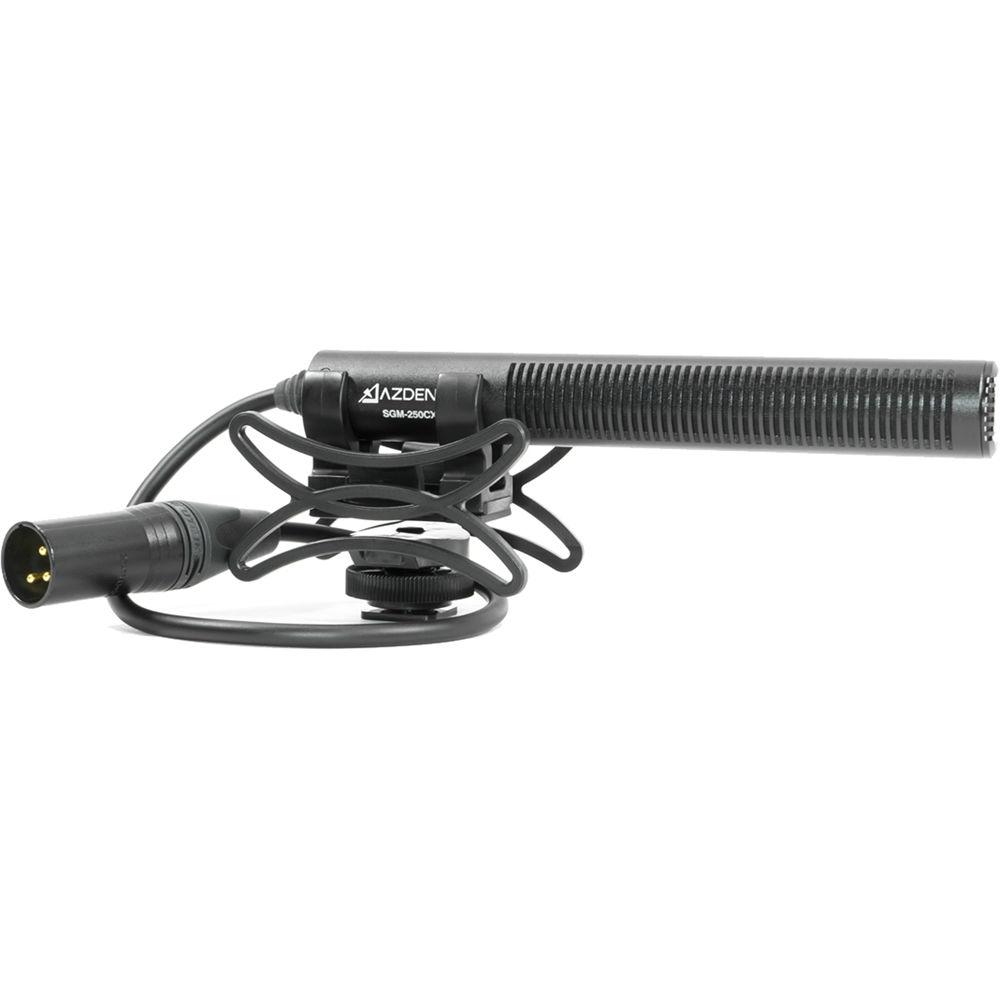

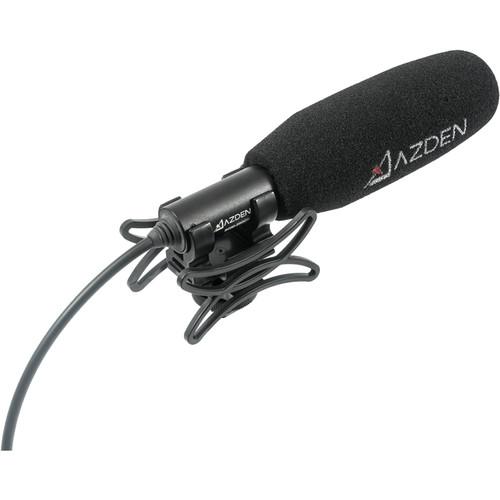

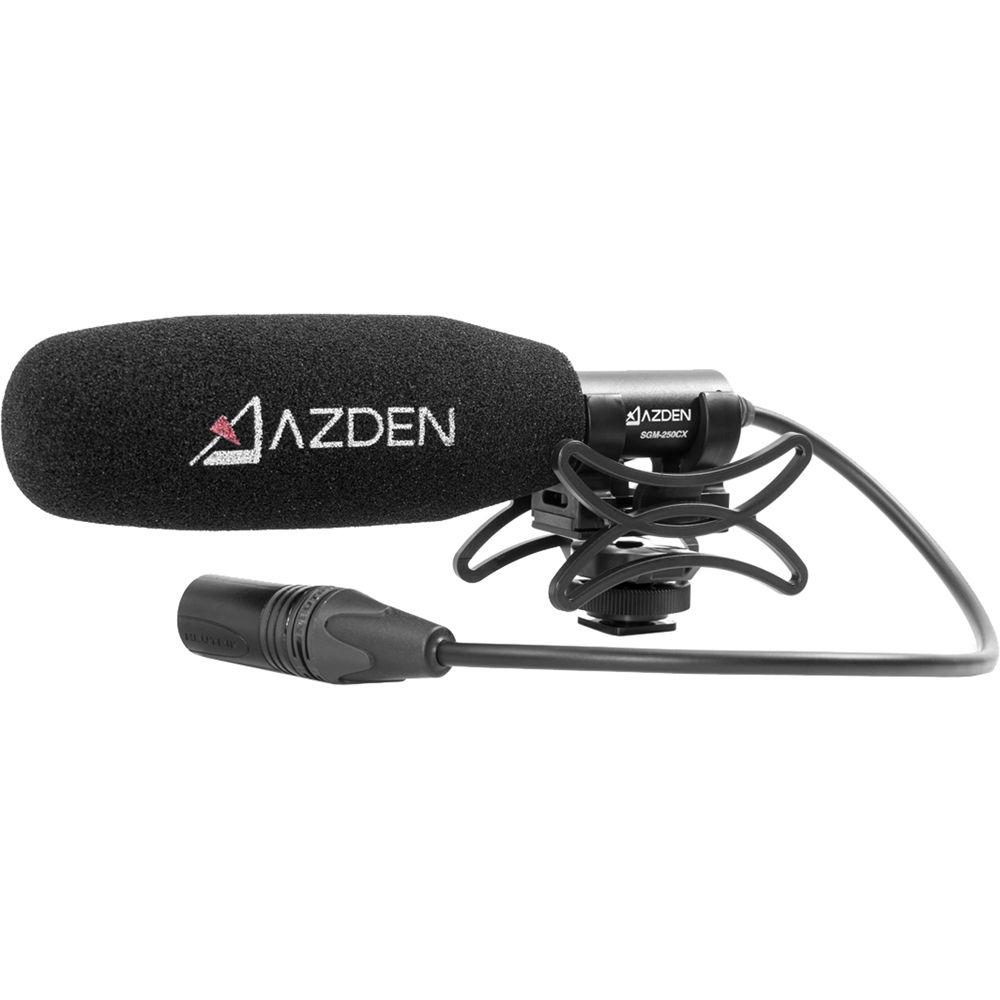

User Manual for Azden SGM-250CX Compact Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Azden SGM-250CX Compact Shotgun Microphone
- Product category: Shotgun Microphones Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Shotgun Microphones
 |
User manual for the Azden SGM-250CX Compact Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|
Product description - The SGM-250CX Professional Compact Cine Mic

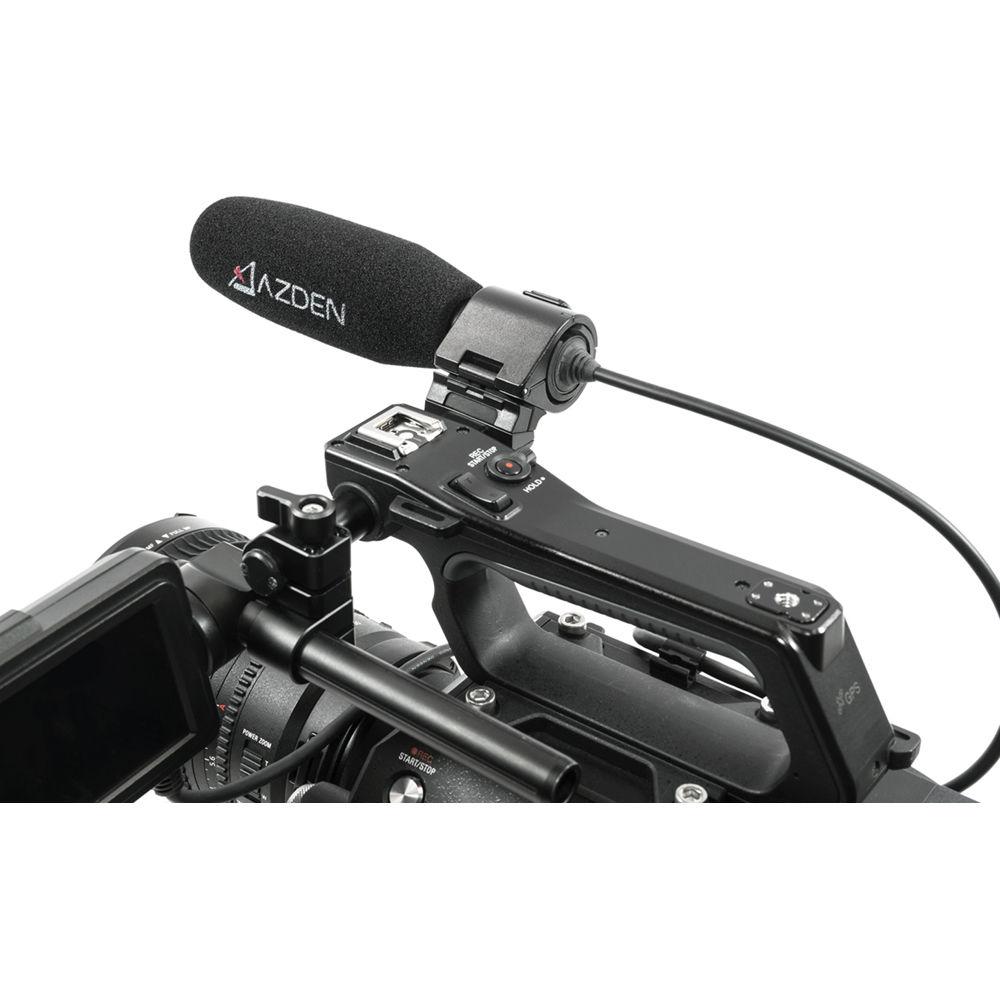

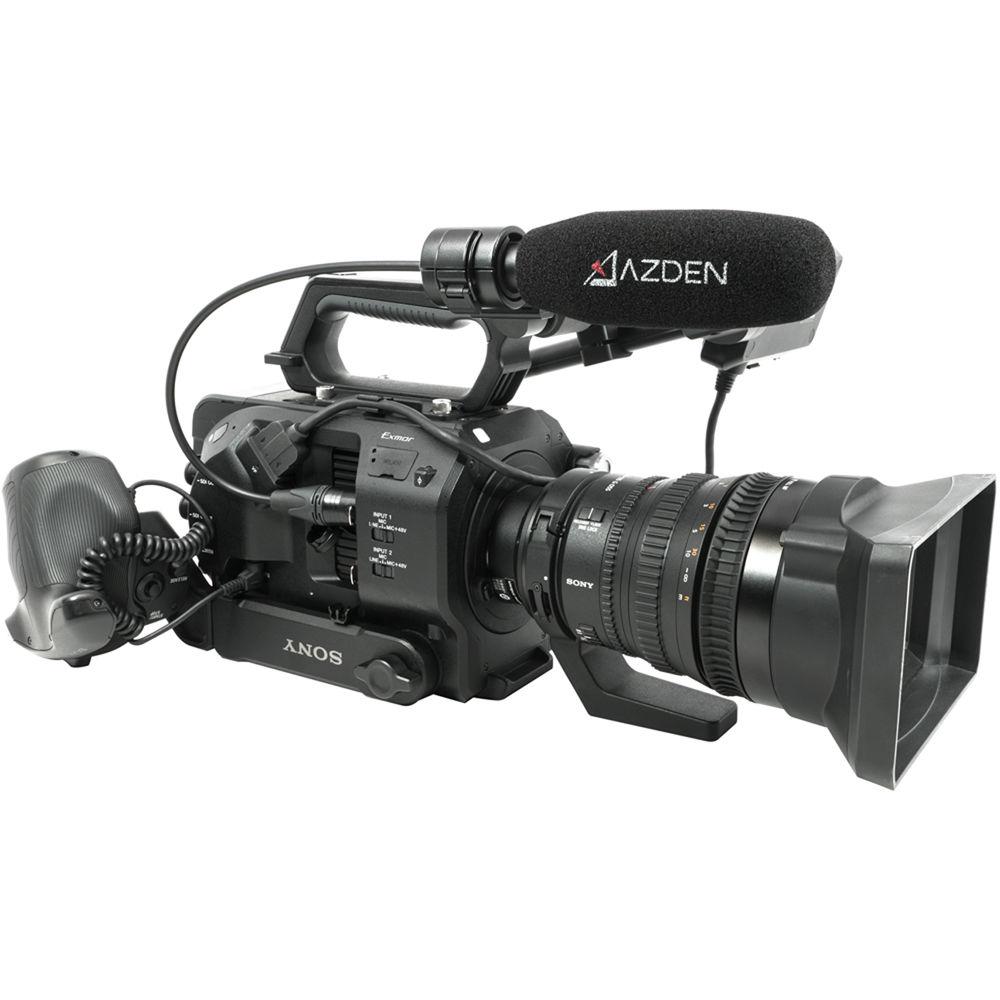

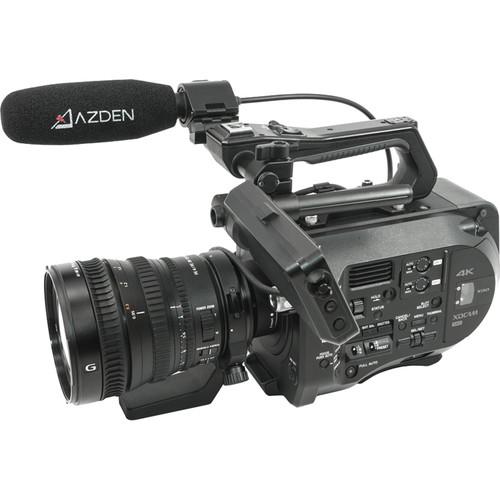

The Azden SGM-250CX is a short-length, compact shotgun microphone that easily mounts on cinema and mirrorless cameras, for film, documentary, interview or broadcast applications. Specifically tuned to preserve the natural qualities of a speaking subject, it features a supercardioid polar pattern and a custom-designed acoustic tube with high-precision phase-canceling slots that minimize the recording of extraneous noise while focusing on the sound in front of the camera. The SGM-250CX is equipped with an electret condenser capsule that is powered by standard 48V phantom power. The highly sensitive capsule delivers a flat frequency-response (20 Hz to 20 kHz) with low self-noise and 130 dB SPL, for accurate audio capture. Handcrafted in Japan, the SGM-250CX is housed in a brass/aluminum alloy case that improves durability and rejects ambient radio frequencies (RF). The mic comes with a 13"-long, hardwired XLR mic cable for convenient connection to a camera's microphone input. Included are a foam windscreen, and an SMH-X shockmount with two diameter expander sheets that provide a secure hold for your mic, whether you run-and-gun, mount it to a pistol grip or to a boompole. -
- Short length and compact design ideal for mounting on cinema and mirrorless cameras
- Specifically tuned to preserve the natural qualities of a speaking subject
- Supercardioid polar pattern with narrow pickup area, provides enhanced directionality for isolating dialog from ambient noise
- Electret condenser microphone element delivers high sensitivity and low self-noise, for clear recording of quiet sounds
- Custom-designed acoustic tube with high-precision phase-canceling slots
- Powered by standard 48 VDC phantom power
- Flat frequency-response for accurate audio capture – 20 Hz to 20 kHz
- Wide dynamic range allows for capturing sounds at up to 112 dB, without distortion
- Brass/aluminum alloy case for improved durability and rejection of ambient RF
- Gold-plated, 3-pin XLR output connector with 13" hardwired cable extension – connects to camera microphone inputs
- Includes SMH-X shockmount – compatible with standard-size camera shoe slots, as well as 1/4-20-threaded boompoles and tripods
- Includes two diameter expander sheets with adhesive backing – wrap around the base of the microphone to allow for a secure fit in ring-clamps with diameter larger than 0.82"
- Includes foam windscreen and carry pouch
- Handcrafted in Japan
UPC: 095528701010 In the Box Azden SGM-250CX Compact Shotgun Microphone SMH-X Universal Shockmount for Camera Shoes and Boompoles Foam Windscreen Carry Pouch 2 x Diameter Expander Rubber Sheets Limited 2-Year Warranty, Limited 10-Year Warranty with Online Registration Spec sheet PDF 1.2mbwtyczeyuzartsttwtrweudbcayueevbxrazdy Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden SGM-250CX Compact Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden SGM-250CX Specs | | | Sound Field | Mono | | Transducer | Electret Condenser | | Polar Pattern | Supercardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | AB: 76 dB | | Maximum SPL | 130 dB SPL | | Pad | None | | Impedance | 100 Ohms | | Sensitivity | -33 dB at 1 kHz | | Low-Cut Filter | None | | Dynamic Range | 112 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Cable Length | 12.99" / 330 mm | | Operating Voltage | 11 to 50 V | | Length | 6.02" / 153 mm | | Diameter | 0.83" / 21 mm | | Weight | 3.00 oz / 85 g | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 10.3 x 3.6 x 2.7" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
