User Manual for Azden SGM-250P Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Azden SGM-250P Shotgun Microphone
- Product category: Shotgun Microphones Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Shotgun Microphones
 |
User manual for the Azden SGM-250P Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|

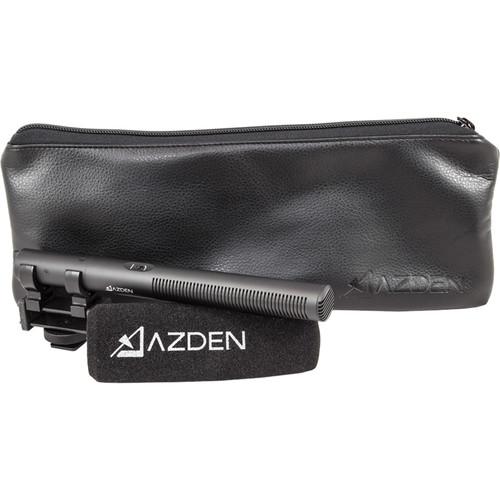

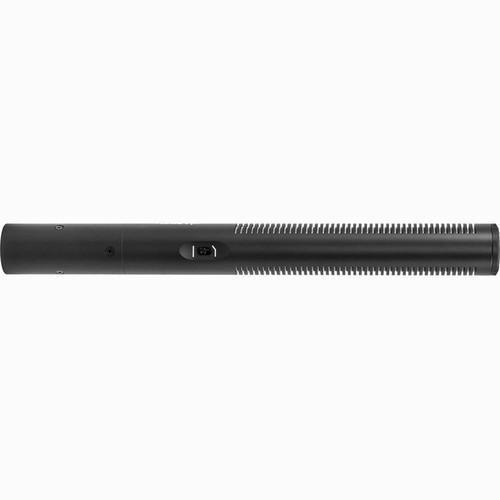

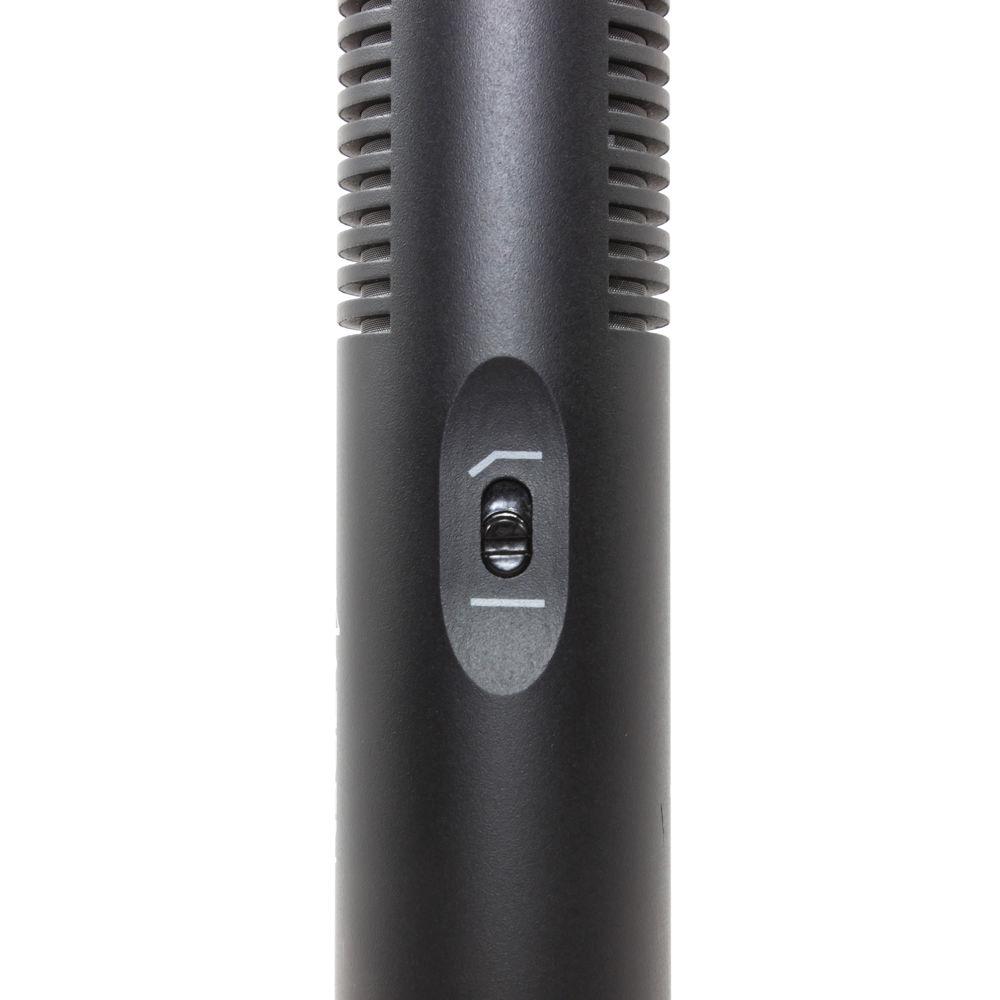

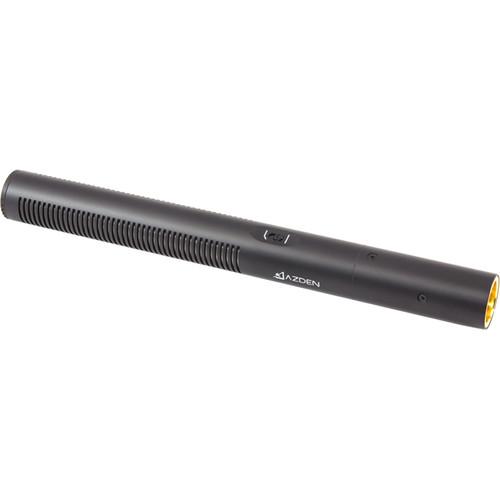

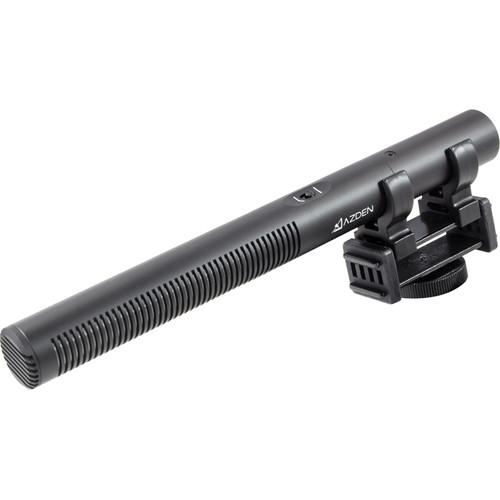

Product description The SGM-250P from Azden is a supercardioid, phantom powered, broadcast-quality shotgun microphone that can be used in various environments to capture audio to camcorders, DSLRs, recorders, and more. The SGM-250P features a 20 Hz to 20 kHz frequency response and a two-step low cut filter. The mic is built with a rugged all-metal barrel and has tightly spaced vertical slots along the tip to provide side and rear rejection. Measuring about 8 inches in length, the SGM-250P is easily kept out of frame in boom pole applications and is suitable for almost any filming situation. The mic includes a gold-plated XLR output, and comes with a shock-mount holder, a foam windshield, and a zippered carrying case. UPC: 095528622513 In the Box Azden SGM-250P Shotgun Microphone Shock-Mount Holder Foam Windshield Zippered Carry Case Limited 10-Year Warranty User Manual PDF 8.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden SGM-250P Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden SGM-250P Specs | Polar Pattern | Supercardioid | | Frequency Response | 20 Hz to 20 kHz | | Low Cut Filters | Selectable @ 160 Hz, 3 dB/oct | | Sensitivity | -38 dB at 1 kHz | | Dynamic Range | 115dB | | Signal-to-Noise Ratio | 77 dB, 1 kHz @1 Pa | | Maximum Input Sound Level | 132 dB (1 kHz at 1% T.H.D.) | | Output Impedance | 120 ohms | | Power Requirement | 11-50 V Phantom | | Output Connector | Gold plated 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | Selectable HPF @ 160 Hz/3 dB octave | | Dimensions (L x W) | 9.8 x 0.8" (250 x 21 mm) | | Weight | 5.6 oz (160 g) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 12.5 x 4.6 x 2.5" |
