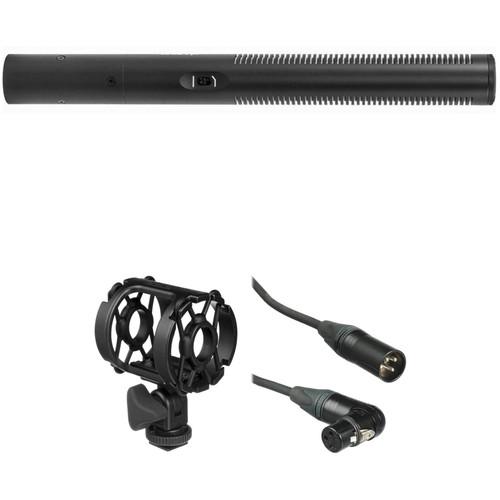

User Manual for Azden SGM-250P Shotgun Microphone with Universal Shock Mount and XLR Cable Kit Click to enlarge the picture
Contents of the user manual for the Azden SGM-250P Shotgun Microphone with Universal
- Product category: Shotgun Microphones Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Shotgun Microphones
|
User manual for the Azden SGM-250P Shotgun Microphone with Universal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|
Product description The SGM-250P Shotgun Microphone with Universal Shock Mount and XLR Cable Kit from features a supercardioid, phantom powered, broadcast-quality shotgun microphone that can be used in various environments to capture audio to camcorders, DSLRs, recorders, and more. The kit includes the Azden SGM-250P shotgun microphone, an Auray DUSM-1 Universal Shock Mount for camera and boompoles, and a premium Kopul 1.5' XLRM to angled XLRF microphone cable. Some other accessories include the following: A shotgun shock-mount holder, a foam windshield, and a zippered carrying case. - Azden SGM-250P Shotgun Microphone The SGM-250P from Azden is a supercardioid, phantom powered, broadcast-quality shotgun microphone that can be used in various environments to capture audio to camcorders, DSLRs, recorders, and more. The SGM-250P features a 20 Hz to 20 kHz frequency response and a two-step low cut filter. The mic is built with a rugged all-metal barrel and has tightly spaced vertical slots along the tip to provide side and rear rejection. Measuring about 8 inches in length, the SGM-250P is easily kept out of frame in boom pole applications and is suitable for almost any filming situation. The mic includes a gold-plated XLR output, and comes with a shock-mount holder, a foam windshield, and a zippered carrying case. UPC: 095528622513
- Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
- Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.
Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise.
- Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
- 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
- Cotton yarn reduces electrostatic and microphonic noise.
- All solder points shrink-wrapped for protection.
- Neutrik XX silver connectors offer high conductivity.
- Caged type contact and improved ground contact.
UPC: 847628558229 In the Box - SGM-250P Shotgun Microphone eswtefzxrebvrutxuswr
- Shock-Mount Holder
- Foam Windshield
- Zippered Carry Case
- Limited 10-Year Warranty
- Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
- Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden SGM-250P Shotgun Microphone with Universal Shock Mount and XLR Cable Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Azden SGM-250P Shotgun Microphone
| Polar Pattern | Supercardioid | | Frequency Response | 20 Hz to 20 kHz | | Low Cut Filters | Selectable @ 160 Hz, 3 dB/oct | | Sensitivity | -38 dB at 1 kHz | | Dynamic Range | 115dB | | Signal-to-Noise Ratio | 77 dB, 1 kHz @1 Pa | | Maximum Input Sound Level | 132 dB (1 kHz at 1% T.H.D.) | | Output Impedance | 120 ohms | | Power Requirement | 11-50 V Phantom | | Output Connector | Gold plated 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | Selectable HPF @ 160 Hz/3 dB octave | | Dimensions (L x W) | 9.8 x 0.8" (250 x 21 mm) | | Weight | 5.6 oz (160 g) | | | | Box Dimensions (LxWxH) | 12.5 x 4.6 x 2.5" | - Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles
| | | Box Dimensions (LxWxH) | 4.65 x 3.2 x 2.65" | - Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female Right-Angle | | Cable Length | 1.5' / 0.45 m | | Shielding | 95% Spiral | | Conductor Material | Oxygen-Free Copper (OFC) | | Number of Conductors | 2 | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | Jacket Type | Polyvinyl Chloride (PVC) | | Insulation Type | Polyethylene | | | | Box Dimensions (LxWxH) | 4.8 x 3.1 x 0.9" |
