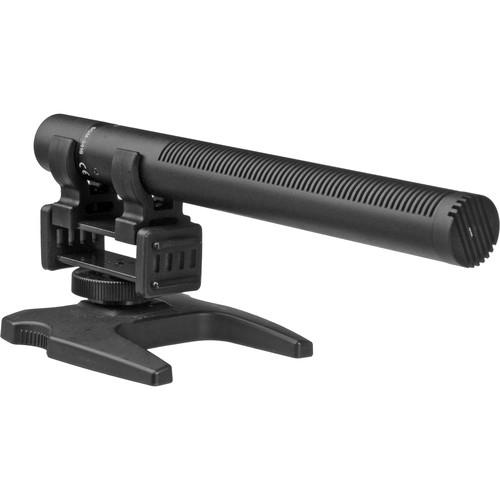

User Manual for Azden SGM-3416 Broadcast Spec Professional Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Azden SGM-3416 Broadcast Spec Professional Shotgun
- Product category: Shotgun Microphones Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Shotgun Microphones
|
User manual for the Azden SGM-3416 Broadcast Spec Professional Shotgun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|
Product description The SGM-3416 Broadcast Spec Professional Shotgun Microphone from Azden is intended for mid- and high-level video audio capturing, field audio production, sound design and more. The SGM-3416 delivers the frequency response, dynamic range and noise rejection suited for reliable audio reproduction. The microphone requires 11 to 52V phantom power, features a die-cast aluminum housing and ships with a carrying case, flocked foam windscreen and shock-mount microphone holder that easily mounts onto an available accessory shoe. UPC: 095528341605 In the Box Azden SGM-3416 Broadcast Spec Professional Shotgun Microphone Custom Carrying Case Flocked Foam Windscreen Shock-Mount Holder Limited 2-Year Warranty User Manual PDF 400.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden SGM-3416 Broadcast Spec Professional Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden SGM-3416 Specs | | | Transducer | Electret Condenser | | Polar Pattern | Supercardioid | | Frequency Range | 30 Hz to 20 kHz | | Signal to Noise Ratio | 82 dB | | Maximum SPL | 130 dB SPL | | THD | 1% | | Impedance | 130 Ohms @ 1 kHz | | Sensitivity | -33 dB at 1 kHz | | Dynamic Range | 98 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.5 mA | | Operating Voltage | 11 to 52 V | | Length | 7.09" / 180 mm | | Diameter | 0.75" / 19 mm | | Weight | 4.94 oz / 140 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 13.9 x 6.1 x 3.4" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
