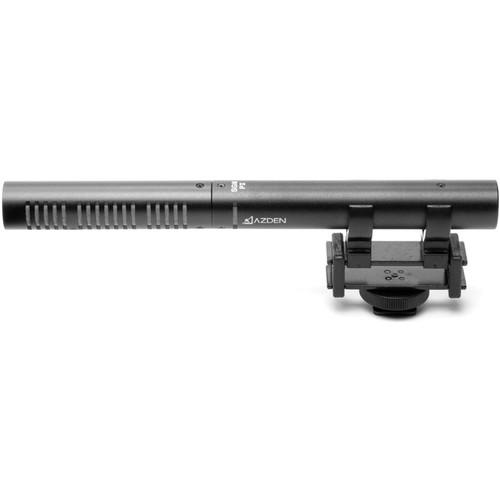

User Manual for Azden SGM-PII Mini Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the Azden SGM-PII Mini Shotgun Microphone
- Product category: Shotgun Microphones Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Shotgun Microphones
|
User manual for the Azden SGM-PII Mini Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|
Product description Designed to mount on broadcast and prosumer cameras that supply phantom power, the Azden SGM-PII is a mini (8.15") shotgun microphone terminated with an XLR output connector. It features a supercardioid polar pattern and a low-noise circuitry, and is ideal for capturing focused audio in various indoor or outdoor environments for film, broadcast TV, and other video applications. The SGM-PII operates on 11-52 VDC phantom power. It delivers an 80 Hz to 18 kHz frequency response and handles sound-pressure levels up to 120 dB, ideal for close-miking. Handcrafted in Japan, the mic ships with a shockmount, a flocked-foam windscreen, and a zippered carry case. -
- Mini shotgun microphone remains out of the camera frame
- Fits on broadcast and prosumer cameras that supply phantom power
- Supercardioid polar pattern effectively rejects undesired off-axis sound for focused audio capturing
- Signal-to-noise ratio: 70 dB
- Requires 11-52 VDC phantom power
- Includes shockmount holder with camera shoe and extra support bands
- Includes flocked-foam windscreen
- Includes zippered carry case
- Handcrafted in Japan
UPC: 095528060124 In the Box Azden SGM-PII Mini Shotgun Microphone Shockmount Set of Extra Support Bands Flocked-Foam Windscreen Zippered Carry Case Limited 2-Year Warranty User Manual PDF 732.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden SGM-PII Mini Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden SGM-P II Specs | | | Sound Field | Mono | | Transducer | Electret Condenser | | Polar Pattern | Supercardioid | | Frequency Range | 80 Hz to 18 kHz | | Signal to Noise Ratio | 70 dB | | Maximum SPL | 120 dB SPL | | THD | 1% | | Impedance | 130 Ohms | | Sensitivity | -33 dB at 1 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.5 mA | | Operating Voltage | 11 to 52 V | | Length | 8.15" / 207 mm | | Diameter | 0.83" / 21 mm | | Weight | 3.53 oz / 100 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 10.7 x 3.6 x 3.3" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
