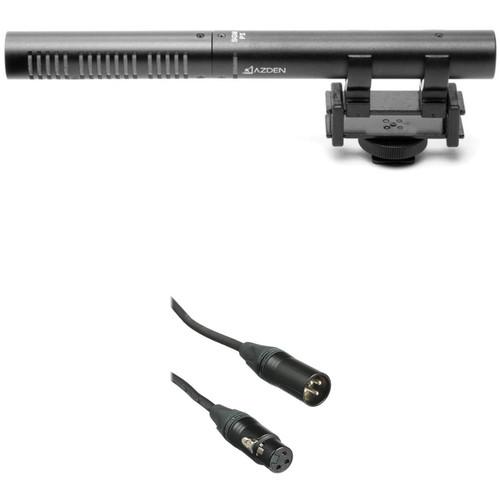

User Manual for Azden SGM-PII Shotgun Microphone Kit Click to enlarge the picture
Contents of the user manual for the Azden SGM-PII Shotgun Microphone Kit
- Product category: Shotgun Microphones Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Shotgun Microphones
|
User manual for the Azden SGM-PII Shotgun Microphone Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|
Product description Put together by B&H for your express convenience, this Azden SGM-PII Kit bundles an Azden SGM-PII Professional Shotgun Microphone with a high-quality XLR cable in one package. The microphone features an electric condenser capsule and supercardioid pattern, making it suitable for directional-audio purposes. Its frequency range of 80 Hz to 18 kHz is useful for capturing the nuances of the human voice.
An SPL of 120 dB ensures you'll be able to capture loud noises—also a facet of the human condition—while the microphone's included shockmount will allow you to affix the microphone to standard 21mm clamp mount fixtures, making the mic a good companion for Panasonic, Ikegami, Sony, and Canon cameras. The mic itself sports an XLR output, and the overall kit sports an XLR cable which is suitable for studio and broadcast situations. With this kit, you'll have the means to capture audio at the source point, and a way of routing the audio to your recording device. - Azden SGM-PII Mini Shotgun Microphone Designed to mount on broadcast and prosumer cameras that supply phantom power, the Azden SGM-PII is a mini (8.15") shotgun microphone terminated with an XLR output connector. It features a supercardioid polar pattern and a low-noise circuitry, and is ideal for capturing focused audio in various indoor or outdoor environments for film, broadcast TV, and other video applications. The SGM-PII operates on 11-52 VDC phantom power. It delivers an 80 Hz to 18 kHz frequency response and handles sound-pressure levels up to 120 dB, ideal for close-miking. Handcrafted in Japan, the mic ships with a shockmount, a flocked-foam windscreen, and a zippered carry case.
-
- Mini shotgun microphone remains out of the camera frame
- Fits on broadcast and prosumer cameras that supply phantom power
- Supercardioid polar pattern effectively rejects undesired off-axis sound for focused audio capturing
- Signal-to-noise ratio: 70 dB
- Requires 11-52 VDC phantom power
- Includes shockmount holder with camera shoe and extra support bands
- Includes flocked-foam windscreen
- Includes zippered carry case
- Handcrafted in Japan
UPC: 095528060124 - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 1.5' (0.45 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558212 In the Box - SGM-PII Mini Shotgun Microphone uyqrewfvcqyxrdww
- Shockmount
- Set of Extra Support Bands
- Flocked-Foam Windscreen
- Zippered Carry Case
- Limited 2-Year Warranty
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 1.5' (0.45 m), Black uyqrewfvcqyxrdww
Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden SGM-PII Shotgun Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Azden SGM-PII Mini Shotgun Microphone
| | | Sound Field | Mono | | Transducer | Electret Condenser | | Polar Pattern | Supercardioid | | Frequency Range | 80 Hz to 18 kHz | | Signal to Noise Ratio | 70 dB | | Maximum SPL | 120 dB SPL | | THD | 1% | | Impedance | 130 Ohms | | Sensitivity | -33 dB at 1 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.5 mA | | Operating Voltage | 11 to 52 V | | Length | 8.15" / 207 mm | | Diameter | 0.83" / 21 mm | | Weight | 3.53 oz / 100 g | | | | Box Dimensions (LxWxH) | 10.7 x 3.6 x 3.3" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 1.5' (0.45 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 1.5' / 0.45 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.7 x 5.5 x 0.9" |
