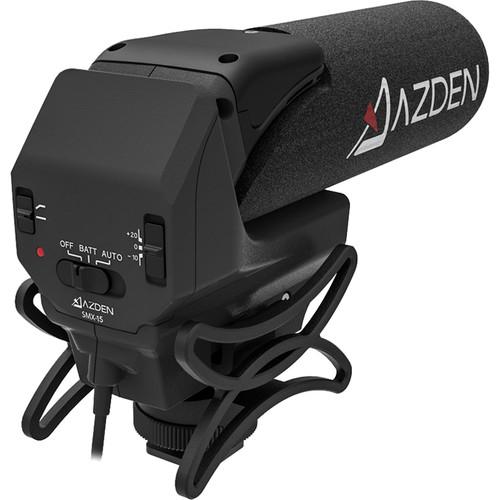

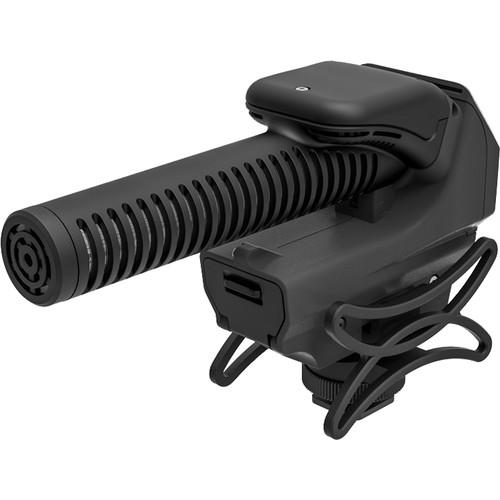

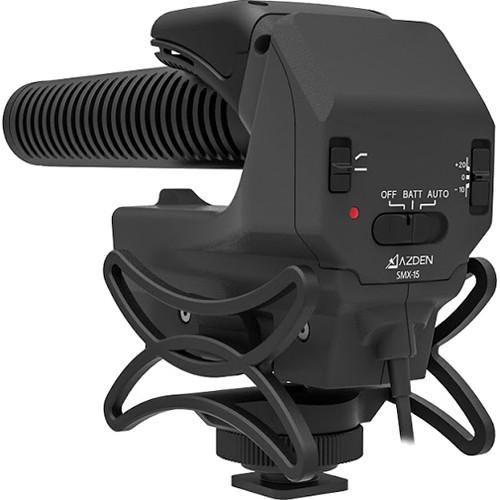

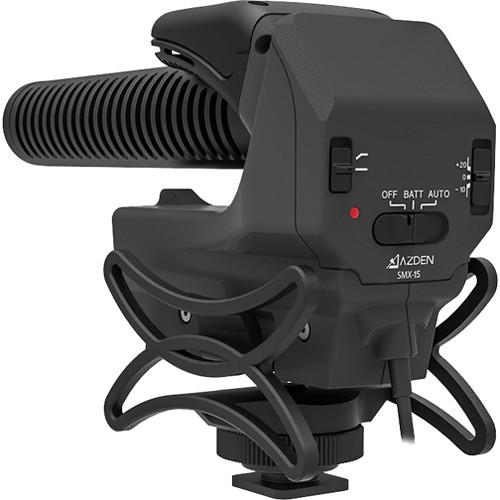

User Manual for Azden SMX-15 Powered Shotgun Video Microphone Click to enlarge the picture
Contents of the user manual for the Azden SMX-15 Powered Shotgun Video Microphone
- Product category: Stereo & Specialty Microphones Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Stereo & Specialty Microphones
 |
User manual for the Azden SMX-15 Powered Shotgun Video Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|
Product description - Introducing the SMX-30 and SMX-15: The Ultimate Video Microphones
The SMX-15 from Azden is a battery-powered supercardioid shotgun microphone engineered to produce pro-quality sound for DSLRs and other compact cameras. Featuring the same microphone element as Azden's professional shotguns (SGM-250 & SGM-250P), the SMX-15 is capable of capturing broadcast-quality sound, and allows you to focus on sound in front of the camera while reducing the capture of extraneous noise from the rest of the environment.Using the built-in +20 dB gain booster to get a strong clean audio signal into your camera, the SMX-15 minimizes the need to turn up noisy preamps usually associated with DSLRs, and also includes a -10 dB pad to protect against distortion when recording in loud environments such as live concerts and motorsport events.Furthermore, the microphone has a wide frequency response of 40 Hz to 20 kHz and has a full, natural sound. There is a low-cut filter switch for reducing low frequencies below 120 Hz, which is useful for mitigating noise caused by air conditioners, wind, and traffic noise.Powered by two AA batteries, you can operate the microphone for approximately 24 hours with no degradation of sound quality. The battery-indicator LED light lets you know when it's time to change batteries, providing up to a 1-hour warning beforehand.Finally, an integrated shock-absorbing shoe mount isolates the microphone from camera-motor- and handling noise. The mount is designed to fit the standard camera shoe and comes with 1/4"-20 threads at the bottom for mounting to boom poles and other camera accessories. - Gain Control
- The audio controls on DSLR cameras are limited, if they exist at all. And DSLRs are notoriously known to have low-quality microphone preamps that add noise to the video soundtrack when the gain is turned up. Azden's SMX-15 has a +20 dB gain booster so you can get a strong, clean audio signal into your camera, minimizing the need to turn up the noisy preamp
- Frequency Response
- The SMX-15 has a wide frequency response ranging from 40 Hz to 20 kHz, so the audio you capture will sound full and natural
- Power
- Powered by two AA batteries, which is a lower-cost option than the 9V battery used in some competitor microphones, the SMX-15 can achieve 24 hours of operation with a single set of batteries with absolutely no degradation of sound quality
- Maximize Battery Life
- Maximize battery life by using the unique "Auto" power setting. When set to Auto, the SMX-15 can detect when a camera is on and will automatically power on and off with the camera (requires a mic input that provides plug-in power). Ever leave your microphone on by accident to discover that the batteries are dead the next time you try to use it? Eliminate that possibility by always leaving the SMX-15 in "Auto" mode
- Integrated Shock-Absorbing Shoe Mount
- Integrated into the design of the SMX-15 is a custom-made, shock-absorbing shoe mount to isolate the microphone from camera-motor- and handling noise
UPC: 095528122242 In the Box Azden SMX-15 Powered Shotgun Video Microphone Foam Windscreen Limited 2-Year Warranty, 10 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden SMX-15 Powered Shotgun Video Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden SMX-15 Specs | Polar Pattern | Supercardioid | | Frequency Response | 40 Hz - 20 kHz | | Sensitivity | -36 dB @ 1 kHz (0 dB=1V/Pa) | | Dynamic Range (Typical) | 118 dB | | Signal-to-Noise Ratio | 82 dB, 1 kHz @ 1Pa | | Maximum Input Level | 128 dB SPL (1 kHz@ 1% T.H.D.) | | Maximum Output Level | +6.2 dB | | Output Impedance | 50 Ohms | | Power Requirements | 2 x AA batteries | | Output Connectors | 1/8" (3.5 mm) stereo mini plug | | Power Switch | Off, Battery, Auto | | Gain Control | -10, 0, +20 dB | | Low Cut Filters | Selectable @ 120 Hz, 3 dB/octave | | Dimensions (L x W x D) | 1.9 x 3.9 x 5.7" (47 x 98 x 145 mm) | | Weight | 4.8 oz (135 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.8 x 7.6 x 3.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
