Azden SMX-30 Stereo Mono Switchable Video

User Manual for Azden SMX-30 Stereo Mono Switchable Video Mic & Furry Windshield Cover Kit

• Product category: Stereo & Specialty Microphones Azden
• Brand: Azden
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Azden Stereo & Specialty Microphones

Product description

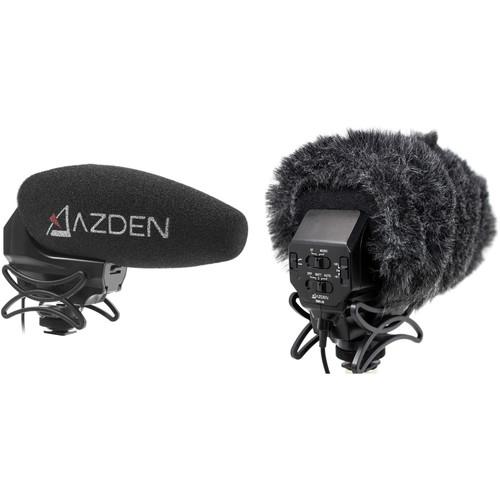

• Azden SMX-30 Stereo-/Mono-Switchable Video Microphone
  • Azden SMX-30 Video Microphone - Overview and Sound Example
  The SMX-30 Stereo-/Mono-Switchable Video Microphone from Azden is a battery-powered microphone with separate stereo- and shotgun-style microphone units that can be switched between mono and stereo recording modes. It can be used to produce pro-quality sound for DSLRs and other compact cameras in applications for interviews, weddings, presentations, and more.Housed inside an innovative casing, the SMX-30 is two microphones packaged into one. The stereo microphone is positioned at the top and consists of two cardioid polar patterns spaced apart at a 120° angle. The mono microphone uses a supercardioid polar pattern to focus on sound in front of the camera. It has the same high-quality element as Azden's SGM-250 shotgun microphone.Using the built-in +20 dB gain booster to get a strong clean audio signal into your camera, the SMX-30 minimizes the need to turn up noisy preamps usually associated with DSLRs, and also includes a -10 dB pad to protect against distortion when recording in loud environments such as live concerts and motorsport events.Furthermore, the microphone has a wide frequency response of 40 Hz to 20 kHz and has a full, natural sound. There is a low-cut filter switch for reducing low frequencies below 120 Hz, which is useful for mitigating noise caused by air conditioners, wind, and traffic.Powered by two AA batteries, you can operate the SMX-30 microphone for approximately 24 hours with no degradation of sound quality. The battery-indicator LED light lets you know when it's time to change batteries with up to a 1-hour warning beforehand.Finally, an integrated shock-absorbing shoe mount isolates the SMX-30 microphone from camera-motor/handling noise. The mount is designed to fit the standard camera shoe and comes with 1/4"-20 threads at the bottom for mounting to boom poles and other camera accessories. A foam windscreen and a carry pouch are also included.
  Stereo or Mono? Why Choose?
  • If you only have the budget to buy one microphone for your camera, why should you have to choose between mono and stereo? The SMX-30 is stereo-/mono-switchable, so you don't have to be
  Gain Control
  • The audio controls on DSLR cameras are limited, if they exist at all. And DSLRs are notoriously known to have low-quality microphone preamps that add noise to the video soundtrack when the gain is turned up. Azden's SMX-30 has a +20 dB gain booster so you can get a strong, clean audio signal into your camera, minimizing the need to turn up the noisy preamp
  Frequency Response
  • The SMX-30 has a wide frequency response ranging from 40 Hz to 20 kHz, so the audio you capture will sound full and natural
  Power
  • Powered by two AA batteries, which is a lower-cost option than the 9V battery used in some competitor microphones, the SMX-30 can achieve 24 hours of operation with a single set of batteries with absolutely no degradation of sound quality
  Maximize Battery Life
  • Maximize battery life by using the unique "Auto" power setting. When set to Auto, the SMX-30 can detect when a camera is on and will automatically power on and off with the camera (requires a mic input that provides plug-in power). Ever leave your microphone on by accident to discover that the batteries are dead the next time you try to use it? Eliminate that possibility by always leaving the SMX-30 in "Auto" mode
  Integrated Shock-Absorbing Shoe Mount
  • Integrated into the design of the SMX-30 is a custom-made, shock-absorbing shoe mount to isolate the microphone from camera-motor/handling noise
  UPC: 095528122235
• Azden SWS-30 Furry Windshield Cover
  • Azden SMX-30 Video Microphone - Overview and Sound Example
  The SWS-30 Furry Windshield Cover from Azden was designed specifically for the SMX-30 microphone to provide maximum protection against wind noise in outdoor environments. The cover is made to slip over the SMX-30's included, custom-fit foam windscreen and delivers acoustically transparent results. UPC: 095528631027

• SMX-30 Stereo-/Mono-Switchable Video Microphone wztwvtrravffbwasvtsfcevryzu
• Foam Windscreen
• Carry Pouch
• Limited 2-Year Warranty, 10 Years with Registration

• SWS-30 Furry Windshield Cover

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Azden SMX-30 Stereo-/Mono-Switchable Video Microphone

  Polar Pattern	Mono: Supercardioid Stereo: 2 x Cardioid
  Frequency Response	40 Hz - 20 kHz
  Sensitivity	-36 dB @ 1 kHz (0 dB=1V/Pa)
  Dynamic Range (Typical)	118 dB
  Signal-to-Noise Ratio	82 dB, 1 kHz @ 1Pa
  Maximum Input Level	130 dB SPL (1 kHz @ 1% T.H.D.)
  Maximum Output Level	+6.2 dB
  Output Impedance	50 Ohms
  Power Requirements	2 x AA batteries
  Output Connectors	1/8" (3.5 mm) stereo mini-plug
  Power Switch	Off, Battery, Auto
  Gain Control	-10, 0, +20 dB
  Low Cut Filters	Selectable @ 120 Hz, 3 dB/octave
  Dimensions (L x W x D)	1.9 x 4.2 x 5.7" (47 x 107 x 145 mm)
  Weight	5.1 oz (145 g)

  Box Dimensions (LxWxH)	10.7 x 7.6 x 3.3"

• Azden SWS-30 Furry Windshield Cover

  Dimensions	Not specified by manufacturer
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	7.5 x 4.5 x 0.7"
