Product description - Azden SMX-30 Video Microphone - Overview and Sound Example
- The Azden SMX-30: Handcrafted in Japan To Be the Ultimate Video Microphone.

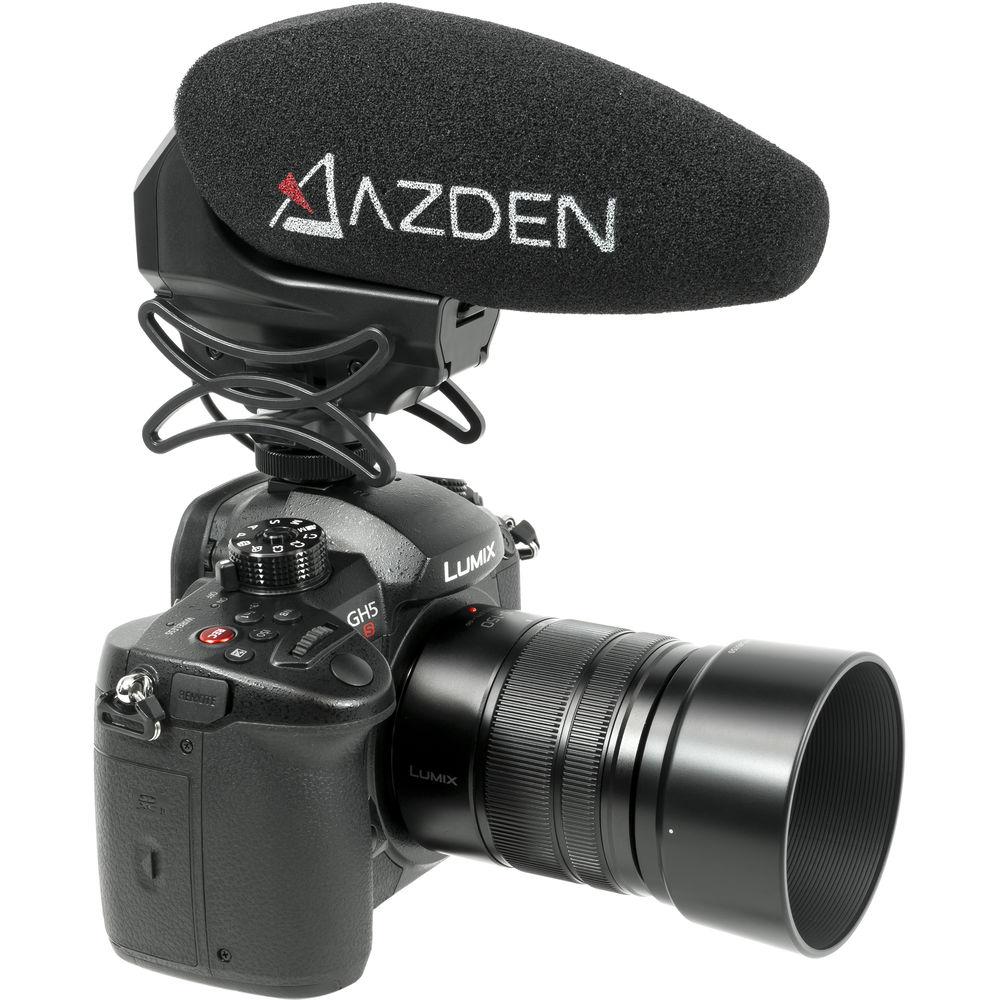

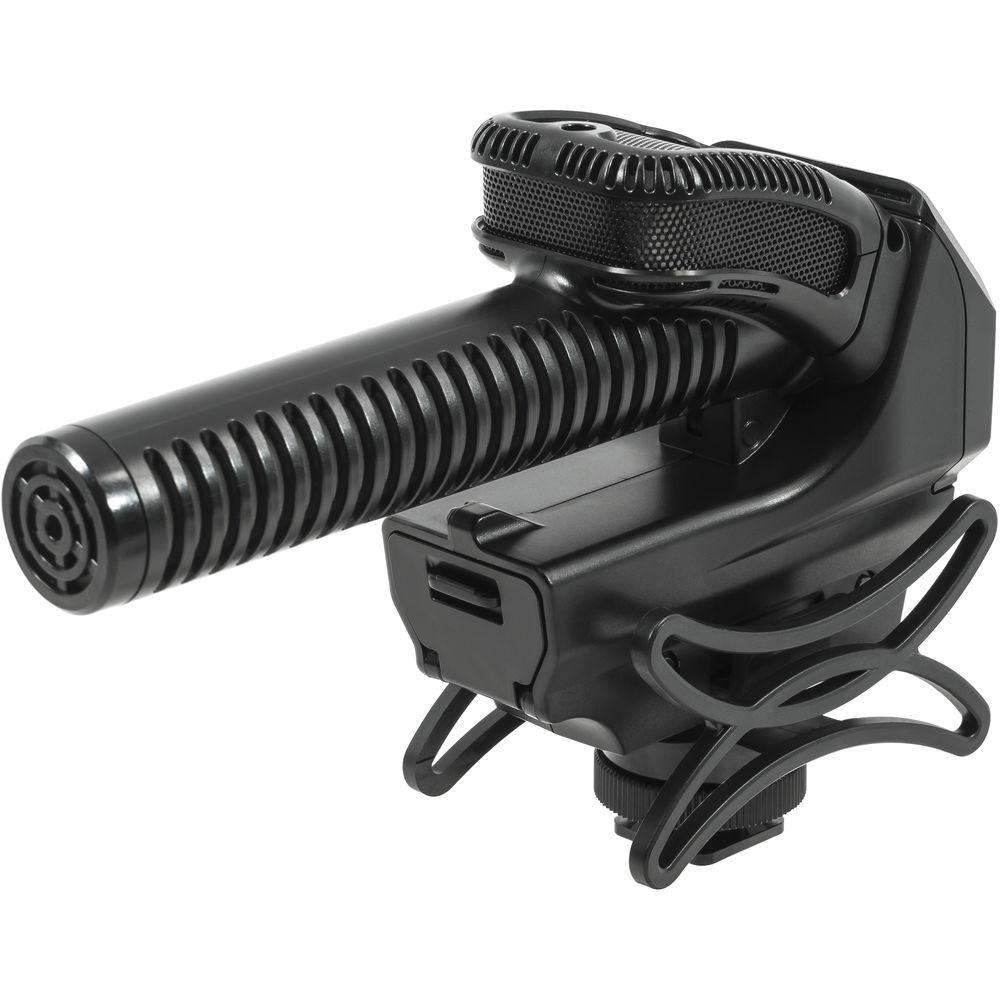

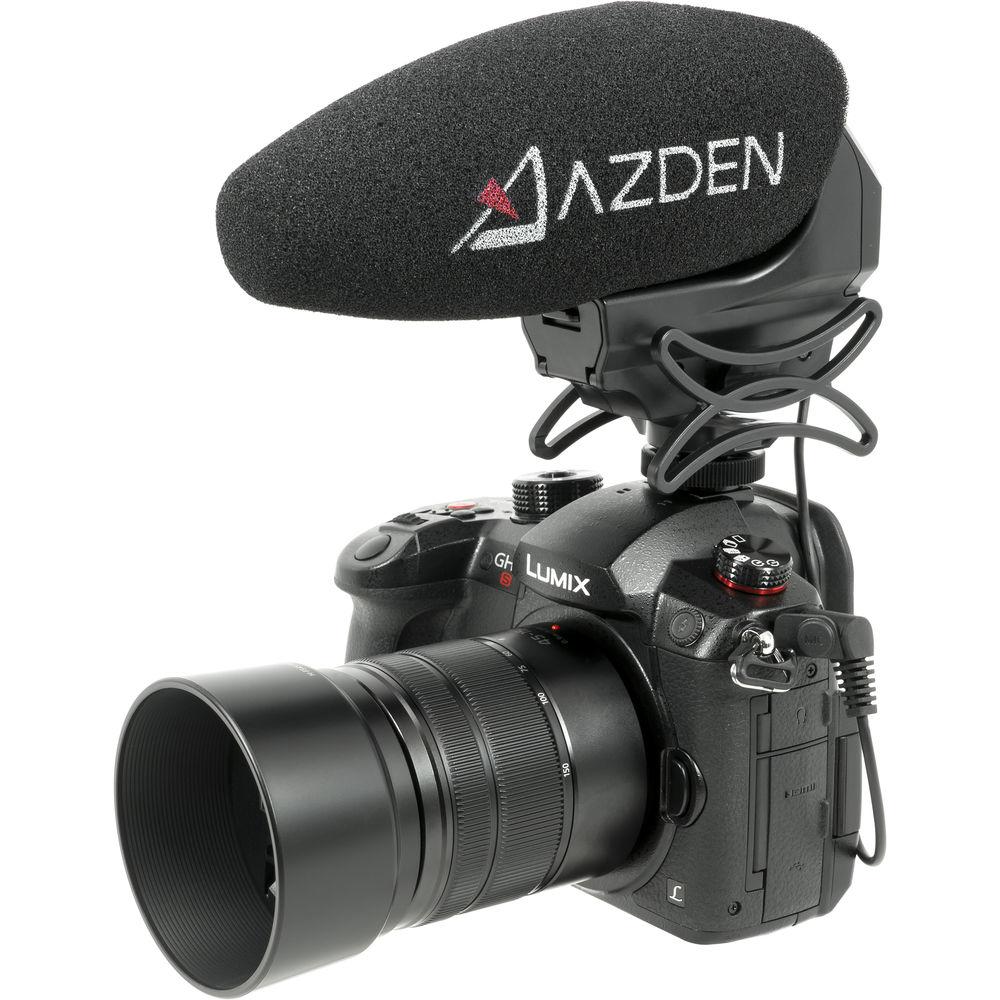

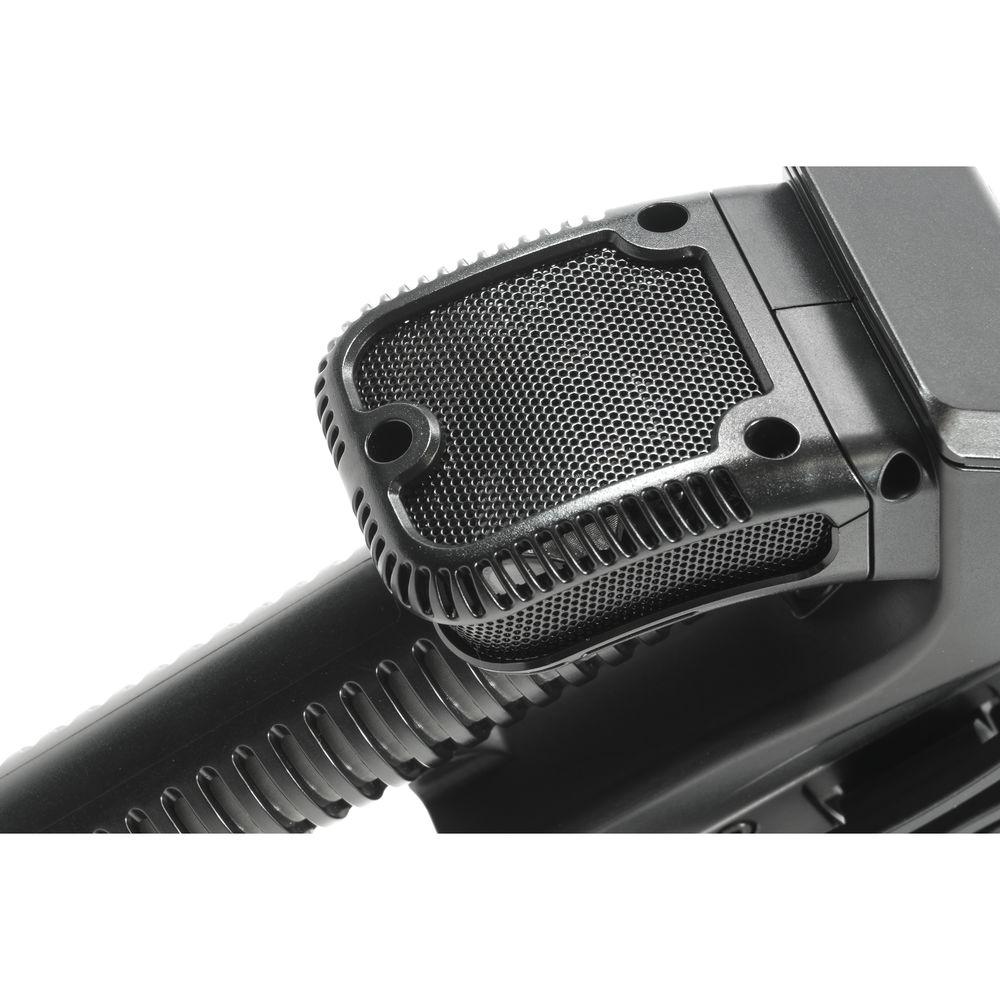

The SMX-30 Stereo-/Mono-Switchable Video Microphone from Azden is a battery-powered microphone with separate stereo- and shotgun-style microphone units that can be switched between mono and stereo recording modes. It can be used to produce pro-quality sound for DSLRs and other compact cameras in applications for interviews, weddings, presentations, and more.Housed inside an innovative casing, the SMX-30 is two microphones packaged into one. The stereo microphone is positioned at the top and consists of two cardioid polar patterns spaced apart at a 120° angle. The mono microphone uses a supercardioid polar pattern to focus on sound in front of the camera. It has the same high-quality element as Azden's SGM-250 shotgun microphone.Using the built-in +20 dB gain booster to get a strong clean audio signal into your camera, the SMX-30 minimizes the need to turn up noisy preamps usually associated with DSLRs, and also includes a -10 dB pad to protect against distortion when recording in loud environments such as live concerts and motorsport events.Furthermore, the microphone has a wide frequency response of 40 Hz to 20 kHz and has a full, natural sound. There is a low-cut filter switch for reducing low frequencies below 120 Hz, which is useful for mitigating noise caused by air conditioners, wind, and traffic.Powered by two AA batteries, you can operate the SMX-30 microphone for approximately 24 hours with no degradation of sound quality. The battery-indicator LED light lets you know when it's time to change batteries with up to a 1-hour warning beforehand.Finally, an integrated shock-absorbing shoe mount isolates the SMX-30 microphone from camera-motor/handling noise. The mount is designed to fit the standard camera shoe and comes with 1/4"-20 threads at the bottom for mounting to boom poles and other camera accessories. A foam windscreen and a carry pouch are also included. - Stereo or Mono? Why Choose?
- If you only have the budget to buy one microphone for your camera, why should you have to choose between mono and stereo? The SMX-30 is stereo-/mono-switchable, so you don't have to be

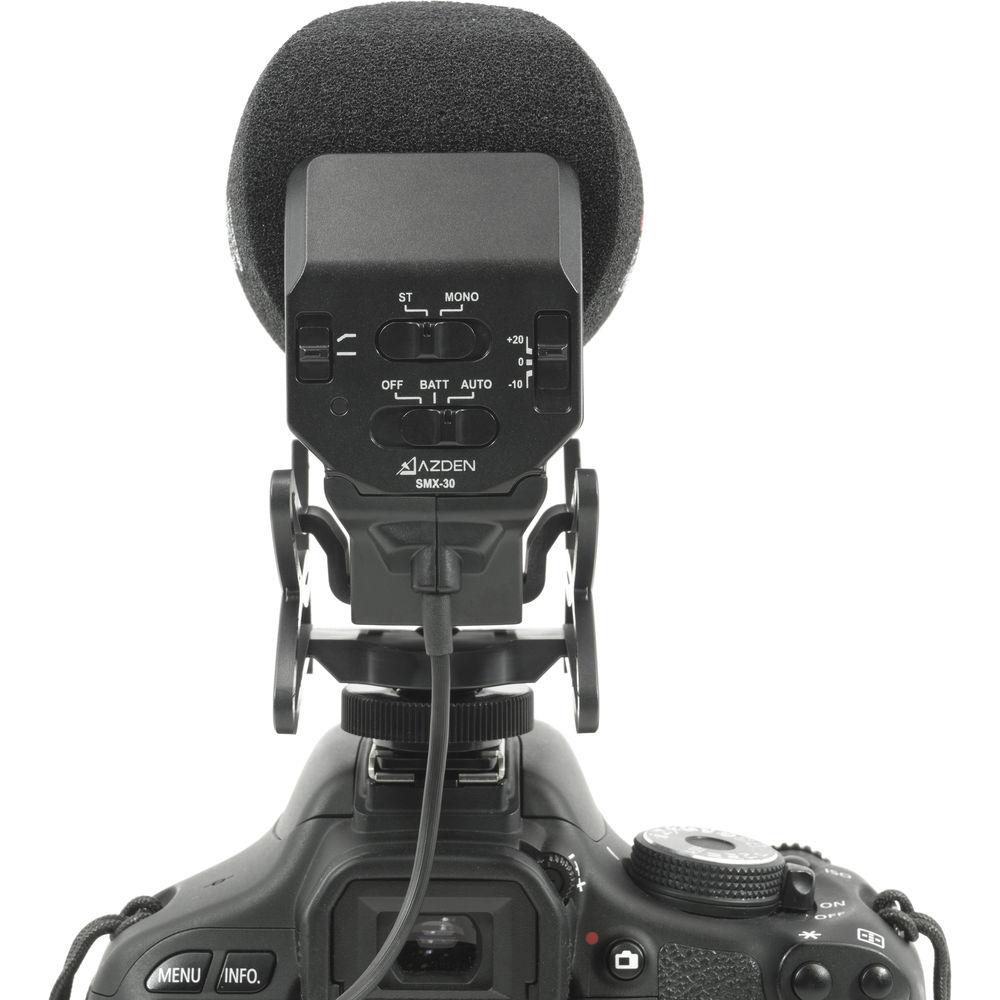

- Gain Control
- The audio controls on DSLR cameras are limited, if they exist at all. And DSLRs are notoriously known to have low-quality microphone preamps that add noise to the video soundtrack when the gain is turned up. Azden's SMX-30 has a +20 dB gain booster so you can get a strong, clean audio signal into your camera, minimizing the need to turn up the noisy preamp
- Frequency Response
- The SMX-30 has a wide frequency response ranging from 40 Hz to 20 kHz, so the audio you capture will sound full and natural
- Power

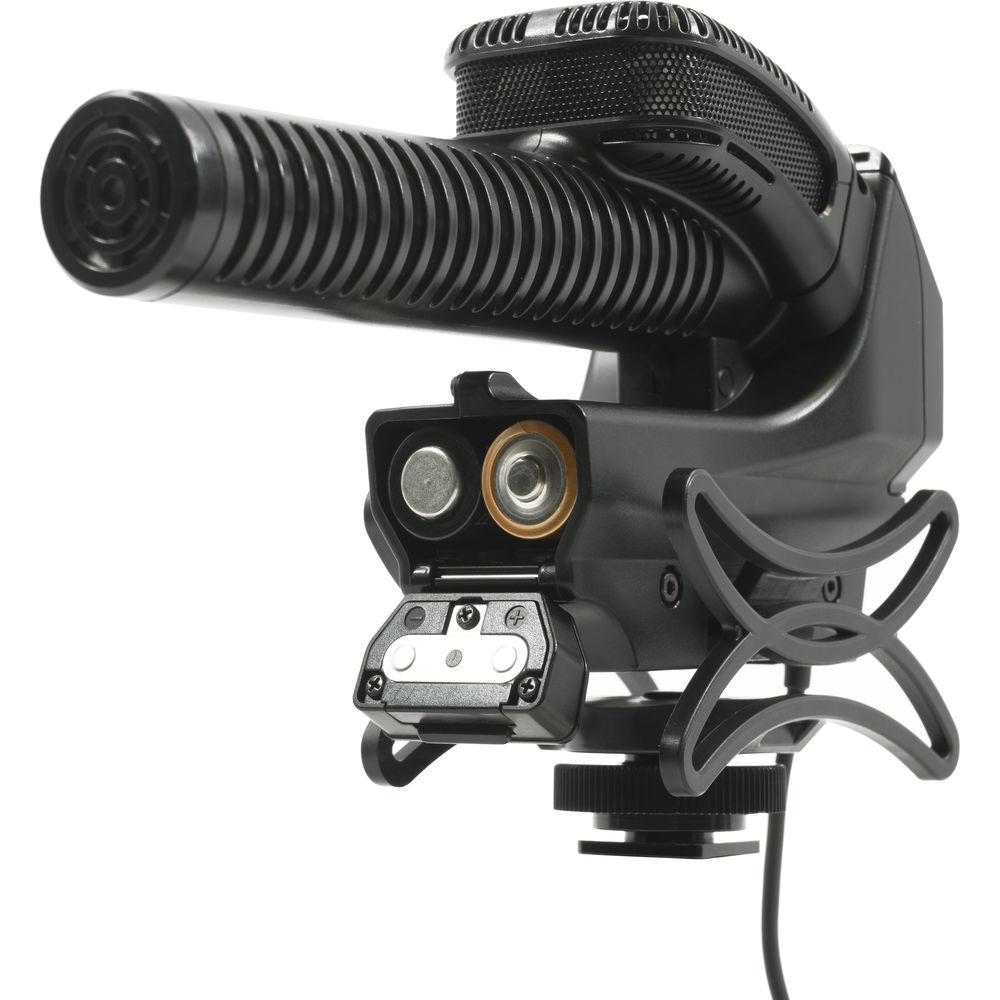

- Powered by two AA batteries, which is a lower-cost option than the 9V battery used in some competitor microphones, the SMX-30 can achieve 24 hours of operation with a single set of batteries with absolutely no degradation of sound quality
- Maximize Battery Life

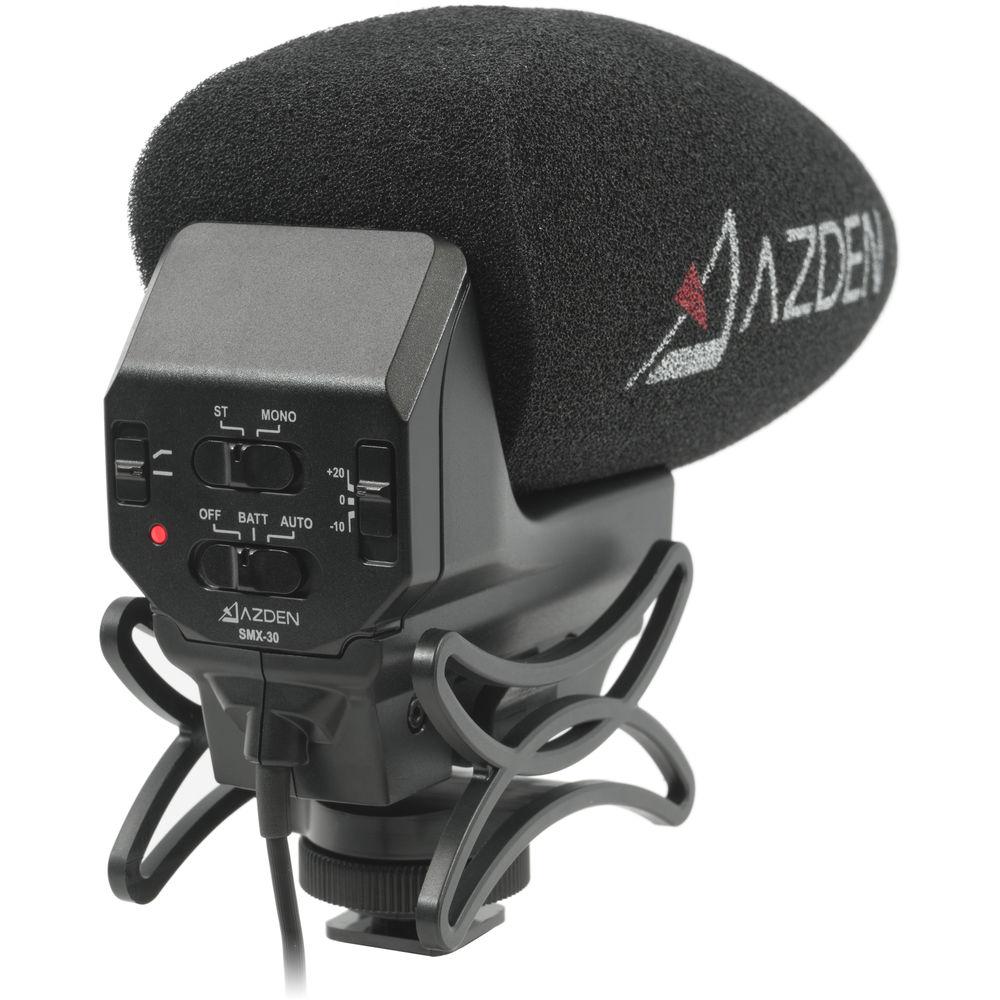

- Maximize battery life by using the unique "Auto" power setting. When set to Auto, the SMX-30 can detect when a camera is on and will automatically power on and off with the camera (requires a mic input that provides plug-in power). Ever leave your microphone on by accident to discover that the batteries are dead the next time you try to use it? Eliminate that possibility by always leaving the SMX-30 in "Auto" mode
- Integrated Shock-Absorbing Shoe Mount
- Integrated into the design of the SMX-30 is a custom-made, shock-absorbing shoe mount to isolate the microphone from camera-motor/handling noise

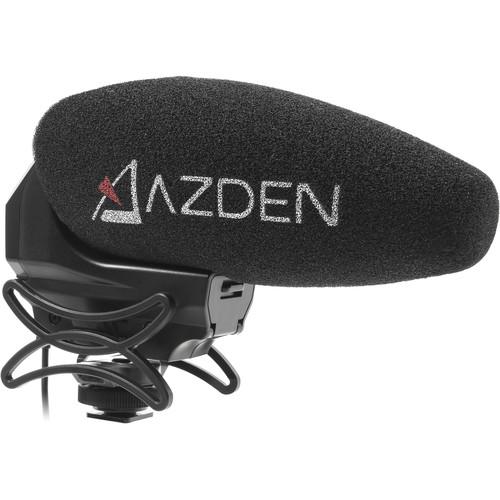

UPC: 095528122235 In the Box Azden SMX-30 Stereo-/Mono-Switchable Video Microphone Foam Windscreen Carry Pouch Limited 2-Year Warranty, 10 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden SMX-30 Stereo- Mono-Switchable Video Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden SMX-30 Specs | Polar Pattern | Mono: Supercardioid
Stereo: 2 x Cardioid | | Frequency Response | 40 Hz - 20 kHz | | Sensitivity | -36 dB @ 1 kHz (0 dB=1V/Pa) | | Dynamic Range (Typical) | 118 dB | | Signal-to-Noise Ratio | 82 dB, 1 kHz @ 1Pa | | Maximum Input Level | 130 dB SPL (1 kHz @ 1% T.H.D.) | | Maximum Output Level | +6.2 dB | | Output Impedance | 50 Ohms | | Power Requirements | 2 x AA batteries | | Output Connectors | 1/8" (3.5 mm) stereo mini-plug | | Power Switch | Off, Battery, Auto | | Gain Control | -10, 0, +20 dB | | Low Cut Filters | Selectable @ 120 Hz, 3 dB/octave | | Dimensions (L x W x D) | 1.9 x 4.2 x 5.7" (47 x 107 x 145 mm) | | Weight | 5.1 oz (145 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.7 x 7.6 x 3.3" |
