User Manual for Azden WHX-PRO VHF Handheld Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Azden WHX-PRO VHF Handheld Wireless Microphone
- Product category: Wireless Systems Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Wireless Systems
 |
User manual for the Azden WHX-PRO VHF Handheld Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|

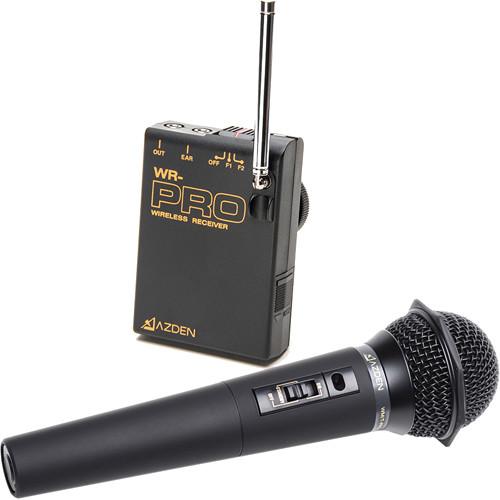

Product description For professional videographers on a limited budget and video hobbyists, the WHX-PRO Series Wireless Microphone System from Azden is a single-channel VHF system which includes the WR-PRO Camera-Mount Receiver and WM/T-PRO Handheld Microphone/Transmitter. The system offers two switchable operating frequencies, allowing you to switch to the other frequency if one is being used, or is noisy, and has an operating range of up to 250 feet. All receivers and transmitters in the PRO Series are on the same two frequencies (169.445 and 170.245 MHz) and use the same circuitry, making them interchangeable, and allowing you to add to your system at any time. - Complete single-channel VHF wireless system with two switchable operating frequencies
- Includes WM/T-PRO Handheld Microphone/Transmitter

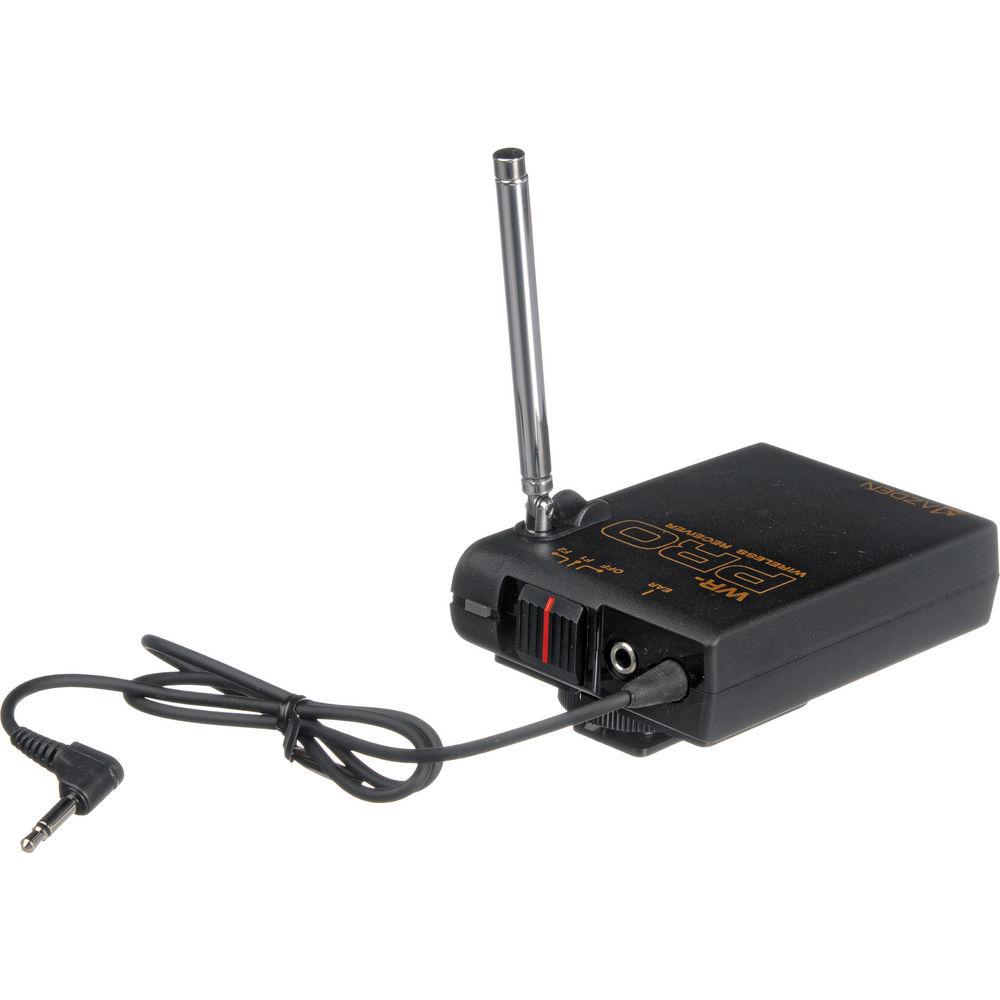

- Includes WR-PRO Camera/Belt Mount Receiver
- Transmits audio up to 250 feet

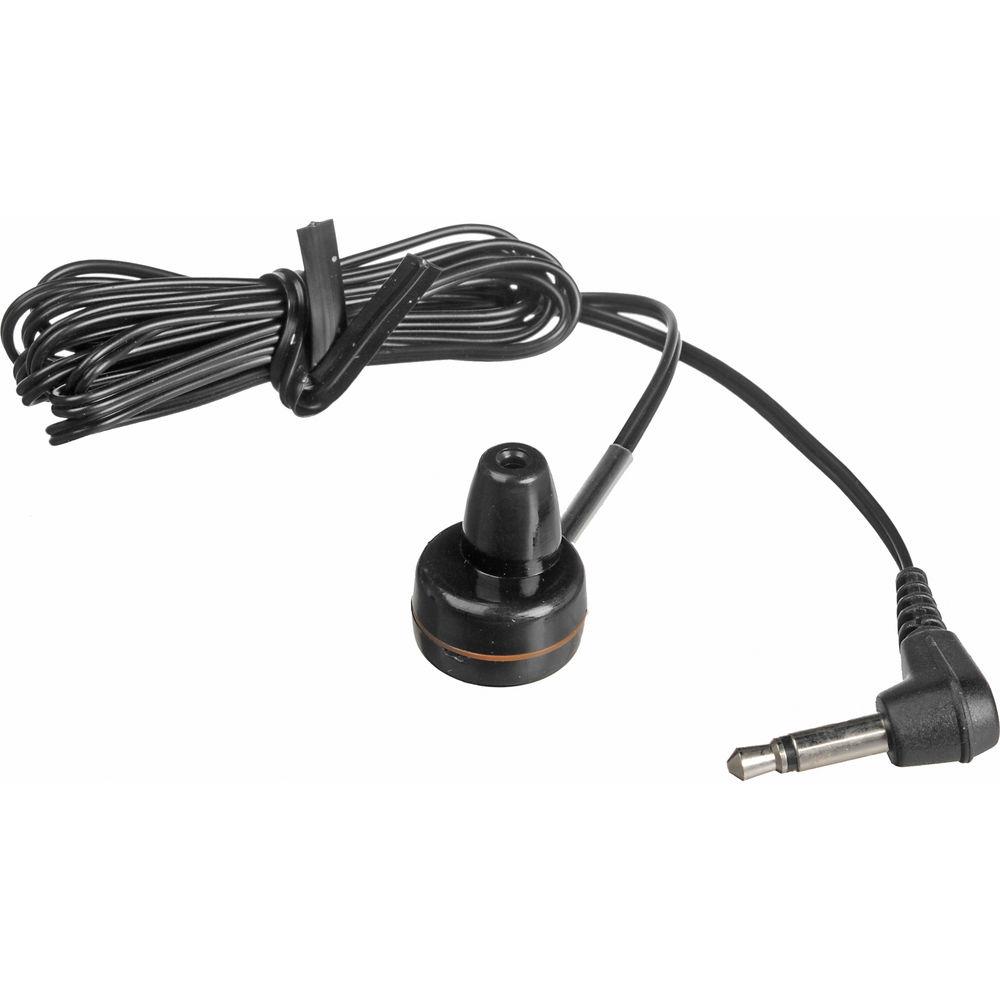

UPC: 095528000182 In the Box Azden WHX-PRO VHF Handheld Wireless Microphone System WR-PRO Camera-Mount Receiver WM/T Handheld Microphone/Transmitter Shoe Mount Touch Fastener Ear Monitor Audio Cable (Connects Receiver to Camera) Limited 2-Year Warranty User Manual PDF 3.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden WHX-PRO VHF Handheld Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden WHX-PRO Specs | | | Type of System | Camera Mountable VHF Wireless | | RF Carrier Frequency Range | 2 Switchable Frequencies | | Approx. Working Range | Up to 250' (76.2 m) Under Ideal Conditions | | Overall Frequency Response | Not Specified by Manufacturer | | Dynamic Range | Greater than 85 dB | | # Of Channels | 2, Switchable | | # Of Simultaneous Systems | 2 | | | | Type of Receiver | Camera Mountable Superheterodyne VHF | | Type of Output(s) | 3.5 mm Mini-Jack | | Headphone Monitoring | Yes, (Earpiece Included) | | Power Requirements | 9 V Battery | | Battery Type/Approx. Life | 9 V, (Battery Life NOT Specified by Manufacturer) | | Display | No | | Mounting Options | Belt- or Camera-Mount | | Antenna Type | Flexible Wire | | Dimensions (H x W x D) | 3.40" x 2.40 x 0.85" (86.0 x 60.0 x 21.5 mm) | | Weight | 3.5 oz (98 g) With Battery | | | | Type of Transmitter | Handheld FM Emission VHF | | Type of Input Connector | Mic Head is Permanently Attached/Hardwired to Transmitter | | Type of Microphone | Azden's Own Dynamic Head | | Polar Pattern | Omnidirectional | | RF Power Output | 10 mW (50 mW Maximum) | | Battery Type/Approx. Life | 1x AA | | Mute Switch | Yes (Standby) | | Level Control | Yes, Not Specified by Manufacturer | | Antenna Type | Internal | | Display | Not Specified by Manufacturer | | Dimensions (Ø x L) | 2.4 x 8.7" (62 x 221 mm) | | Weight | 6 oz (170 g) (With Battery) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 9.528 x 6.299 x 2.756" |
Rating72% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
