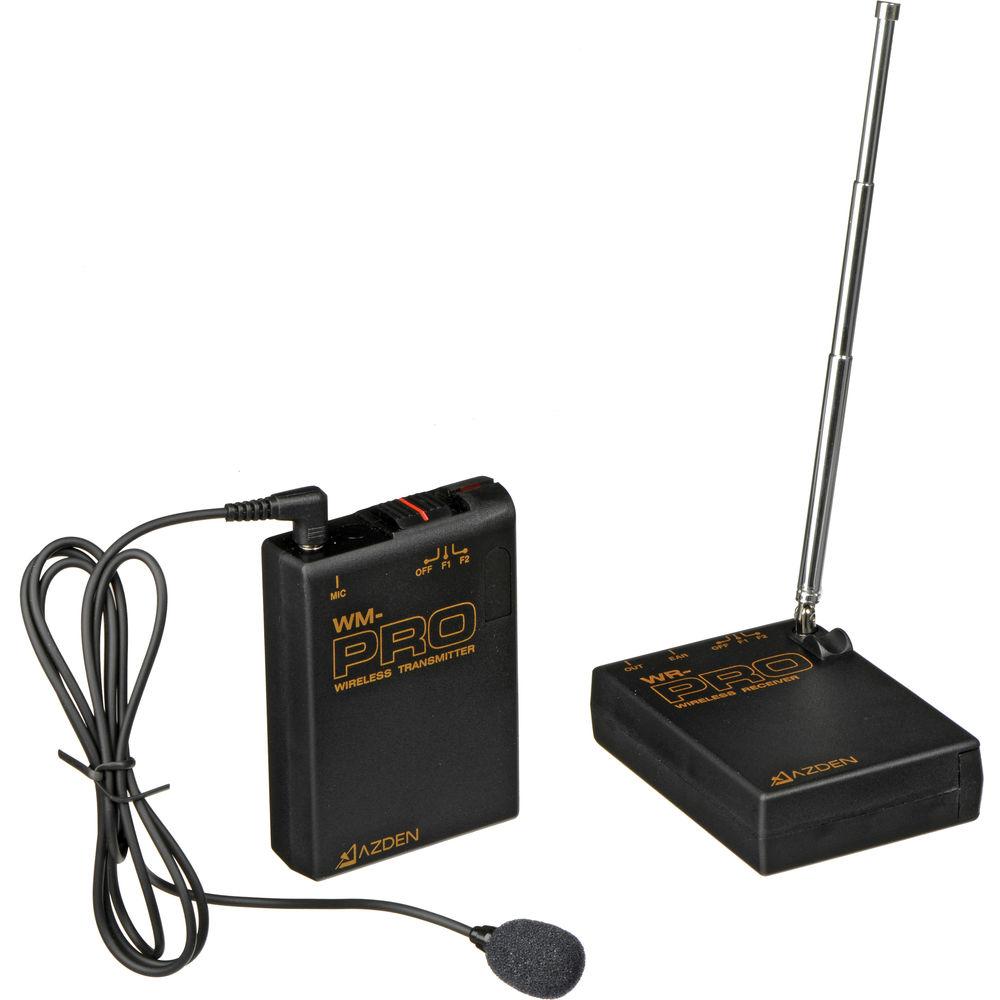

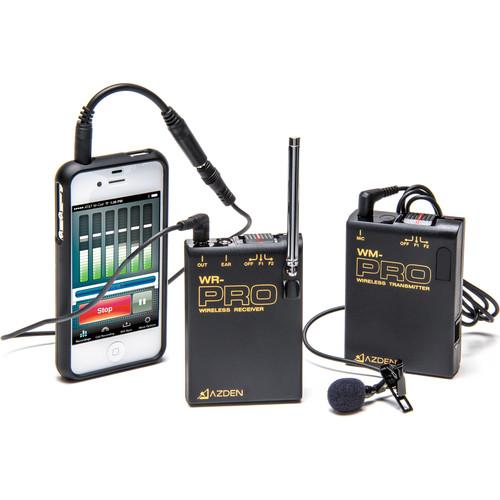

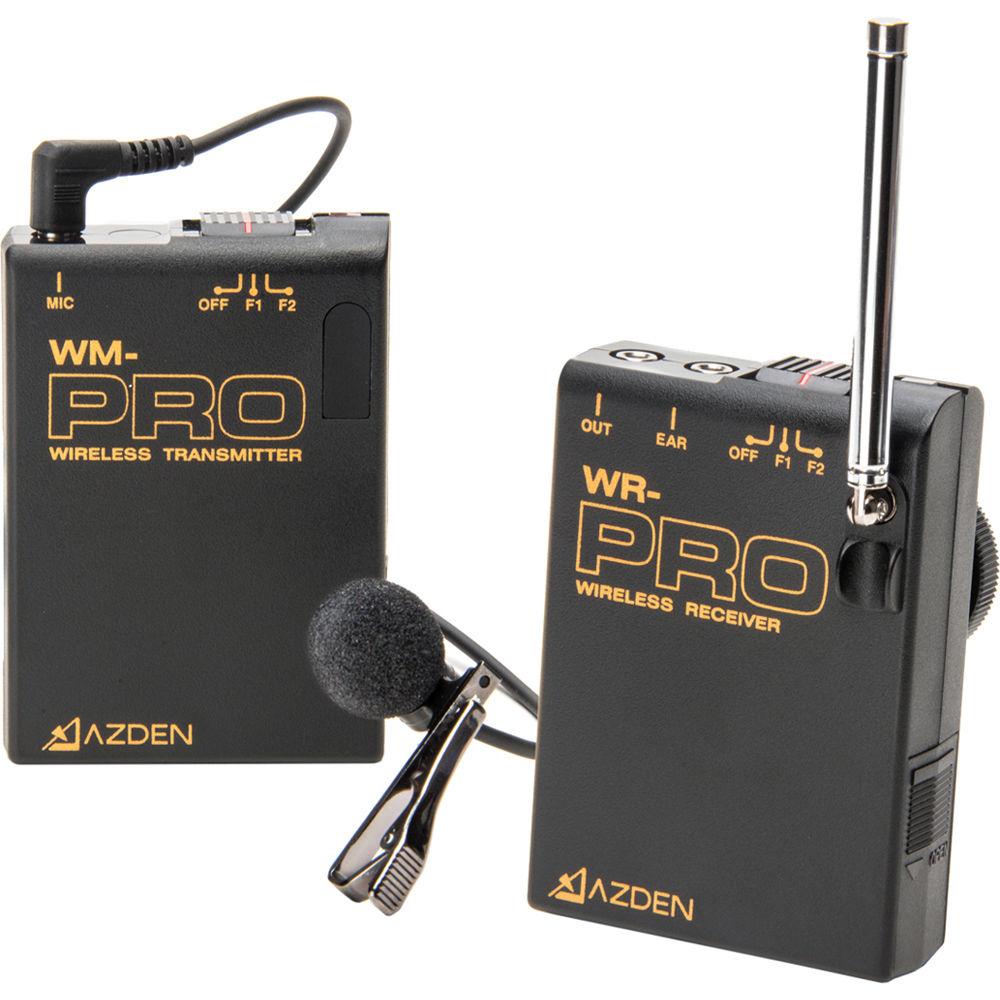

Product description Giving you 2 operating frequencies to select from, the WLX-PRO+i VHF Wireless Lavalier Microphone System for Cameras & Mobile Devices from Azden consists of a WL/T-PRO bodypack transmitter, a camera-mountable WR-PRO wireless receiver, an EX-503 omnidirectional lavalier microphone, a camera shoe mount, an interface cable for easy connection to smartphones and tablets, and hook and loop fastener tape. The system has a 250' range of operation, and allows you to send wireless audio directly to the microphone input of your mobile device, DSLR or camcorder. Its 2 operating frequencies provide an option in case one channel is experiencing interference. - WLT/PRO VHF Wireless Bodypack Transmitter The Azden WLT/PRO VHF Wireless Bodypack Transmitter consists of the WM-Pro bodypack transmitter and EX-503 omnidirectional lavalier microphone. The transmitter features 2 switchable VHF channels (169.445 MHz and 170.245 MHz) and is compatible with all Azden "PRO" series VHF receivers. The WLT/PRO is powered by a single 9V battery and includes a belt clip.
- Compact and lightweight bodypack transmitter
- Electret condenser, omnidirectional lavalier microphone
- 2 switchable frequencies 169.445 MHz & 170.245 MHz)
UPC: 095528000212 - WR-PRO VHF Receiver for Pro Series Designed for professional videographers on a limited budget and video hobbyists, the WR-PRO by Azden is a single-channel switchable VHF receiver with 2 selectable operating frequencies, allowing you to switch between frequencies if one is noisy or experiences interference. The wireless operating range is more than 200 feet. All receivers and transmitters in the PRO Series use the same circuitry and operate on the same 2 frequencies, F1 at 169.445 MHz and F2 at 170.245 MHz, making them interchangeable and allowing you to add to your system at any time. Note: For system compatibility, the component's frequency MUST match your existing system/component frequency.
- Compatible with all Azden "PRO" series microphones
- Two selectable VHF frequencies (169.445 & 170.245 MHz)
UPC: 095528040034 In the Box Bundle Items WLT/PRO VHF Wireless Bodypack Transmitter yvwwzsssceftvxcuqcubdcqszxz - EX-503 Lavalier Microphone
WR-PRO VHF Receiver for Pro Series - 1/8" Mono to Stereo Output Cable
Also Includes - 2" Adapter Cable, 1/8" Female TRS to 1/8" TRRS
- Hook and Loop Mounting Tape
- Limited 2-Year Warranty
User Manual PDF 3.2mbyvwwzsssceftvxcuqcubdcqszxz Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden WLX-PRO i VHF Wireless Lavalier Microphone System for Cameras & Mobile Devices in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - WLT/PRO VHF Wireless Bodypack Transmitter
| Modulation | FM | | Sensitivity | 94 dB SPL @ +/- 2.5 kHz Deviation | | Battery | 9 V Battery x1 | | Power Consumption | 30 mA | | Dimensions (HxWxD) | 3.3 x 2.4 x 0.85" (86 x 60 x 21.5 mm) | | Weight | 3.4 oz (98 g) | | | | Box Dimensions (LxWxH) | 11.0 x 3.0 x 3.0" | - WR-PRO VHF Receiver for Pro Series
| Reception Frequencies | F1: 169.445 MHz
F2: 170.245 MHz | | Type | Double superheterodyne | | Sensitivity | 2 mV @ S/N of 40 dB | | Battery | 1x 9 V | | Power Consumption | 25 mA | | Monitor Output | 1 V @ 30 ohms
Modulation Frequency: 1 kHz
Deviation: +/-7 kHz | | Microphone Output | 8 mV with 10 kOhm load
Modulation Frequency: 1 kHz
Deviation: +/-7 kHz | | Output Impedance | Mic: 300 ohms | | Dimensions (H x W x D) | 3.30 x 2.40 x 0.85" (86.0 x 60.0 x 21.5 mm) | | Weight | 4.5 oz (128 g), with battery | | | | Box Dimensions (LxWxH) | 3.0 x 2.5 x 0.5" |
