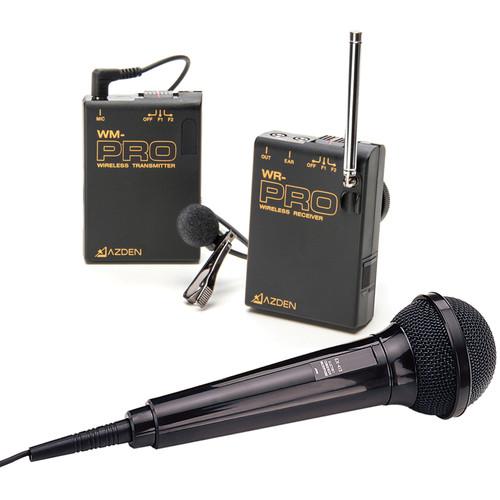

User Manual for Azden WMS-PRO VHF Wireless Lavalier and Handheld Mic System Click to enlarge the picture
Contents of the user manual for the Azden WMS-PRO VHF Wireless Lavalier and
- Product category: Wireless Systems Azden
- Brand: Azden
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Azden Wireless Systems
|
User manual for the Azden WMS-PRO VHF Wireless Lavalier and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Azden product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Azden user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Azden product will considerably shorten its lifespan!
|
Product description The WMS-PRO VHF Wireless Lavalier and Handheld Mic System from Azden are used to capture audio. The system works with DSLR and video cameras. It is a complete system used in various applications such as for wedding videographers, interviews, live stage, and more. This system transmits on the VHF frequency band and includes an output cable which makes it compatible with several consumer devices. The 2-channel switchable transmitter and receiver deliver clean reliable RF performance for up to 250'. The system includes a lavalier and a handheld mic which both attach to the same beltpack (but not simultaneously) The wireless lavalier and handheld system features a WM-PRO beltpack transmitter, an EX-413 wired electret condenser handheld mic, an EX-503 omnidirectional lavalier mic, and a WR-PRO camera-mount receiver. All receivers and transmitters in the PRO series are on the same 2 frequencies (169.445 and 170.245 MHz), allowing them to be interchangeable. This also allows you to switch frequencies if interference is encountered on one channel. The receiver is built with a single antenna. The receiver and transmitter are both individually powered by 9V batteries, and both have a shoe mount, and hook and loop fastener to attach to cameras or tripods. - The EX-503 features an omnidirectional polar pattern and provides a generous pick-up area at off-axis sections of the microphone
- The EX-413 omnidirectional microphone is wired with a mini-jack connector and designed to plug into the WM-PRO wireless beltpack transmitter
- 169.445 and 170.245 MHz are the two frequencies offered in this wireless system
- Can be used for wireless solutions on DSLR cameras, and camcorders
- Ultra lightweight system that doesn't change the weight on the camera when mounted
UPC: 095528000229 In the Box Azden WMS-PRO VHF Wireless Lavalier and Handheld Mic System WR-PRO VHF Receiver for Pro Series WLT/PRO VHF Wireless Bodypack Transmitter EX-413 Wired Handheld Microphone Mono to Stereo Output Cable Hook and Loop Fastener Limited 2-Year Warranty User Manual PDF 3.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Azden WMS-PRO VHF Wireless Lavalier and Handheld Mic System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAzden WMS-PRO Specs | | | Receiver Type | Double superheterodyne | | Sensitivity | 2 mV @ S/N of 40 dB | | Battery | 1 x 9 V alkaline | | Power Consumption | 25 mA | | Monitor Output | 1 V @ 30 W, modulation frequency 1 kHz, deviation +/-7 kHz | | Mic Output | 8 mV w/10 kW load, modulation frequency 1 kHz, deviation +/-7 kHz | | Dimensions (H x W x D) | 3.3 x 2.4 x 0.85" (86 x 60 x 21.5 mm) | | Weight | 4.5 oz (128 g) with battery | | | | Modulation System | FM | | Sensitivity | 94 dB SPL @ +/- 2.5 kHz deviation | | Battery | 1 x 9 V | | Power Consumption | 30 mA | | Dimensions (H x W x D) | 3.3 x 2.4 x 0.85" (86 x 60 x 21.5 mm) | | Weight | 3.4 oz (98 g) | | | | Mic | EX-503 | | Type | Electret condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 30 Hz to 18 kHz | | Impedance | 2.2 kΩ @ 1 kHz | | Sensitivity | -44 dB at 1 kHz (0 dB = 1 V/Pa) | | Power Requirement | 1 to 10 VDC | | Current Draw | 0.5 mA | | Connector | 1/8" (3.5 mm) mono | | | | Mic | EX-413 | | Type | Electret condenser | | Polar Pattern | Omnidirectional | | Connector | Wired 1/8" (3.5 mm) for PRO series transmitter | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 9.9 x 5.3 x 2.3" |
